Generic Replacement Dryer Motor Fricpart-107211 for Kenmore 86880100 - Instruction Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of the Generic Replacement Dryer Motor, model Fricpart-107211, designed for Kenmore 86880100 dryers. Please read these instructions carefully before proceeding with any installation or repair to ensure safe and correct usage.

Safety Information

WARNING:

• Always disconnect power to the appliance before attempting any repairs or installations. Failure to do so can result in serious injury or death.
• Appliance repairs should only be performed by qualified technicians. If you are unsure about any step, consult a professional.
• Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
• Ensure all connections are secure and correctly installed before restoring power to the appliance.

Compatibility

This replacement motor (Model: Fricpart-107211) is designed for Kenmore 86880100 OEM Dryer Motor. It is crucial to verify your appliance's model number and the part number to ensure compatibility before installation. Appliance parts can appear similar but may have critical differences.

Always check your dryer's model number and the existing part number against the specifications provided.

Installation

Replacing a dryer motor requires technical knowledge and experience. It is highly recommended that installation be performed by a certified appliance technician.

1. Disconnect Power: Ensure the dryer is completely unplugged from the electrical outlet or the circuit breaker is turned off.
2. Access the Motor: Depending on your dryer model, you may need to remove the top panel, front panel, or rear panel to access the motor. Refer to your specific dryer's service manual for detailed disassembly instructions.
3. Document Connections: Before disconnecting any wires or components, take clear photos or make diagrams of all electrical connections and belt routing.
4. Remove Old Motor: Carefully disconnect all wiring, remove the drive belt, and unmount the old motor from its housing.
5. Install New Motor: Mount the new Fricpart-107211 motor in the same position as the old one. Reconnect all electrical wires according to your documentation. Ensure the drive belt is correctly routed and tensioned.
6. Reassemble Dryer: Reattach all panels and components that were removed during disassembly.
7. Test Operation: Restore power to the dryer. Run a short cycle to ensure the motor operates correctly and there are no unusual noises or vibrations.

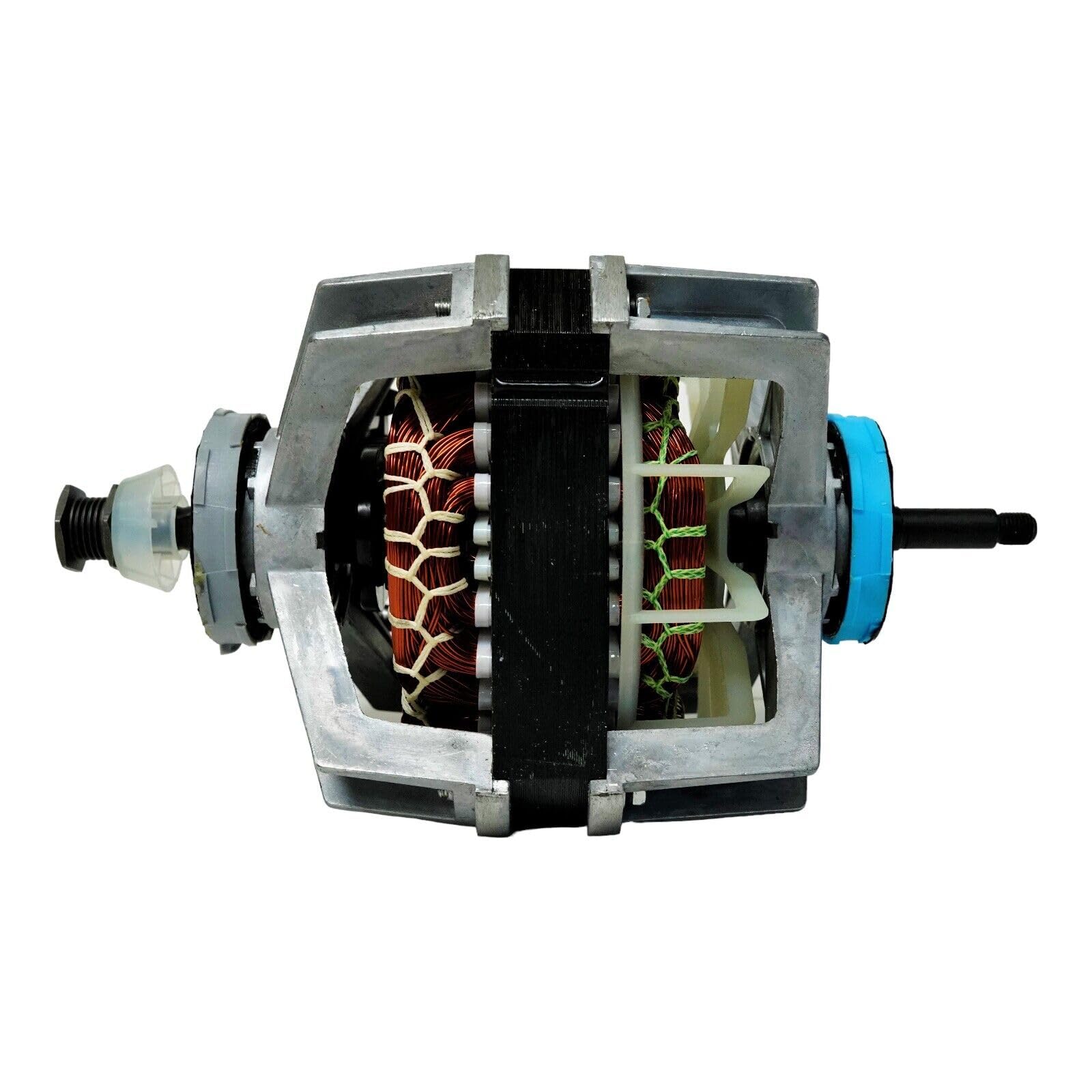

Figure 1: Generic Replacement Dryer Motor Fricpart-107211. This image shows the general appearance of the replacement motor.

Operation

Once the replacement dryer motor is correctly installed, the dryer should operate as intended. The motor is responsible for spinning the dryer drum and, in some models, powering the blower fan. Proper operation is indicated by the drum rotating smoothly and the dryer producing heat (if applicable to the motor's function in your specific dryer model).

If the dryer exhibits unusual noises, fails to start, or the drum does not spin, refer to the Troubleshooting section.

Maintenance

The dryer motor itself typically requires no routine maintenance. However, to ensure the longevity of your dryer and its components, consider the following general maintenance tips:

• Regularly clean the lint filter before or after every load.
• Periodically inspect and clean the dryer's exhaust vent to prevent lint buildup, which can strain the motor and create a fire hazard.
• Ensure the dryer is not overloaded, as this can put excessive strain on the motor and other moving parts.

Troubleshooting

If your dryer is not functioning correctly after motor replacement, consider these common issues:

• Dryer Not Starting:
  • Check if the dryer is properly plugged in and the circuit breaker is on.
  • Verify all electrical connections to the motor are secure.
  • Ensure the door switch is functioning correctly and the door is fully closed.
• Drum Not Spinning:
  • Inspect the drive belt for proper routing and tension. Ensure it is not broken or slipped off.
  • Check for any obstructions preventing the drum from turning freely.
• Unusual Noises:
  • Rattling or grinding noises might indicate loose components or issues with the motor's bearings.
  • Squealing could be a sign of a worn idler pulley or a misaligned belt.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance technician.

Specifications

Warranty and Support

For warranty information or technical support regarding this replacement part, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Fricparts

For further assistance, refer to the contact information provided at the point of purchase.
