1. Safety Instructions
Please read all safety instructions carefully before operating the appliance to prevent injury and damage. Keep this manual for future reference.
- Electrical Safety: Ensure the appliance is connected to a properly grounded 230V power outlet (Type F – 2-pin, Germany standard). Do not use extension cords or adapters. Disconnect power before cleaning or maintenance.
- Ventilation: Maintain adequate clearance around the unit (minimum 10 cm from walls) to ensure proper air circulation and prevent overheating. Do not block ventilation openings.
- Refrigerant: This appliance uses R-290 refrigerant. Servicing should only be performed by qualified personnel. Do not damage the refrigerant circuit.
- Placement: Place the unit on a firm, level surface. Avoid direct sunlight, heat sources, or areas with high humidity. This appliance is designed for indoor commercial use only.
- Child Safety: Keep children away from the appliance. Ensure doors cannot be accidentally closed on children.
- Disposal: Dispose of the appliance according to local regulations for refrigerants and electronic waste.
2. Setup and Installation
2.1 Unpacking
Carefully remove all packaging materials, including any protective films or tapes. Inspect the appliance for any shipping damage. Report any damage to your supplier immediately.
2.2 Placement
Position the refrigerator in its desired location. Ensure the surface is level and stable. Allow at least 10 cm of clearance from walls and other objects for proper ventilation. The power cable length is 190 cm.
Figure 1: Product dimensions (Width: 92.5 cm, Depth: 69.5 cm, Height: 200 cm) and recommended wall clearance (min. 10 cm).
2.3 Leveling and Stability
The refrigerator is equipped with four casters for easy movement. Two of these casters have brakes. Once the unit is in its final position, engage the brakes on the two casters to ensure stability and prevent unintended movement.
Figure 2: Detail of casters with locking brakes for secure positioning.
2.4 Shelf Installation
The unit comes with 8 adjustable shelves. Insert the shelves into the desired support rails inside the cabinet. Ensure they are securely seated before placing items on them. The shelves can be rearranged to accommodate various bottle and can sizes.

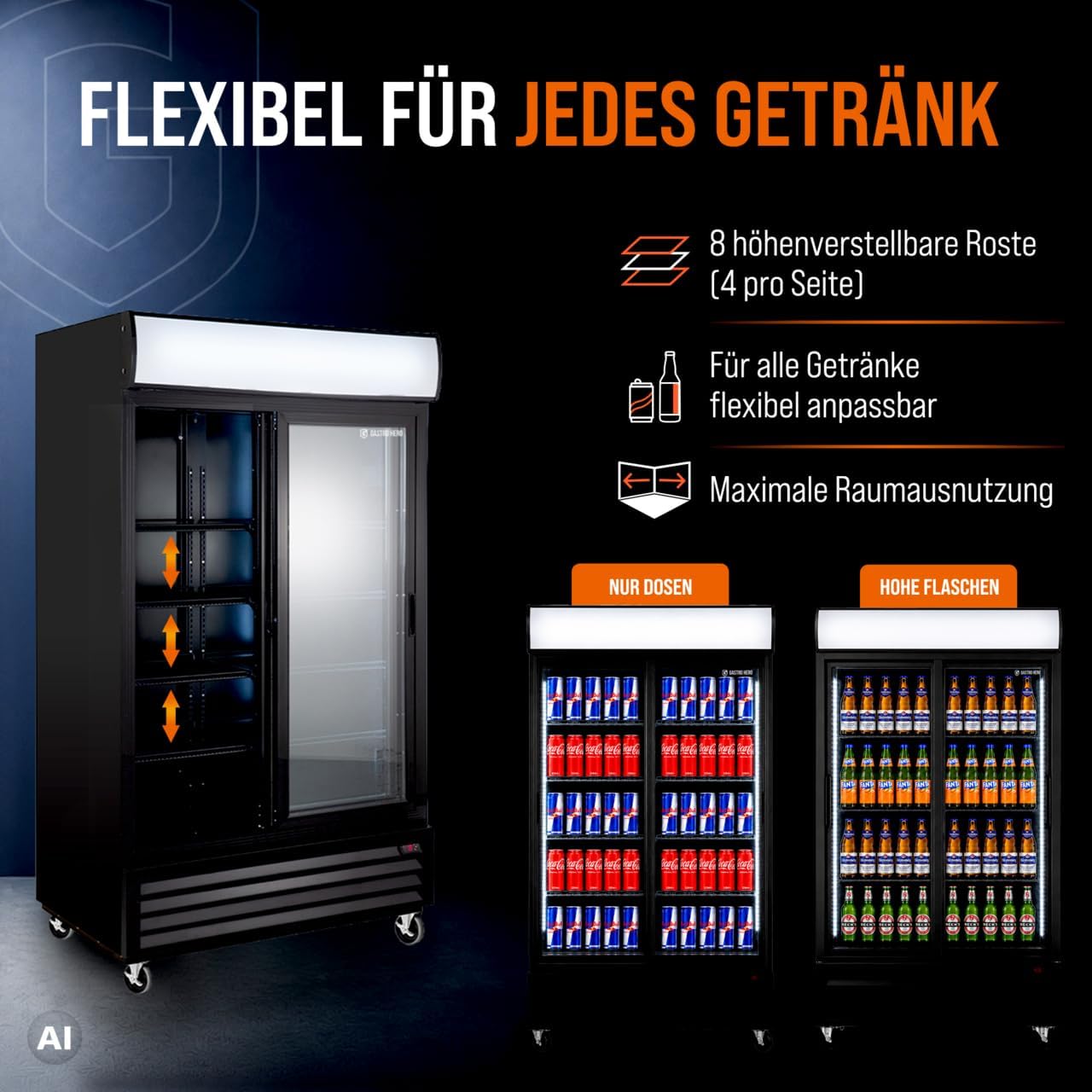

Figure 3: Interior view demonstrating the adjustable shelf system.
2.5 Power Connection
After placement and leveling, allow the refrigerator to stand upright for at least 2-4 hours before plugging it into the power outlet. This allows the refrigerant to settle. Connect the appliance to a dedicated 230V, 50Hz power supply with a Type F plug.
3. Operation
3.1 Initial Startup
Once plugged in, the refrigerator will begin to cool. The digital temperature display will show the current internal temperature. Allow the unit to run empty for several hours to reach the desired operating temperature before loading with beverages.
3.2 Temperature Control
The GastroHero Eco 630 maintains a temperature range of +2°C to +8°C. Use the digital temperature control panel to set your desired temperature. Refer to the control panel diagram (Figure 4) for specific button functions. The forced air circulation system ensures uniform cold air distribution.
Figure 4: Internal fan and temperature control dial for precise temperature management.
3.3 Lighting Control
The integrated LED interior lighting can be controlled separately. Locate the light switch, typically near the control panel or on the top front of the unit, to turn the lights on or off as needed for optimal product presentation.
Figure 5: Refrigerator interior illuminated by LED lighting, showcasing beverages.
3.4 Loading the Refrigerator
When loading beverages, ensure that items do not block the internal air vents or obstruct the sliding doors. Proper air circulation is crucial for maintaining consistent temperatures throughout the cabinet. Arrange items to allow for easy access and visibility.
4. Maintenance
Regular maintenance ensures optimal performance and longevity of your appliance.
4.1 Cleaning
- Before Cleaning: Always unplug the refrigerator from the power outlet.
- Interior: Clean the interior regularly with a mild detergent and warm water. Wipe dry with a soft cloth. Avoid abrasive cleaners, solvents, or harsh chemicals that could damage surfaces.
- Exterior: Wipe the exterior surfaces with a damp cloth and mild detergent. Dry thoroughly.
- Condenser Coils: Periodically clean the condenser coils (located at the back or bottom of the unit) with a soft brush or vacuum cleaner to remove dust and debris. This improves cooling efficiency.
4.2 Defrosting
The GastroHero Eco 630 features an automatic defrost system. This means that ice buildup on the evaporator coils is periodically melted and drained away, eliminating the need for manual defrosting under normal operating conditions.
4.3 Gasket Care
Keep the door gaskets clean and free of food particles or debris. A clean, pliable gasket ensures a tight seal, preventing cold air loss and maintaining energy efficiency. If gaskets become stiff or damaged, they may need replacement.
5. Troubleshooting
Before contacting service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | No power supply Temperature set too high Door not closed properly Blocked air vents | Check power connection and circuit breaker Adjust thermostat to a lower temperature Ensure doors are fully closed and gaskets are clean Rearrange items to allow air circulation |
| Excessive noise | Unit not level Fan obstruction Loose parts | Adjust leveling feet/brakes Check for any objects interfering with the fan Contact service if noise persists |
| Water leakage inside/outside | Clogged defrost drain High humidity Damaged drain pan | Clear the defrost drain hole Ensure doors are not left open for extended periods Contact service for inspection |
| Interior light not working | Light switch off LED failure | Check light switch position Contact service for LED replacement |
6. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | GastroHero |
| Model Name | SC-630FS |
| Product Dimensions (DxWxH) | 69.5 cm x 92.5 cm x 200 cm |
| Item Weight | 97.5 Kilograms |
| Capacity (Net Refrigerator) | 630 Liters |
| Color | Black |
| Installation Type | Freestanding |
| Number of Doors | 2 (Sliding Doors) |
| Number of Shelves | 8 (Adjustable) |
| Cooling Method | Compressor with Forced Air Circulation |
| Temperature Range | +2 °C to +8 °C |
| Defrost System | Automatic |
| Voltage | 230 Volts |
| Power Source | Electric Cable |
| Electrical Plug | Type F – 2-pin (Germany) |
| Refrigerant | R-290 |
| Annual Energy Consumption | 2427 kWh/year |
| Country of Origin | China |
| International Article Code (EAN/UPC) | 04255614816363 |
Figure 6: Energy label for GastroHero SC-630FS, showing energy class F and annual consumption.
7. Warranty and Support
7.1 Warranty Information
This GastroHero product is covered by standard legal guarantees and a 30-day return policy from the date of purchase. Please retain your proof of purchase for any warranty claims.
7.2 Customer Support
For technical assistance, spare parts, or any issues not covered in this manual, please contact GastroHero customer support. You can find contact details on the official GastroHero website or through your point of purchase.
