Deplite PR-708 3-in-1 IPL Hair Removal Device with Cooling Function User Manual

1. Introduction

Thank you for choosing the Deplite PR-708 3-in-1 IPL Hair Removal Device. This manual provides essential information for the safe and effective use of your device. Please read it thoroughly before first use and keep it for future reference.

The Deplite PR-708 is designed for home-use hair removal, offering three functions: Hair Removal (HR), Skin Rejuvenation (RA), and Acne Clearance (SC). It features an integrated cooling function for enhanced comfort during treatment and 9 adjustable intensity levels.

Image 1.1: The Deplite PR-708 IPL Hair Removal Device, showing its ergonomic design, digital display, and control buttons.

2. Important Safety Information

Please observe the following safety precautions to prevent injury or damage to the device:

• This product is not suitable for everyone. Do not use if you have light-colored hair or dark skin. Refer to the skin and hair color chart before use.
• Do not use if you have skin conditions such as allergic dermatitis or eczema.
• Not recommended for pregnant women, women during their menstrual period, or during lactation.
• Avoid use on skin burns.
• Keep out of reach of children under 15 years of age.

Image 2.1: Warning labels from the product packaging, detailing contraindications for use.

3. Product Overview

3.1 Key Features

• 3-in-1 Functionality: Hair Removal (HR), Skin Rejuvenation (RA), and Acne Clearance (SC).
• Integrated Cooling Function: Provides a comfortable and pain-free experience.
• 9 Intensity Levels: Adjustable to suit different skin sensitivities and treatment areas.
• High Flash Count: Up to 999,900 flashes for long-term use.
• Dual Mode: Supports both manual and automatic flash modes.

3.2 Device Components

The device typically includes a flash window, a digital display showing flash count and intensity level, power button, and mode selection button. The cooling plate is integrated around the flash window.

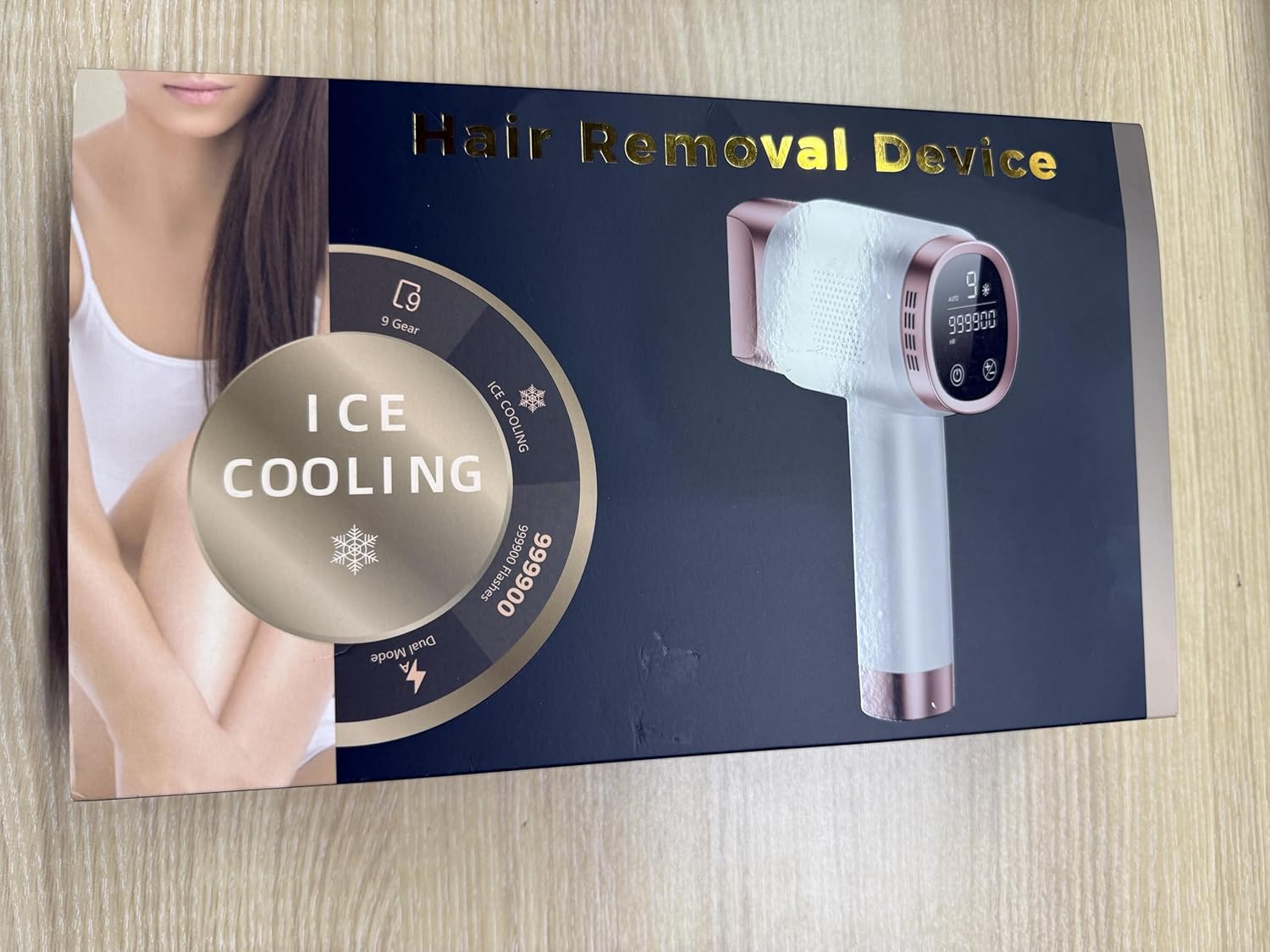

Image 3.1: Product packaging illustrating key features such as 'ICE COOLING', '9 Gear' (intensity levels), and 'Dual Mode'.

4. Setup and Preparation

1. Unpack the Device: Carefully remove the IPL device and all accessories from the packaging.
2. Inspect for Damage: Check the device and power adapter for any visible damage. Do not use if damaged.
3. Connect Power: Plug the power adapter into the device and then into a suitable electrical outlet.

5. Operating Instructions

5.1 Skin and Hair Type Compatibility

The effectiveness and safety of IPL treatment depend on your skin tone and hair color. Please consult the chart below to determine if the device is suitable for you.

(✔ means applicable, ✘ means not applicable). If you are not sure about your skin/hair type, please refer to the Skin & Body Hair Type Chart before using.

Image 5.1: Visual guide for checking skin tone and hair color compatibility for IPL treatment.

5.2 Basic Usage Steps

1. Prepare Skin: Shave any visible hair from the treatment area before each use.
2. Position Device: Place the device's flash window vertically (90°) against the skin.
3. Activate Flash: Press the flash button. For continuous flashing, use the automatic mode.
4. Post-Treatment Care: After treatment, clean the flash window with a dry cloth. Apply skin care products to moisturize the treated area.

Image 5.2: Step-by-step visual instructions for preparing the skin, positioning the device, and post-treatment care.

5.3 Selecting Modes and Intensity Levels

• Power On/Off: Press and hold the power button to turn the device on or off.
• Adjust Intensity: Short press the power button to cycle through the 9 intensity levels. Start with a lower level and gradually increase as your skin tolerates.
• Select Mode: Use the mode button to switch between Hair Removal (HR), Skin Rejuvenation (RA), and Acne Clearance (SC) functions.
• Cooling Function: The integrated cooling function activates automatically to maintain a comfortable skin temperature during use.

6. Recommended Treatment Schedule

For optimal hair removal results, follow a consistent treatment schedule. Initial treatments are typically performed every 1-2 weeks for the first 4-8 weeks. After this initial phase, treatments can be spaced out to once a month or as needed for maintenance.

Individual results may vary based on skin tone, hair color, and consistency of use. Significant reduction in hair growth is often observed after 4 weeks of regular use.

Image 6.1: Visual representation of potential hair reduction results after consistent IPL treatment.

7. Maintenance and Storage

7.1 Cleaning the Device

• Always unplug the device before cleaning.
• Use a dry, soft cloth to wipe the flash window and the device body.
• Do not use abrasive cleaners, alcohol, or harsh chemicals, as these can damage the device.
• Ensure no liquid enters the device.

7.2 Storage

• Store the device in a cool, dry place, away from direct sunlight and moisture.
• Keep the device out of reach of children.
• If possible, store the device in its original packaging to protect it from dust and damage.

8. Troubleshooting

9. Technical Specifications

• Model: PR-708
• Functions: 3-in-1 (Hair Removal, Skin Rejuvenation, Acne Clearance)
• Input: 100-240V~50/60Hz
• Output: 24V = 1.5A
• Power: 36W
• Flashes: 999,900
• Intensity Levels: 9
• Cooling Function: Yes
• Units: 1 count
• Package Dimensions: 30.4 x 18.4 x 6.7 cm
• Package Weight: 1.04 kg
• ASIN: B0FJF88ZLZ

Image 9.1: Product information and specifications as listed on the device packaging.

10. Manufacturer Information and Support

For technical support, warranty claims, or further inquiries, please contact the manufacturer:

• Manufacturer: SHENZHEN IONKA MEDICAL TECHNOLOGY CO., LTD
• Address: Room 301, Building 3, Jinfang Shengshi Industrial Park, Fuyong Street, Bao'an District, Shenzhen
• Email: ionkamedical@gmail.com
• Telephone: +86 5281 609791

Please retain your proof of purchase for warranty purposes.
