PmoYoKo 2500W Handheld Steam Cleaner

1. Setup

1.1 Unboxing and Components

Your PmoYoKo 2500W Handheld Steam Cleaner comes with a comprehensive set of accessories to tackle various cleaning tasks. Please ensure all components are present upon unboxing.

• Window Brush (1)
• Measuring Cup (1)
• Washcloth (1)
• Nylon Brush (2)
• Copper Brush (2)
• 6.5Ft Extension tube (1)
• Bent Nozzle (1)
• Nozzle (1)
• Heat-Resistant Glove (1)
• Towel Sleeve (3)
• Large Nylon Brush (1)
• 5.9ft Power Cord (1)
• Extended Extension Pole (1)

For a visual guide on unboxing and component identification, please refer to the following video:

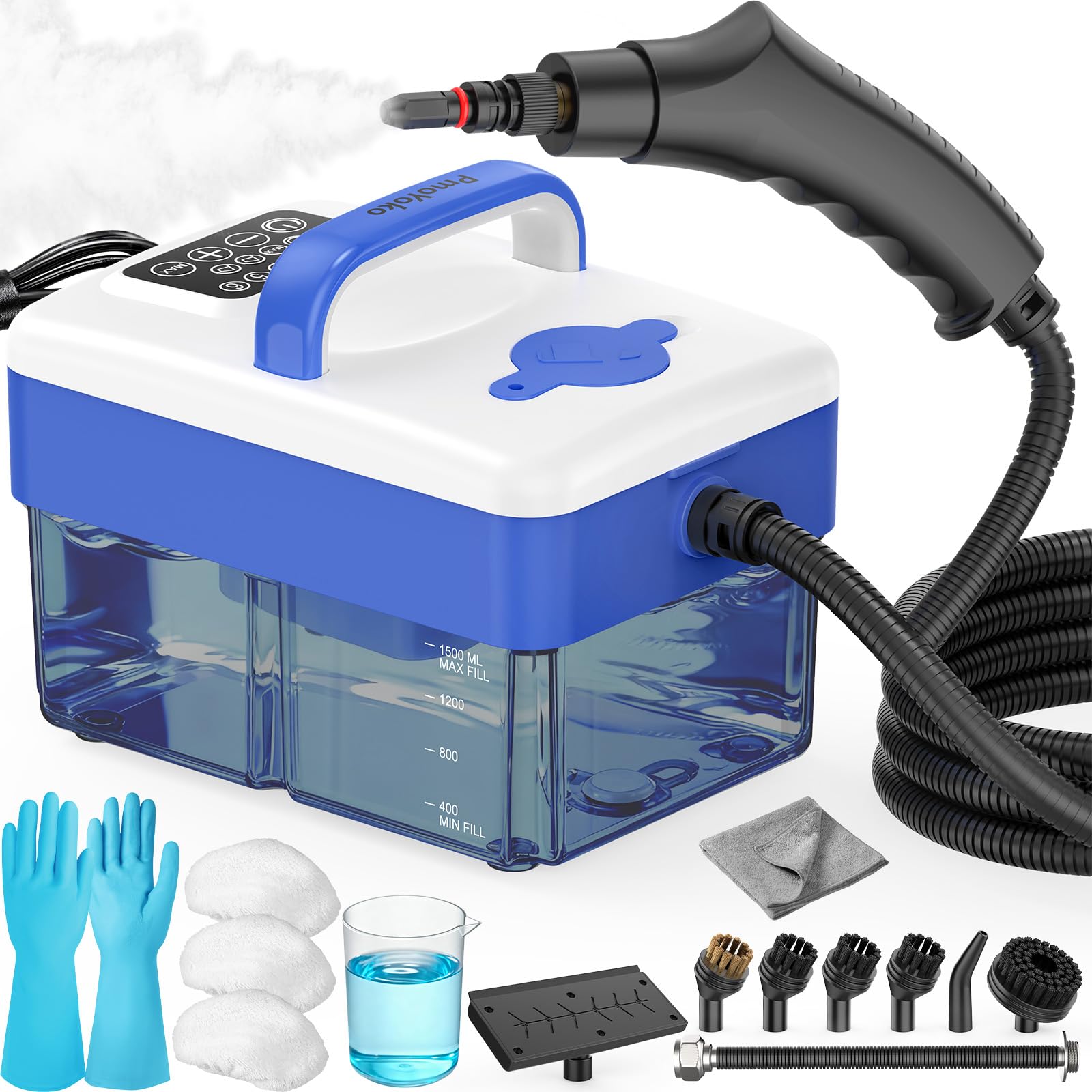

1.2 Water Filling

Before operating the steam cleaner, ensure the water tank is filled correctly. The unit features a large 1.6L (54 oz) tank for extended cleaning sessions.

1. Locate the water filling port on the top of the main unit.
2. Use the provided measuring cup to fill the tank with clean water.
3. Do not overfill the tank; ensure the water level does not exceed the maximum fill line indicated on the unit.
4. Securely close the water filling port cover.

1.3 Attaching Accessories

The steam cleaner is designed for easy attachment and detachment of its various accessories. Always ensure the unit is unplugged and cool before changing attachments.

1. Select the desired accessory (e.g., brush, nozzle, scraper).
2. Align the accessory with the steam outlet on the handheld gun.
3. Push and twist gently until it clicks securely into place.
4. When using brush attachments, you may use the provided heat-resistant gloves for safety.

For a demonstration of attaching accessories, please watch the following video:

2. Operating

2.1 Power On and Heating

The PmoYoKo steam cleaner is designed for rapid heating, reaching optimal steam temperature in just 10-15 seconds.

1. Plug the power cord into a suitable electrical outlet (110 Volts).
2. Press the power button on the main unit. The indicator light will turn red during heating.
3. Wait approximately 10-15 seconds for the indicator light to turn blue, signaling that the unit has reached its operating temperature of 221°F (105°C).

See the rapid heating in action:

2.2 Adjustable Steam Modes

The steam cleaner offers 7 adjustable intensity levels, allowing you to customize the steam output for different cleaning needs. The maximum pressure is 3.5 Bar.

1. Use the '+' and '-' buttons on the main unit to cycle through the 7 steam intensity levels.
2. Select a lower setting for delicate surfaces or light cleaning.
3. Select a higher setting (MAX mode) for stubborn messes and heavy-duty cleaning.

Observe the steam adjustment in this video:

2.3 General Usage

The PmoYoKo steam cleaner is versatile and can be used on various surfaces including floors, windows, grout, car interiors, and upholstery. It uses pure steam, eliminating the need for harsh chemicals.

• Hold the steam gun close to the surface you are cleaning for optimal results.
• Move the steam gun slowly over the area to allow the steam to penetrate and loosen dirt.
• Wipe away loosened dirt and moisture with a clean cloth or the provided washcloth.
• For tough stains, use appropriate brush attachments (nylon or copper) with higher steam settings.

See the steam cleaner in action on various surfaces:

3. Maintenance

3.1 Cleaning Nozzles

Over time, mineral deposits can accumulate in the steam outlet, potentially reducing steam output. Use the provided descaling needle to clear any blockages.

1. Ensure the steam cleaner is unplugged and completely cooled down.
2. Carefully insert the descaling needle into the steam outlet.
3. Gently move the needle to dislodge any mineral buildup.
4. Remove the needle and test the steam output. Repeat if necessary.

3.2 General Care

To ensure the longevity and optimal performance of your steam cleaner, follow these general care guidelines:

• After each use, empty any remaining water from the tank.
• Wipe down the exterior of the unit and accessories with a soft, damp cloth.
• Store the steam cleaner and its accessories in a cool, dry place away from direct sunlight.

4. Troubleshooting

4.1 Common Issues

• Low or No Steam Output: Check if the water tank is empty. Refill if needed. Inspect the steam outlet for blockages and use the descaling needle if necessary.
• Water Leakage: Ensure all accessory connections are tight. Check the O-rings for wear or damage and replace if needed.
• Unit Not Heating: Verify that the power cord is securely plugged into a working electrical outlet. Ensure the power button is pressed and the indicator light is red (heating) or blue (ready).

4.2 Safety Warnings

Always prioritize safety when using the steam cleaner:

• Do not point the steam gun at people, pets, or plants.
• Do not immerse the main unit or power cord in water or other liquids.
• Always use the provided heat-resistant gloves when attaching or detaching accessories, especially when the unit is hot.
• Keep the unit out of reach of children and pets.

5. Specifications

6. Warranty and Support

6.1 Warranty Information

Specific warranty details are not provided in the product information. Please refer to the manufacturer's official website or contact their customer service for comprehensive warranty terms and conditions.

6.2 Customer Support

For any questions, technical assistance, or support needs, please contact PmoYoKo customer service through their official channels. Contact information can typically be found on the product packaging or the manufacturer's website.
