Foleto 24 Volt RS555 35000 RPM High-Speed Motor Gearbox

Introduction

This manual provides comprehensive instructions for the Foleto 24 Volt RS555 35000 RPM High-Speed Motor Gearbox, designed as a replacement and upgrade part for Power Wheels and other kid's electric vehicles. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of the product.

Image: The Foleto 24 Volt RS555 35000 RPM High-Speed Motor Gearbox, showing its compact design and included components.

Product Features

• High-Performance Motor: 24 Volt RS555 motor with 35000 RPM for high-speed operation, ideal for upgrading Power Wheels and other ride-on toys.
• Durable Construction: Built with composite material for enhanced longevity and robust performance, ensuring a dependable solution for replacement needs.
• Easy Installation: Designed for straightforward installation without the need for electric welding, minimizing downtime and hassle.
• Broad Compatibility: Fits a wide range of electric vehicles, including UTV/ATV/Truck Car/SUV models, and is compatible with most 24V ride-on toys.
• Complete Kit: Includes 1 high-quality 24V power motor gearbox, 1 gearbox coupler, and 1 cable for immediate use.

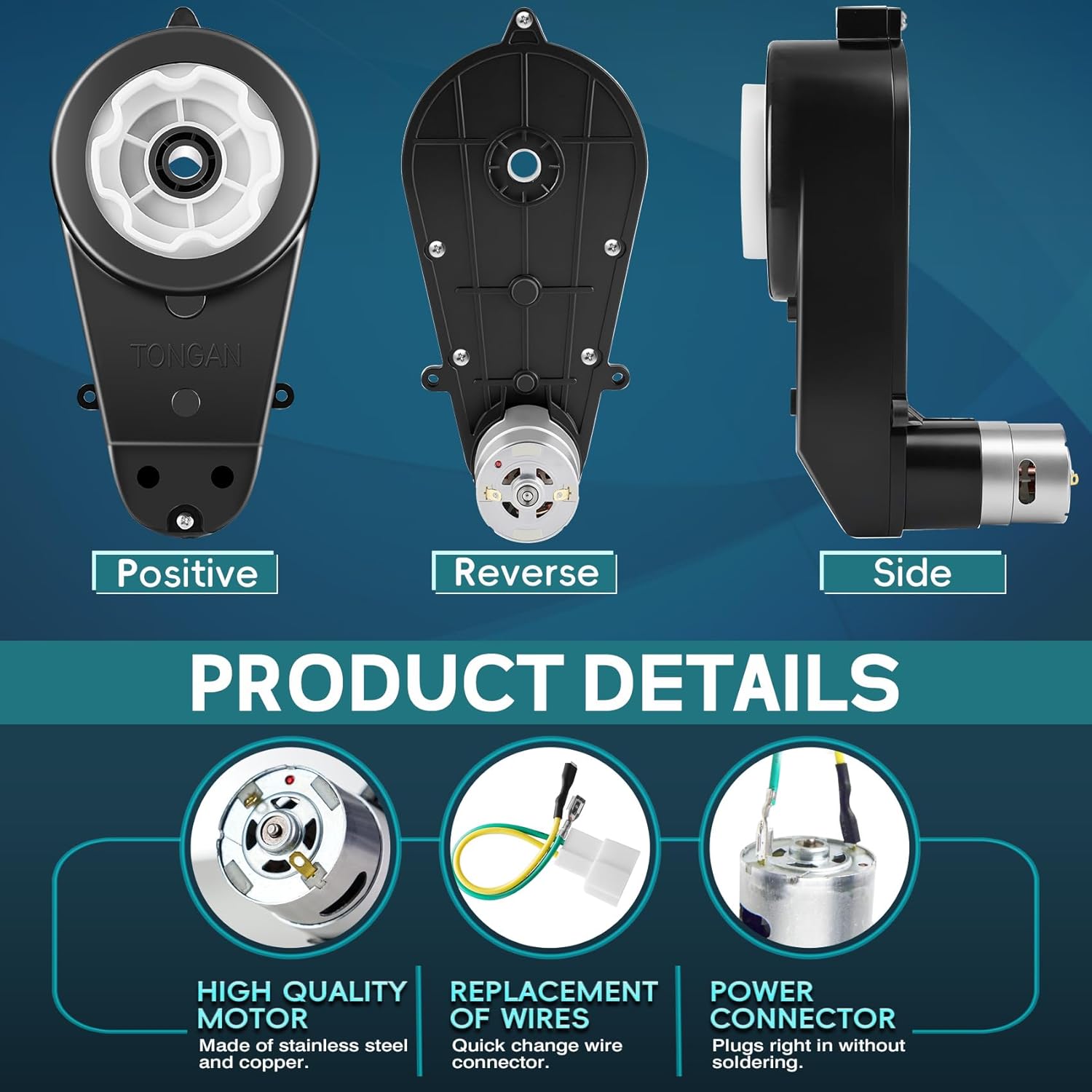

Image: Detailed view of the motor's internal components, including the high-quality motor, quick-change wire connector, and power connector.

Image: Visual comparison highlighting the durable and sturdy construction of the Foleto motor gearbox compared to less robust alternatives.

Specifications

Image: Detailed diagram showing the dimensions of the motor gearbox and its components.

Installation Guide

The Foleto motor gearbox is designed for easy, weld-free installation. Follow these steps to replace or upgrade your electric vehicle's motor:

1. Prepare the Vehicle: Ensure the electric vehicle is turned off and disconnected from any power source. Remove the wheels and access the existing motor gearbox assembly.
2. Remove Old Gearbox: Carefully detach the old or damaged motor gearbox from its mounting points and disconnect any wiring.
3. Install New Gearbox: Position the new Foleto motor gearbox in place. Connect the provided cables to the appropriate terminals. If using the coupler, screw it onto the wheels for installation.
4. Secure Components: Ensure all connections are secure and the gearbox is firmly mounted. Reattach the wheels.
5. Test Functionality: Before full operation, perform a brief test to ensure the motor functions correctly and the wheels spin as expected.

Image: Visual guide illustrating the simple, no-welding installation process for the motor gearbox.

Installation Video Tutorial

Video: A detailed video demonstrating the process of replacing and installing the motor gearbox in a kid's electric vehicle, including wheel removal and reattachment.

Operation

Once installed, the Foleto 24V RS555 motor gearbox will provide enhanced power and speed to your child's electric ride-on toy. The motor operates seamlessly with the vehicle's existing electrical system. Ensure the vehicle's battery is fully charged for optimal performance.

Image: Examples of various kid's electric vehicles, such as toy cars, tractors, and dump trucks, that can be upgraded with this motor gearbox.

Maintenance

To ensure the longevity and optimal performance of your Foleto motor gearbox, consider the following maintenance tips:

• Regular Inspection: Periodically check the motor and gearbox for any signs of wear, loose connections, or damage.
• Keep Clean: Keep the motor and surrounding area free from dirt, dust, and debris, which can impede performance.
• Avoid Overloading: Do not exceed the recommended weight capacity of the electric vehicle, as this can strain the motor.
• Proper Storage: When not in use for extended periods, store the vehicle in a dry, cool place.

Troubleshooting

If you encounter issues with your Foleto motor gearbox, consider the following common troubleshooting steps:

• Motor Not Running:
  • Check all electrical connections to ensure they are secure and properly connected.
  • Verify the vehicle's battery is fully charged and functioning correctly.
  • Inspect for any visible damage to the motor or wiring.
• Reduced Speed/Power:
  • Ensure the battery is fully charged.
  • Check for any obstructions in the gearbox or wheels.
  • Confirm the motor is securely mounted and not slipping.
• Unusual Noises:
  • Inspect the gearbox for any foreign objects or debris.
  • Check for loose gears or components within the gearbox.

For issues not resolved by these steps, please refer to the After-Sales Services section for further assistance.

Warranty and Support

Foleto is committed to providing high-quality products and excellent customer service. If you have any questions or require assistance with your motor gearbox, please contact our professional after-sales staff. We aim to provide satisfactory solutions within 24 hours.

For support, please visit the Foleto Store on Amazon or contact us directly through the platform where you purchased the product.
