1. Important Safety Information
Please read this entire manual before assembly and use of the AIYAPLAY Pedal Go-Kart. Failure to follow these instructions may result in serious injury.
- Adult Supervision Required: Always ensure an adult supervises children using the go-kart.
- Age and Weight Limits: This go-kart is designed for children aged 3 to 6 years, with a maximum weight capacity of 50 kg (110 lbs).
- Protective Gear: Always wear a helmet, knee pads, and elbow pads when riding.
- Safe Riding Environment: Use on flat, dry, and clear surfaces away from traffic, steep inclines, stairs, and swimming pools. Avoid riding in wet conditions or at night.
- Braking: Instruct children on proper use of the hand brake.
- Footwear: Children should wear closed-toe shoes while operating the go-kart.
- Assembly: Adult assembly is required. Ensure all parts are securely fastened before use.
Image 1.1: The AIYAPLAY Pedal Go-Kart, featuring a blue and black design with a comfortable seat and pedal system.
2. Product Overview
The AIYAPLAY Pedal Go-Kart is designed to provide an engaging and active play experience for young children. It features a robust metal and plastic construction, EVA wheels for quiet operation, and a simple pedal system for forward and reverse motion.
Key Features:
- Free-Wheel System: Allows the go-kart to continue rolling without the pedals turning, similar to a bicycle.
- Hand Brake: Provides reliable stopping power for safety.
- EVA Wheels: Durable and quiet, suitable for various outdoor surfaces.
- Forward and Reverse: Simple pedal operation for directional control.
- Comfortable Seat: Wide seat (23 cm) and high backrest (32 cm) for optimal comfort.
Image 2.1: A child enjoying the AIYAPLAY Pedal Go-Kart on a paved path, demonstrating its use in an outdoor setting.
3. Assembly Instructions (Setup)
The AIYAPLAY Pedal Go-Kart requires adult assembly. Please ensure all components are present and undamaged before beginning. Refer to the detailed assembly diagram and step-by-step instructions included in the packaging for precise guidance.
General Assembly Steps:
- Unpack all components and verify against the parts list.
- Attach the front axle and steering column to the main frame.
- Install the wheels onto the axles, ensuring they are securely fastened.
- Mount the seat onto the frame, adjusting for the child's comfort if applicable.
- Connect the pedal mechanism and chain drive.
- Attach the hand brake lever and connect it to the braking mechanism.
- Perform a final check to ensure all nuts, bolts, and fasteners are tight and secure.
Note: The go-kart features an automatic clutch system for smooth operation, which is integrated during assembly.

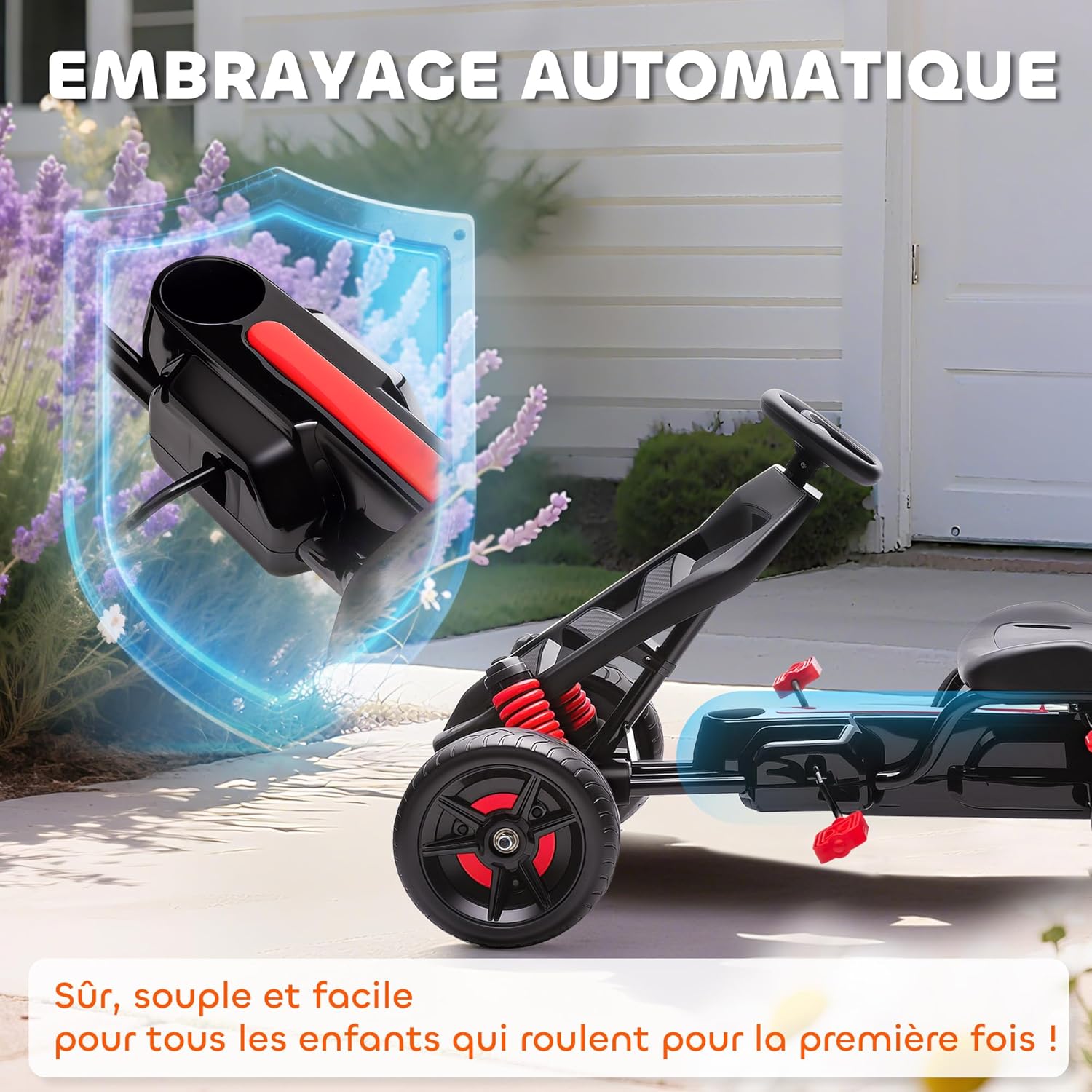

Image 3.1: Detail of the automatic clutch system, designed for smooth and easy pedaling, especially for new riders.
4. Operating Instructions
Operating the AIYAPLAY Pedal Go-Kart is straightforward, designed for young children to learn quickly.
How to Ride:
- Seating: Ensure the child is seated comfortably with their feet able to reach the pedals.
- Steering: Hold the steering wheel firmly with both hands.
- Forward Motion: To move forward, pedal in a clockwise direction.
- Reverse Motion: To move backward, pedal in a counter-clockwise direction. The go-kart does not require a manual gear shift for reverse.
- Braking: To stop, pull the hand brake lever located on the side. Practice braking in a safe area before riding at speed.
- Free-Wheel Function: When the child stops pedaling, the go-kart will continue to roll due to the free-wheel system, allowing for coasting.
Image 4.1: A child operating the go-kart, with visual cues illustrating the functions of braking, reversing, and moving forward.
Image 4.2: The go-kart's silent and anti-slip EVA wheels are suitable for various terrains, including asphalt, cement, and brick paths.
5. Maintenance
Regular maintenance will ensure the longevity and safe operation of your AIYAPLAY Pedal Go-Kart.
- Cleaning: Wipe down the go-kart with a damp cloth after use. Avoid harsh chemicals or abrasive cleaners.
- Inspections: Periodically check all nuts, bolts, and fasteners to ensure they are tight. Re-tighten if necessary.
- Wheel Condition: Inspect the EVA wheels for any signs of wear or damage.
- Chain Lubrication: If the chain becomes noisy or stiff, apply a small amount of bicycle chain lubricant.
- Storage: Store the go-kart in a dry, covered area away from direct sunlight and extreme temperatures to prevent material degradation.
6. Troubleshooting
If you encounter issues with your go-kart, refer to the following common troubleshooting tips:
- Go-Kart does not move when pedaling:
- Check if the chain is properly seated on the sprockets.
- Ensure pedals are securely attached and functioning.
- Steering is stiff or difficult:
- Inspect the steering column for any obstructions.
- Check that all steering components are correctly assembled and not overly tightened.
- Brake is not effective:
- Verify the brake cable is properly connected and tensioned.
- Ensure the brake pads are making proper contact with the wheel.
- Unusual noises during operation:
- Check for loose parts or foreign objects caught in the wheels or chain.
- Lubricate the chain if it sounds dry.
If problems persist, contact customer support for further assistance.
7. Specifications
Detailed specifications for the AIYAPLAY Pedal Go-Kart, Model 370-395V00BU.
| Feature | Specification |
|---|---|
| Model Number | 370-395V00BU |
| Overall Dimensions (L x W x H) | 100 cm x 59 cm x 60.5 cm (39.4" x 23.2" x 23.8") |
| Recommended Age | 3 - 6 years |
| Recommended Height | 110 - 135 cm (43.3" - 53.1") |
| Maximum Weight Capacity | 50 kg (110 lbs) |
| Product Weight | 10.9 kg (24 lbs) |
| Material | Metal, Plastic |
| Wheel Type | EVA Foam (24 cm diameter) |
| Seat Dimensions (W x Backrest H) | 23 cm x 32 cm (9.1" x 12.6") |
| Safety Standards | EN71-1-2-3 |
| Assembly Required | Yes |
Image 7.1: The go-kart's comfortable seat, showing its 23 cm width and 32 cm high backrest for a relaxed ride.
Image 7.2: A visual representation of the go-kart's dimensions (100 cm L x 59 cm W x 60.5 cm H) and the recommended age range (3-6 years) and height (110-135 cm).
8. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
If you require technical support, have questions about assembly, or need replacement parts, please contact AIYAPLAY customer service. Contact details can usually be found on the product packaging or the manufacturer's official website.
Please have your model number (370-395V00BU) and proof of purchase ready when contacting support.
Image 8.1: The AIYAPLAY Pedal Go-Kart presented as a gift, suitable for children aged 3-6 years with a weight limit of 50 kg and height range of 110-135 cm.
