Pudyavr Smart Toilet G7 Instruction Manual

1. Introduction

Thank you for choosing the Pudyavr Smart Toilet G7. This advanced toilet system integrates powerful flushing capabilities with intelligent bidet functions, designed for enhanced hygiene and comfort. Featuring a 1000 Gram MaP flush score, ADA comfort height, and an intuitive LED display, the G7 model offers a sophisticated bathroom experience. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your smart toilet.

Image 1.1: Pudyavr Smart Toilet G7 with its wireless remote control.

2. Important Safety Information

Please read all instructions carefully before installation and use. Retain this manual for future reference.

• Electrical Safety: This appliance uses electricity. Ensure proper grounding and follow all local electrical codes. Do not immerse the unit in water. Disconnect power before servicing.
• Water Connection: Ensure all water connections are secure to prevent leaks. Use only the provided or recommended components.
• Children and Vulnerable Individuals: Supervise children and individuals with reduced physical, sensory, or mental capabilities to ensure safe operation.
• Cleaning: Use only mild, non-abrasive cleaners. Avoid harsh chemicals that may damage surfaces or internal components.
• Temperature Settings: Exercise caution when adjusting water and seat temperatures to avoid burns or discomfort.
• Overheat Protection: The unit is equipped with overheat protection. If the unit overheats, it will automatically shut down.
• Leakage Protection: The unit includes leakage protection features to minimize water damage.

3. Product Overview

3.1 Key Features

• Powerful Flushing: 1000g MaP flush score with dual flushing (0.9GPF Half Flush, 1.32GPF Full Flush) for water conservation and effective cleaning.
• Integrated Bidet: Customizable cleaning with adjustable water pressure, temperature, and various wash modes (Hip, Female, Mobile, Self-Cleaning).
• Heated Seat: Smart temperature control seat with instant heating upon seating and 3-speed adjustment.
• Warm Air Drying: Four-speed air temperature adjustment for quick drying, reducing the need for toilet paper.
• LED Display & Remote Control: High-definition LED display shows real-time settings. All functions are easily controlled via a wireless remote.
• Foot Sensor Operation: Allows for hands-free lid opening and flushing.
• Night Light: Built-in LED night light for visibility in low-light conditions.
• Foam Shield Technology: Creates a foam layer in the bowl to prevent splashes and maintain cleanliness.
• Deodorization & Aromatherapy: Built-in deodorization system and an in-built aromatherapy system for a fresh environment.
• ADA Comfort Height: Designed for comfortable and accessible use.
• Safety Protections: Includes leakage, overheat, power-off, and circuit protection.

3.2 Components

The Pudyavr Smart Toilet G7 includes the following main components:

• Smart Toilet Unit (Model G7)
• Wireless Remote Control
• Installation Hardware (wax ring, flange adapter, supply line, shut-off valve, bolts, gaskets, wrench set)
• Aroma Tablets (for aromatherapy system)

Image 3.1: Wireless Remote Control for Pudyavr Smart Toilet G7.

4. Setup & Installation

Installation of the Pudyavr Smart Toilet G7 requires basic plumbing and electrical knowledge. It is recommended to consult a professional if you are unsure about any steps. Ensure an electrical outlet is available near the installation site.

4.1 Pre-Installation Checklist

• Verify all included components are present (refer to Section 3.2).
• Ensure a standard 120V AC grounded electrical outlet is within reach of the toilet's power cord (approximately 40 inches).
• Turn off the main water supply to the bathroom.
• Remove the existing toilet and clean the flange area thoroughly.

4.2 Installation Steps

1. Prepare the Floor Flange: Install the new wax ring and flange adapter onto the existing floor flange.
2. Position the Toilet: Carefully place the smart toilet unit over the flange, aligning the bolts. The tankless design requires access to bolts from behind the unit.
3. Secure the Toilet: Tighten the bolts evenly to secure the toilet to the floor. Do not overtighten.
4. Connect Water Supply: Replace your existing shut-off valve with the included one if necessary, as the supply line (17" long, 1/2" ID) may require it. Connect the water supply line to the toilet.
5. Connect Power: Plug the toilet's power cord into the grounded electrical outlet.
6. Restore Water Supply: Slowly turn on the main water supply and check for leaks.
7. Initial Flush: Perform an initial flush to fill the bowl and check for proper operation.

The toilet comes with comprehensive instructions and accessories. The upgraded automatic soft-closing feature eliminates noise and impact, offering meticulous care.

Image 4.1: Dimensions of the Pudyavr Smart Toilet G7 and remote control overview.

5. Operation

The Pudyavr Smart Toilet G7 offers various intelligent functions for a personalized experience. Most functions are controlled via the wireless remote control or the side knob.

5.1 Automatic Lid & Seat Operation

• Foot Sensor: The toilet features a foot sensor for hands-free lid opening. Gently tap the sensor with your foot to open the lid.
• Automatic Closing: The lid and seat will automatically close after use or after a set period of inactivity.

5.2 Flushing

• Automatic Flush: The toilet is designed to automatically flush after use.
• Manual Flush: Use the "Flush" button on the remote control for manual flushing.
• Dual Flush: The system offers a 0.9 GPF half flush and a 1.32 GPF full flush for water conservation.

5.3 Bidet Functions

The bidet offers a personalized cleansing experience with various modes:

• Hip Washing: For posterior cleansing.
• Female Washing: For feminine cleansing.
• Mobile Washing: Provides a pulsating spray for enhanced cleaning.
• Self-Cleaning Nozzle: The stainless steel nozzle self-cleans before and after each use.
• Adjustments: Use the remote to adjust water pressure and temperature to your preference.

Image 5.2: Illustration of the various wash modes available on the Pudyavr Smart Toilet G7.

5.4 Heated Seat & Air Drying

• Heated Seat: The seat instantly heats when occupied. Adjust the seat temperature using the remote control.
• Warm Air Drying: After cleansing, activate the warm air dryer. Adjust the air temperature (four-speed adjustment) via the remote for comfortable drying.

Image 5.3: Hot air drying and smart temperature control seat features of the Pudyavr Smart Toilet G7.

5.5 LED Display & Night Light

• LED Display: The high-definition LED display shows real-time water and seat temperature readings.
• Night Light: The built-in LED night light illuminates the bowl, providing visibility without needing to turn on main bathroom lights.

Image 5.4: The LED Liquid Crystal Screen on the Pudyavr Smart Toilet G7, displaying operational data.

5.6 Foam Shield & Aromatherapy

• Foam Shield: Activate the foam shield function to create a protective foam layer in the bowl, preventing splashes and odors.
• Aromatherapy: The in-built aromatherapy system can be loaded with aroma tablets to release pleasant fragrances.

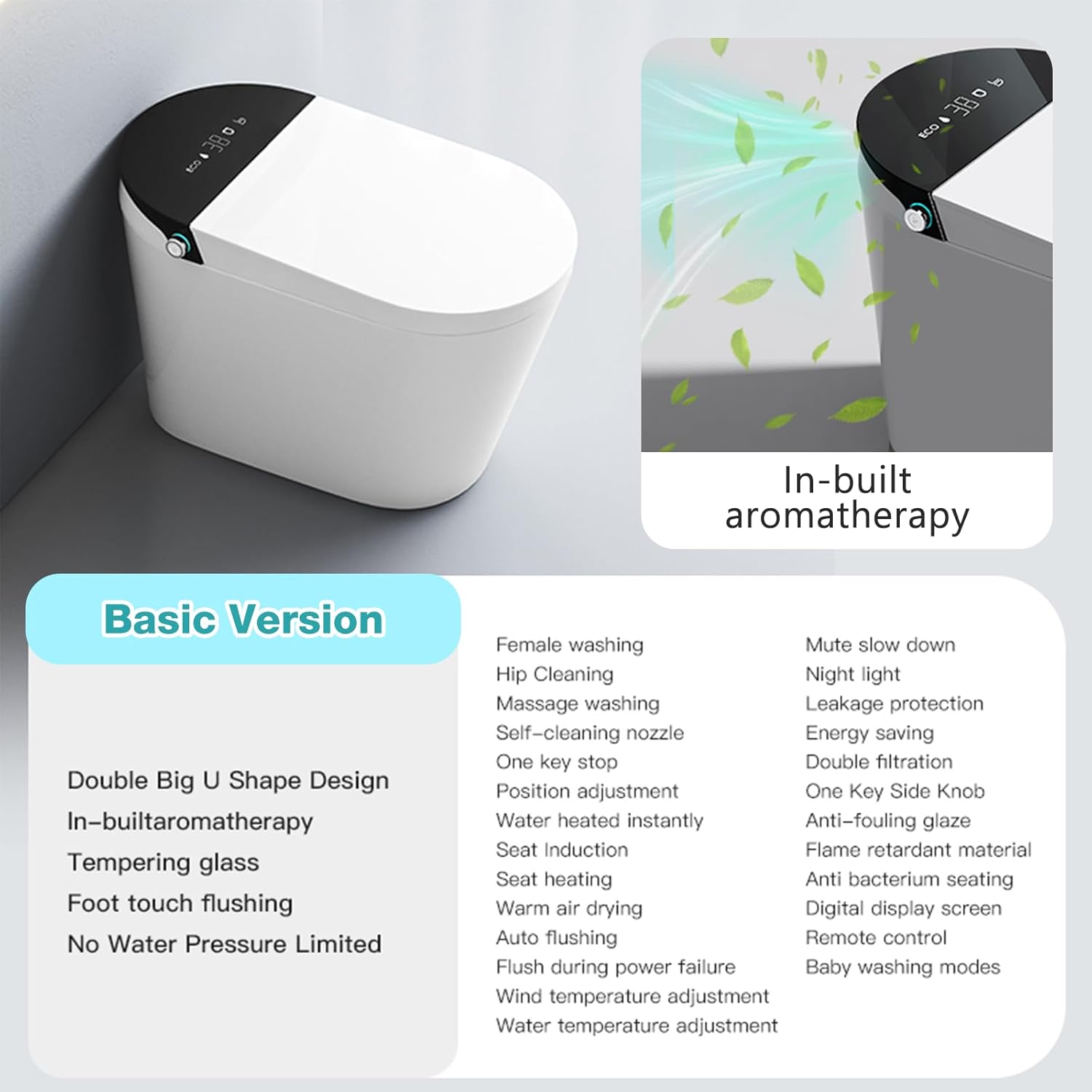

Image 5.5: The Pudyavr Smart Toilet G7 featuring an in-built aromatherapy system.

6. Maintenance

Regular maintenance ensures the longevity and hygienic performance of your Pudyavr Smart Toilet G7.

• General Cleaning: Clean the exterior surfaces with a soft, damp cloth and mild, non-abrasive soap. Avoid harsh chemicals, abrasive pads, or spray cleaners directly on the unit.
• Nozzle Cleaning: The stainless steel bidet nozzle has a self-cleaning function. For deeper cleaning, gently pull out the nozzle and wipe it with a soft cloth.
• Aroma Tablet Replacement: To replace aroma tablets, locate the aromatherapy compartment (as shown in Image 5.5), slide it open, replace the tablet, and close securely.
• Filter Cleaning: Periodically check and clean the water inlet filter to prevent blockages and maintain water pressure.
• Power Outage Memory: The toilet retains your settings after power outages, eliminating the need for re-configuration.

7. Troubleshooting

If you encounter any issues with your Pudyavr Smart Toilet G7, please refer to the following common troubleshooting steps. If the problem persists, contact customer support.

8. Specifications

9. Warranty & Support

Pudyavr values each customer's shopping experience and believes in the quality of our products. Therefore, our toilets come with:

• Lifetime After-Sales Service: Dedicated support for the lifespan of your product.
• 1-Year Limited Warranty: Covers manufacturing defects and malfunctions under normal use.

Our customer service center will respond to messages within 12 hours. For support, please refer to the contact information provided at the point of purchase or visit the official Pudyavr website.
