A051-000841
Malockos Recoil Starter Assembly Instruction Manual
Model: A051-000841
Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your new Malockos Recoil Starter Assembly. This component is a direct replacement part designed for specific blower models. Please read this manual thoroughly before attempting any installation or maintenance.
Product Overview
The Malockos Recoil Starter Assembly is a critical component responsible for initiating the engine start-up sequence in compatible blowers. It includes the pulley, rope, grip, and rewind spring, all pre-assembled for convenient replacement.
Figure 1: Complete Malockos Recoil Starter Assembly.
Figure 2: Detailed view of the recoil starter's internal components.
Compatibility and Package Contents
Compatible Models:
This recoil starter assembly is designed to fit the following 63.3CC blower models:
- ECHO: PB-650, PB-651, PB-750, PB-755, PB-760, PB-770
- SHINDAIWA: EB770
- And other compatible 63.3CC blowers.
Cross Reference OEM Part Numbers:
- YAMABIKO A051-000840
- YAMABIKO A051-000841
- YAMABIKO A051-000201
Important: Please verify the correct part for your engine/equipment before purchasing. If your engine/equipment type is not listed, do not assume it will fit.
Package Includes:
- 1 x Recoil Starter Assembly
Setup and Installation
Safety First: Before beginning any installation, ensure the blower's engine is turned off and cool. Disconnect the spark plug wire to prevent accidental starting. Wear appropriate safety gear, including gloves and eye protection.
- Access the Starter: Locate the existing recoil starter on your blower. It is typically mounted on the engine housing.
- Remove Old Starter: Carefully unbolt and remove the old recoil starter assembly. Note the orientation and any specific mounting hardware.
- Inspect Mounting Area: Clean the mounting surface on the blower to ensure a flush fit for the new starter.
- Install New Starter: Position the new Malockos Recoil Starter Assembly (Model A051-000841) onto the mounting points. Ensure the rope is correctly aligned with the pull opening.
- Secure Fasteners: Reinstall the mounting bolts and tighten them securely. Do not overtighten, as this can damage the housing or the starter.
- Test Functionality: Gently pull the starter rope a few times to ensure it extends smoothly and retracts fully without binding.
- Reconnect Spark Plug: Once installation is complete and verified, reconnect the spark plug wire.
Figure 3: Recoil starter showing the pull handle and rope.

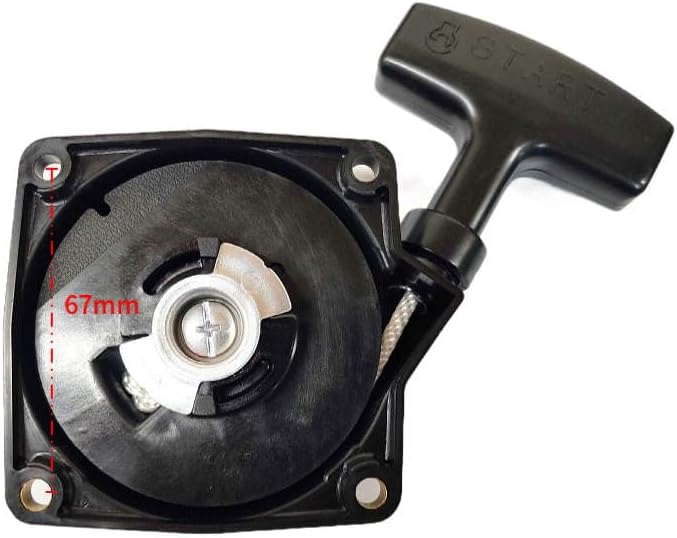

Figure 4: Recoil starter with a 67mm measurement, likely indicating mounting hole distance.
Operating the Recoil Starter
The recoil starter is designed for manual engine ignition. To operate, firmly grasp the starter handle and pull the rope with a smooth, steady motion until you feel resistance, then continue pulling quickly to engage the engine's flywheel and initiate combustion. Allow the rope to retract slowly and fully back into the housing after each pull. Do not let the rope snap back, as this can damage the recoil mechanism.
Maintenance
Regular maintenance helps prolong the life of your recoil starter assembly:
- Cleaning: Periodically clean the exterior of the starter assembly to remove dirt, dust, and debris that could impede its function.
- Rope Inspection: Inspect the starter rope for signs of fraying, wear, or damage. Replace the rope if any damage is observed to prevent breakage during operation.
- Spring Function: Ensure the rewind spring provides adequate tension for the rope to retract fully. If the rope retracts slowly or not at all, the spring may need inspection or replacement by a qualified technician.
- Lubrication: Lightly lubricate the internal moving parts (if accessible and recommended by a service professional) with a suitable lubricant to ensure smooth operation.

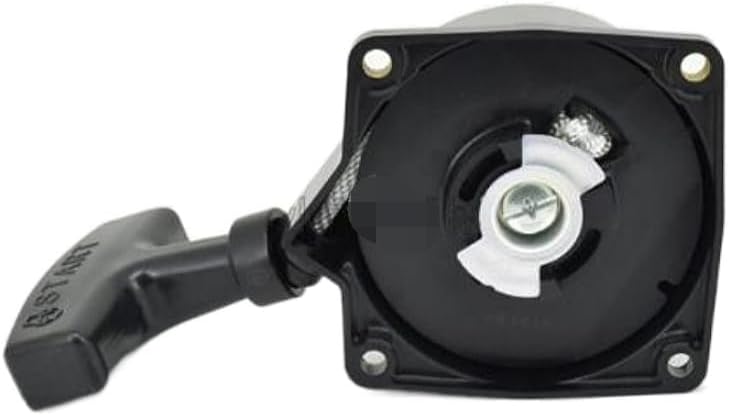

Figure 5: Rear view of the recoil starter, showing the rewind spring mechanism.
Troubleshooting
If you encounter issues with your recoil starter, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Rope does not retract fully | Damaged or weak rewind spring; Rope binding; Debris in housing | Inspect/replace spring; Clear any obstructions; Clean housing. |
| Rope is frayed or broken | Wear and tear; Improper pulling technique | Replace the starter rope. |
| Starter pulls but engine does not engage | Internal clutch mechanism worn; Engine issues (not starter) | Inspect internal clutch; Consult blower's engine manual for troubleshooting. |
| Starter feels stiff or hard to pull | Lack of lubrication; Internal debris; Engine compression issues | Lubricate moving parts; Clean housing; Check engine compression. |
Specifications
- Model Number: A051-000841
- Type: Garden Tool Parts
- Material: Cast Iron
- Usage: Commercial Manufacture
- Approximate Mounting Hole Distance: 67mm (refer to Figure 4)
- Compatible Engine Displacement: 63.3CC Blowers
Warranty Information
Specific warranty details for this Malockos product are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product listing or contact the seller directly.
Customer Support
For any questions, technical assistance, or concerns regarding your Malockos Recoil Starter Assembly, please contact the seller, Malockos, through the platform where the purchase was made. Provide your order details and a clear description of your inquiry for prompt assistance.
