Harper & Bright Designs Triple Bunk Bed User Manual

Introduction

Thank you for choosing the Harper & Bright Designs Triple Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Important Safety Information

• Always follow the assembly instructions precisely.
• Ensure all connections are securely tightened before use. Periodically check and re-tighten as needed.
• The top bunk is not suitable for children under 6 years of age.
• Use only mattresses that are 6 inches thick for the upper bed and 8 inches thick for the bottom bed, and that meet the specified dimensions to ensure proper guardrail height.
• Do not allow more than one person on the upper bunk at any time.
• Prohibit horseplay on or under the bed.
• Always use the ladder for entering and leaving the upper bunk.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
• Ensure the bed is placed on a flat, stable surface.
• Keep children away from the assembly area until assembly is complete.

Package Contents

Your Harper & Bright Designs Triple Bunk Bed arrives in two separate packages. Please verify that all components and hardware are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

Included components typically consist of:

• Metal frame components (posts, rails, crossbars)
• Guardrails for upper and middle bunks
• Ladders (movable, can be installed on either side)
• Integrated slats for mattress support
• All necessary hardware (screws, bolts, washers, nuts)
• Assembly tools (e.g., Allen wrench)
• Detailed assembly instructions (this manual)

Assembly Instructions

Assembly is recommended for at least two adults. Follow the steps below carefully. Do not fully tighten all bolts until the entire bed frame is assembled.

Step 1: Unpack and Identify Parts

Carefully unpack all components from both packages. Lay them out on a clean, soft surface (like a carpet) to prevent scratching. Identify each part using the provided parts list in your physical manual.

Image: Fully assembled Harper & Bright Designs Triple Bunk Bed, showcasing its three-tier design and white metal frame.

Step 2: Assemble the Base Frame

Begin by connecting the main vertical posts and horizontal support beams for the lowest bed frame. Ensure all connections are finger-tight only at this stage.

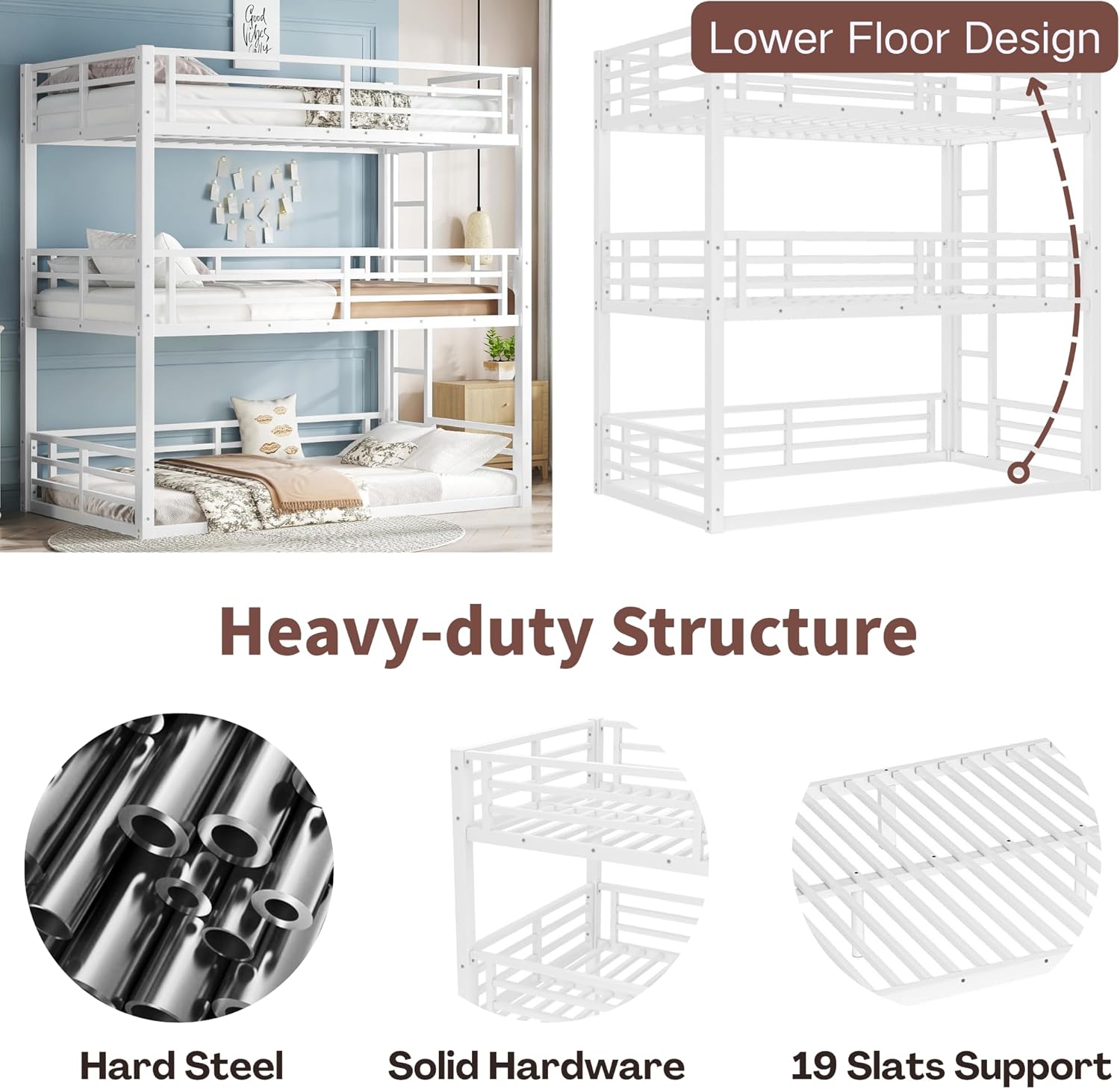

Image: Illustration detailing the heavy-duty steel construction, solid hardware, and 19 slat support system of the bunk bed frame, highlighting its robust design.

Step 3: Install Slats and Guardrails

Once the main frame for each level is established, install the integrated slats. These provide direct mattress support, eliminating the need for a box spring. Attach the guardrails to the upper and middle bunks, ensuring they are securely fastened for safety.

Image: A close-up view of the top bunk's guardrail, indicating a height of 13 inches, designed to prevent accidental falls and ensure user safety.

Step 4: Attach Ladders

The bunk bed features a movable ladder design. Attach the ladders to the designated points on either side of the bed, depending on your room layout. Ensure the ladders are firmly secured.

Image: This image highlights the adjustable ladder feature of the triple bunk bed, demonstrating how it can be installed on either the left or right side to suit various room configurations.

Step 5: Final Tightening and Inspection

Once all components are in place, systematically tighten all bolts and screws using the provided tools. Do not overtighten. Perform a final inspection to ensure all parts are correctly aligned and securely fastened. The bed should feel stable and not wobble.

Assembly Overview Video

For a visual guide to the assembly process and product features, please watch the official product video below.

Operation and Usage

Mattress Requirements

This triple bunk bed is designed for Twin size mattresses. The recommended mattress thickness is 6 inches for the upper bed and 8 inches for the bottom bed to ensure the guardrails function effectively and safely. No box spring is required due to the integrated slat system.

Weight Capacity

Each tier of the bunk bed is designed to support up to 350 lbs. Do not exceed this weight limit per bunk to ensure structural integrity and safety.

Ladder Usage

Always use the provided ladders for safe access to and from the upper and middle bunks. Ensure the ladder is securely attached before climbing.

Maintenance

Cleaning

Clean the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish. For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, dry cloth.

Regular Inspection

Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners to maintain the bed's stability and safety. Check for any signs of wear or damage to the frame or slats. If any damage is found, discontinue use and contact customer support for replacement parts or advice.

Troubleshooting

Specifications

• Product Type: Triple Bunk Bed
• Size: Twin
• Color: White
• Material: Metal (Steel)
• Finish Type: Lacquered
• Product Dimensions: 77.6"L x 41.7"W x 78.7"H
• Weight Capacity (per bunk): 350 lbs
• Compatible Mattress Size: Twin (6'' for upper bed, 8'' for bottom bed)
• Assembly Required: Yes (Recommended for at least 2 adults)
• Special Features: Noise-reduced, Space Saving, Adjustable Ladder, Guardrails, Integrated Slats (no box spring needed)
• Number of Packages: 2
• Item Weight: 107.4 pounds
• UPC: 197793815710
• ASIN: B0FHTKGB77

Image: Detailed diagram illustrating the dimensions of the Twin size triple bunk bed, including length, width, and height, along with internal measurements for each bunk level.

Warranty and Support

Harper & Bright Designs stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Harper & Bright Designs website. If you have any questions, require assistance with assembly, or need replacement parts, please contact our customer support team. Provide your product model number (B0FHTKGB77) and UPC (197793815710) when contacting support for faster service.

You can find more information and contact details on the Harper & Bright Designs Store on Amazon.
