1. Product Overview
This user manual provides essential information for the safe and efficient operation of your new Cordless Electric Lawn Mower. Designed for ease of use, this versatile tool is suitable for various gardening tasks, from trimming soft grass to cutting small shrubs.
Key features include a powerful 42V 8000mAh lithium-ion battery, a 450W brushless motor, and a 12,000 rpm no-load speed. Its lightweight and cordless design ensures quiet operation and portability, allowing you to maintain your garden without disturbing others.
The telescopic pole is adjustable from 99 cm to 135 cm, and the cutting head can rotate 90°, providing ergonomic comfort and access to hard-to-reach areas.
2. Safety Instructions
Always read and understand all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Personal Safety: Always wear appropriate personal protective equipment, including safety glasses (provided), gloves, and sturdy footwear. Keep children and bystanders away while operating the tool.
- Work Area Safety: Ensure the work area is clear of debris, rocks, and other objects that could be thrown by the blades. Do not operate in wet conditions or near flammable liquids or gases.
- Electrical Safety: Use only the charger provided with the product. Do not expose the battery or charger to water or extreme temperatures.
- Tool Use and Care: Disconnect the battery before making any adjustments, changing accessories, or storing the tool. Use the correct blade type for the task (plastic for soft grass, metal for lawns/weeds, saw blade for thick branches). Exercise extreme caution when handling blades.
- Battery Safety: Do not short-circuit, incinerate, or disassemble the battery pack. Store batteries in a cool, dry place away from direct sunlight.
3. Package Contents
Carefully unpack all items and ensure you have received all components listed below. If any parts are missing or damaged, contact customer support immediately.
Figure 3.1: All components included in the package. This image displays the main lawn mower unit, various blade types (plastic, metal, circular saw), two 42V lithium batteries, a battery charger, and safety glasses.
- 1 x Cordless Electric Lawn Mower Unit
- 5 x Plastic Blades (for soft grass)
- 2 x Metal Blades (for lawns, weeds, small shrubs)
- 1 x 6-inch Circular Saw Blade (for thick shrub branches)
- 2 x 42V 8000mAh Lithium Batteries
- 1 x Battery Charger
- 1 x Safety Glasses
4. Setup and Assembly
Follow these steps to assemble your lawn mower before first use.
- Charge the Battery: Before initial use, fully charge both 42V lithium batteries using the provided charger. Connect the charger to a power outlet and insert the battery. The indicator light on the charger will show charging status.
- Attach the Grass Guard: Slide the grass guard onto the main unit and secure it firmly. This guard protects you from debris during operation.
- Install the Auxiliary Handle: Attach the auxiliary handle to the telescopic pole at a comfortable position. This handle provides better control and balance during operation.
- Select and Install Blade: Choose the appropriate blade for your task.
- For plastic blades: Align the blade with the slot and snap it into place.
- For metal or circular saw blades: Use the provided tools to securely fasten the blade onto the output shaft. Ensure it is tightened properly.
Caution: Blades are sharp. Handle with extreme care. Always ensure the battery is removed before changing blades.
- Insert Battery: Once assembly is complete and you are ready to operate, insert a fully charged battery into the battery slot on the main unit until it clicks into place.

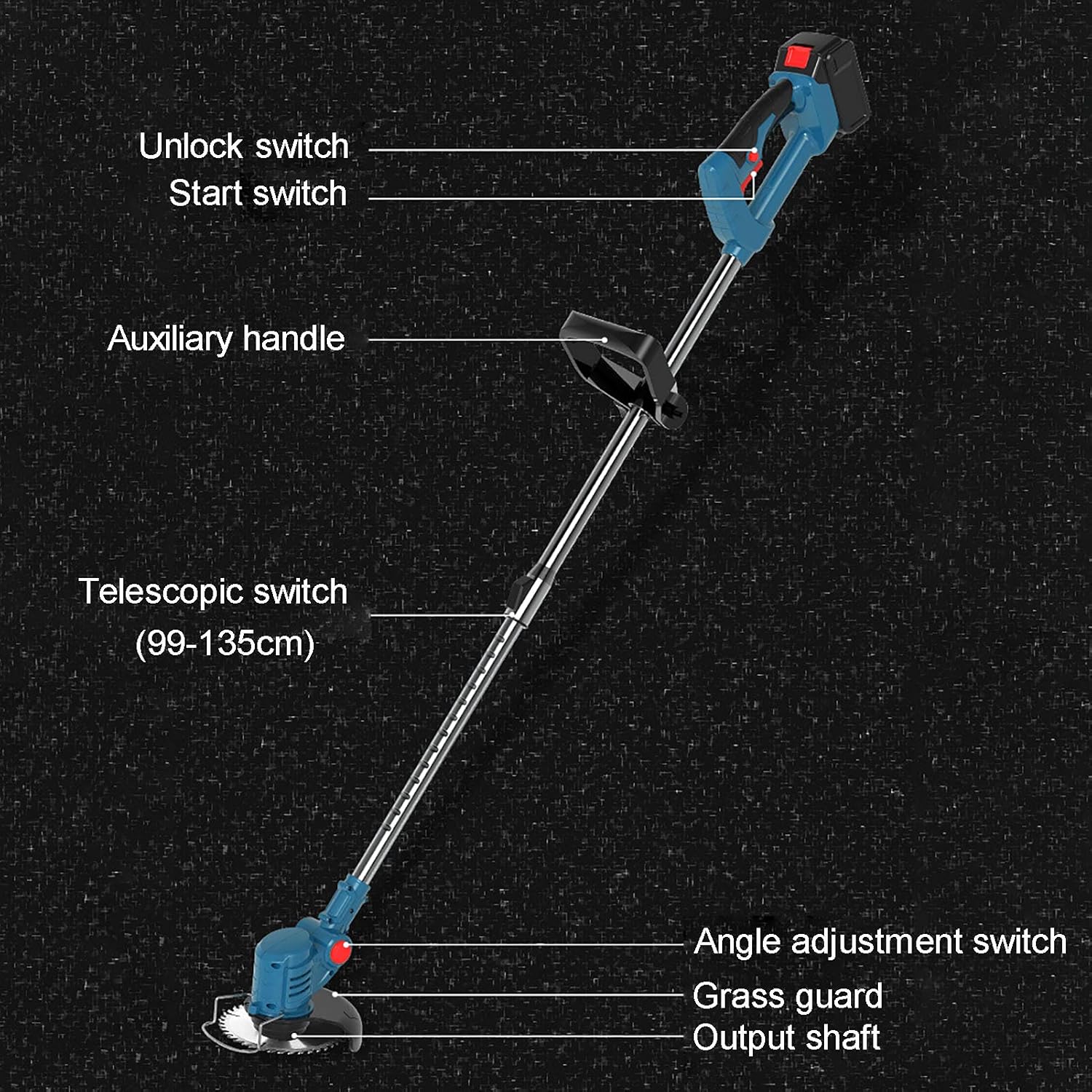

Figure 4.1: The cordless electric lawn mower fully assembled and ready for use. This image shows the main body, telescopic pole, auxiliary handle, and the cutting head with a blade installed.
5. Operating Instructions
Familiarize yourself with the controls and features before operating the lawn mower.
Figure 5.1: Detailed view of the ergonomic features and controls. This image highlights the comfortable soft rubber handle, the one-key big button for operation, the stainless steel protective cover, and the safe start switch.
- Adjust Telescopic Pole: Use the telescopic switch to adjust the pole length between 99 cm and 135 cm to suit your height and ensure comfortable operation, reducing strain on your back.
- Adjust Cutting Head Angle: The cutting head can be rotated 90° using the angle adjustment switch. This allows you to easily trim edges, reach under bushes, or navigate sloped areas.
Figure 5.2: The cutting head can be adjusted to various angles, providing flexibility for different trimming tasks and reaching difficult spots.
- Starting the Mower: To start the mower, first press the unlock switch (safety switch), then press and hold the start switch (power button). Release the unlock switch once the mower is running.
- Operating Techniques:
- Move the mower slowly and steadily across the area to be trimmed.
- For best results, cut only a small amount of grass at a time.
- Avoid hitting hard objects, as this can damage the blades or the motor.
- When using the circular saw blade for thicker branches, ensure a firm grip and stable footing.
- Stopping the Mower: Release the start switch to turn off the mower. Always remove the battery when not in use or before performing any maintenance.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your lawn mower.
- Cleaning: After each use, remove the battery and clean the cutting head, guard, and main unit with a dry cloth or soft brush. Do not use water or harsh chemicals.
- Blade Replacement: Inspect blades regularly for wear or damage. Replace plastic blades when they become dull. Metal and circular saw blades can be sharpened or replaced as needed. Always remove the battery before changing blades.
- Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Recharge them periodically if not in use.
- Storage: Store the lawn mower in a dry, secure location, out of reach of children.
7. Troubleshooting
If you encounter issues with your lawn mower, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower does not start. | Battery not charged or not inserted correctly. Safety switch not engaged. | Ensure battery is fully charged and properly inserted. Press the unlock switch before pressing the start switch. |
| Poor cutting performance. | Blades are dull or damaged. Incorrect blade type for the task. | Replace or sharpen blades. Ensure you are using the appropriate blade for the material being cut. |
| Excessive vibration. | Blade is unbalanced or damaged. | Inspect the blade for damage or debris. Replace if necessary. |
| Battery drains quickly. | Battery not fully charged. Operating in very dense vegetation. Battery nearing end of life. | Ensure battery is fully charged before use. Avoid overloading the motor. Consider replacing the battery if it's old. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
Figure 8.1: An internal view of the motor assembly, highlighting the double bearing design for enhanced durability and performance.
| Feature | Detail |
|---|---|
| Model Number | IPA851-V720 |
| Brand | Generic |
| Power | 450 W |
| Battery Voltage | 42 V |
| Battery Capacity | 8000 mAh (Lithium-ion) |
| No-load Speed | 12,000 rpm |
| Telescopic Pole Length | 99 cm to 135 cm (adjustable) |
| Cutting Head Adjustment | 90° rotation |
9. Warranty and Support
This product is covered by a return policy allowing for refund or replacement within 30 days of purchase. For any issues, questions, or to claim a refund/replacement, please contact the seller directly through the platform where the purchase was made.
Please retain your proof of purchase for any warranty or support claims.
