ALYIAMXL 6-Tier Corner Bookshelf Multipurpose Display Storage Stand Instruction Manual

1. Introduction

Thank you for choosing the ALYIAMXL 6-Tier Corner Bookshelf. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage stand. Please read these instructions carefully before assembly and retain them for future reference.

2. Safety Information

• Always assemble the unit on a soft, clean surface to prevent scratches.
• Ensure all parts are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly. Contact customer support.
• Do not overtighten screws during assembly, as this may damage the material.
• Keep small parts and packaging materials away from children and pets to avoid choking hazards.
• Do not exceed the maximum weight capacity of 30 pounds per shelf.
• Distribute weight evenly across the shelves to maintain stability.
• Periodically check all connections to ensure they remain tight.
• This unit is designed for indoor use only.

3. Package Contents

Please verify that all components listed below are included in your package:

• Metal Frame Components (various lengths and shapes for the 6-tier structure)
• 6 x Corner Shelf Panels (wood grain finish)
• Adjustable Foot Pads
• Assembly Hardware (screws, Allen wrench)
• Instruction Manual (this document)

Figure 1: Exploded view of components and overall dimensions. This image illustrates the individual parts and their measurements, including the metal frame pieces and the six corner shelf panels, along with the total height and width of the assembled unit.

4. Assembly Instructions

Follow these steps carefully to assemble your 6-Tier Corner Bookshelf. It is recommended to have two people for assembly.

1. Prepare the Area: Unpack all components and lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent damage. Identify all parts against the package contents list.
2. Assemble the Lower Frame: Connect the longer vertical metal frame pieces (A) with the lower horizontal support bars (B) using the provided screws (S1) and Allen wrench (W). Do not fully tighten screws yet.
3. Attach Lower Shelves: Carefully place the bottom three corner shelf panels (P1) onto the assembled lower frame, aligning the pre-drilled holes with the frame. Secure them with screws (S2). Tighten these screws gently.
4. Assemble the Upper Frame: Connect the shorter vertical metal frame pieces (C) with the upper horizontal support bars (D) using screws (S1).
5. Attach Upper Shelves: Place the top three corner shelf panels (P2) onto the assembled upper frame, securing them with screws (S2).
6. Connect Upper and Lower Sections: Carefully lift the upper frame section and align it with the top of the lower frame section. Connect them using the designated connectors and screws (S3).
7. Install Adjustable Foot Pads: Screw the adjustable foot pads (F) into the bottom of the vertical frame pieces. These can be adjusted later to level the bookshelf on uneven floors.
8. Final Tightening: Once all parts are in place and aligned, systematically tighten all screws securely. Do not overtighten.

Figure 2: The fully assembled ALYIAMXL 6-Tier Corner Bookshelf, showcasing its design and capacity for display and storage in a home setting.

Figure 3: Detail of the top shelf and the sturdy metal frame construction, highlighting the quality of materials and finish.

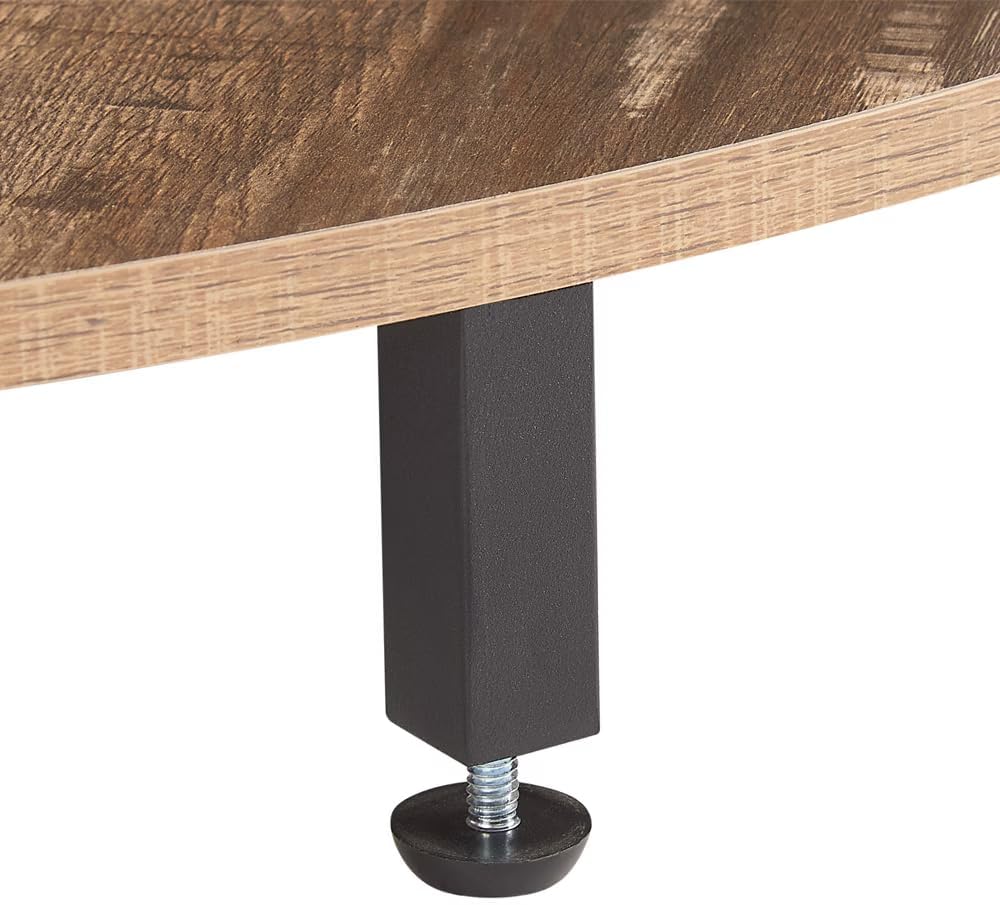

Figure 4: Detail of the adjustable foot pad, which allows for leveling the bookshelf on uneven floor surfaces and protects floors from scratches.

5. Usage

The ALYIAMXL 6-Tier Corner Bookshelf is designed for versatile storage and display in various rooms.

• Placement: Position the bookshelf in a corner of your kitchen, home office, living room, bedroom, or entryway to maximize vertical space.
• Loading: Place books, decorative items, plants, kitchen essentials, or office supplies on the shelves. Ensure items are distributed evenly to maintain balance.
• Weight Capacity: Each shelf has a maximum weight capacity of 30 pounds. Do not overload individual shelves or the entire unit.
• Stability: If the bookshelf appears wobbly, adjust the foot pads at the base until the unit is stable and level.

Figure 5: Illustration of the recommended weight limit per shelf, indicating that each of the six tiers can safely hold up to 30 pounds.

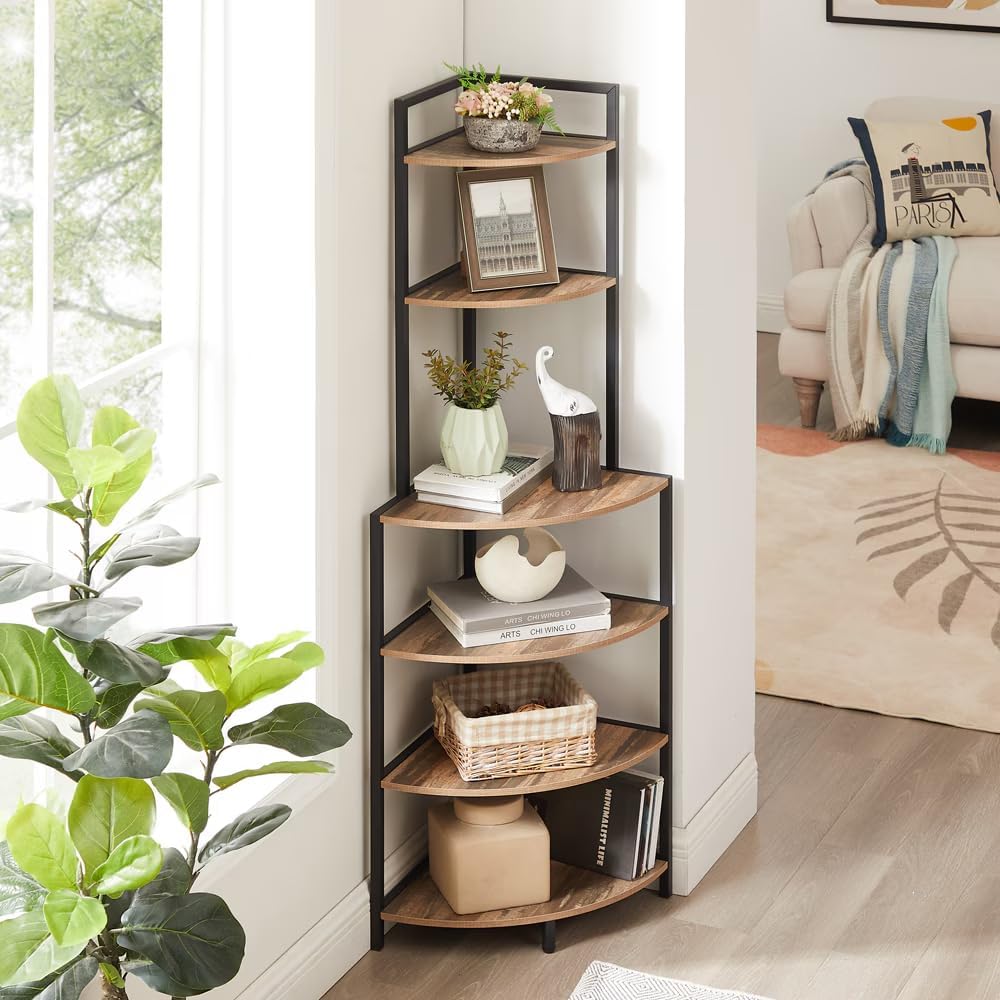

Figure 6: The bookshelf integrated into a living room, demonstrating its aesthetic appeal and practical use for displaying various items.

Figure 7: Another view of the corner bookshelf, highlighting its adaptability to different interior designs and functional needs.

6. Care and Maintenance

• Cleaning: Wipe the metal frame and shelf panels with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Dusting: Regularly dust the unit to prevent buildup.
• Liquid Spills: Immediately wipe up any liquid spills to prevent water damage to the shelf panels.
• Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight may cause fading or damage to the shelf finish.

7. Troubleshooting

8. Specifications

• Model: S0511
• Brand: ALYIAMXL
• Dimensions (Overall): 22.4"D x 15.8"W x 59.5"H
• Number of Shelves: 6
• Weight Capacity (per shelf): 30 Pounds
• Item Weight: 19 Pounds
• Material: Metal frame, Wood grain shelf panels
• Color: Black+Brown
• Assembly Required: Yes
• Installation Type: Freestanding
• Room Type: Kitchen, Living Room, Office, Bedroom, Entryway

9. Warranty and Support

For warranty information or customer support regarding your ALYIAMXL 6-Tier Corner Bookshelf, please refer to the retailer's return policy or contact ALYIAMXL customer service directly through their official channels. Please have your model number (S0511) and purchase details ready when contacting support.
