ProTuning MITTZON Foldable Table with Castors (IK.405.279.48) Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient use of your ProTuning MITTZON foldable table with castors. Please read this manual thoroughly before assembly and operation, and retain it for future reference. This table is designed for versatility and easy storage, featuring a robust construction and smooth-rolling castors for mobility.

2. Safety Information

• Pinch Points: Exercise caution when folding or unfolding the table to avoid pinching fingers or hands in moving parts.
• Weight Capacity: Do not exceed the recommended weight capacity of the table. Overloading can cause damage or instability.
• Stable Surface: Always ensure the table is placed on a flat, stable surface when in use.
• Castor Locks: Engage the castor locks when the table is in its desired position to prevent unintended movement.
• Children: Keep children away from the table during folding and unfolding operations.

3. Package Contents

Verify that all components are present before proceeding with setup:

• 1 x MITTZON Foldable Table unit (pre-assembled frame and tabletop)
• 4 x Castors (pre-attached to the frame)
• 1 x Instruction Manual (this document)

4. Setup and Unfolding

The MITTZON table comes largely pre-assembled. The primary setup involves unfolding the tabletop and securing it for use.

1. Positioning: Place the folded table in an open area where you intend to use it. Ensure there is enough space to unfold the tabletop.
2. Unlock Castors (if locked): If the castors are locked, press down on the lever located on each castor to unlock them, allowing for easier movement.
3. Unfold Tabletop: Gently lift one side of the tabletop. The hinge mechanism is designed to allow smooth rotation. Continue lifting until the tabletop is fully extended and flat.
4. Secure Latch: Locate the securing latch underneath the tabletop where the two halves meet. Push the latch into place to firmly connect the two tabletop sections. This ensures stability during use.

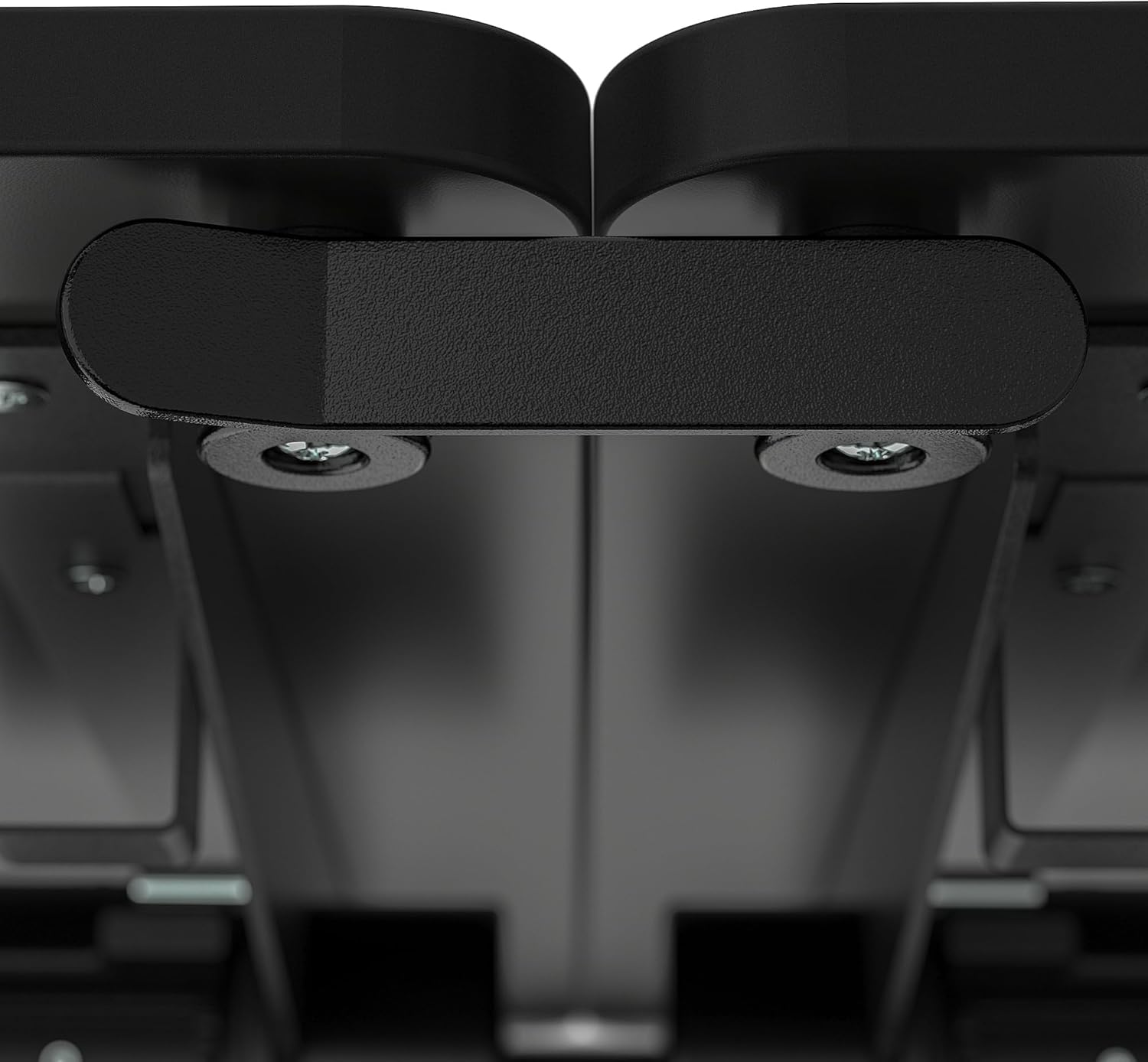

Image: Detail of the folding mechanism and securing latch. Ensure this latch is engaged for stability.

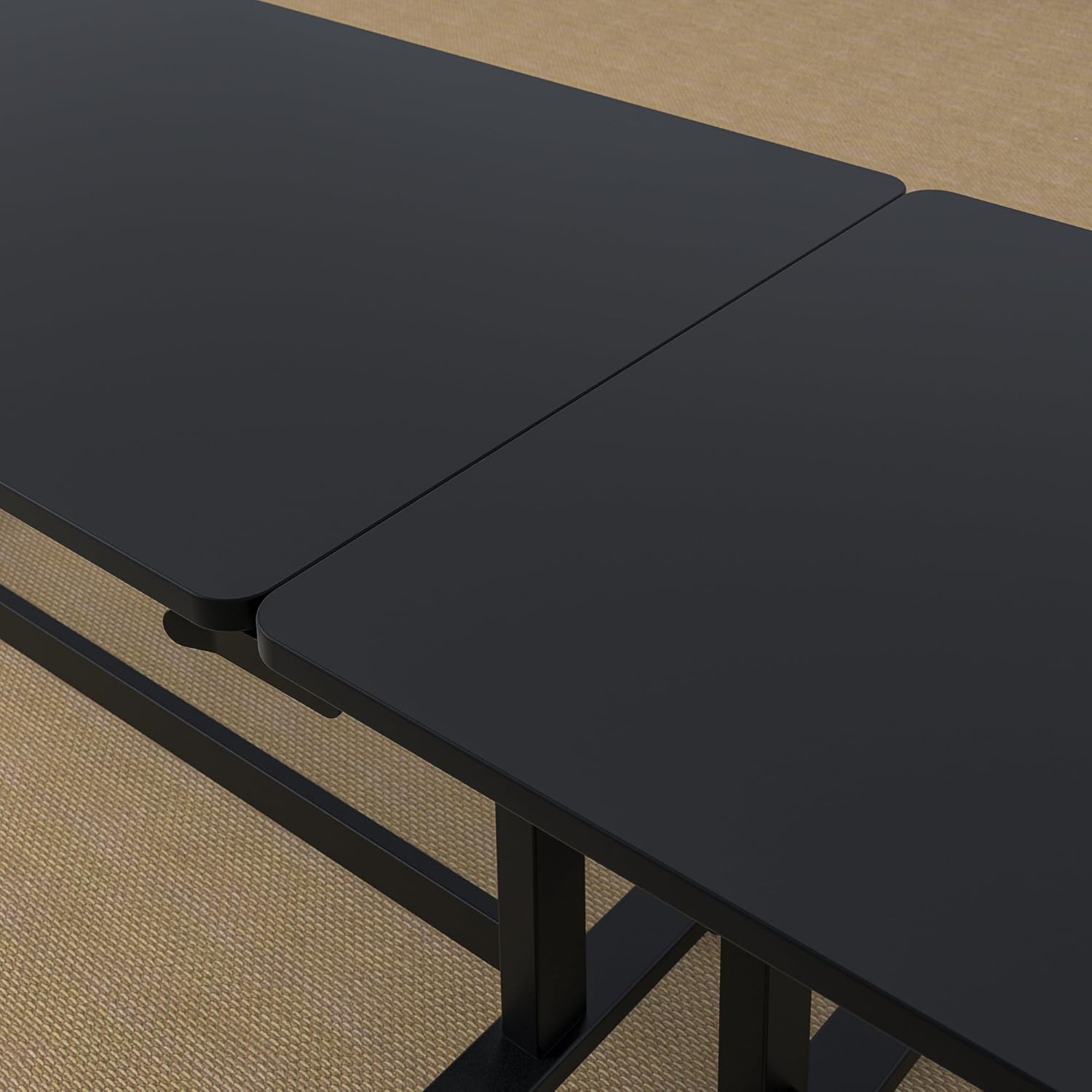

Image: The tabletop joint when fully unfolded and secured.

5. Operating Instructions

5.1 Moving the Table

The MITTZON table is equipped with castors for easy mobility.

• Unlock Castors: Before moving, ensure all castor locks are disengaged by lifting the lever on each castor.
• Gentle Movement: Push or pull the table gently to its desired location. Avoid sudden, forceful movements.
• Lock Castors: Once the table is in position, press down on the lever of each castor to engage the locks. This prevents the table from rolling unintentionally.

Image: Detail of a castor wheel. The lever on top engages and disengages the lock.

5.2 Folding the Table for Storage

To fold the table for compact storage:

1. Clear Tabletop: Remove all items from the tabletop.
2. Unlock Latch: Locate the securing latch underneath the tabletop and disengage it.
3. Fold Tabletop: Gently lift one half of the tabletop upwards. The hinge mechanism will allow it to fold vertically. Guide it until it rests securely in the folded position.
4. Lock Castors: For stability during storage, engage the castor locks.

Image: The MITTZON table in its folded position, ready for compact storage.

6. Maintenance

• Cleaning: Wipe the table surface and frame with a damp cloth and a mild cleaner. Dry thoroughly with a clean cloth. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all screws and fittings to ensure they are tight. Retighten if necessary.
• Castors: Keep castors free of debris (hair, dust, etc.) to ensure smooth operation.

7. Troubleshooting

• Table is wobbly: Ensure the table is on a flat surface. Check that the tabletop securing latch is fully engaged. Verify all frame connections are tight.
• Castors not rolling smoothly: Check for debris (hair, lint) wrapped around the castor wheels. Clean as necessary. Ensure castor locks are disengaged.
• Table difficult to fold/unfold: Ensure no obstructions are present in the hinge mechanism. Apply a small amount of silicone-based lubricant to the hinges if movement is stiff.

8. Specifications

9. Warranty Information

This product is covered by a 10-year guarantee. For detailed terms and conditions, please refer to the guarantee brochure provided with your purchase or contact ProTuning customer support.

10. Support

If you have any questions, require assistance with assembly, or encounter issues not covered in this manual, please contact ProTuning customer support. Refer to your purchase documentation for contact details or visit the official ProTuning website.
