LINKHOO 8x6 FT Outdoor Metal Storage Shed Instruction Manual

1. Introduction

This manual provides essential instructions for the assembly, operation, and maintenance of your LINKHOO 8x6 FT Outdoor Metal Storage Shed. Please read this manual thoroughly before beginning assembly or using the shed to ensure safe and correct installation and long-term performance. Keep this manual for future reference.

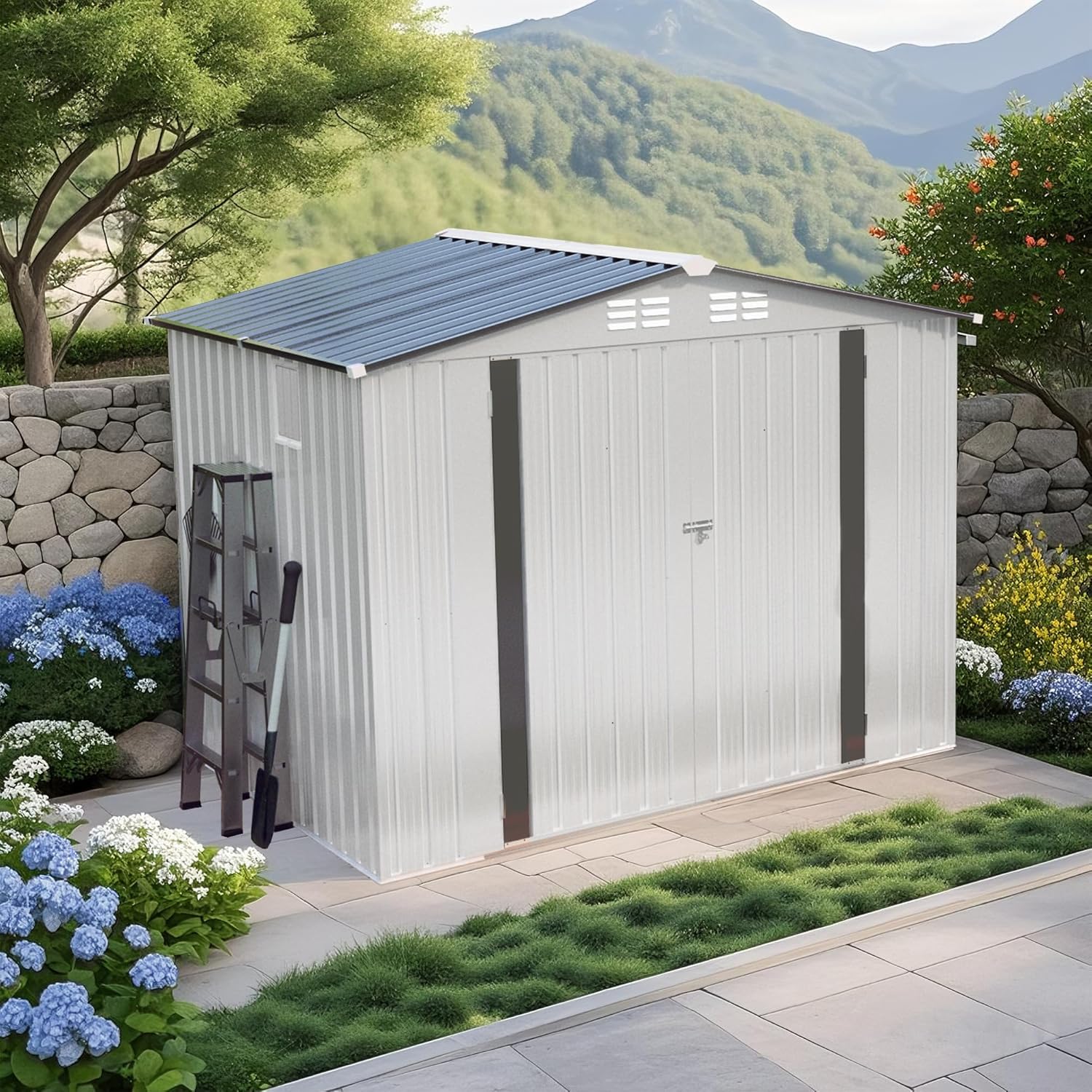

Figure 1.1: Exterior view of the LINKHOO 8x6 FT Outdoor Metal Storage Shed in a garden setting.

2. Safety Information

Always prioritize safety during assembly and use. Failure to follow these safety guidelines may result in injury or damage to the product.

• Read All Instructions: Before assembly, carefully read and understand all instructions.
• Wear Protective Gear: Always wear gloves, safety glasses, and appropriate footwear during assembly. Metal edges can be sharp.
• Two-Person Assembly: Assembly requires at least two adults. Do not attempt to assemble alone.
• Stable Foundation: Ensure the shed is installed on a level and stable foundation. A proper foundation is crucial for structural integrity and longevity.
• Secure Anchoring: Anchor the shed securely to the ground to prevent wind damage.
• Ventilation: Ensure proper ventilation during hot weather to prevent heat buildup inside the shed.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow them to play inside or around the shed unsupervised.
• Electrical Safety: If installing electrical components, consult a qualified electrician and follow all local codes.
• Weight Capacity: Do not exceed the shed's stated roof weight capacity (9 lbs/sq.ft) or internal storage capacity.

3. Package Contents

Before starting assembly, verify that all parts are present and undamaged. Refer to the included parts list in your packaging. If any parts are missing or damaged, contact customer support immediately.

Typical components include:

• Pre-painted galvanized steel panels (walls, roof)
• Door panels and hardware (hinges, lockable mechanism)
• Frame components (beams, supports)
• Window panel(s)
• Ventilation panels
• Fasteners (screws, bolts, nuts, washers)
• Assembly gloves (typically included)
• Instruction manual

4. Setup and Assembly

Assembly of the LINKHOO storage shed is designed to be modular and straightforward, requiring two people. Follow the graphic and textual instructions provided in your package carefully.

4.1 Site Preparation

• Choose a Level Site: Select a flat, level area for installation. Uneven ground can lead to assembly difficulties, door misalignment, and structural instability.
• Foundation: A solid, level foundation (e.g., concrete slab, treated timber frame, or gravel base) is highly recommended. The shed includes a metal base frame, but a proper floor is not included and must be constructed or provided by the user to prevent moisture and pests.
• Clear Area: Ensure sufficient space around the shed for assembly and future access.

4.2 Tools Required (Not Included)

• Work gloves
• Safety glasses
• Phillips head screwdriver
• Adjustable wrench or socket set
• Measuring tape
• Step ladder (for roof assembly)
• Drill (optional, for pilot holes if needed)

4.3 Assembly Steps (General Overview)

1. Base Frame Assembly: Assemble the metal base frame on your prepared level foundation. Ensure it is square and secure.
2. Wall Panel Installation: Attach the wall panels to the base frame, following the numbered sequence in your specific manual. Secure panels with provided fasteners.
3. Door Frame and Door Installation: Assemble the door frame and attach the door panels. Ensure hinges are properly aligned for smooth operation. Install the lockable mechanism.
4. Window and Vent Installation: Install the window panel(s) and ventilation panels as indicated.
5. Roof Assembly: Carefully assemble and attach the roof panels. Ensure all roof components are securely fastened to provide waterproof protection and wind resistance.
6. Final Checks: Verify all fasteners are tightened, doors operate smoothly, and the shed is stable. Anchor the shed to the ground using appropriate methods for your foundation.

Figure 4.1: The interior of the shed, demonstrating potential for organized storage after assembly.

5. Operating Instructions

Your LINKHOO storage shed is designed for secure and versatile outdoor storage.

• Door Operation: The shed features double doors for easy access. Open and close doors gently to prevent damage to hinges or panels. The lockable mechanism provides security for your stored items.
• Ventilation: Integrated vents at the top and bottom of the shed promote air circulation, helping to prevent moisture buildup and odors. Ensure these vents are not obstructed.
• Window: The skylight window allows natural light into the shed, reducing the need for artificial lighting during the day.
• Storage Capacity: The 8x6 FT dimensions offer ample space for garden tools, sports equipment, and other sundries. Consider adding shelves or hooks for organized storage.

Figure 5.1: Examples of various uses for the storage shed, highlighting its versatility.

Figure 5.2: Detailed view of key features including air vents, door lock, hinges, and window.

6. Maintenance

Regular maintenance will extend the life and appearance of your storage shed.

• Cleaning: Clean the exterior panels periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the pre-painted finish.
• Rust Prevention: The shed is made of galvanized steel with anti-rust treatments. However, inspect for any scratches or damage to the paint that could expose the metal and lead to rust. Touch up any exposed areas with rust-inhibiting paint if necessary.
• Ventilation Check: Ensure vents remain clear of debris (leaves, dirt) to maintain proper airflow.
• Door and Hinge Inspection: Periodically check door alignment and lubricate hinges if they become stiff. Ensure the lock mechanism functions correctly.
• Fastener Tightness: Over time, fasteners may loosen. Periodically check and tighten all screws and bolts to maintain structural integrity.
• Snow Load: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive weight and potential damage. The roof weight capacity is 9 lbs/sq.ft.

Figure 6.1: Visual representation of the shed's protection against water and rust, emphasizing drainage and material durability.

Figure 6.2: Overview of protective features contributing to the shed's longevity and functionality.

7. Troubleshooting

This section addresses common issues you might encounter.

8. Specifications

Figure 8.1: Comprehensive product dimensions, including overall size and specific panel measurements.

9. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact LINKHOO customer service. Keep your purchase receipt as proof of purchase.

Contact information for support is typically found on the product packaging or the manufacturer's official website.
