OKYUK 20L Electric Dehumidifier User Manual

Introduction

Thank you for choosing the OKYUK 20L Electric Dehumidifier. This appliance is designed to efficiently remove excess moisture from the air, creating a more comfortable and healthier environment in your home. It features a digital humidity display, automatic shut-off, and quiet operation, making it ideal for various rooms including basements, bathrooms, and living areas. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Figure 1: OKYUK 20L Dehumidifier in a home environment.

Safety Information

To reduce the risk of fire, electric shock, or injury, always follow these basic precautions:

• Read all instructions before using the appliance.
• Ensure the power supply matches the voltage specified on the rating label.
• Do not operate the dehumidifier with a damaged cord or plug.
• Keep the appliance away from water and other liquids. Do not immerse it.
• Do not block air inlets or outlets. Maintain at least 20 cm (8 inches) clearance around the unit.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Always unplug the dehumidifier before cleaning or performing any maintenance.

Product Components

Familiarize yourself with the main parts of your dehumidifier:

• Control Panel: Digital display and touch buttons for settings.
• Air Inlet/Outlet: Where air enters and exits the unit.
• Water Tank: Removable tank for collected moisture.
• Continuous Drain Outlet: For connecting a hose for continuous drainage.
• Integrated Handle: For easy portability.
• 360-degree Swivel Wheels: For effortless movement between rooms.

Figure 2: Smart Control Panel.

Figure 3: Portable Design Features.

Setup

1. Unpacking: Carefully remove the dehumidifier from its packaging. Retain the packaging for future storage or transport.
2. Placement: Place the unit upright on a firm, level surface. Ensure there is at least 20 cm (8 inches) of clear space around the air inlet and outlet for proper airflow. Avoid placing it near heat sources or in direct sunlight.
3. Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements.
4. Water Tank: Ensure the water tank is correctly inserted into the unit. The dehumidifier will not operate if the tank is not properly seated.
5. Continuous Drainage (Optional): For continuous operation without emptying the water tank, connect a suitable drain hose (not included) to the continuous drain outlet at the back of the unit. Ensure the hose is sloped downwards to allow gravity drainage into a floor drain or larger container.

Figure 4: Automatic and Manual Drainage Options.

Operating Instructions

The control panel allows you to manage all functions of your dehumidifier.

1. Power On/Off: Press the Power button to turn the unit on or off. The digital display will show the current room humidity.
2. Setting Desired Humidity: Press the Humidity button to adjust the target humidity level (typically 30% to 50% relative humidity is recommended). The unit will operate until the desired level is reached, then cycle on and off to maintain it.
3. Mode Selection: Press the Mode button to cycle through available modes:
   • Smart Dehumidification: The unit automatically adjusts its operation based on the ambient humidity.
   • Sleep Mode: Operates at a lower fan speed for quieter performance (approx. 32 dB), ideal for nighttime use.
4. Timer Function: Press the Timer button to set an auto-on or auto-off time (up to 24 hours).
5. Fan Speed: Press the Speed button to adjust the fan speed (e.g., Low, High). Higher speed results in faster dehumidification.
6. Digital Display: Shows current room humidity, set humidity, and timer settings.

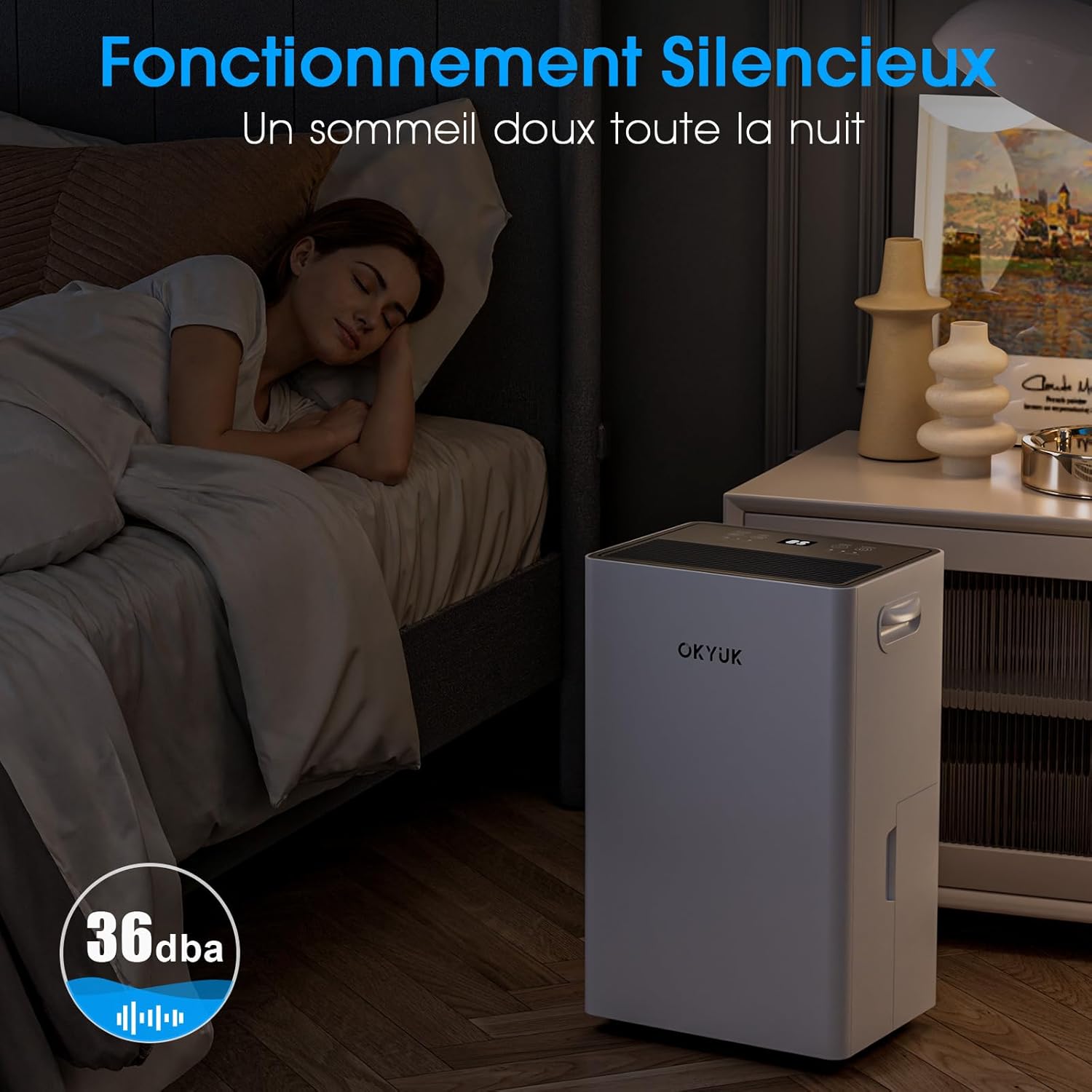

Figure 5: Quiet Operation in Sleep Mode.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your dehumidifier.

1. Emptying the Water Tank: When the water tank is full, the unit will automatically shut off and an indicator light will illuminate. Carefully pull out the water tank, empty the collected water, and reinsert it firmly until it clicks into place.
2. Cleaning the Air Filter: The air filter should be cleaned every two weeks or more frequently depending on usage and air quality. Turn off and unplug the unit. Remove the filter (refer to your unit's specific design for filter location, usually at the back or side). Wash it with warm, soapy water, rinse thoroughly, and let it air dry completely before reinserting. Do not operate the unit without the filter.
3. Cleaning the Exterior: Wipe the exterior of the dehumidifier with a soft, damp cloth. Do not use harsh chemicals, abrasives, or solvents.
4. Storage: If storing the unit for an extended period, ensure the water tank is empty and clean, and the filter is clean and dry. Coil the power cord neatly. Store the unit upright in a cool, dry place.

Troubleshooting

Before contacting customer support, please refer to the following common issues and solutions:

Specifications

Figure 6: Product Dimensions.

Warranty and Support

Your OKYUK dehumidifier is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact OKYUK customer service. Contact information can typically be found on the product packaging, the official OKYUK website, or your purchase receipt.

When contacting support, please have your model number (PD20R-06AE) and purchase date readily available.
