ASHATA Outdoor Solar Powered 4G LTE Modem Router

Introduction

This manual provides instructions for the ASHATA Outdoor Solar Powered 4G LTE Modem Router. This device offers reliable internet connectivity in various outdoor environments, utilizing a 15W solar panel and a 20800mAh battery for sustained operation. It supports both wired and wireless WiFi access and can connect up to 8 devices simultaneously.

Key features include:

• Dual Connectivity: Supports wired and wireless WiFi access with an industrial 4G module for stability.
• Multi-Device Support: Connects up to 8 devices (e.g., IPC, phones, computers) via WiFi.
• 4G LTE Mobile Network: Provides high-speed WiFi using an LTE modem for live streaming and other internet-enabled devices.
• Rugged & Waterproof: IP66 rated casing ensures durability against harsh weather conditions.
• Repeater Function: Converts 4G signals to WiFi and can amplify existing networks without a SIM card.

Package Contents

Verify that all items are present in the package:

• 1 x Solar Router
• 4 x Antenna
• 4 x Plastic Expansion Tube
• 4 x Long Screw
• 2 x Short Screw
• 2 x Bra (Bracket)

Setup Instructions

1. SIM Card Installation

The router requires a small SIM card (not included) for 4G LTE mobile network access.

1. Locate the 4G SIM Card Slot on the device.
2. Carefully insert your small SIM card into the slot until it clicks into place. Ensure correct orientation.

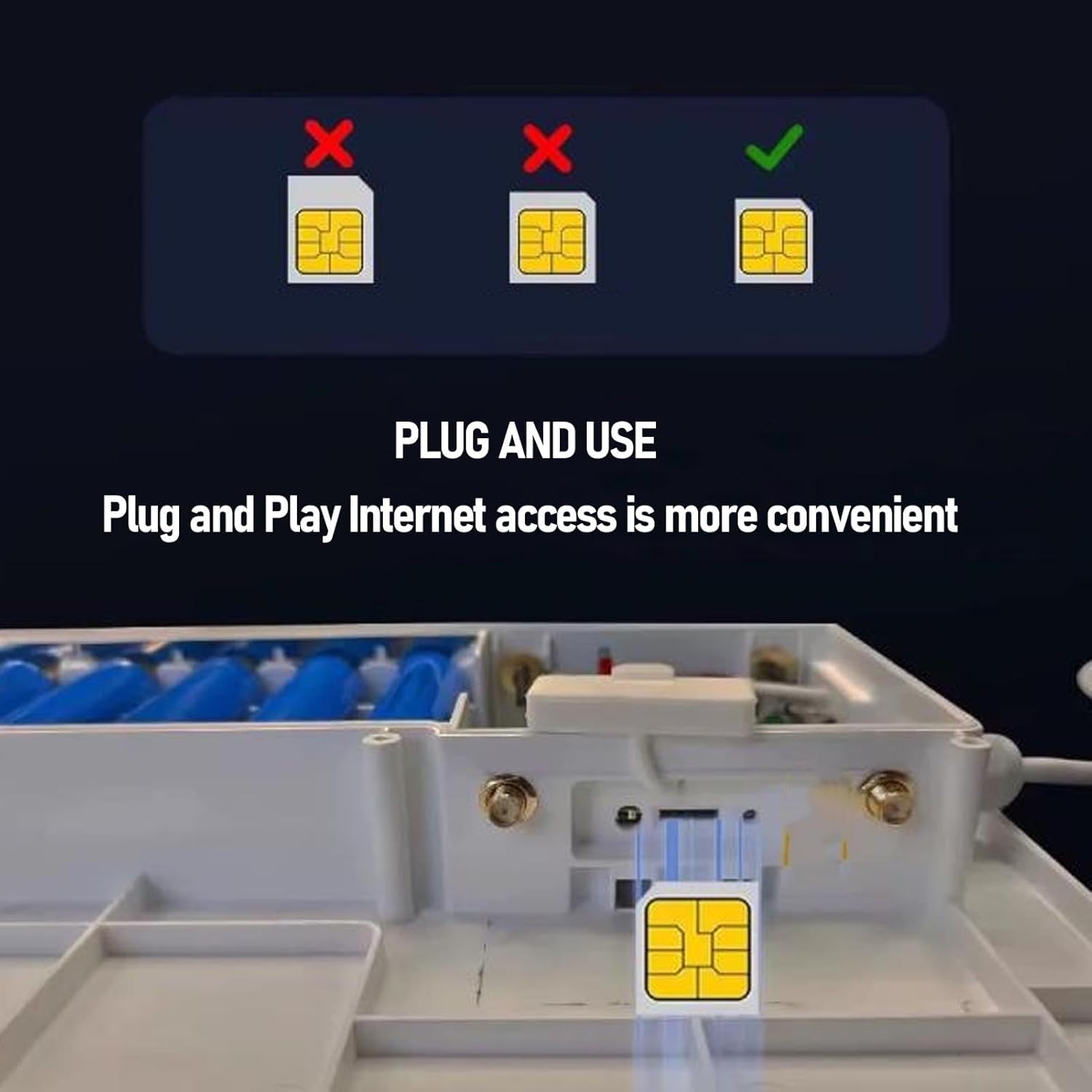

Image: Inserting a SIM card into the router's dedicated slot. The router supports plug-and-play internet access once the SIM card is correctly installed.

2. Antenna Installation

Attach the four provided antennas to the corresponding ports on the router. Hand-tighten them securely.

3. Mounting the Router

The router is designed for outdoor use and can be mounted on a wall or pole. Use the provided plastic expansion tubes, long screws, and short screws with the bracket for secure installation. Ensure the solar panel faces direct sunlight for optimal charging.

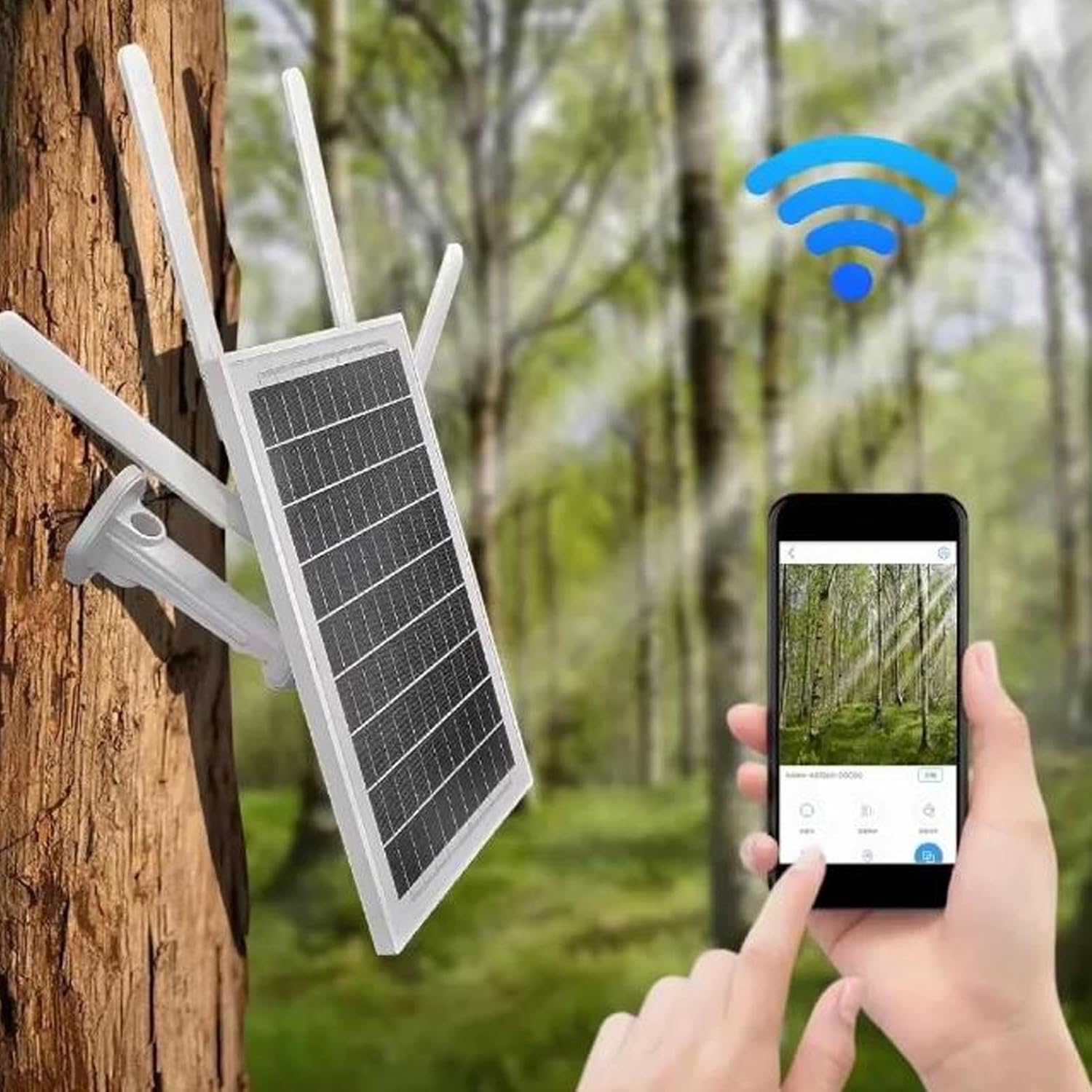

Image: The ASHATA router mounted on a tree, demonstrating its outdoor application for security cameras and remote monitoring.

4. Powering On and Initial Charge

The router can be powered by its built-in 20800mAh battery, which is charged via the integrated 15W solar panel or a USB power cable (DC 5V 2A input). Ensure the solar panel is exposed to sunlight for charging. The device has a power switch (Right On / Left Off).

Image: The solar panel of the ASHATA router, illustrating its 15W power generation and energy-saving capability through sunlight.

Operating Instructions

1. Indicator Lights

Monitor the device status using the indicator lights:

• Green Light On: Full Charge / Full Power
• Blue Light Flashing: Solar Charging in progress
• Red Light On: Low Battery
• Blue Flashing: SIM Card Working / Network Activity

Image: Detailed diagram of the router's components, including the indicator lights for power and SIM card status.

2. Connecting Devices via WiFi

The router broadcasts a WiFi signal, allowing up to 8 devices to connect simultaneously.

1. On your device (phone, computer, etc.), search for available WiFi networks.
2. Select the network name (SSID) corresponding to your ASHATA router.
3. Enter the WiFi password. The default password can be found in the WEB client or on a label on the device.

Image: The ASHATA router providing internet connectivity to multiple devices, showcasing its versatility.

3. Accessing the WEB Interface

The built-in WEB client allows for managing settings such as 4G signal strength, WiFi passwords, and network configurations.

1. Connect a device to the router's WiFi network or via the RJ45 network port.
2. Open a web browser and enter the router's default IP address (usually 192.168.1.1 or similar, check device label).
3. When prompted, enter the default login password: admin.
4. From the interface, you can customize settings as needed.

4. Repeater Function

To use the router as a repeater to amplify an existing network without a SIM card, configure this setting through the WEB interface. Refer to the online documentation or the WEB client's help section for detailed steps.

Maintenance

• Solar Panel Cleaning: Regularly clean the solar panel surface to ensure maximum sunlight absorption and charging efficiency. Use a soft, damp cloth to remove dust, dirt, or debris.
• Connection Check: Periodically inspect all cable connections (antennas, USB power) to ensure they are secure and free from damage.
• Battery Care: While the 20800mAh battery is designed for outdoor use, avoid prolonged exposure to extreme temperatures (very hot or very cold) to maximize its lifespan.
• Firmware Updates: Check the manufacturer's website or the router's WEB interface for any available firmware updates to ensure optimal performance and security.

Troubleshooting

No Internet Connection

• Check SIM Card: Ensure the SIM card is correctly inserted and activated with a data plan. The blue indicator light should be flashing.
• Signal Strength: Verify 4G signal strength via the WEB interface. If the signal is weak, try repositioning the router or antennas.
• APN Settings: Confirm that the Access Point Name (APN) settings in the router's WEB interface match your mobile carrier's requirements.

Router Not Powering On / Low Battery

• Power Switch: Ensure the power switch is in the 'On' position.
• Solar Charging: Confirm the solar panel is clean and receiving direct sunlight. The blue light should flash during solar charging.
• USB Charging: If solar charging is insufficient, connect the router to a 5V 2A USB power source using a USB cable.
• Red Light: If the red light is on, the battery is low and requires charging.

Slow WiFi Speeds

• 4G Signal: Weak 4G signal will result in slower internet speeds. Improve signal as described above.
• Device Load: Too many devices connected simultaneously (up to 8 supported) can impact performance.
• Interference: Ensure the router is not placed near other electronic devices that might cause WiFi interference.

Cannot Access WEB Interface

• Network Connection: Ensure your device is connected to the router's WiFi or via Ethernet.
• IP Address: Double-check the router's IP address in your browser.
• Default Password: Confirm you are using the correct default password (admin). If changed, use the new password. If forgotten, a factory reset might be necessary (refer to the reset button on the device diagram).

Specifications

Warranty Information

This product comes with a manufacturer warranty for 90 days from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the seller or manufacturer directly. Refer to your purchase documentation for specific contact details.
