1. Introduction
Thank you for choosing the WADADDY J-16 Cordless Portable Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before first use and keep it for future reference.
The WADADDY J-16 is designed for various cleaning tasks, offering up to 900 PSI of water pressure and a flow rate of 1.8 GPM. Its cordless design ensures portability and ease of use for applications such as washing vehicles, garden tools, outdoor furniture, and more.
2. Safety Information
WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses, when operating the pressure washer.
- Do not direct the water jet at people, animals, electrical equipment, or the unit itself.
- Ensure all connections are secure before operating the unit.
- Keep children and pets away from the operating area.
- Do not operate the pressure washer if any part is damaged.
- Use only clean water with the pressure washer.
- Disconnect the battery when not in use or before performing any maintenance.
3. Package Contents
Verify that all items are present upon unpacking:
- WADADDY J-16 Portable Pressure Washer Unit
- 2 x 3.0Ah Lithium-Ion Batteries
- Battery Charger
- 6-in-1 Multi-Function Nozzle
- Water Filter Basket
- Water Hose (17FT)
- Foam Bottle
- Hose Adapter
- Convenient Carrying Case

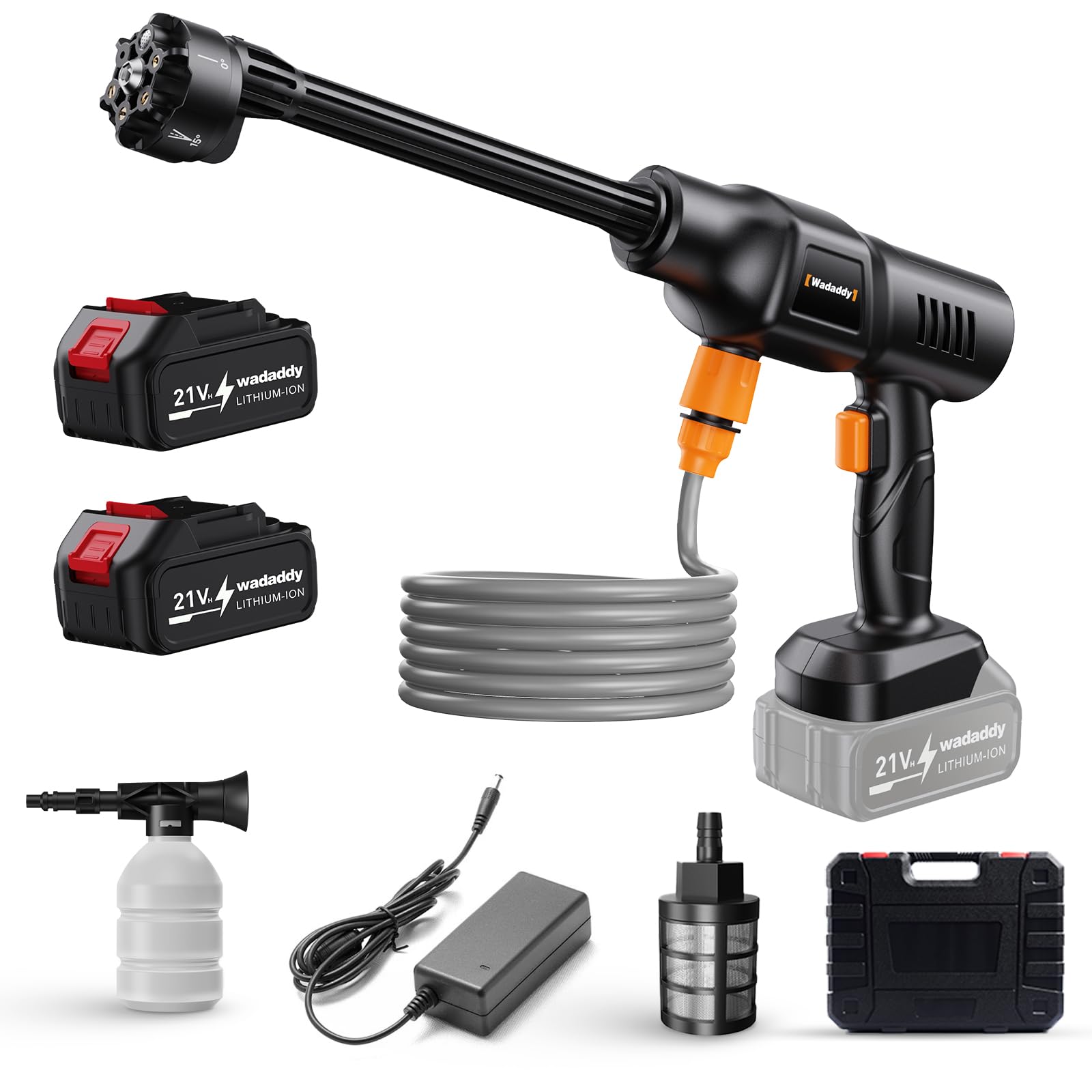

Image: All components of the WADADDY J-16 Portable Pressure Washer kit, including the main unit, two batteries, charger, 6-in-1 nozzle, water filter, hose, foam bottle, hose adapter, and carrying case.
4. Setup and Assembly
- Attach the Spray Lance: Insert the spray lance into the main unit until it clicks securely into place.
Image: A person's hands attaching the spray lance to the main body of the pressure washer.
- Connect the Water Filter: Attach the water filter basket to one end of the water hose. This filter prevents debris from entering the pump.
Image: A person's hands connecting the water filter basket to the end of the water hose.
- Attach Hose Adapter: Connect the hose adapter to the other end of the water hose.
Image: A person's hands attaching the orange hose adapter to the water hose.
- Connect Hose to Unit: Securely connect the hose adapter to the water inlet on the pressure washer unit.
Image: A person's hands connecting the orange hose adapter to the water inlet on the pressure washer.
- Insert Battery: Ensure the battery is fully charged. Slide the battery into the battery slot on the bottom of the pressure washer handle until it locks into place.
Image: A person's hand inserting the 21V lithium-ion battery into the base of the pressure washer handle.
- Prepare Water Source: Place the water filter end of the hose into a suitable water source such as a bucket, river, or pool. Ensure the filter is fully submerged.
Image: The water filter shown submerged in a bucket, a river, and a pool, illustrating flexible water sourcing.
5. Operating Instructions
5.1 Charging the Battery
Connect the charger to a power outlet and then to the battery. The indicator light on the charger will show the charging status. A full charge typically takes 3-4 hours. Each 3.0Ah battery provides approximately 30-40 minutes of use.
Image: A WADADDY 21V Lithium-Ion battery connected to its charger, indicating the charging process.
5.2 Selecting Nozzle Spray Pattern
The 6-in-1 multi-function nozzle allows you to select various spray patterns for different cleaning tasks. Always turn off the pressure washer before adjusting the nozzle. Rotate the nozzle head to select the desired spray pattern:
- 0° (Direct Jet): For stubborn dirt and hard-to-reach areas. Use with caution as it delivers high impact.
- 15°, 25°, 40° (Fan Spray): For general cleaning, varying in width for different surface areas.
- Jet Stream: A powerful, concentrated stream for heavy-duty cleaning.
- Shower: A gentle, wide spray for rinsing or watering plants.
Image: A detailed diagram illustrating the six distinct spray patterns available on the multi-function nozzle, with corresponding visual examples of each spray.
Image: Icons representing the 0°, 15°, 25°, 40° fan sprays, jet stream, and shower modes of the nozzle.
5.3 General Operation
- Ensure the battery is charged and correctly inserted.
- Ensure the water hose is properly connected to the unit and the water filter is submerged in a water source.
- Select the desired spray pattern on the nozzle.
- Point the nozzle away from yourself and others, then press the trigger to start the water flow. It may take a few seconds for water to prime and flow consistently.
- To apply soap, fill the foam bottle with appropriate cleaning solution, attach it to the unit, and spray. Rinse thoroughly afterward.
- After use, release the trigger, disconnect the battery, and drain any remaining water from the unit and hose.
Video: A demonstration of the WADADDY Cordless Power Washer in various cleaning scenarios, including washing a car, cleaning surfaces, and demonstrating water pressure.
5.4 Example Applications
Image: A woman using the WADADDY pressure washer to clean a bicycle outdoors.
Image: A man applying foam to a car using the pressure washer and foam bottle attachment.
Image: A man cleaning a brick wall with the pressure washer, demonstrating its effectiveness on hard surfaces.
Image: A man using the pressure washer in a gentle shower mode to water plants in a garden.
Image: A golden retriever dog being gently washed with the pressure washer, showcasing the soft spray option.
6. Maintenance
- Cleaning: After each use, rinse the unit and accessories with clean water to remove any detergent or debris. Wipe the exterior with a damp cloth.
- Water Filter: Regularly inspect and clean the water filter basket to ensure optimal water flow and prevent clogging.
- Storage: Store the pressure washer and its accessories in the provided carrying case in a dry, frost-free environment. Disconnect and remove the battery before storage.
- Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | Battery not charged or improperly inserted. | Ensure battery is fully charged and securely inserted. |
| Low water pressure | Water filter clogged; insufficient water supply; air in the system. | Clean water filter; ensure water source is adequate and filter is submerged; prime the pump by running water through until air is expelled. |
| Water leakage | Loose connections; damaged O-rings. | Check and tighten all connections; inspect O-rings for damage and replace if necessary. |
| Unit stops during operation | Battery is depleted; motor overheating. | Replace with a charged battery; allow the unit to cool down before resuming use. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | WADADDY |
| Model Number | J-16 |
| Maximum Pressure | 900 PSI |
| Maximum Flow Rate | 1.8 GPM (Gallons Per Minute) |
| Power Source | Battery Powered (21V Lithium-Ion) |
| Battery Capacity | 3.0Ah (x2 included) |
| Nozzle Type | 6-in-1 Multi-Function |
| Hose Length | 17 FT |
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official WADADDY website. Keep your purchase receipt as proof of purchase for warranty claims.
WADADDY is committed to providing high-quality products and customer satisfaction. If you encounter any issues not covered in this manual, please contact our customer service team for assistance.
