Novilla Metal Bed Frame Twin Size Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Novilla Metal Bed Frame Twin Size. Please read all instructions carefully before beginning assembly or use to ensure proper setup and safe operation. Keep this manual for future reference.

Safety Information

Important Safety Precautions:

• Always secure the bed frame to the wall to prevent movement.
• Exercise caution when assembling the bed frame to avoid injury from heavy parts.
• Do not store heavy items under the bed that could compromise stability.
• Follow the assembly instructions precisely to ensure the bed frame is stable and secure.
• Do not exceed the maximum weight capacity of 800 lbs (evenly distributed).
• Ensure all bolts and screws are tightened securely before use and periodically check for tightness.

Package Contents

Before assembly, verify that all parts and tools listed below are present. If any parts are missing or damaged, please contact Novilla customer support.

Parts List:

Refer to the assembly video for visual identification of numbered parts.

• Headboard components (e.g., Part 8, Part 10, Part 7, Part 13, Part 14)
• Footboard components (similar to headboard)
• Side Rails (e.g., Part 1, Part 2, Part 3)
• Center Support Legs (e.g., Part 4, Part 5, Part 6, Part 12)
• Slats (e.g., Part 11)

Hardware and Tools:

• Various bolts and screws (e.g., B, C, D, E, F)
• Hex wrench (included)

Figure 1: Overview of bed frame components and included tools.

Assembly Instructions (Setup)

Follow these steps for a quick and easy assembly. It is recommended to assemble the bed frame with two people. All parts are numbered for easy identification.

Assembly Video Guide:

Step-by-Step Assembly:

1. Assemble the Headboard: Connect the headboard components (e.g., Part 8, Part 10, Part 7, Part 13, Part 14) using the specified bolts and the hex wrench. Ensure all connections are finger-tight at this stage.
2. Assemble the Footboard: Repeat the process for the footboard, connecting its respective components.
3. Attach Side Rails: Connect the assembled headboard and footboard using the side rails (e.g., Part 1, Part 2, Part 3). Secure with bolts (e.g., B, F).
4. Install Center Support Legs: Attach the center support legs (e.g., Part 4, Part 5, Part 6, Part 12) to the frame. Secure with bolts (e.g., D).
5. Install Slats: Unfold and place the metal slats (Part 11) onto the designated supports on the side rails. Ensure they are evenly spaced and securely seated.
6. Final Tightening: Once all components are in place, systematically tighten all bolts and screws using the hex wrench until secure. Do not overtighten.

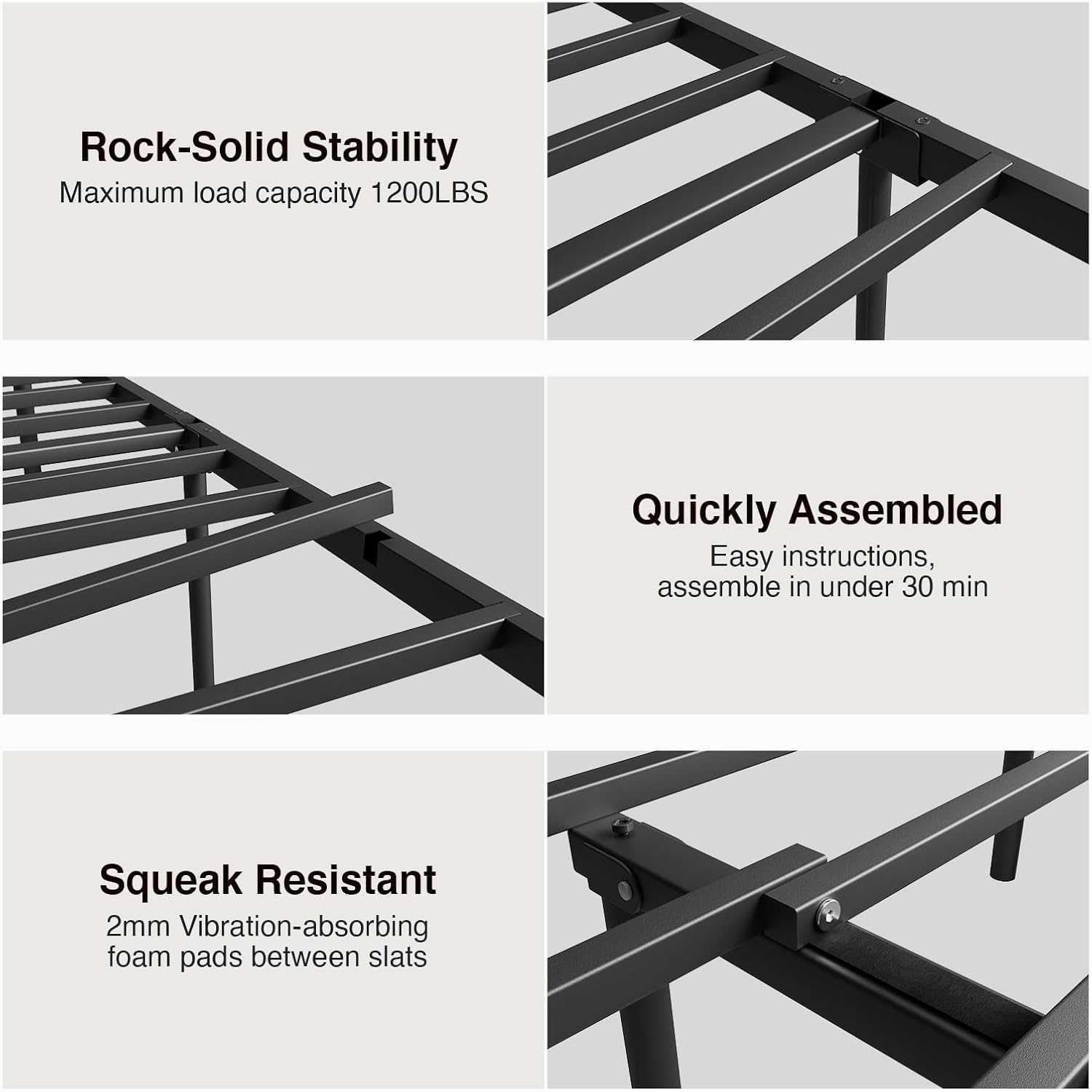

Figure 2: Detail of a secure connection point during assembly.

Operating Instructions

Your Novilla Metal Bed Frame is designed for ease of use and durability.

• Mattress Support: This bed frame is designed to be used without a box spring. Place your twin-size mattress directly onto the metal slats.
• Underbed Storage: The frame provides approximately 12 inches of clearance, offering ample space for underbed storage containers.
• Noise-Free Design: The frame incorporates triple-layer anti-squeak technology, including rubberized feet, EVA cushion strips, and reinforced joints, to minimize noise during use.
• Weight Capacity: The bed frame can support an evenly distributed weight of up to 800 lbs.

Figure 3: Illustration of the generous underbed storage space.

Maintenance

Proper maintenance will extend the life and performance of your bed frame.

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Tightness Check: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
• Inspection: Regularly inspect the frame for any signs of wear or damage. Address any issues promptly.

Troubleshooting

If you encounter any issues with your bed frame, refer to the following common problems and solutions:

• Squeaking Noises:
  • Ensure all bolts and screws are securely tightened. Loose connections are a common cause of squeaking.
  • Verify that the EVA cushion strips are properly placed between the slats and the frame.
  • Check if the rubberized feet are intact and properly positioned on the floor.
• Instability/Wobbling:
  • Confirm that all components are correctly assembled according to the instructions.
  • Re-tighten all bolts and screws.
  • Ensure the bed frame is placed on a flat, level surface.
• Missing Parts:
  • Carefully check all packaging materials.
  • Contact Novilla customer support with your model number and a description of the missing part.

Specifications

Figure 4: Detailed dimensions and weight capacity of the bed frame.

Warranty and Support

For warranty information or technical support, please contact Novilla customer service. Refer to your purchase documentation for specific warranty terms and contact details. When contacting support, please have your model number (B-F10028) and purchase date available.

You can visit the official Novilla store for more information: Novilla Store on Amazon
