1. Introduction
Welcome to the world of aerial excitement with your new Lonyiabbi Flying Sword RC Drone! This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your RC Glider. Please read it thoroughly before first use.
2. Safety Information
WARNING: To prevent serious injury and property damage, always observe the following precautions:
- Recommended age for operation is 14 years and up.
- Always operate the drone in open, clear areas, away from people, animals, and obstacles.
- Do not operate near power lines, trees, or water.
- Keep fingers, hair, and loose clothing away from rotating propellers.
- Do not modify or disassemble the drone or its components.
- Use only original Lonyiabbi parts and accessories.
- Ensure batteries are charged correctly and handled safely.
3. Package Contents
Verify that all items are present in your package:
- 1 × Flying Sword RC Drone
- 1 × Remote Controller
- 1 × Gesture Watch Controller
- 2 × Rechargeable Lithium Batteries
- 1 × USB Charging Cable
- 1 × Spare Wings
- 1 × Screwdriver
4. Setup Guide
4.1 Charging the Batteries
Before first use, fully charge both rechargeable lithium batteries using the provided USB charging cable. Charging time is approximately 30 minutes per battery.
4.2 Installing the Battery
Carefully insert the charged battery into the drone's battery compartment. Ensure it clicks securely into place.

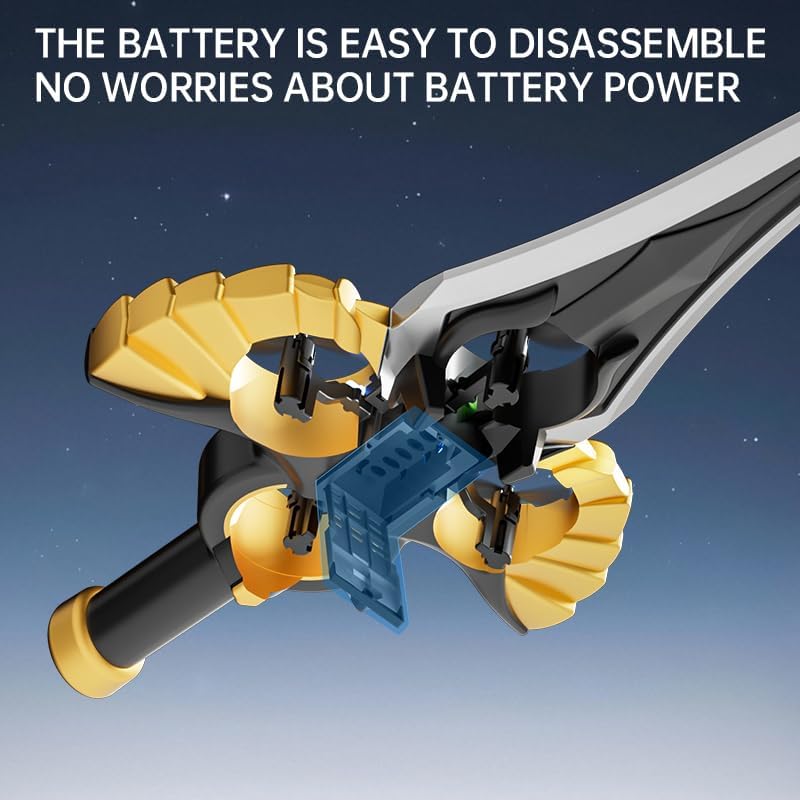

Figure 4.2.1: Battery installation. The battery is designed for easy disassembly and installation.
4.3 Powering On and Frequency Matching
Turn on the switch on the drone. The indicator lights will flash. Then, turn on your chosen controller (remote or gesture watch). The drone's lights will change from flashing to continuous brightness, indicating successful frequency matching and readiness to fly.
Video 4.3.1: Demonstrates powering on the drone and the frequency matching process, where lights change from flashing to continuous brightness.
5. Operating Instructions
5.1 Remote Control Overview
Familiarize yourself with the remote control layout and functions:

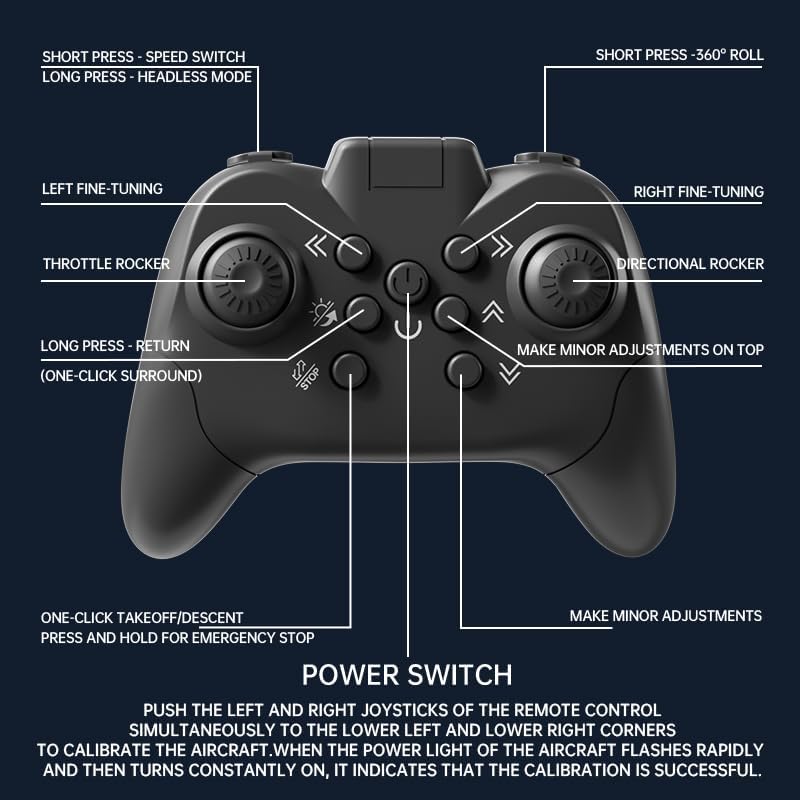

Figure 5.1.1: Remote Control Diagram. Key functions include throttle, directional control, fine-tuning, speed switch, 360° roll, one-click takeoff/descent, and emergency stop.
5.2 One-Key Takeoff and Landing
After successful frequency matching, press the one-key takeoff button on the remote control to launch the drone. To land, press the one-key landing button. For emergency stops, press and hold the one-click takeoff/descent button.
Figure 5.2.1: One-click takeoff. This feature makes it easy to get started.
5.3 Speed Adjustment and Stunts
The drone features 3-speed modes (low, medium, high) for varying skill levels and flight conditions. You can easily switch between these speeds. The drone is also capable of performing 360° flips, loops, and rolls in the air, including a high-speed "Sword Flight" mode.
Figure 5.3.1: Multi-speed adjustment for a real flight experience.
Video 5.3.1: Demonstrates various stunts including 360° rotation, left and right stunt rolls, and front and rear stunt rolling, along with adjustable speed settings.
5.4 Gesture Control
In addition to the remote control, you can fly the drone using the motion-sensing watch controller. Steer with your wrist movements, mimicking a sword master. This provides an intuitive and engaging flying experience.
Figure 5.4.1: Remote-controlled stunt flying sword.
Video 5.4.1: Shows the drone being controlled by the gesture watch, demonstrating the
