Leawell LY-508AH Electronic Acupuncture Pen Instruction Manual

1. Introduction and Overview

The Leawell LY-508AH Electronic Acupuncture Pen is a portable device designed to stimulate acupressure points using low to medium frequency pulse waves. It aims to provide pain relief, reduce fatigue, and promote muscle relaxation. This manual provides essential information for safe and effective use of your device.

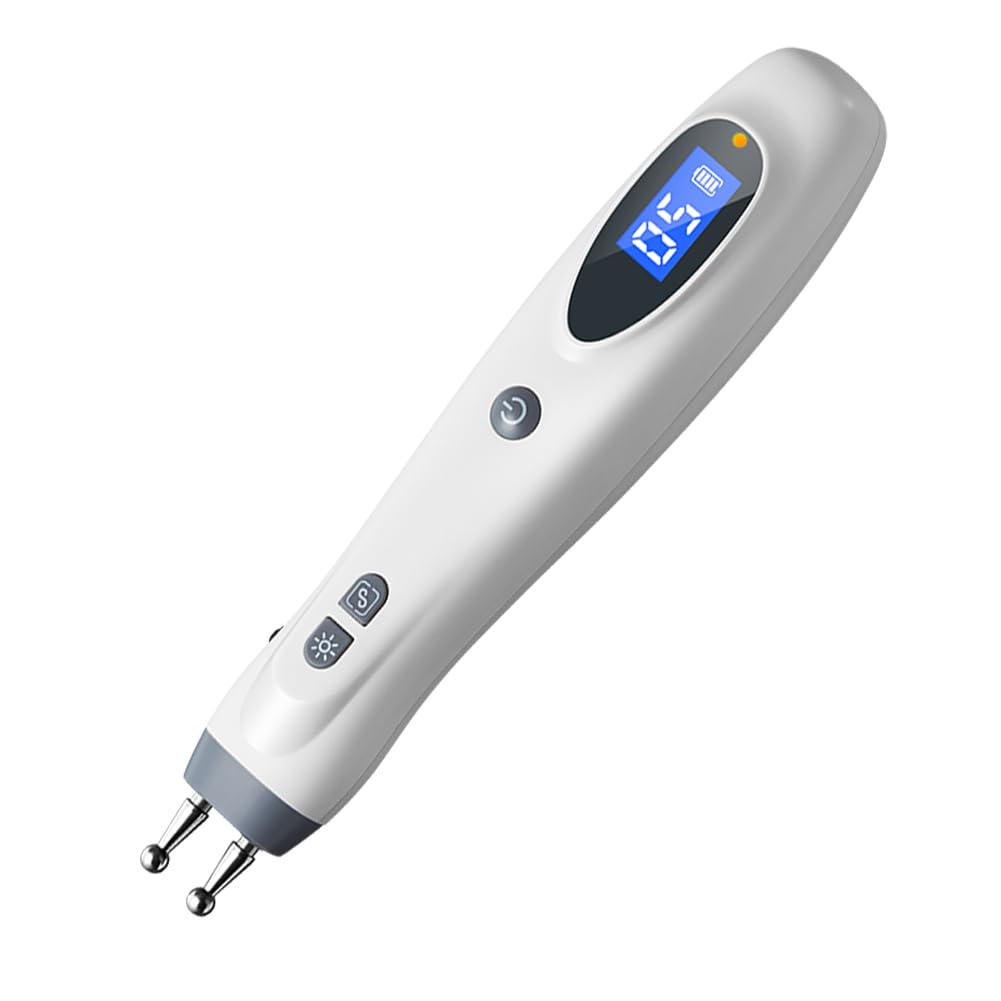

Figure 1: Leawell LY-508AH Electronic Acupuncture Pen

2. Product Components

Familiarize yourself with the parts of your Leawell LY-508AH Electronic Acupuncture Pen:

• Dual Probes: For stimulating acupressure points.
• Intensity Display/Mode Display: Shows current settings.
• Battery Level Indicator: Displays remaining battery life.
• USB Charging Port: For recharging the device.
• Red/Blue Light Switch: To select light therapy options.
• Mode Button: To cycle through different pulse modes.
• Switch (Power Button): To turn the device on/off.
• Indicator Light: Provides visual feedback during operation.
• Intensity Slider: To adjust the pulse intensity.

Figure 2: Detailed view of the Electronic Acupuncture Pen components.

3. Setup and Charging

Before first use, ensure the device is fully charged. The device includes a 1000mAh rechargeable battery.

1. Connect the provided USB charging cable to the USB Charging Port on the device.
2. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a computer USB port.
3. The battery level indicator on the display will show charging progress. Once fully charged, disconnect the cable.

Note: A thin layer of conductive gel or water on the massage area can enhance conductivity and improve the treatment experience. This is recommended for optimal performance.

Figure 3: Package contents, including the USB charging cable.

4. Operating Instructions

Follow these steps for proper operation of your acupuncture pen:

1. Power On: Long press the Power Button (Switch) to turn on the device. The display will light up.
2. Hold Correctly: Ensure your thumb and the web of your thumb contact the silver conductive area on the pen to complete the circuit.
3. Select Mode: Press the "S" button to cycle through the 5 available modes (F1-F5). Refer to Section 5 for mode descriptions.
4. Adjust Intensity: Slide the side button to adjust the intensity level (1-10). Start at a low intensity and gradually increase to find your comfortable level.
5. Apply to Skin: Apply the dual probes to the desired acupressure point on your skin. Ensure good contact.
6. Treatment Cycle: Stimulate the area for 1 minute, then take a 5-second break. Repeat this cycle 3 times. Do not exceed 2 treatments per day on the same area.
7. Power Off: Long press the Power Button (Switch) to turn off the device after use.

Figure 4: Visual guide for operating the acupuncture pen.

Operating Video Guide

5. Modes and Functions

The LY-508AH utilizes 9 pulse shapes combined into 5 distinct modes, each targeting different body areas:

• Mode F1: Recommended for Shoulder & Neck areas.
• Mode F2: Recommended for Hands, Arms, and Wrist.
• Mode F3: Recommended for the Abdomen.
• Mode F4: Recommended for Feet, Ankles, and Legs.
• Mode F5: Recommended for the Waist & Back.

These recommendations are suggestions and can be adjusted based on individual needs and comfort.

Red & Blue Light Therapy

The acupuncture pen also features red and blue light therapy:

• Red Light (640nm): May assist in skin repair and reducing inflammation.
• Blue Light (485nm): May provide adjunctive antibacterial action.
• Red & Blue Alternation: Offers a synergistic effect.

Figure 5: Overview of the 9 pulse shapes and 5 modes.

Figure 6: Explanation of Red and Blue Light Therapy benefits.

6. Maintenance

To ensure the longevity and proper functioning of your Leawell LY-508AH Electronic Acupuncture Pen, follow these maintenance guidelines:

• Cleaning: After each use, gently wipe the probes and the device body with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.
• Battery Care: Recharge the device regularly, even if not used frequently, to maintain battery health. Avoid completely draining the battery before recharging.
• Inspection: Periodically inspect the device and charging cable for any signs of damage. Do not use if damaged.

7. Troubleshooting

If you encounter any issues with your device, refer to the following common troubleshooting tips:

• Device not turning on: Ensure the battery is charged. Connect to the charger and try again.
• No sensation or weak pulse:
  1. Check if your thumb is making proper contact with the conductive area.
  2. Increase the intensity level using the side slider.
  3. Apply more conductive gel or water to the skin area.
  4. Ensure the probes are making firm contact with the skin.
• Display not working: Recharge the device. If the issue persists, contact customer support.
• Device beeps too frequently or not at all during sensitivity calibration: Adjust the sensitivity setting as demonstrated in the video guide (Video 1) to match your skin hydration level.

If problems persist after trying these steps, please contact Leawell customer support.

8. Specifications

• Product Dimensions: 7.1 x 1.4 x 1.3 inches
• Item Weight: 3.2 ounces
• Item Model Number: LY-508AH
• Department: Unisex Adult
• Batteries: 1 Lithium Ion battery required (included), 1000mAh
• Manufacturer: Leawell
• Pulse Frequency: Low-to-Medium (4-2000 Hz)
• Intensity Levels: 10
• Modes: 5 (F1-F5)
• Light Therapy: 640nm Red Light, 485nm Blue Light

9. Safety Warnings

Please read and adhere to the following safety warnings:

• Do not use during menstruation or pregnancy.
• Do not irradiate the face directly.
• Not for use with implanted electronic devices such as pacemakers.
• Keep out of reach of children.
• Consult a healthcare professional before use if you have any medical conditions or concerns.

10. Legal Disclaimer

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
