Vofuoti Portable Cordless Weighted Heating Pad User Manual

Model: 1174170 | Brand: Vofuoti

Introduction

This manual provides essential instructions for the safe and effective use of your Vofuoti Portable Cordless Weighted Heating Pad. Designed for targeted heat therapy, this pad offers comfort and relief for various body areas, including the back, abdomen, neck, and shoulders. Please read all instructions carefully before first use and retain this manual for future reference.

Safety Information

  • Do not place the product in direct contact with bare skin.
  • It is recommended to use for 20 minutes per session. Avoid prolonged use.
  • A small number of heat-sensitive individuals may experience skin redness. Discontinue use if discomfort occurs.
  • Ensure the battery is properly connected and secured in its pocket during use.
  • Do not use while sleeping.
  • Keep out of reach of children.
  • Do not use if the product appears damaged.

Product Overview

The Vofuoti Portable Cordless Weighted Heating Pad is designed for comfort and therapeutic heat application. Key features include:

  • Weighted Design: Filled with micro-weighted beads (2.2 lbs) for snug fit and minimal heat loss.
  • Cordless Operation: Powered by a 10000 mAh mobile battery for unrestricted use.
  • 3 Heat Levels: Adjustable temperature settings for personalized comfort.
  • Quick Heating: Warms up in approximately 5 seconds.
  • Soft Fabric: Made of skin-friendly crystal superfleece.
  • Overheat Protection: Automatic temperature adjustment and shut-off for safety.
  • Assist Strap: An extra-long 5.2-foot strap for securing the pad to various body parts.
Vofuoti Portable Cordless Weighted Heating Pad with included battery and USB cable

Figure 1: Vofuoti Portable Cordless Weighted Heating Pad, showing the pad, battery, and charging cable.

Close-up of micro-weighted beads inside the heating pad fabric

Figure 2: Close-up view illustrating the micro-weighted beads integrated into the heating pad's fabric for enhanced comfort and heat retention.

Setup Instructions

  1. Charge the Battery: Before first use, fully charge the included 10000 mAh mobile battery using the provided USB cable. The battery indicator lights will show charging progress.
  2. Connect Battery: Insert the battery into the designated pocket on the heating pad. Connect the pad's power cable to the battery.
  3. Position the Pad: Place the heating pad on the desired body area (back, abdomen, neck, shoulders, legs). Use the 5.2-foot assist strap to secure the pad comfortably.

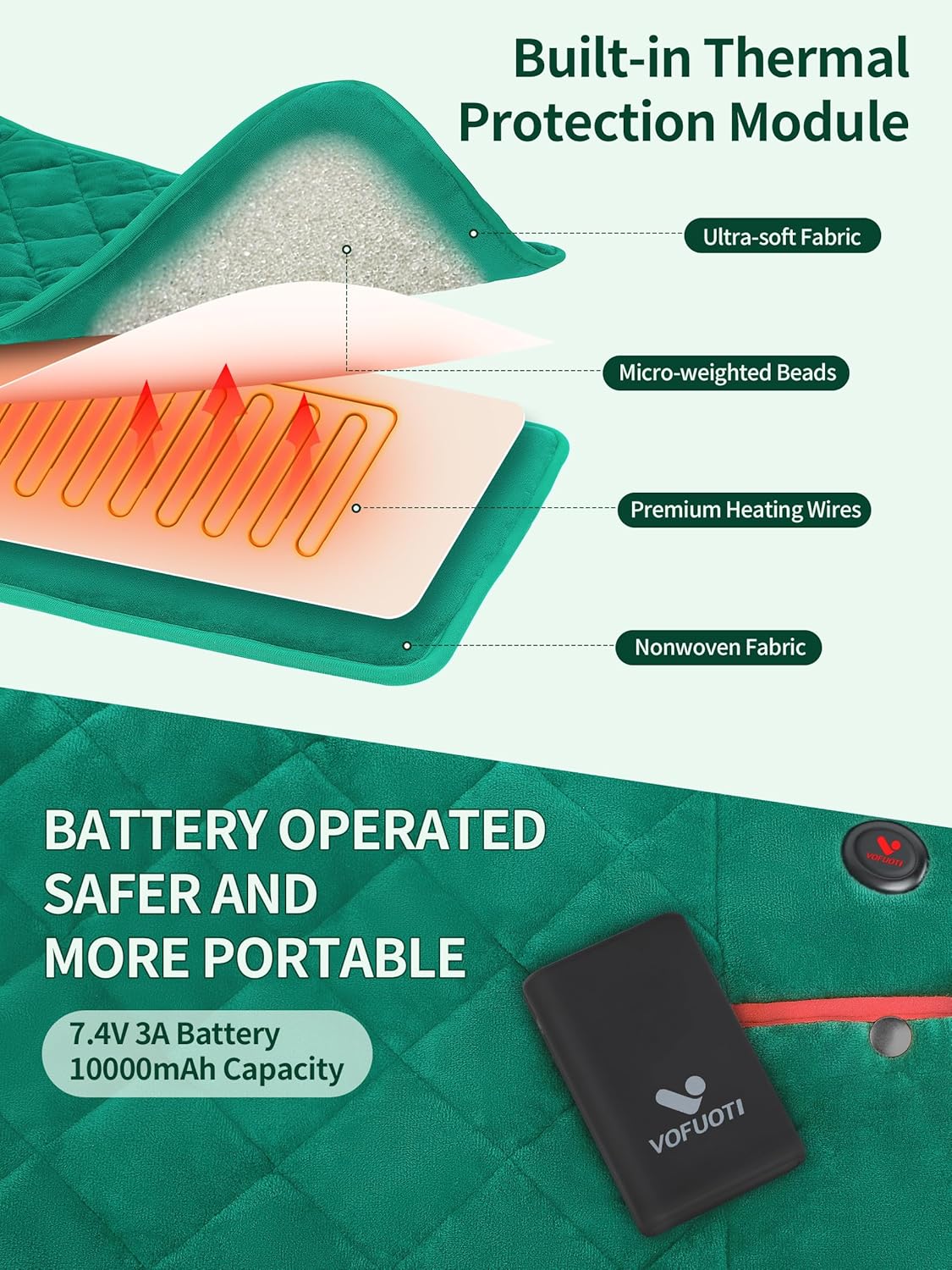

Diagram showing the layered construction of the heating pad with ultra-soft fabric, micro-weighted beads, premium heating wires, and nonwoven fabric, alongside the battery pack

Figure 3: Internal construction of the heating pad and the battery connection point.

Operating Instructions

  1. Power On/Off: Press and hold the round button on the heated pad for 3 seconds to turn it ON or OFF.
  2. Adjust Heat Levels: Once powered on, the pad defaults to High temperature (red indicator light). Press the button briefly to cycle through the 3 heat levels:
    • High (Red Light): Approximately 149°F (65°C), lasts up to 2 hours.
    • Medium (White Light): Approximately 140°F (60°C), lasts up to 3 hours.
    • Low (Blue Light): Approximately 131°F (55°C), lasts up to 4 hours.
  3. Overheat Protection: If no adjustments are made within 5 minutes of activation, the pad will automatically switch from High to Medium temperature. To return to High, press the button until the red indicator light illuminates.
Woman demonstrating the three heat settings of the Vofuoti heating pad, showing corresponding temperature and duration for each light color.

Figure 4: Visual guide to the 3 heat settings and their indicators.

Video 1: Demonstrates the Vofuoti Weighted Heating Pad with Battery, including its features and how to use it.

Video 2: Overview of the Vofuoti Cordless Heating Pad, highlighting its portability and ease of use.

Video 3: Demonstration of a cordless heating pad for back use, showcasing its application and benefits.

Maintenance

The Vofuoti Heating Pad is designed for easy cleaning. The fabric cover is machine washable. Ensure the battery and power cable are disconnected and removed from the pad before washing. Follow the care instructions on the product label for best results.

Troubleshooting

  • Pad not heating: Ensure the battery is fully charged and properly connected to the pad. Press and hold the power button for 3 seconds to activate.
  • Pad automatically switches to Medium heat: This is a safety feature (overheat protection). To return to High, press the button until the red indicator light turns on.
  • Battery not charging: Verify the USB cable is securely connected to both the battery and a power source. Try a different USB port or adapter.

Specifications

  • Model Number: 1174170
  • Dimensions: 12" x 24"
  • Weight: 2.2 Pounds
  • Battery: 10000 mAh (1 A battery required, included)
  • Material: Polyester (Crystal SuperFleece)
  • Heat Settings: 3 Levels (Low: 131°F/55°C, Medium: 140°F/60°C, High: 149°F/65°C)
  • Auto Shut-off: Yes (Overheat Protection)
  • Manufacturer: Vofuoti

Warranty and Support

Vofuoti is committed to providing high-quality products and customer satisfaction. If you experience any issues with your product, please contact our customer service team for assistance. We will help resolve the problem promptly.
