ORIGPARTS W19-82 11B Refrigerator Inverter Control Board Instruction Manual

Introduction

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the ORIGPARTS W19-82 11B Refrigerator Inverter Control Board. This component is designed to regulate the compressor speed in compatible Frigidaire refrigerators, ensuring efficient cooling performance. Please read this manual thoroughly before proceeding with any installation or service.

Safety Information

WARNING: Electrical shock hazard. Disconnect power before servicing. Failure to do so can result in serious injury or death.

• Always disconnect the refrigerator from its power source before attempting any installation, repair, or maintenance.
• Installation should only be performed by a qualified technician.
• Wear appropriate personal protective equipment, including insulated gloves and eye protection.
• Handle the control board by its edges to avoid damage from electrostatic discharge (ESD). Consider using an anti-static wrist strap.
• Ensure all connections are secure and correctly oriented before restoring power.

Product Overview

The W19-82 11B / 0321804289 Refrigerator Inverter Control Board is a genuine OEM replacement part manufactured by ORIGPARTS. It is responsible for controlling the variable speed compressor in your refrigerator, optimizing energy consumption and maintaining consistent temperatures.

Compatible Models:

• FRSO52B3HTS
• FRSO52B3HQS
• FRSO52X3HUS
• FRSO52X3HUW

Image 1: Top-down view of the ORIGPARTS W19-82 11B Refrigerator Inverter Control Board, showing various electronic components, capacitors, and connectors. The board is labeled with 'W19-82 11B' and '0321804289'.

Setup and Installation

Replacing a refrigerator inverter control board requires careful attention to detail and electrical safety. If you are not comfortable performing this repair, it is recommended to contact a certified appliance technician.

Required Tools:

• Screwdrivers (Phillips and flathead)
• Nut drivers or socket set
• Needle-nose pliers
• Multi-meter (for testing, optional but recommended)
• Anti-static wrist strap

Installation Steps:

1. Disconnect Power: Unplug the refrigerator from the wall outlet or turn off the circuit breaker supplying power to the appliance. Verify power is off using a multi-meter.
2. Access the Control Board: Locate the existing inverter control board. This is typically found at the back of the refrigerator, often near the compressor. You may need to remove a rear access panel.
3. Document Connections: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the old board. This will serve as a reference for connecting the new board.
4. Disconnect Wires: Carefully disconnect all wire harnesses and ground wires from the old control board. Note that some connectors may have locking tabs.
5. Remove Old Board: Unscrew or unclip the old control board from its mounting brackets.
6. Install New Board: Position the new ORIGPARTS W19-82 11B control board in the same location and secure it with the screws or clips.
7. Reconnect Wires: Using your photos or diagram, carefully reconnect all wire harnesses and ground wires to the new board. Ensure each connection is firm and correctly seated.
8. Replace Access Panel: Reinstall any access panels that were removed.
9. Restore Power: Plug the refrigerator back into the wall outlet or turn on the circuit breaker.
10. Test Operation: Monitor the refrigerator's operation to ensure the compressor starts and the cooling system functions correctly.

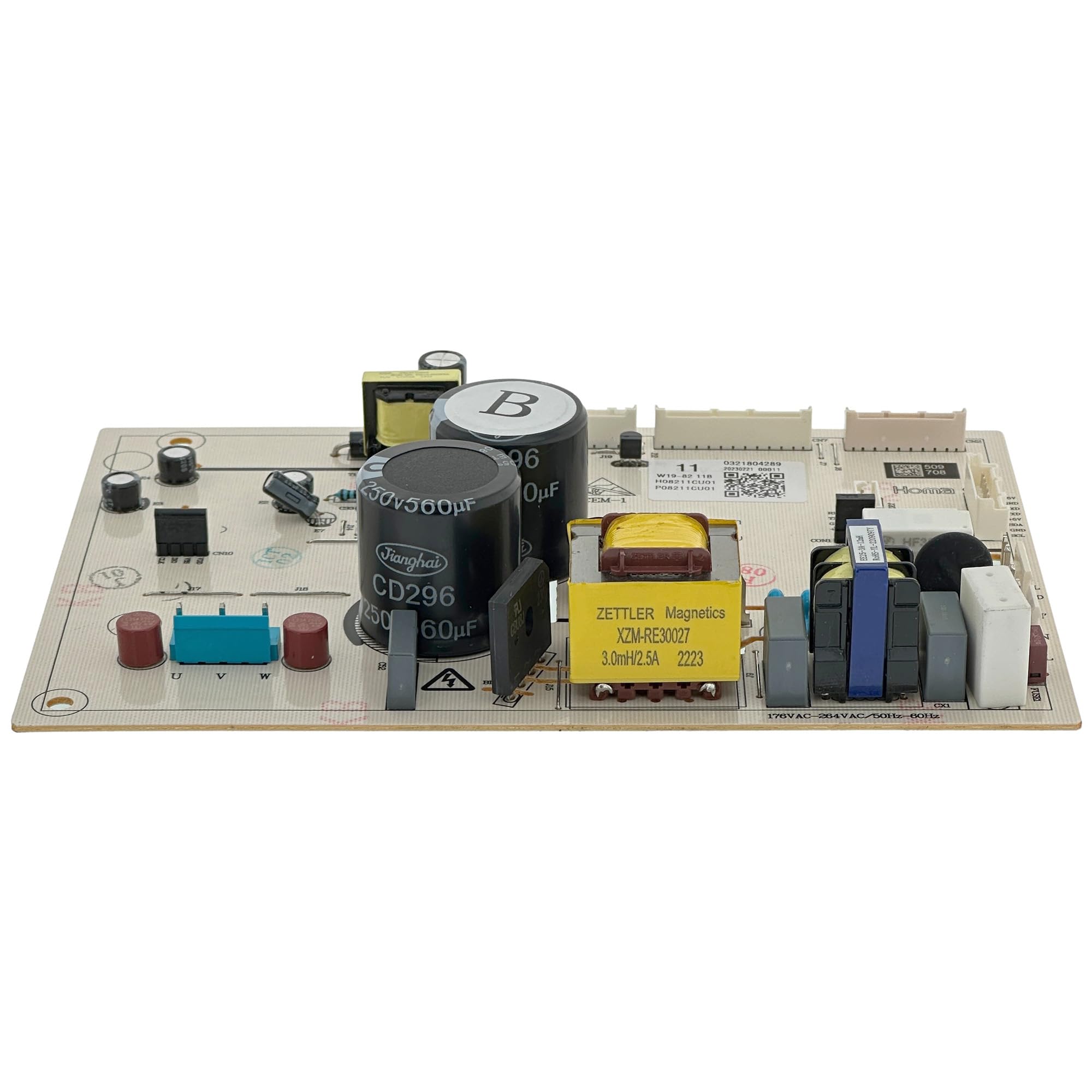

Image 2: Angled view of the ORIGPARTS W19-82 11B Refrigerator Inverter Control Board, providing a clearer perspective of the various capacitors, transformers, and connection points.

Operation

Once installed, the inverter control board operates automatically. It receives signals from the refrigerator's main control board and temperature sensors to adjust the compressor's speed. This dynamic control allows the refrigerator to maintain precise temperatures more efficiently than traditional on/off compressors, reducing temperature fluctuations and energy consumption.

Maintenance

The inverter control board itself requires minimal maintenance. To ensure its longevity and proper function:

• Keep Area Clean: Ensure the area around the control board is free from dust, debris, and moisture. Dust accumulation can lead to overheating or short circuits.
• Avoid Moisture: Protect the board from any liquid spills or excessive humidity, which can cause corrosion and component failure.
• Regular Refrigerator Maintenance: Perform routine maintenance on your refrigerator, such as cleaning condenser coils, to ensure the entire system operates efficiently and does not put undue stress on electronic components.

Troubleshooting

If your refrigerator is experiencing issues related to cooling or compressor operation after installing the new inverter control board, consider the following:

• No Cooling or Inconsistent Cooling:
• Verify all wire connections are secure and correctly seated on the new board.
• Ensure the refrigerator is receiving proper power (110-127V AC, 60Hz).
• Check other components in the cooling system, such as the compressor, fan motors, and temperature sensors, as they can also cause similar symptoms.
• Compressor Not Starting:
• Confirm the main control board is sending the correct signals to the inverter board.
• Inspect the wiring for any damage or loose connections.
• Unusual Noises:
• Ensure the board is securely mounted and not vibrating against other components.
• If the noise is coming from the compressor, it may indicate an issue with the compressor itself or its interaction with the inverter board.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified appliance repair technician for further diagnosis.

Specifications

Warranty Information

This ORIGPARTS W19-82 11B Refrigerator Inverter Control Board comes with a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accident, or unauthorized repairs. Please retain your proof of purchase for warranty claims.

Support

For technical assistance, warranty claims, or further inquiries regarding the ORIGPARTS W19-82 11B Refrigerator Inverter Control Board, please contact the manufacturer or your authorized dealer. When contacting support, please have your product model number (W19-82 11B) and part number (0321804289) available.
