Merax Full Size Murphy Bed with Sofa

1. Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Merax Full Size Murphy Bed with integrated sofa. This multifunctional furniture piece is designed to optimize space in living rooms, studies, or offices by seamlessly converting between a comfortable full-size bed and a functional sofa. Please read all instructions carefully before beginning assembly or use.

Image 1.1: The Merax Full Size Murphy Bed in its sofa configuration, integrated into a room environment.

2. Safety Information

Adherence to these safety guidelines is crucial for preventing injury and damage to the product.

• Wall Mounting is Mandatory: This Murphy bed must be securely anchored to a wall stud or solid structural element using the provided hardware. Failure to do so can result in serious injury or death.
• Two-Person Assembly: Assembly requires at least two adults. Do not attempt to assemble alone.
• Clear Area: Ensure the area around the bed is clear of obstructions before operating the folding mechanism.
• Keep Clear During Operation: Keep hands, feet, children, and pets away from the bed and its moving parts during opening and closing.
• Weight Capacity: Do not exceed the recommended weight capacity for the bed. Use only a full-size mattress of appropriate thickness and weight as specified in the product details.
• Regular Inspection: Periodically check all fasteners and connections to ensure they remain tight and secure.
• Use as Intended: This product is designed for sleeping and seating. Do not use it as a climbing structure or for purposes other than its intended use.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

• Murphy Bed Frame Components
• Sofa Unit Components
• Hardware Kit (screws, bolts, wall anchors, etc.)
• Installation Manual (this document)
• Required Tools (e.g., Allen wrench, screwdriver - typically included or commonly available)

4. Setup and Assembly

Assembly of the Merax Murphy Bed requires careful attention to detail and adherence to the provided step-by-step instructions. It is recommended to have two adults for this process.

1. Prepare Workspace: Clear a spacious area for assembly. Lay out all components and hardware.
2. Assemble Bed Frame: Follow the detailed diagrams in the separate installation manual to construct the main bed frame and its folding mechanism. Ensure all connections are secure.
3. Attach Sofa Unit: Integrate the sofa components with the bed frame as instructed.
4. Wall Mounting: This is a critical step. Locate wall studs or use appropriate wall anchors for your wall type. Securely attach the Murphy bed unit to the wall using the provided anti-tip hardware. Verify stability before proceeding.
5. Install Mattress: Place your full-size mattress onto the bed platform. Ensure it fits correctly and does not interfere with the folding mechanism.

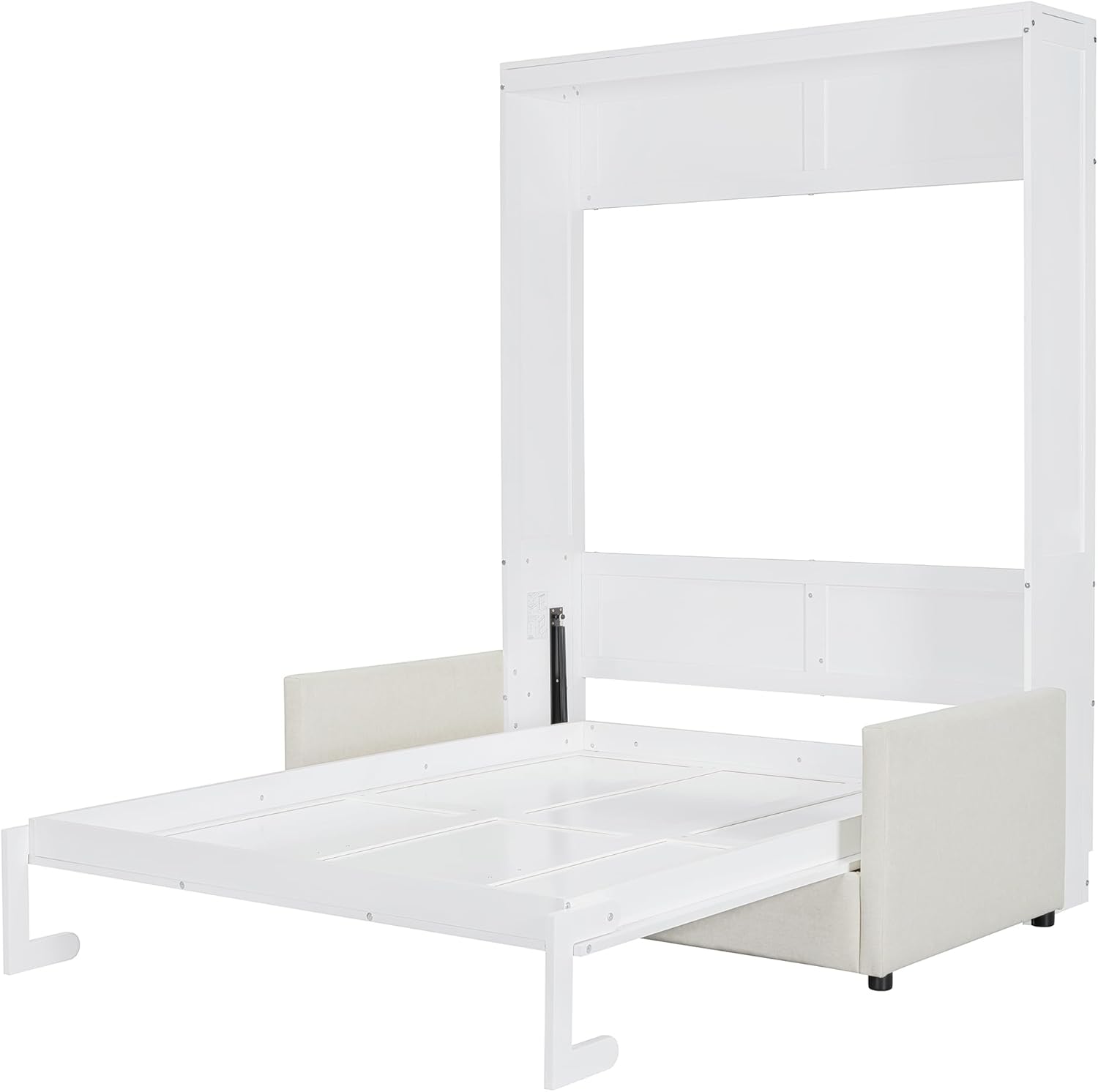

Image 4.1: The Merax Murphy Bed frame in a partially unfolded state, illustrating the bed platform and initial support leg positioning during assembly or operation.

Image 4.2: A detailed view of the dual piston metal folding mechanism, which facilitates the smooth operation of the bed.

5. Operating Instructions

The Merax Murphy Bed is designed for easy conversion between its sofa and bed configurations.

5.1. Converting from Sofa to Bed

1. Clear Sofa: Remove any items, cushions, or bedding from the sofa area.
2. Pull Handles: Grasp the handles located on the front panel of the bed unit.
3. Lower Bed: Gently pull the bed unit downwards. The dual piston mechanism will assist in a controlled descent. Continue lowering until the bed platform is fully horizontal.
4. Extend Support Legs: Flip the integrated support legs down onto the floor to provide stable support for the bed.

Image 5.1: The Merax Murphy Bed fully extended, ready for use as a full-size bed.

5.2. Converting from Bed to Sofa

1. Remove Bedding: Ensure all bedding is removed from the mattress.
2. Fold Support Legs: Retract the support legs back into their stored position.
3. Lift Bed: Grasp the handles and gently lift the bed unit upwards. The piston mechanism will assist in raising the bed. Continue lifting until the bed is fully upright and securely latched in the closed position.
4. Arrange Sofa: Adjust the sofa cushions as needed for seating.

Image 5.2: The Merax Murphy Bed in its compact sofa configuration, showcasing its space-saving design.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Murphy bed.

• Cleaning Wood/MDF Surfaces: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Cleaning Fabric Sofa: Spot clean fabric with a mild detergent and water solution. Test on an inconspicuous area first. For deeper cleaning, consult a professional upholstery cleaner.
• Mechanism Check: Periodically inspect the dual piston folding mechanism for any signs of wear or damage. Ensure all bolts and screws are tight. Do not lubricate the pistons unless specifically instructed by the manufacturer.
• Hardware Inspection: Regularly check all assembly hardware, especially the wall mounting anchors, to ensure they remain secure. Tighten any loose fasteners.

Image 6.1: A close-up of the sofa cushions, highlighting the fabric texture for cleaning reference.

7. Troubleshooting

Refer to this section for solutions to common issues.

• Bed Not Folding/Unfolding Smoothly:
  • Check for any obstructions (bedding, objects) preventing movement.
  • Ensure the support legs are fully retracted/extended.
  • Verify that all assembly hardware is tight and correctly installed.
• Bed Feels Unstable:
  • Re-check the wall mounting. Ensure the unit is securely anchored to wall studs or appropriate structural supports.
  • Confirm all assembly bolts and screws are tightened.
  • Ensure the support legs are fully extended and locked into place when the bed is open.
• Sofa Cushions Shifting:
  • Adjust cushions back into position. Consider adding non-slip pads underneath if persistent.

If you encounter issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Merax customer support.

8. Specifications

Image 8.1: Dimensional drawing of the Merax Murphy Bed, indicating various measurements in inches.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official Merax website. If you require assistance with assembly, parts, or have any questions regarding the product, please contact Merax customer support directly. Provide your model number (HT01837) and purchase details for efficient service.

Merax Customer Support: Please refer to your purchase receipt or the Merax brand website for contact information.
