Zeb H81M2 Motherboard User Manual

1. Introduction

This manual provides detailed instructions for the installation, setup, and operation of the Zeb H81M2 motherboard. Designed for users seeking a reliable and efficient foundation for their desktop builds, this motherboard supports 4th Generation Intel Core processors (LGA 1150 socket) and offers essential features for daily computing and multimedia tasks. Please read this manual thoroughly before proceeding with installation to ensure proper setup and to prevent damage to your components.

2. Key Features

The Zeb H81M2 motherboard incorporates several features to enhance your computing experience:

• Chipset: Intel H81
• CPU Socket: LGA 1150, supporting Intel 4th Gen Core i7 / i5 / i3, Pentium, Celeron processors.
• Memory Support: 2 DDR3 DIMM slots, supporting up to 16GB of DDR3 RAM at 1066/1333/1600 MHz.
• Expansion Slots: 1 PCIe x16 slot for graphics cards and 1 PCIe x1 slot for other expansion cards.
• Storage: 2 SATA III (6Gbps) ports and 2 SATA II (3Gbps) ports, plus an M.2 slot for high-speed storage.
• Audio: Integrated HD Audio with 5.1 channel support via 3.5mm jacks.
• LAN: Integrated 10/100/1000 Mbps Gigabit Ethernet for network connectivity.
• USB Ports: Support for USB 3.0 and USB 2.0.
• Video Output: HDMI and VGA ports for integrated graphics (requires compatible CPU).
• Form Factor: Micro-ATX, compatible with most standard ATX and mATX cases.

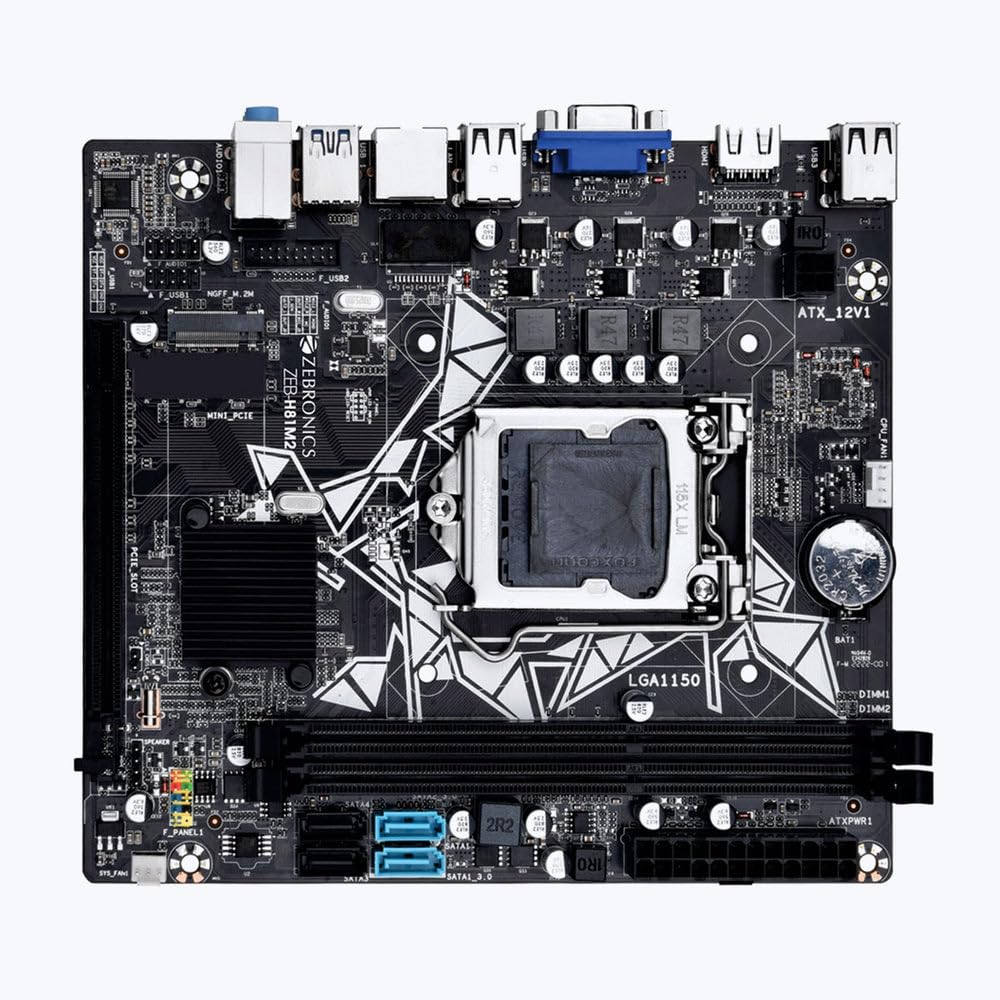

Figure 1: Zeb H81M2 Motherboard Overview. This image displays the general layout of the motherboard, highlighting key components and connectors.

3. Package Contents

Please check the package contents carefully. If any item is missing or damaged, contact your retailer.

• Zeb H81M2 Motherboard
• I/O Shield
• SATA Data Cables
• User Manual (this document)
• Driver CD/DVD (or link to driver download)

4. Setup and Installation

4.1. Safety Precautions

• Always disconnect the power cord from the wall outlet before installing or removing any components.
• Wear an anti-static wrist strap or frequently touch a grounded metal object to discharge static electricity, which can damage electronic components.
• Handle components by their edges, avoiding contact with pins or circuitry.
• Keep components away from moisture and extreme temperatures.

4.2. Motherboard Layout

Familiarize yourself with the motherboard's layout. Refer to Figure 1 for a visual guide to the main components and connectors.

4.3. CPU Installation (LGA 1150)

1. Locate the LGA 1150 CPU socket on the motherboard.
2. Push down the load lever and pull it out to open the CPU socket cover.
3. Carefully align the CPU with the socket, matching the golden triangle on the CPU with the triangle mark on the socket. Ensure the notches on the CPU align with the socket keys.
4. Gently place the CPU into the socket without forcing it.
5. Close the socket cover and push the load lever back into place until it locks.
6. Install the CPU cooler according to its manufacturer's instructions.

4.4. RAM Installation (DDR3)

1. Open the clips at both ends of the DDR3 DIMM slots.
2. Align the notch on the DDR3 memory module with the key in the DIMM slot.
3. Insert the memory module firmly into the slot until the clips snap into place. Ensure both clips are closed.

4.5. Storage Device Installation

4.5.1. SATA Drives

1. Connect one end of a SATA data cable to a SATA port on the motherboard (SATA III or SATA II).
2. Connect the other end of the SATA data cable to your SATA hard drive or SSD.
3. Connect a SATA power cable from your power supply unit (PSU) to the SATA drive.

4.5.2. M.2 SSD

1. Locate the M.2 slot on the motherboard.
2. Remove the screw and standoff from the M.2 slot.
3. Insert the M.2 SSD into the slot at a 30-degree angle, ensuring the gold contacts are fully seated.
4. Push the M.2 SSD down and secure it with the screw to the standoff.

4.6. Expansion Card Installation (PCIe)

1. Remove the metal slot cover from your PC case corresponding to the desired PCIe slot (PCIe x16 for graphics card, PCIe x1 for others).
2. Align the expansion card with the slot and press it firmly until it is fully seated.
3. Secure the card to the case with a screw.

4.7. Front Panel Connections

Connect the front panel cables from your PC case (Power LED, HDD LED, Power Switch, Reset Switch, USB ports, Audio jacks) to the corresponding headers on the motherboard. Refer to the motherboard's silkscreen labels for correct pin assignments.

4.8. Power Connections

1. Connect the 24-pin ATX power connector from your PSU to the main power header on the motherboard.
2. Connect the 4-pin CPU power connector from your PSU to the CPU power header near the CPU socket.

Figure 2: Zeb H81M2 Motherboard Connectors. This image provides a closer view of various connectors on the motherboard, aiding in proper cable attachment.

5. Operating System Installation

After assembling your system, you can proceed with installing your preferred operating system (e.g., Windows, Linux). Insert your OS installation media (USB drive or DVD) and boot from it. Follow the on-screen instructions to complete the installation. Ensure you install the latest drivers for your motherboard components, which can typically be found on the manufacturer's website or the provided driver disc.

6. BIOS Setup

The BIOS (Basic Input/Output System) is firmware that initializes hardware during the booting process. To enter the BIOS setup utility, press the DEL or F2 key repeatedly during system startup. Within the BIOS, you can configure various system settings, including boot order, date/time, CPU settings, memory timings, and more. Exercise caution when changing BIOS settings, as incorrect configurations can lead to system instability.

7. Maintenance

• Cleaning: Regularly clean dust from inside your PC case using compressed air. Ensure the system is powered off and unplugged before cleaning.
• Driver Updates: Keep your motherboard drivers and BIOS firmware updated to ensure optimal performance and compatibility. Check the manufacturer's website periodically for new releases.
• System Monitoring: Use system monitoring tools to keep track of CPU and motherboard temperatures to prevent overheating.

8. Troubleshooting

If you encounter issues, refer to the following common troubleshooting steps:

• No Power: Ensure all power cables (24-pin ATX, 4-pin CPU, SATA power) are securely connected. Check your PSU and wall outlet.
• No Display: Verify that your monitor is connected to the correct video output (motherboard or graphics card). Reseat your graphics card and RAM modules.
• System Instability/Crashes: Check RAM seating. Ensure CPU cooler is properly installed. Update drivers and BIOS. Test components individually if possible.
• Operating System Not Booting: Check boot order in BIOS. Ensure storage drives are properly connected and detected. Reinstall OS if necessary.
• Peripheral Issues: Ensure USB devices are connected to functional ports. Install necessary drivers for peripherals.

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for warranty claims. For driver downloads and further assistance, visit the official website of the manufacturer or distributor.
