Morfone Portable Bidet SW001 User Manual

1. Introduction

The Morfone Portable Bidet SW001 is designed for personal hygiene, offering a convenient and effective cleaning solution for various situations. Its compact size and rechargeable battery make it ideal for travel, postpartum care, baby care, and daily personal cleansing. This manual provides essential information for the safe and efficient use of your device.

2. Product Overview and Package Contents

The Morfone Portable Bidet features a 350ml water tank, dual spray modes, and a 180-degree rotatable nozzle for comprehensive cleaning. It is constructed from durable ABS material and includes a 500mAh rechargeable battery.

Package Contents:

• Portable Bidet for Travel x1
• Standard Nozzles x2
• Type-C Charging Cable x1
• User Manual x1

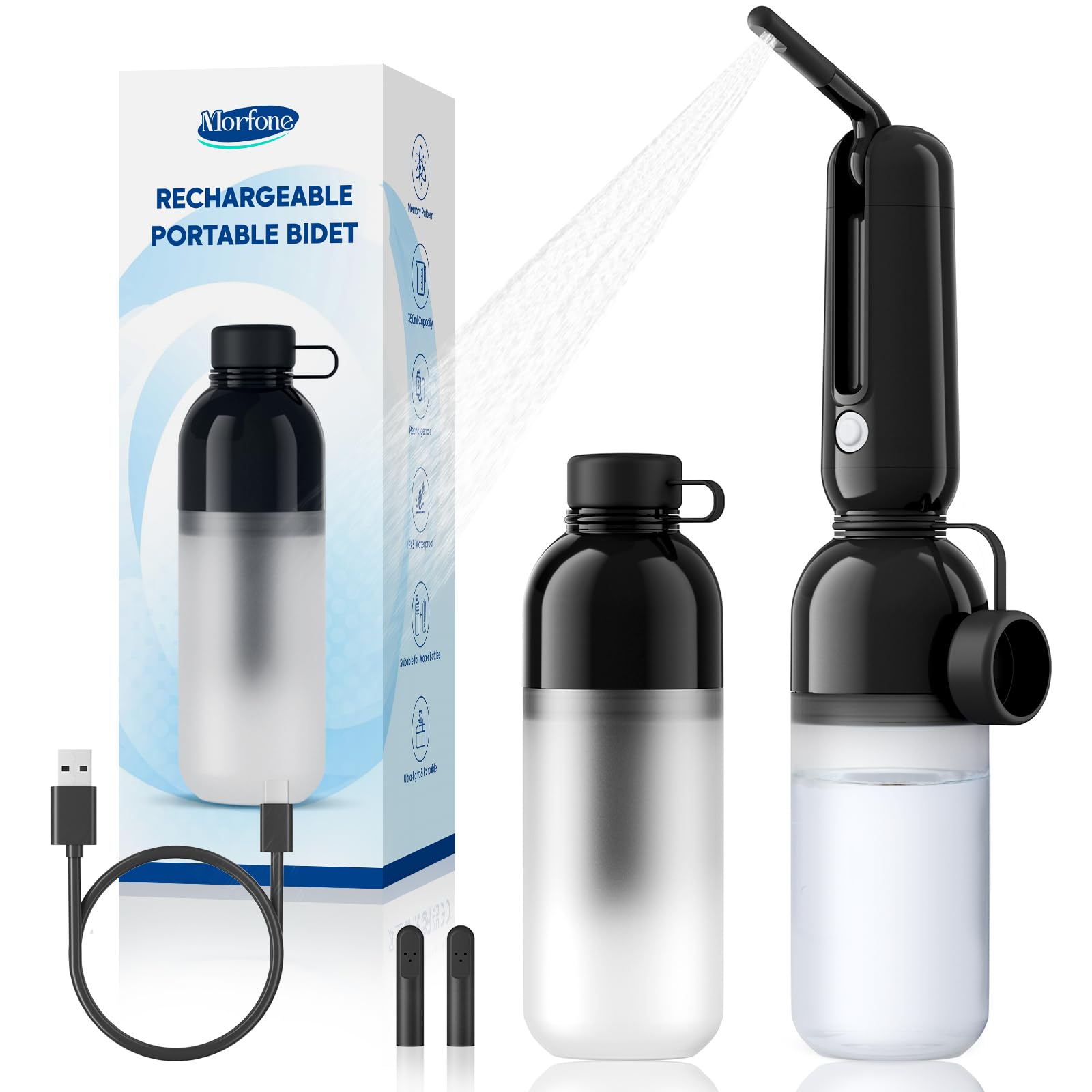

Image: Morfone Portable Bidet and its included components.

3. Setup

3.1 Charging the Device

Before first use, fully charge the bidet. Connect the provided USB-C charging cable to the bidet's charging port and to a compatible USB power source (e.g., power bank, car charger, wall outlet, laptop USB). The device is powered by a 500mAh rechargeable battery.

Image: Morfone Portable Bidet charging via USB-C, highlighting the 500mAh battery.

3.2 Filling the Water Tank

1. Unscrew the water tank from the main unit.
2. Fill the 350ml tank with clean water. Warm water is recommended for comfort.
3. Securely screw the water tank back onto the main unit.

Note: The universal adapter fits most standard bottles. Ensure the bottle adapter only fits short-threaded water bottles with a diameter of 1.1 inches.

3.3 Attaching the Nozzle

Attach one of the standard nozzles to the bidet unit. Ensure it is firmly in place to prevent leaks during use.

4. Operating Instructions

4.1 Powering On and Selecting Spray Mode

1. Press the power button to turn on the device.
2. The bidet offers two spray modes: Gentle Mode (400ml/min for sensitive care) and Standard Mode (550ml/min for daily cleaning). Press the mode button to switch between these settings.

4.2 Using the Bidet

1. Position the 180-degree rotatable nozzle to the desired area for cleaning.
2. Press the spray button to activate the water flow.
3. Adjust the nozzle angle as needed for thorough cleansing.
4. Release the spray button to stop the water flow.
5. Press the power button again to turn off the device after use.

Image: Morfone Portable Bidet showing its 350ml capacity and dual spray modes (Gentle and Standard).

Image: Illustrates various applications for the bidet, including travel, postpartum, baby care, and elderly care.

5. Maintenance

5.1 Cleaning the Bidet

1. After each use, empty any remaining water from the tank.
2. Wipe the exterior of the bidet with a soft, damp cloth.
3. For thorough cleaning, the nozzles can be detached and rinsed with water.
4. Ensure all parts are dry before reassembling or storing.

5.2 Charging Port Care

The device has an IPX5 waterproof rating, but it is crucial to keep the USB-C charging port sealed and dry. Do not submerge the device in water. Ensure the rubber cover for the charging port is securely closed when not charging.

5.3 Storage

Store the bidet in a cool, dry place away from direct sunlight when not in use. Ensure the water tank is empty and clean before storage.

Image: Morfone Portable Bidet made from durable ABS material, emphasizing safety and comfort.

6. Troubleshooting

• Device does not turn on: Ensure the battery is charged. Connect the bidet to the USB-C charging cable and a power source.
• Weak or no water spray:
  • Check if the water tank is sufficiently filled.
  • Ensure the nozzle is securely attached and not clogged.
  • Confirm the battery is charged, as low battery can affect spray pressure.
• Leaking: Ensure all connections, including the water tank and nozzle, are securely tightened. Check that the charging port cover is properly sealed.
• Charging issues: Ensure the USB-C cable is fully inserted into the charging port and the power source is active. Keep the charging port dry and free of debris.

7. Specifications

Image: Diagram illustrating the bidet's triple-pressure system for efficient cleaning.

Image: Diagram showing the bidet's noise reduction technology for quiet operation.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your purchase receipt for warranty claims.
