Generic Anthracite Galvanized Steel Garden Shed Model 3188294 User Manual

1. Introduction

Thank you for choosing the Generic Anthracite Galvanized Steel Garden Shed Model 3188294. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new garden shed. Please read all instructions carefully before beginning assembly or use.

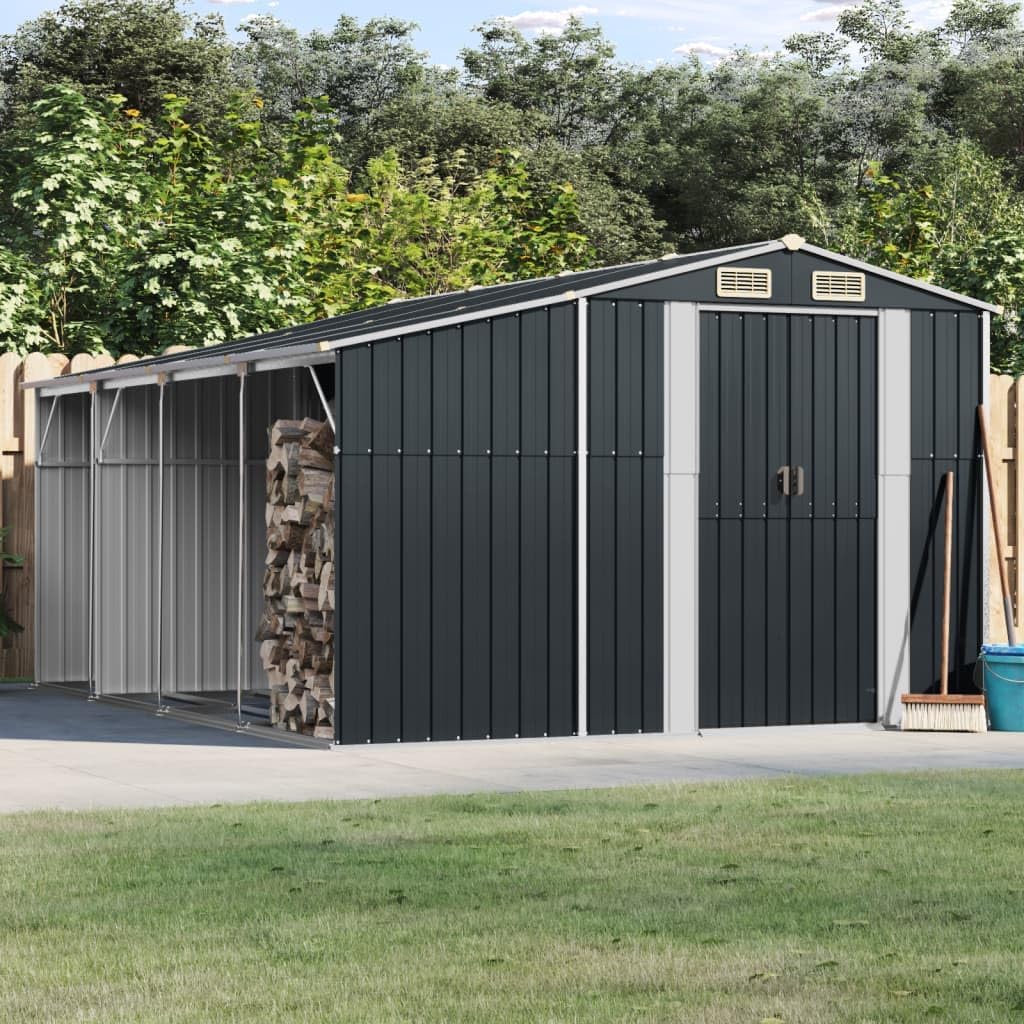

Image 1.1: The Generic Anthracite Galvanized Steel Garden Shed, featuring a main storage area and an integrated side extension for items like firewood.

2. Safety Information

Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Two-Person Assembly: Assembly requires a minimum of two adults. Do not attempt to assemble alone.
• Wear Protective Gear: Wear gloves and eye protection during assembly to prevent cuts and injuries.
• Stable Foundation: Ensure the shed is assembled on a level, stable, and solid foundation to prevent structural instability.
• Secure Anchoring: Properly anchor the shed to the ground to prevent wind damage. Anchoring hardware may not be included and should be purchased separately based on your foundation type.
• Ventilation: The shed includes built-in ventilation. Do not obstruct these vents.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow children to play inside or around the shed unsupervised.
• Weight Distribution: Distribute stored items evenly inside the shed. Do not overload shelves or walls.
• Sharp Edges: Be aware of potential sharp edges on metal components during handling and assembly.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support before proceeding.

• Garden shed panels (galvanized steel, anthracite finish)
• Frame components (steel)
• Roof panels
• Door assembly
• Ventilation grilles
• Fasteners and connectors (screws, bolts, nuts, washers)
• Assembly kit (specific tools may be required, not included)

Note: The delivery contains the garden shed and an assembly kit. Specific tools for assembly (e.g., screwdriver, wrench, drill) are not included and must be supplied by the user.

4. Assembly Instructions

Assembly of this garden shed requires careful attention to detail and adherence to the provided instructions. It is recommended that two people perform the assembly.

4.1 Site Preparation

Choose a level, well-drained area for your shed. A concrete slab or treated timber foundation is recommended for optimal stability and longevity. Ensure adequate clearance around the shed for assembly and future access.

4.2 Frame Assembly

Begin by assembling the base frame according to the diagrams in your separate assembly manual. Ensure all connections are secure but do not fully tighten all fasteners until the entire frame is upright and squared.

Image 4.1: An internal view illustrating the shed's structural frame during the assembly process, highlighting the multiple sections.

4.3 Wall Panel Installation

Attach the galvanized steel wall panels to the assembled frame. Work systematically, ensuring each panel is correctly aligned and secured. The anthracite finish panels should face outwards.

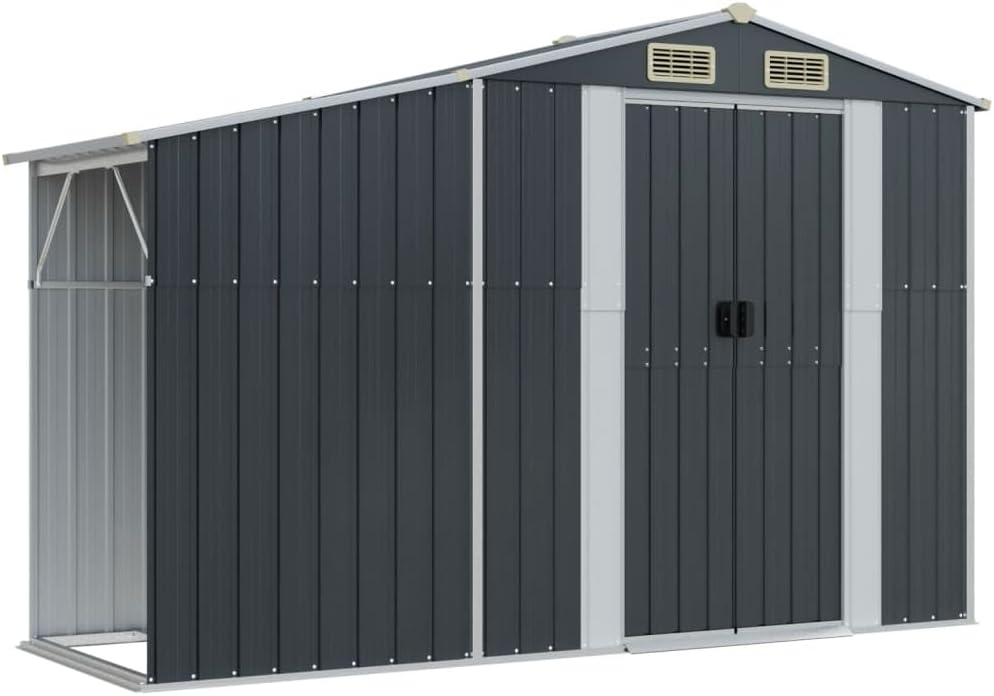

Image 4.2: The assembled garden shed, showcasing the main storage compartment and the integrated open-sided extension, ideal for firewood or other outdoor items.

4.4 Roof Assembly

Install the roof panels, ensuring they overlap correctly to prevent water ingress. Secure the roof to the top frame. Install the ventilation grilles into the designated openings on the gable ends.

4.5 Door Installation

Mount the door assembly according to the instructions, ensuring smooth operation. Adjust hinges or runners as necessary for proper alignment and closure.

Image 4.3: A front view of the garden shed with its double doors fully open, revealing the interior storage space.

4.6 Final Tightening and Anchoring

Once all components are in place and aligned, fully tighten all fasteners. Anchor the shed securely to its foundation using appropriate anchoring hardware (not included) to withstand local weather conditions.

5. Operation

The Generic Garden Shed is designed for outdoor storage of tools, equipment, and other garden essentials. Its integrated side extension is suitable for storing items like firewood.

• Storage Capacity: Utilize the generous interior space for organizing your items. Avoid placing heavy objects against the walls or doors.
• Ventilation: The built-in ventilation system helps prevent moisture buildup and ensures air circulation. Do not block the vents.
• Door Usage: Open and close doors gently. Ensure they latch securely to protect contents from weather and pests.
• Security: Consider adding a padlock (not included) to the door handles for enhanced security of your stored items.

6. Maintenance

Regular maintenance will extend the lifespan and preserve the appearance of your garden shed.

• Cleaning: The powder-coated surface is easy to clean. Wipe down the exterior with a damp cloth and mild detergent as needed. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically inspect all fasteners for tightness. Re-tighten any loose screws or bolts. Check for any signs of rust or damage, especially after severe weather.
• Drainage: Ensure that water drains away from the shed's base to prevent pooling and potential corrosion.
• Door Functionality: Lubricate door hinges or runners annually with a silicone-based lubricant to ensure smooth operation.

7. Troubleshooting

8. Specifications

9. Warranty & Support

Specific warranty details for this product are typically provided at the point of purchase or within separate documentation included with the product packaging. Please refer to those materials for information regarding warranty coverage and duration.

For technical support, missing parts, or any questions not covered in this manual, please contact the retailer or manufacturer directly using the contact information provided with your purchase.
