FUSHIPRO PW909104K O-Ring Kit for AR Blue Clean Pressure Washers User Manual

1. Introduction

This manual provides instructions for the proper installation and maintenance of the FUSHIPRO PW909104K Replacement O-Ring Kit. This kit is designed to address water leakage issues in high-pressure water pipes of compatible AR Blue Clean pressure washers by replacing worn or damaged O-rings. Please read these instructions carefully before proceeding with installation.

2. Package Contents

The FUSHIPRO PW909104K O-Ring Kit includes the following components:

• Two sets of O-rings, each containing 50 O-rings, totaling 100 O-rings. These sets are designed for different water quality choices (e.g., conventional water, hard water).
• Auxiliary tools for O-ring installation and disassembly.

Image 2.1: Overview of the FUSHIPRO PW909104K O-Ring Kit, showing various sizes and colors of O-rings, along with packaging.

Image 2.2: Detailed view of the O-ring types included, specifying sizes and quantities for different applications like hose to pressure washer gun, wand bayonet foamer/soap bottle, and M22 to hose connections. It also shows two distinct O-ring kits, one for conventional water (BUNA) and one for hard water (VMQ).

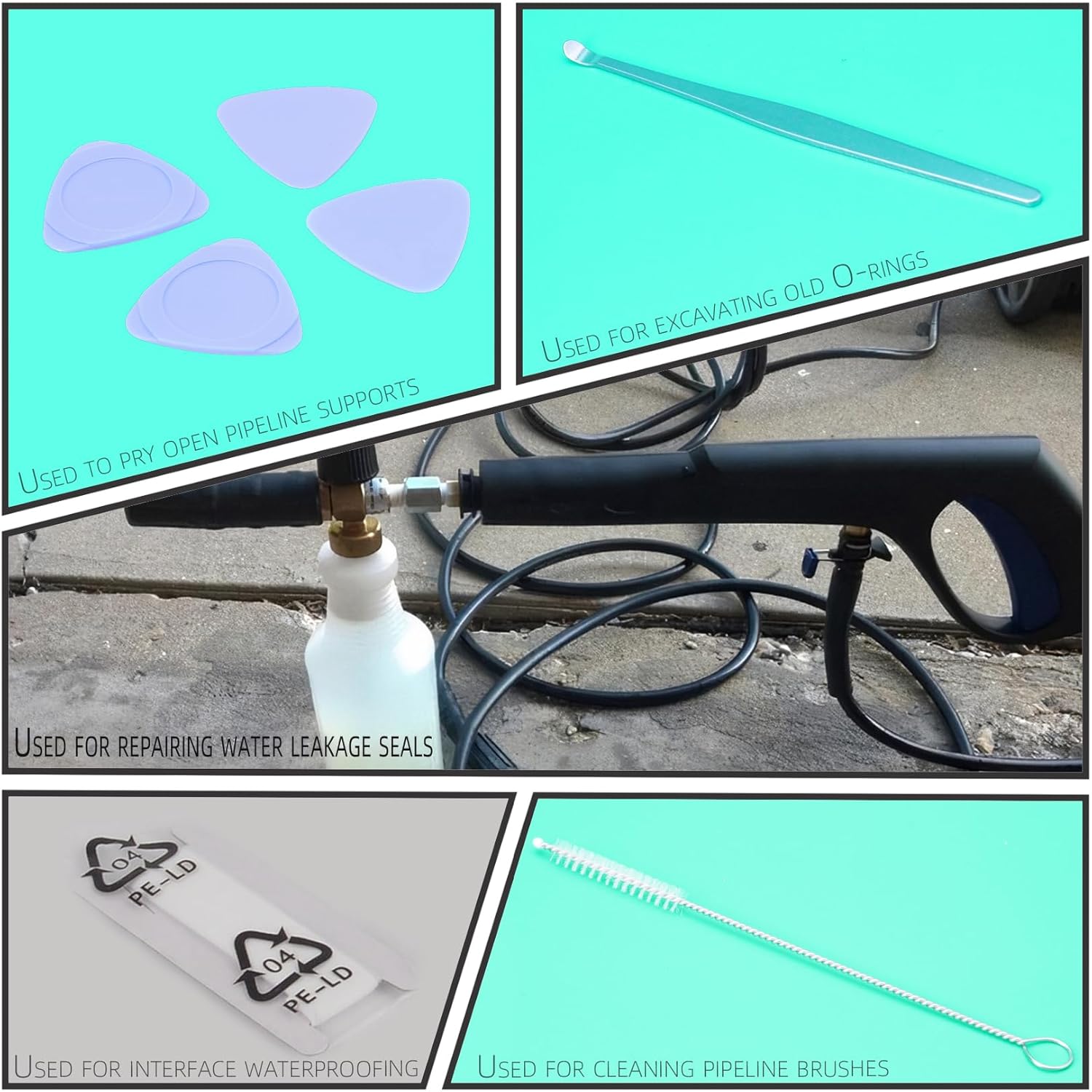

Image 2.3: Auxiliary tools provided in the kit, including pry tools for pipeline supports, a tool for excavating old O-rings, and a brush for cleaning pipelines. These tools assist in the removal and installation process.

3. Compatibility

This O-ring kit is compatible with the following AR Blue Clean pressure washer series:

• AR Blue Clean 383
• AR200
• AR300
• AR500

The kit is designed to fit various accessories including the hose to trigger gun, foam cannon/bayonet wand, and M22 hose connections.

Image 3.1: Diagram illustrating the specific O-ring sizes and their corresponding applications within AR Blue Clean pressure washer components, such as hose to pressure washer gun, wand bayonet foamer/soap bottle, and M22 to hose connections. It also lists compatible models: AR200, AR300, AR500.

4. Installation and Setup

Follow these steps to replace O-rings in your pressure washer components:

1. Identify the Leaking Connection: Locate the specific connection point on your pressure washer or accessories where water leakage is occurring.
2. Disconnect Power and Water: Ensure the pressure washer is turned off and unplugged. Disconnect the water supply to prevent accidental activation.
3. Depressurize System: If applicable, squeeze the trigger gun to release any residual pressure in the system.
4. Access the O-ring: Carefully disassemble the connection point. You may need to use the provided auxiliary tools (e.g., the O-ring excavation tool) to remove the old O-ring.
5. Remove Old O-ring: Use the O-ring excavation tool to gently pry out the old, worn, or damaged O-ring from its groove.
6. Clean the Groove: Use the provided cleaning brush to remove any debris, dirt, or residue from the O-ring groove. A clean groove ensures a proper seal.
7. Select the Correct Replacement O-ring: Refer to the compatibility diagram (Image 3.1) and the O-ring sets (Image 2.2) to select the appropriate size and type of O-ring for your specific connection and water quality.
8. Install New O-ring: Carefully place the new O-ring into the clean groove. Ensure it sits flush and is not twisted or pinched.
9. Reassemble Components: Reassemble the connection point, ensuring all parts are securely fastened.
10. Test for Leaks: Reconnect the water supply and power. Turn on the pressure washer and check for any leaks at the newly sealed connection.

Note: The kit includes O-rings for different water qualities (conventional and hard water). Choose the appropriate set based on your local water conditions for optimal performance and longevity.

5. Maintenance

Proper maintenance of your O-rings can extend their lifespan and prevent leaks.

• Regular Inspection: Periodically inspect O-rings for signs of wear, cracking, or deterioration. Replace them promptly if any damage is observed.
• Cleaning: Keep O-ring grooves and mating surfaces clean from dirt and debris.
• Storage: Store unused O-rings in a cool, dry place away from direct sunlight and harsh chemicals.

Mold Release Agent Information

Image 5.1: Close-up of O-rings showing a white powdery residue, which is a mold release agent. This agent is a functional substance used during manufacturing to smoothly remove rubber products from the mold, ensuring surface quality and integrity. It does not affect the O-ring's performance and does not require cleaning before use.

Some O-rings may have a white powdery residue. This is a mold release agent, a functional substance used during the manufacturing process to facilitate the smooth removal of rubber products from their molds. It ensures the surface quality and integrity of the O-ring. This residue does not affect the O-ring's performance or lifespan and does not require cleaning before use.

6. Troubleshooting

If you experience continued leakage after replacing O-rings, consider the following:

• Incorrect O-ring Size: Double-check that you have selected the correct O-ring size and type for the specific connection point. Refer to the compatibility diagrams.
• Improper Installation: Ensure the O-ring is seated correctly in its groove, without twisting or pinching.
• Damaged Groove or Mating Surface: Inspect the O-ring groove and the corresponding mating surface for any damage, cracks, or deformities that might prevent a proper seal.
• Debris: Even small particles of dirt or debris can compromise a seal. Ensure all surfaces are thoroughly clean before installation.
• Pressure Washer Component Issue: If leaks persist, the issue might be with another component of the pressure washer itself, not just the O-ring.

7. Specifications

8. Safety Warnings and Tips

Image 8.1: A comprehensive list of safety warnings and operational tips for using a pressure washer. These guidelines cover general safety, personal injury prevention, chemical handling, electrical safety, and proper storage.

When working with pressure washers and their components, always prioritize safety. The following are general safety guidelines for pressure washer use, which are relevant when performing maintenance or repairs:

1. Warning: When using this product, basic precautions should always be followed, including the following.
2. Read all the instructions before using the product.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4. Keep operating area clear of persons.
5. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
6. Follow the maintenance instructions as specified in the manual.
7. To avoid personal injury and/or damage to property and to maximize your power washing experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become familiar with all of the controls.
8. This power washer conforms to CSA and other safety and consumer standards. Do not modify or rebuild any part of your power washer.
9. Do not use your power washer when you are under the influence of alcohol or drugs. Use this power tool carefully and only when you are alert.
10. Watch your balance and footing while using your power washer. Surfaces become slippery when wet and are extra slippery when using a detergent or cleaner.
11. Never operate the power washer in bare feet, sandals, or open-toed shoes.
12. When using the power washer near children, make sure they are closely supervised by an adult to avoid injury. Never let a child use the power washer.
13. Keep fingers, hands, feet and any part of your body clear of the stream of high pressure water. The powerful spray can cause blindness or injuries. It can break a window if you are too close when you pull the trigger on the spray gun.
14. Always wear eye protection to prevent injury to eyes when operating the power washer.
15. To avoid mishaps or injury, Always use the trigger safety lock when not using the power washer even if the spraying stops for a moment.
16. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) which greatly reduces the chance of electric shock while the unit is in use. If replacement of the plug or cord is needed, use only identical replacement parts.
17. Point the spray gun in a safe direction when using the power washer.
18. NEVER spray directly at a person, animal, electrical device or the unit itself.
19. When first using the spray gun, hold the spray gun and lance with two hands when pulling the trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to the "kickback" from the spray gun.
20. When you press the power switch to turn off the power washer, water pressure may remain in the system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
21. NEVER spray flammable liquids.
22. Never use the power washer in areas that contain combustible dust, liquids or vapors.
23. Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
24. Only use detergent specifically formulated for power washers and follow instructions on the detergent's label. Dish or laundry soap is too thick and will clog the nozzle of your detergent bottle.
25. Protect eyes, lungs, and skin from exposure to detergent.
26. Warning - if connection is made to a potable water system, the system should be protected against backflow.

Caution: Freezing Weather

Store the power washer indoors to prevent the water in the unit from expanding under freezing conditions. When the water freezes and expands, your power washer will be damaged and become inoperable. Or, if storing outdoors, it is recommended you use pump saver (not included) to protect pumps.

Additional Tips

• Always turn the water supply "on" before turning the power washer power to "on". Running the pump dry will cause damage to the internal components.
• Do not use a water supply to your power washer that exceeds 150 PSI maximum.
• Disconnect the high pressure hose from the power washer while the system is pressurized.
• Never permanently engage the trigger mechanism on the spray gun.
• Never operate the power washer unless all components are properly and securely connected.
• Never allow the power washer pump to run for more than one minute after you have turned off the water supply. This can cause the motor and pump to overheat and fail.
• Never use lances or other parts that are not compatible for this specific ECHO Bear Cat unit.
• Never use an extension power cord since it defeats the effectiveness of the GFCI and increases the chance of electrocuting the operator.
• Never spray any electrical outlet with your power washer.
• Inspect the power cord before using. Do not use it if it is damaged.
• Never use hot water with your power washer. It will overheat and damage the high pressure pump.
• Never leave the power washer unattended while it is powered "on".

9. Support

For further assistance or inquiries regarding the FUSHIPRO PW909104K O-Ring Kit, please refer to the manufacturer's official website or contact their customer support channels. Ensure you have your product model number (PW909104K) available when seeking support.
