Akai AKTV408QMW

Akai AKTV408QMW 40-inch QLED Smart TV User Manual

Model: AKTV408QMW

1. Introduction

This manual provides essential information for the safe and efficient operation of your Akai AKTV408QMW 40-inch QLED Smart TV. Please read these instructions thoroughly before using the television and retain them for future reference. This television features a QLED display, HD resolution, a 60Hz refresh rate, and the Vidaa smart operating system, offering DVB-S2/T2 tuners for satellite and terrestrial broadcasting.

2. Safety Information

Observe the following safety precautions to prevent fire, electric shock, or injury:

  • Power Source: Connect the TV only to an AC power outlet of the specified voltage. Ensure the power cord is not damaged or pinched.
  • Ventilation: Do not block ventilation openings. Allow adequate space around the TV for proper airflow to prevent overheating.
  • Water and Moisture: Do not expose the TV to rain, moisture, or excessive humidity. Do not place objects filled with liquids, such as vases, on the TV.
  • Cleaning: Unplug the TV before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.
  • Placement: Place the TV on a stable, level surface. Avoid placing it in direct sunlight or near heat sources.
  • Children: Supervise children to ensure they do not climb on or play with the TV.
  • Servicing: Do not attempt to service the TV yourself. Refer all servicing to qualified service personnel.

3. Package Contents

Verify that all items are present in the box:

  • Akai AKTV408QMW 40-inch QLED Smart TV
  • Remote Control (with batteries)
  • Power Cord
  • TV Stand (2 pieces)
  • Screws for Stand Assembly
  • User Manual

4. Setup

4.1 Stand Assembly

To attach the stand to your TV:

  1. Carefully place the TV face-down on a soft, clean surface to prevent screen damage.
  2. Align each stand piece with the corresponding slots on the bottom of the TV.
  3. Secure each stand piece using the provided screws. Ensure they are tightened firmly.

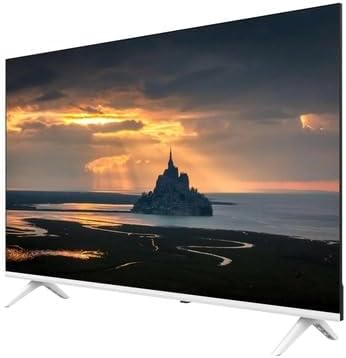

Front view of Akai AKTV408QMW 40-inch QLED Smart TV with stand attached

Image: Front view of the Akai AKTV408QMW TV with the stand attached, showing the overall design.

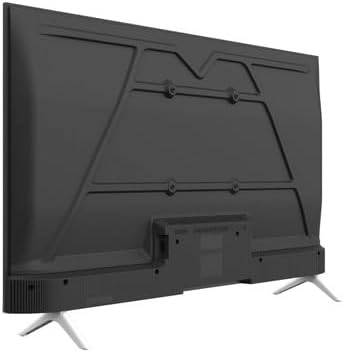

Rear view of Akai AKTV408QMW 40-inch QLED Smart TV with stand attached

Image: Rear view of the Akai AKTV408QMW TV, illustrating the stand attachment points and the back panel layout.

4.2 Wall Mounting (Optional)

If you choose to wall mount your TV, you will need a VESA-compatible wall mount kit (not included). Refer to the wall mount kit's instructions for proper installation. The TV features standard VESA mounting holes on the rear panel.

Rear view of Akai AKTV408QMW 40-inch QLED Smart TV showing VESA mounting points

Image: Rear view of the Akai AKTV408QMW TV without the stand, highlighting the VESA mounting screw holes for wall installation.

4.3 Connecting Devices

Your TV is equipped with various ports for connecting external devices:

  • HDMI Ports: Connect Blu-ray players, game consoles, set-top boxes, or other HDMI-enabled devices.
  • USB Ports: Connect USB storage devices for media playback.
  • Antenna/Satellite Input: Connect an antenna for terrestrial TV (DVB-T2) or a satellite dish for satellite TV (DVB-S2).
  • Ethernet Port: For a wired internet connection.
Side profile of Akai AKTV408QMW 40-inch QLED Smart TV

Image: Side profile view of the Akai AKTV408QMW TV, showing the slim design and potential side-facing ports.

4.4 First-Time Setup

  1. Plug the power cord into the TV and then into a wall outlet.
  2. Press the Power button on the remote control or on the TV.
  3. Follow the on-screen instructions to select your language, country, and network settings (Wi-Fi or Ethernet).
  4. Perform a channel scan for DVB-T2 or DVB-S2 channels.

5. Operating the TV

5.1 Remote Control Functions

The remote control allows you to access all TV functions. Common buttons include:

  • Power: Turns the TV on or off.
  • Input: Selects the input source (HDMI1, HDMI2, TV, USB, etc.).
  • Volume (+/-): Adjusts the volume level.
  • Channel (CH +/-): Changes TV channels.
  • Navigation (Up/Down/Left/Right/OK): Navigates menus and confirms selections.
  • Back/Exit: Returns to the previous menu or exits the current menu.
  • Smart Hub/Home: Accesses the Vidaa smart TV interface.
  • Netflix/YouTube/Prime Video: Dedicated buttons for quick access to streaming services.

5.2 Basic TV Functions

  • Power On/Off: Press the Power button on the remote.
  • Changing Channels: Use CH+/- buttons or enter channel numbers directly.
  • Adjusting Volume: Use VOL+/- buttons.
  • Selecting Input Source: Press the Input button and select the desired source from the list.

5.3 Smart Features (Vidaa OS)

Your Akai Smart TV runs on the Vidaa operating system, providing access to a variety of streaming services and applications. Press the Home or Smart Hub button on your remote to access the Vidaa interface. From there, you can browse apps, customize your home screen, and access settings.

  • App Store: Download and install additional applications.
  • Internet Browser: Browse the web directly on your TV.
  • Media Playback: Play photos, videos, and music from connected USB devices.

6. Maintenance

  • Cleaning the Screen: Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a specialized screen cleaner (apply to cloth, not directly to screen).
  • Cleaning the Cabinet: Use a soft, dry cloth to wipe the TV cabinet.
  • Dusting: Regularly dust the ventilation openings to ensure proper airflow.
  • Power Cord: Periodically check the power cord for any damage.

7. Troubleshooting

If you encounter issues with your TV, refer to the following common solutions:

Problem Possible Solution
No power Ensure the power cord is securely plugged into the TV and the wall outlet. Check if the outlet is working.
No picture, but sound is present Check the input source. Ensure external devices are powered on and connected correctly.
No sound, but picture is present Check the volume level and mute setting. Ensure audio cables are connected correctly for external devices.
Remote control not working Replace the batteries. Ensure there are no obstructions between the remote and the TV's IR sensor.
Cannot connect to Wi-Fi Check your router and modem. Ensure the Wi-Fi password is correct. Try restarting the TV and router.

8. Specifications

  • Model Name: AKTV408QMW
  • Brand: Akai
  • Screen Size: 40 inches (100 cm)
  • Screen Technology: QLED
  • Resolution: HD
  • Refresh Rate: 60Hz
  • Special Feature: Built-in speaker
  • Connectivity: HDMI, USB, DVB-S2/T2
  • Aspect Ratio: 16:9
  • Supported Internet Services: Vidaa
Akai AKTV408QMW Energy Label showing 40-inch screen size and energy efficiency class E

Image: Energy label for Akai AKTV408QMW, indicating a 40-inch screen size, 36 kWh/1000h energy consumption, and energy efficiency class E. For more details, visit eprel.ec.europa.eu/qr/2199950.

9. Warranty and Support

Your Akai AKTV408QMW Smart TV is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details. For technical support, service inquiries, or to obtain replacement parts, please contact Akai customer service through their official website or the contact information provided in your warranty documentation.
