Kllkmmws RV Steps with Handrail (2-Step B) Instruction Manual

1. Introduction and Overview

This manual provides essential information for the safe and effective use of your Kllkmmws 2-Step B RV Steps with Handrail. Designed for durability and stability, these heavy-duty metal steps are suitable for various indoor and outdoor applications, including RVs, mobile homes, hot tubs, and more. Please read these instructions thoroughly before assembly and use.

2. Safety Information

• Load Capacity: The steps are designed to support a maximum weight of 204 kg (450 lbs). Do not exceed this limit.
• Stable Placement: Always ensure the steps are placed on a firm, level surface. The adjustable foot pads can be adapted to uneven ground for enhanced stability.
• Handrail Use: Utilize the handrail for added support and balance when ascending or descending the steps.
• Visibility: Reflective strips are integrated to increase visibility in low-light conditions, improving safety.
• Children and Pets: Supervise children and pets when they are using the steps.

3. Package Contents

Verify that all components are present before beginning assembly:

• 1x Step Ladder Frame
• 1x Handrail
• 2x Soft Cushions (for step surfaces)
• 1x English Installation Diagram
• Other necessary assembly accessories (screws, nuts, tools)

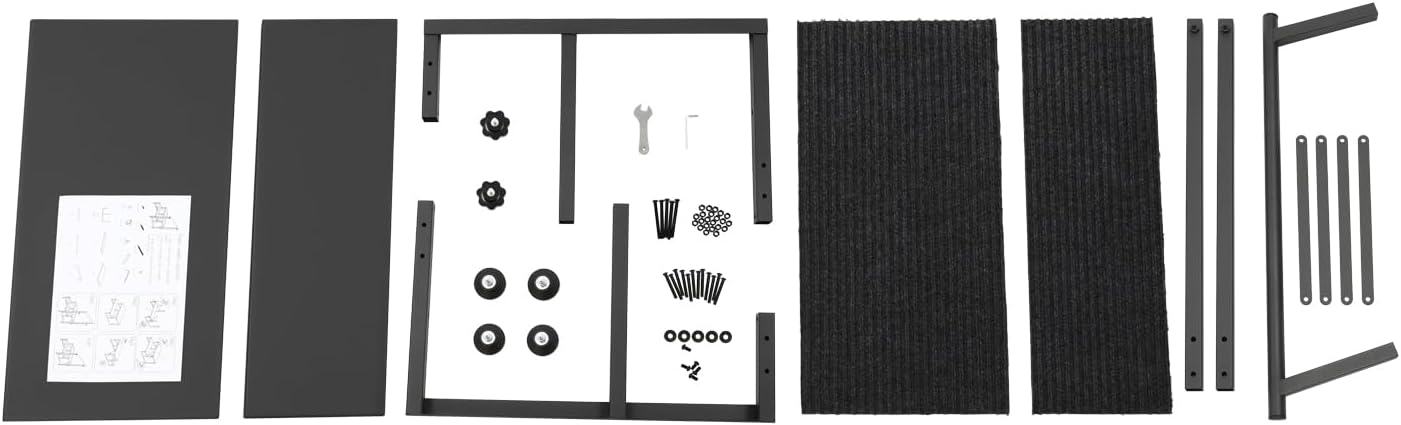

Figure 3.1: All components included in the package for assembly.

4. Setup and Assembly

Assembly is required for this product. Follow the included English installation diagram for detailed steps. A drill or screwdriver (not included) will expedite the assembly process.

1. Unpack Components: Carefully remove all parts from the packaging and verify against the package contents list.
2. Assemble Frame: Connect the main frame components using the provided screws and accessories. Ensure all connections are secure. The strong triangular bar design contributes to the product's high load-bearing capacity.
3. Attach Steps: Secure the two step surfaces to the frame.
4. Install Handrail: Attach the handrail to the designated uprights. Use the practical knob to fix the bending part to the column, ensuring the handrail is solid and stable.
5. Apply Soft Cushions: Place the soft cushions onto the step surfaces. These provide comfort and a non-slip effect.
6. Adjust Foot Pads: Adjust the foot pads at the base of the steps to ensure the unit is level and stable on your chosen surface.

Figure 4.1: Detail of the practical knob for securing the handrail.

Figure 4.2: Detail of the soft, non-slip step cushions.

5. Operating Instructions

The Kllkmmws RV Steps with Handrail are designed for both indoor and outdoor use, providing safe and convenient access.

• Placement: Position the steps firmly against the entrance of your RV, mobile home, hot tub, or other elevated area. Ensure the adjustable foot pads are properly set for stability.
• Ascending/Descending: Always use the handrail for support. Step onto the center of each step for optimal balance. The 17cm (6.69in) step height per level is designed for ease of climbing.
• Versatile Applications: These steps can be used for various purposes, including:
  • Accessing RVs and campers
  • Entering hot tubs or SPA pools
  • Assisting pets with elevated access
  • Providing access to stages or storage areas
  • As a decorative shelf or raised bed step

Figure 5.1: Steps providing access to a hot tub.

Figure 5.2: Steps providing access to an RV.

Figure 5.3: Adult user demonstrating safe use of the steps.

Figure 5.4: Child user demonstrating safe use of the steps.

6. Maintenance

Regular maintenance will ensure the longevity and safe operation of your Kllkmmws RV Steps.

• Cleaning: The simple structure and smooth surface allow for easy cleaning. Wipe the steps clean with a damp cloth as needed. Avoid abrasive cleaners that may damage the finish.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Foot Pads: Inspect the adjustable foot pads for wear and tear, especially if used on rough surfaces.
• Storage: If storing for extended periods, especially outdoors, consider covering the steps to protect them from harsh weather conditions.

7. Troubleshooting

This section addresses common issues you might encounter with your RV steps.

• Steps feel wobbly:
  • Ensure all assembly screws are tightened securely.
  • Adjust the foot pads to compensate for uneven ground.
  • Verify the practical knob securing the handrail is fully tightened.
• Difficulty cleaning:
  • For stubborn dirt, use a mild soap solution with a damp cloth. Rinse thoroughly and dry.
• Handrail feels loose:
  • Check and tighten the practical knob that secures the handrail to the column.

8. Specifications

Figure 8.1: Dimensional overview of the Kllkmmws 2-Step B RV Steps.
