MELLCOM 10'x13' Outdoor Gazebo User Manual
Model: Gazebos | Brand: MELLCOM
Product Overview
The MELLCOM 10'x13' Outdoor Gazebo is designed to provide a versatile and durable outdoor shelter solution. Featuring a heavy-duty metal frame, double roofs for enhanced ventilation, and integrated curtains and nettings, this gazebo offers protection from the elements and privacy for your outdoor space.
Image: The MELLCOM 10'x13' Outdoor Gazebo in Wine Red, showcasing its spacious design and integrated curtains, suitable for patio use.
Specifications
| Feature | Detail |
|---|---|
| Brand | MELLCOM |
| Model Number | Gazebos |
| Material | Metal Frame, Fading-Resistant Fabric |
| Color | Wine Red |
| Product Dimensions (L x W x H) | 13 ft x 10 ft x 8.8 ft (approx. 156"L x 120"W x 105.6"H) |
| Item Weight | 75.5 Pounds |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Assembly Required | Yes |
| Roof Type | Double Roof with Nettings (Vented) |
| Curtains/Nettings | Included, Dual-Track System |
Image: Detailed product dimension diagram, illustrating the 10ft x 13ft footprint and 8.8ft height.
Setup and Assembly
Assembly of the MELLCOM Gazebo requires careful attention to detail and may be easier with two or more people. Ensure all parts are present before beginning.
Before You Begin:
- Unpack all components and verify against the parts list.
- Choose a flat, level surface for installation.
- Clear the area of any obstructions.
- Gather necessary tools (e.g., wrench, ladder if needed).
Key Assembly Features:

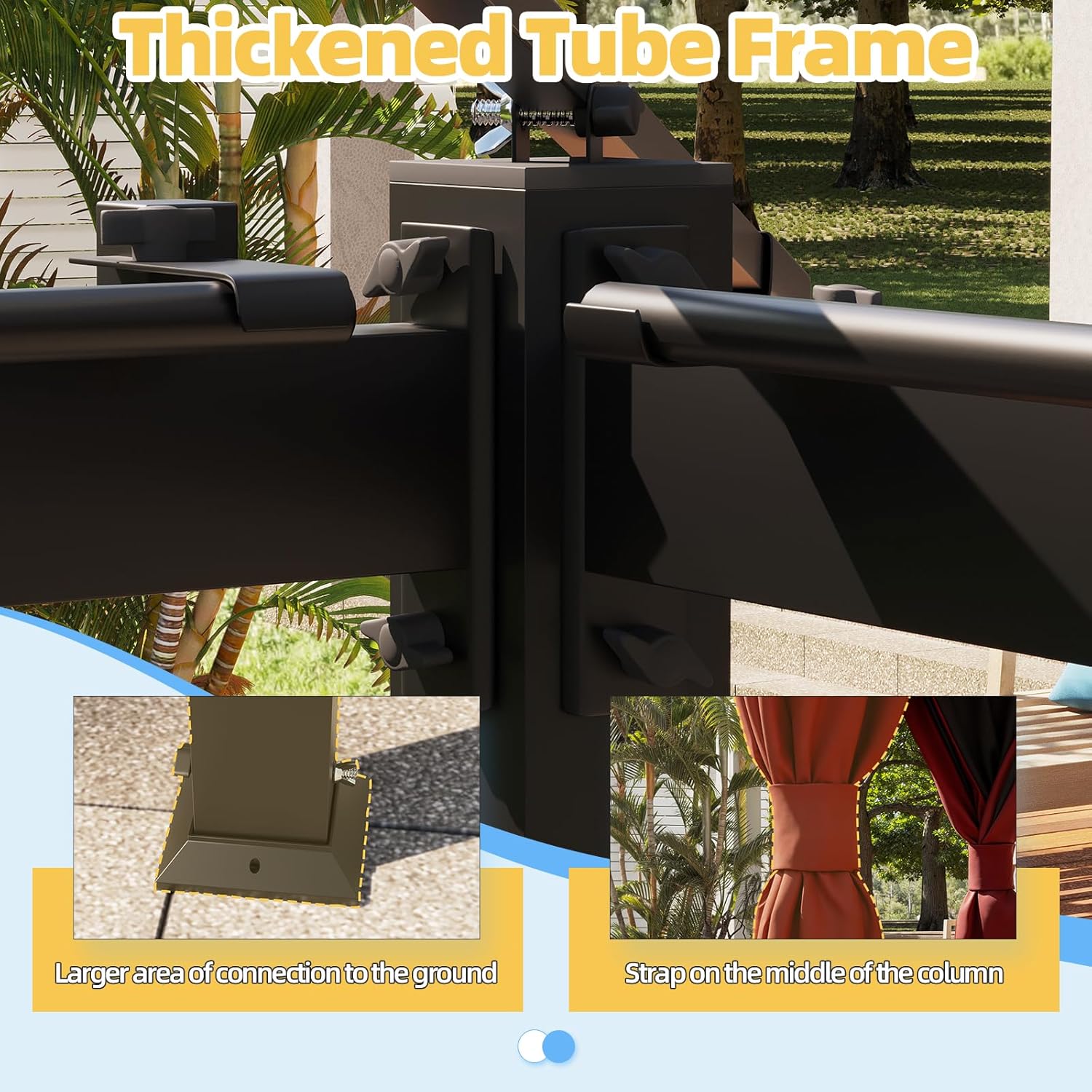

Thickened Tube Frame
The gazebo features a thickened square metal frame for enhanced stability. Ensure all connections are secure. The base plates provide a larger area of connection to the ground for improved stability. Straps on the middle of the columns help secure the fabric.
Pop-up Adjuster & Protective Cover
Utilize the pop-up adjusters and protective covers during installation to reduce potential accidents and ensure proper alignment of components.
Thumb Screws
The design incorporates thumb screws to facilitate an easier and more enjoyable installation process. Ensure they are tightened securely.
Expansion Bolts
For firm installation on the ground, especially on concrete or wooden decks, use the provided expansion bolts. This is crucial for stability in windy conditions.
Note: Detailed step-by-step assembly instructions are typically included in the product packaging. Refer to those for specific part identification and sequence.
Operating the Gazebo Features
The MELLCOM Gazebo is designed with several features to enhance your outdoor experience.
Double Roof System:
Image: The double-tiered roof design, illustrating improved air circulation and protection against UV rays and water.
The double roof design with added nettings between the roofs promotes better air circulation, reducing heat buildup and providing stability against wind. It also helps keep small insects away.
Curtains and Nettings:
Dual-Track System
The gazebo features a dual-track system, allowing for separate operation of the privacy curtains and the mosquito nettings. This provides flexibility for ventilation, privacy, and insect protection.
Velcro Straps & Shade Curtains
Velcro straps are provided to easily and conveniently organize your curtains when not in use. The Velcro shade curtains are designed to effectively block any gaps, preventing intrusion and enhancing privacy.
Image: Visual representation of the gazebo's versatility, showing configurations for better ventilation (curtains open), partial ventilation (nettings closed), and privacy protection (curtains fully closed).
Maintenance and Care
Proper maintenance will extend the life and appearance of your MELLCOM Gazebo.
- Cleaning Fabric: Use a mild soap and water solution with a soft brush or cloth to clean the canopy and curtains. Rinse thoroughly with clean water and allow to air dry completely before storing or folding. Do not use harsh chemicals or abrasive cleaners.
- Cleaning Frame: Wipe the metal frame with a damp cloth. For stubborn dirt, use a mild detergent. Dry thoroughly to prevent rust.
- Seasonal Storage: In areas with heavy snow or strong winds, it is recommended to remove the canopy and curtains and store them indoors during the off-season to prevent damage.
- Inspection: Periodically inspect all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary. Check fabric for any tears or damage and repair promptly.
- Wind Resistance: While designed with wind-resistant ropes, always secure the gazebo properly to the ground using the provided expansion bolts or other suitable anchoring methods, especially in windy conditions.
Image: The gazebo secured with wind-resistant ropes, demonstrating a key feature for stability.
Troubleshooting
This section addresses common issues you might encounter with your gazebo.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose connections; uneven ground; insufficient anchoring. | Ensure all bolts and screws are tightened. Relocate to a level surface. Use expansion bolts or additional weights to secure the legs to the ground. |
| Water pooling on the canopy. | Improper canopy installation; heavy rainfall exceeding drainage capacity. | Verify the canopy is stretched taut and correctly installed to allow water runoff. Clear any debris from the roof. In heavy rain, consider temporarily removing the canopy. |
| Curtains/Nettings do not slide smoothly. | Debris in tracks; bent tracks; fabric snagging. | Clean the dual tracks of any dirt or debris. Inspect tracks for damage and gently straighten if bent. Ensure fabric is not caught. |
| Fabric fading or tearing prematurely. | Prolonged exposure to harsh elements; improper storage; sharp objects. | Ensure the gazebo is stored indoors during extreme weather. Avoid contact with sharp objects. While the fabric is fading-resistant, extreme UV exposure over time can still cause wear. |
Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact MELLCOM customer support directly. Keep your proof of purchase for any warranty claims.
MELLCOM Customer Support:
- For assistance with assembly, missing parts, or product issues, please contact MELLCOM customer service.
- Visit the official MELLCOM store on Amazon for more information: MELLCOM Store
