1. Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your LUTHXAY Floating Bathroom Vanity 60 inch with Smart LED Defogging Mirror. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
2. Safety Information
- Always disconnect power before performing any electrical work or maintenance on the LED mirror.
- Installation should be performed by qualified personnel to prevent injury or damage.
- Ensure the wall structure can support the weight of the vanity and its contents.
- Do not use abrasive cleaners or harsh chemicals on any part of the vanity, especially the mirror and wood surfaces.
- Keep children away from the installation area.
- Avoid direct contact of water with electrical components.
3. Package Contents
Your LUTHXAY Floating Bathroom Vanity set includes the following components:
- Smart LED Defogging Mirror Cabinet
- Sink Base Cabinet (60 inch)
- Slate Countertop with Integrated Ceramic Basin
- Faucet Set
- Drain Pipes Set
- Mounting Hardware
4. Setup and Installation
Assembly is required for this product. Professional installation is recommended for plumbing and electrical connections.
4.1 Pre-Installation Checks
- Verify all components are present and undamaged.
- Ensure the installation area has adequate wall support for a wall-mounted vanity.
- Confirm plumbing and electrical outlets are correctly positioned according to the vanity dimensions.

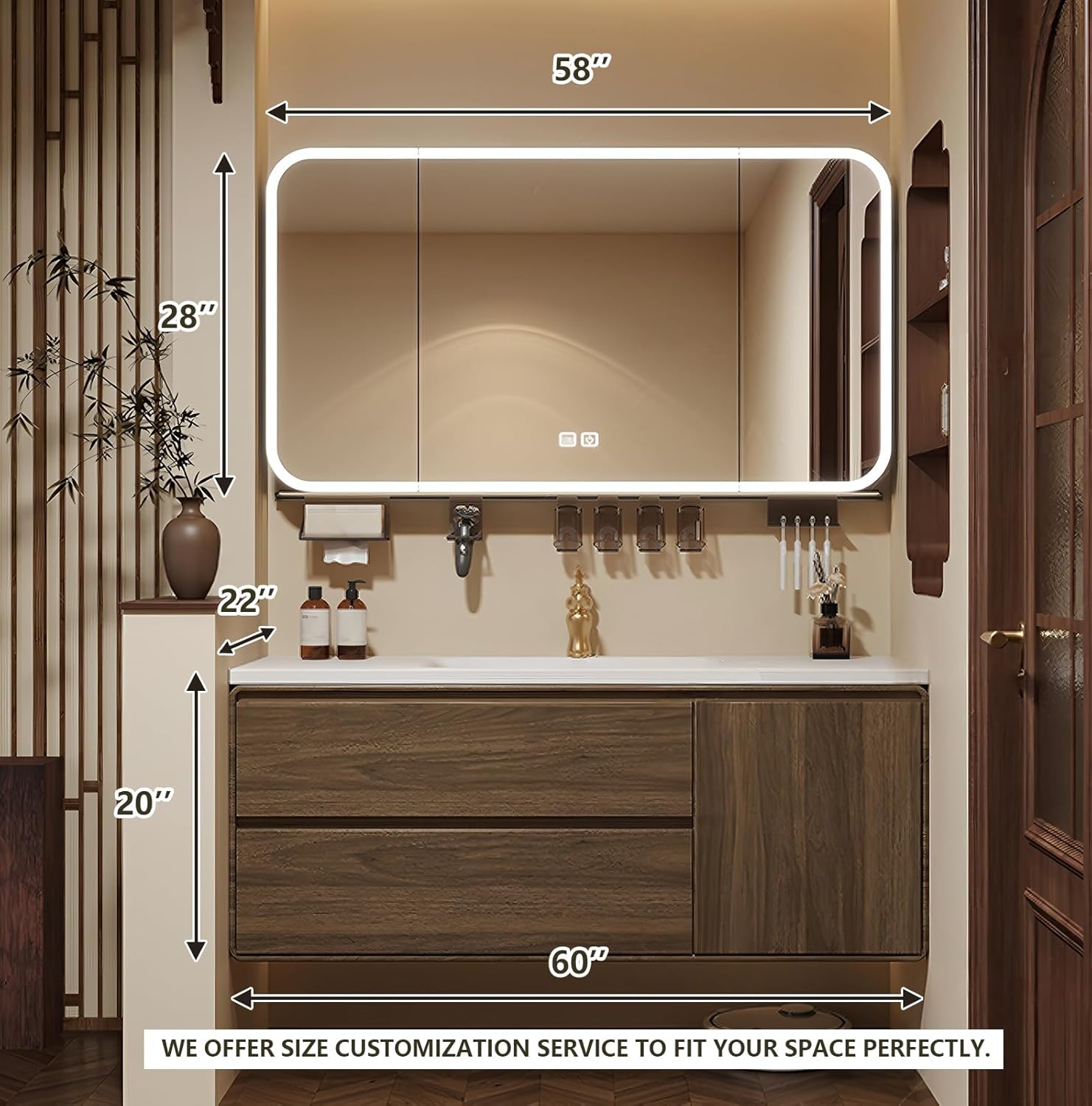

Image 1: Overall dimensions of the vanity and mirror. The vanity measures 60 inches wide, with the mirror being 58 inches wide and 28 inches high. The cabinet depth is 22 inches, and the height from the floor to the bottom of the cabinet is 20 inches, indicating a floating design.
4.2 Wall Mounting the Cabinet
- Mark the desired height and position for the vanity on the wall.
- Install appropriate wall anchors and mounting brackets (not explicitly listed but implied by "mounting hardware" and "wall mount" design) suitable for your wall type and the weight of the vanity.
- Carefully lift and secure the sink base cabinet onto the installed brackets. Ensure it is level and firmly attached.

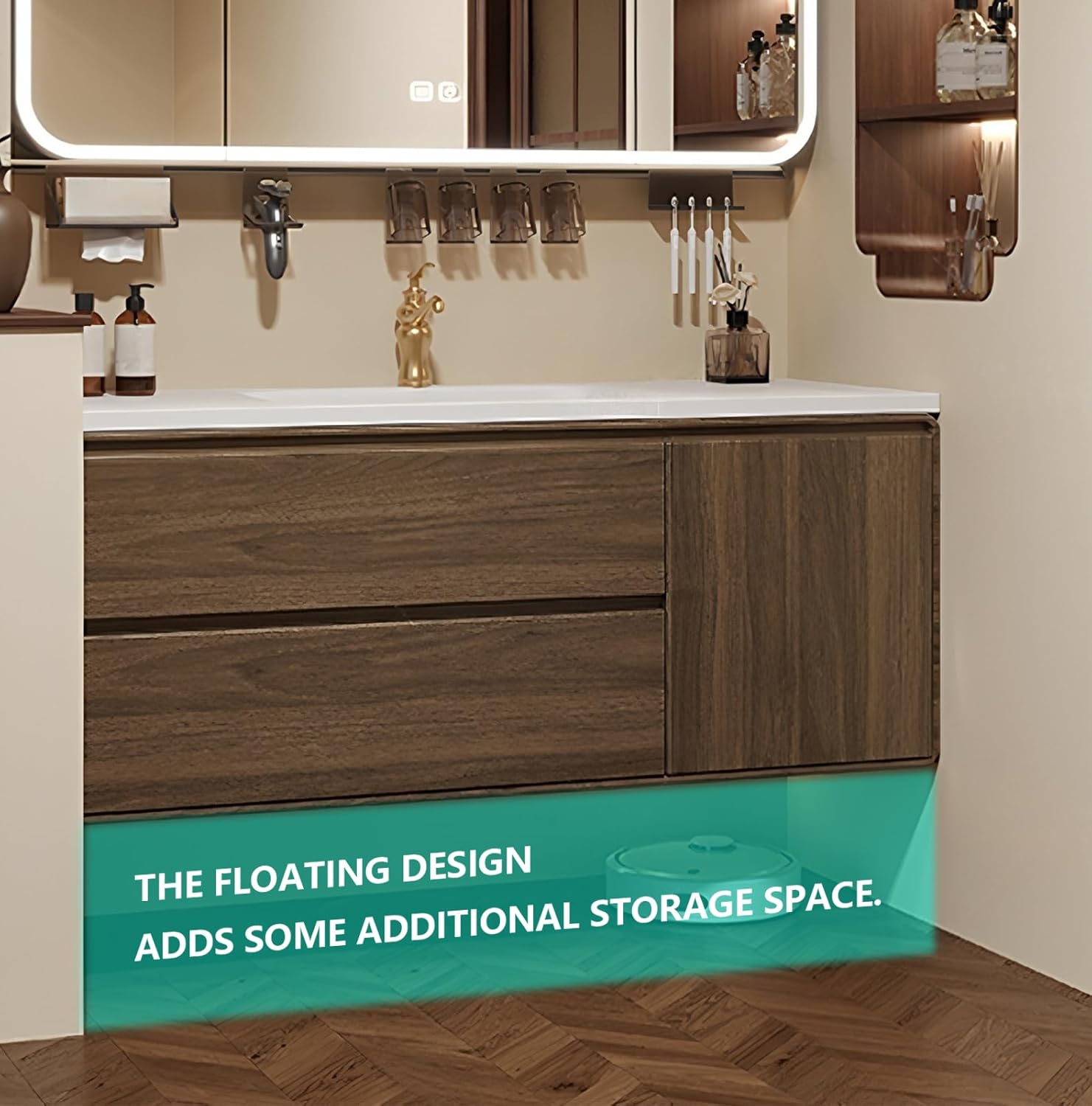

Image 2: The floating design of the vanity creates additional floor space underneath, which can be used for storage or to accommodate robotic cleaning devices.
4.3 Countertop and Basin Installation
- Place the slate countertop with the integrated ceramic basin onto the sink base cabinet.
- Secure the countertop to the cabinet using appropriate fasteners or adhesive as per manufacturer guidelines.
Image 3: This image highlights the seamless one-piece ceramic basin integrated into the slate countertop, known for being scratch-resistant, wear-resistant, and easy to clean. Below, the selected solid wood cabinet features a water-resistant wooden texture.
4.4 Plumbing Connections
- Install the faucet according to its specific instructions.
- Connect the drain pipes to the basin and the wall drain. Ensure all connections are watertight.
- Test for leaks before proceeding.
4.5 Mirror Cabinet Installation
- Mount the smart LED defogging mirror cabinet above the vanity, ensuring it is level and securely fastened to the wall.
- Connect the mirror's electrical wiring to a suitable power source, following local electrical codes.
5. Operating Instructions
5.1 Smart LED Defogging Mirror
The mirror features touch controls for its LED lighting and defogging functions.
- To activate LED light: Gently touch the designated sensor area on the mirror surface.
- To activate defogging: Touch the defogging icon on the mirror. The heating element will begin to clear fog from the mirror surface. This process may take a few minutes for complete clarity.

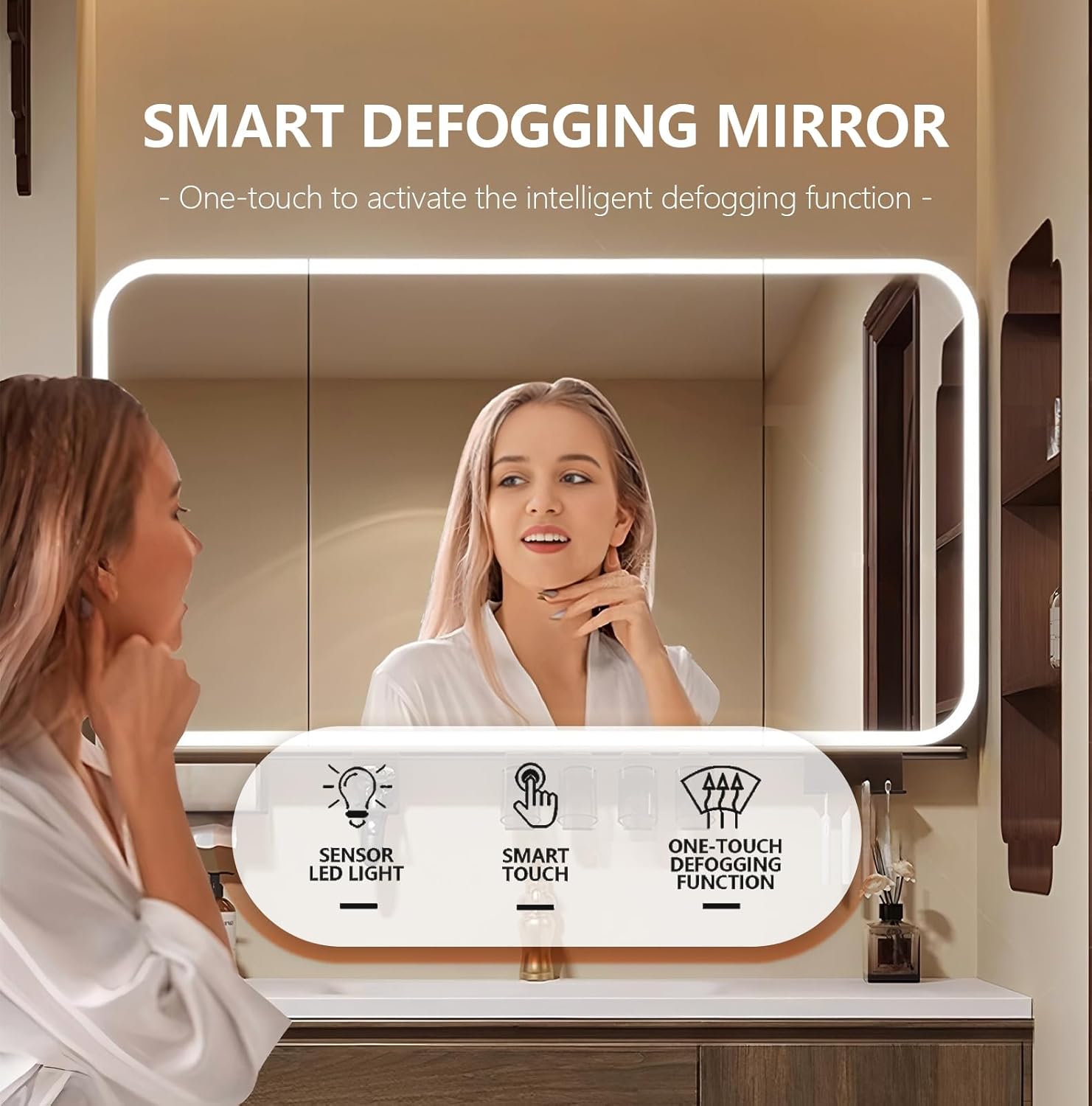

Image 4: The smart defogging mirror features one-touch activation for its intelligent defogging function, along with sensor LED light and smart touch controls.
5.2 Cabinet Drawers and Doors
The vanity cabinet is equipped with smooth-operating drawers and doors designed for quiet and easy access.
- Drawers: Utilize hydraulic damping guides for soft closing, preventing slamming.
- Cabinet Doors: Feature silent cushion hinges for quiet and gentle closing.
Image 5: This image shows the silent cushion hinge for cabinet doors and hydraulic damping guides for drawers, ensuring smooth and quiet operation.
Image 6: The vanity offers smart storage solutions, including a storage mirror cabinet with partitioned compartments, a spacious countertop shelf area, a double drawer, and a cupboard for organizing bathroom essentials.
6. Maintenance
6.1 Cleaning the Vanity
- Wood Cabinet: Wipe with a soft, damp cloth. Avoid excessive moisture. For stubborn stains, use a mild wood cleaner. Dry immediately.
- Slate Countertop & Ceramic Basin: Clean with a non-abrasive, mild household cleaner and a soft cloth or sponge. Rinse thoroughly and dry to prevent water spots.
6.2 Cleaning the Mirror
- Use a glass cleaner specifically designed for mirrors and a lint-free cloth. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components.
- Wipe gently to avoid scratching the surface.
6.3 General Care
- Avoid placing hot items directly on the countertop without protection.
- Promptly wipe up any spills to prevent water damage or staining.
- Regularly check plumbing connections for any signs of leaks.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED mirror not lighting up | No power supply; loose electrical connection; faulty LED driver. | Check power outlet and circuit breaker. Ensure all electrical connections are secure. If problem persists, contact customer support. |
| Defogging function not working | Defogger not activated; electrical issue. | Ensure the defogging icon has been touched. Check power supply. Allow a few minutes for the defogger to heat up. |
| Drawers or doors not closing smoothly | Obstruction in drawer slide/hinge; misaligned hardware. | Check for any objects blocking the slides or hinges. Verify that the hydraulic damping guides and silent cushion hinges are properly aligned and free of debris. |
| Water leak from faucet or drain | Loose connections; damaged seals. | Tighten all plumbing connections. Inspect seals and gaskets for damage and replace if necessary. Professional plumbing assistance may be required. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | LUTHXAY |
| Model | LED mirror cabinet 60" |
| Material | Multilayer wood, slate |
| Number of Drawers | 3 |
| Special Features | Durable slate, Faucet set and drain pipes, LED lighting frame, Smart defogging mirror, Wooden texture |
| Size | 60" |
| Style | LED mirror cabinet |
| Assembly Required | Yes |
9. Warranty and Support
LUTHXAY products are manufactured with quality and care. For specific warranty details, please refer to the warranty card included with your purchase or contact the seller directly. If you encounter any issues or require assistance, please reach out to LUTHXAY customer support through the retailer where the product was purchased.
