TOWODE 16CH 5MP DVR Security System User Manual

1. Product Overview

The TOWODE 16CH 5MP DVR Security System is a versatile 6-in-1 hybrid video recorder designed for comprehensive surveillance. It supports various camera types and offers advanced features like AI human/face detection and H.265+ video compression for efficient storage.

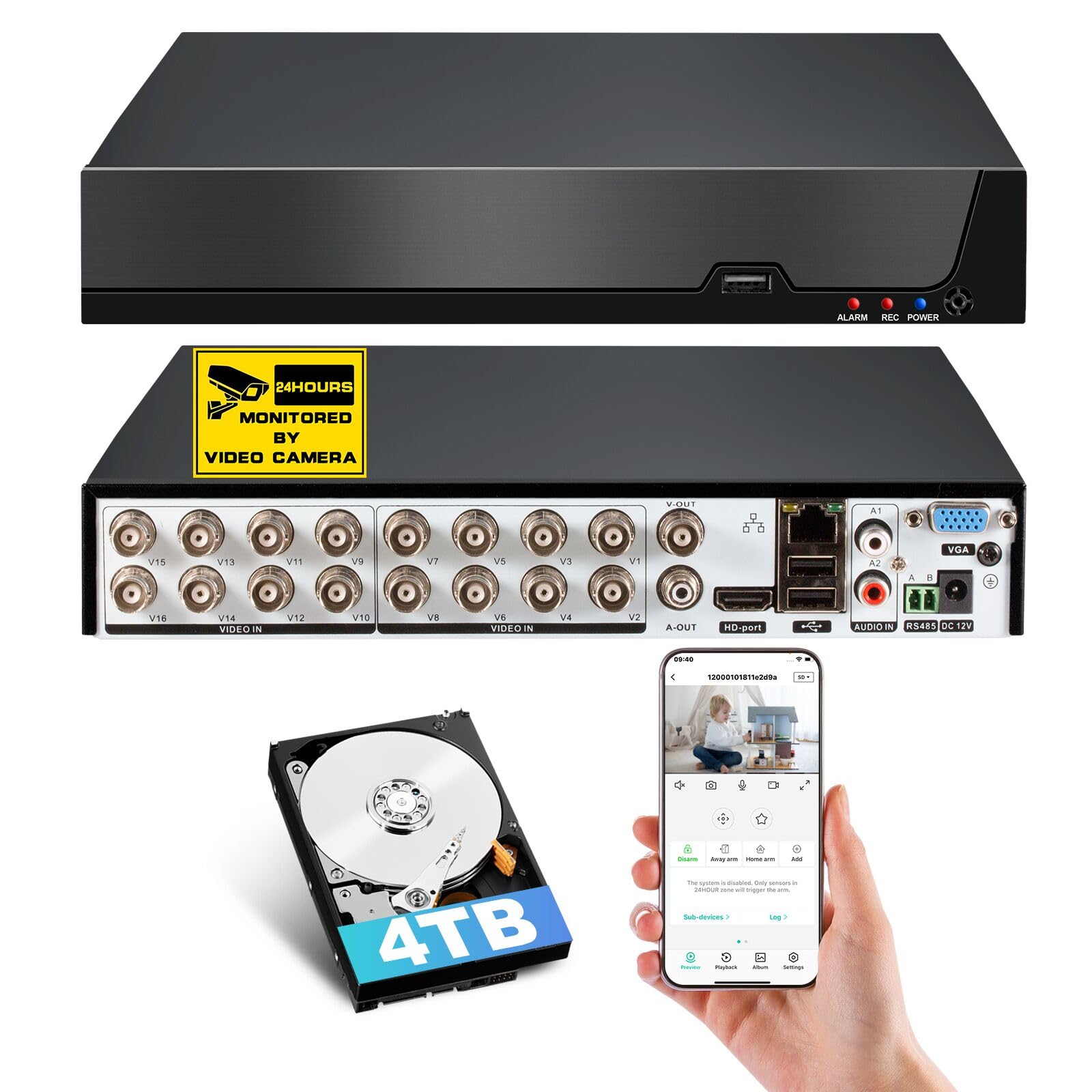

Figure 1: TOWODE 16CH 5MP DVR Security System - Front View

This image displays the main unit of the TOWODE 16CH 5MP DVR Security System, showcasing its compact design and front panel indicators.

2. Package Contents

Upon unboxing your TOWODE DVR system, please verify that all components are present:

• 1x TOWODE 16CH 5MP DVR Unit (with 4T Hard Drive pre-installed)
• 1x Power Adapter
• 1x USB Mouse
• 1x HDMI Cable
• 1x User Manual
• 1x Wall Sticker (24-Hour Video Surveillance)
• HDD Installation Cables (if HDD is not pre-installed)
• Network Cable

Figure 2: 6-in-1 Hybrid DVR System Compatibility

This diagram illustrates the DVR's compatibility with various camera types: TVI, CVI, AHD, XVI, IP, and Analog cameras.

3. Setup

3.1 Initial Connection

1. Connect the DVR to a monitor using the provided HDMI cable. Ensure your monitor supports HDMI 1.6 or higher.
2. Connect the USB mouse to a USB port on the DVR.
3. Connect your cameras to the appropriate video input ports on the DVR.
4. Connect the power adapter to the DVR and plug it into a power outlet.
5. The system will boot up and guide you through initial setup steps, including setting a password.

3.2 Camera Compatibility

This DVR is compatible with TVI / CVI / AHD / XVI / Analog cameras that meet supported specifications (5MP ≤12fps, 4MP ≤15fps). Ensure your camera's resolution and frame rate match the DVR's supported modes. Both the HDMI cable and monitor must support HDMI 1.6 or higher to avoid display issues.

Figure 3: Camera Compatibility Chart and HDMI Notice

This image provides a detailed chart outlining camera frame rate and resolution compatibility with the DVR, along with an important notice regarding HDMI cable and monitor requirements.

3.3 Hard Drive Installation

This model comes with a 4T surveillance-grade hard drive pre-installed. If you are upgrading or replacing the hard drive, the DVR supports storage expansion up to 14TB. Refer to the detailed instructions in the full user manual for hard drive installation procedures.

Figure 4: Pre-Installed 4T Hard Drive and Expansion Capability

This image highlights the DVR's pre-installed 4TB hard drive and its capability to expand storage up to 14TB, emphasizing the H.265+ compression benefits.

4. Operating Instructions

4.1 Local Recording and Remote Access

The DVR supports continuous local video recording and playback via a connected monitor, even without an internet connection. For remote access, connect the DVR to your network. You can then view live feeds or playback footage anytime using the iCSee app on your smartphone, tablet, or computer.

Figure 5: Remote Access and Playback Functionality

This image illustrates the seamless remote access and playback capabilities of the DVR, allowing users to monitor their property from anywhere using the iCSee app.

4.2 AI Human & Face Detection

Leverage advanced AI algorithms for accurate human body and facial feature detection, significantly minimizing false alarms. The system sends real-time alerts and snapshots to your mobile device via the iCSee app or email.

Figure 6: AI Human and Face Detection Features

This image demonstrates the AI human and face detection capabilities, showing how the system identifies individuals and sends smart alerts to a mobile device.

4.3 Setting Recording Plan

You can customize the recording schedule for each camera channel. The DVR allows for continuous recording or event-triggered recording. Access the 'Record' -> 'Schedule' menu in the DVR's configuration settings to adjust the timetable.

4.4 Switching Analog Channels to IP Channels

This DVR supports 8 analog channels by default and 2 IP cameras for channel expansion. All 8 analog channels can be switched to IP channels as required, supporting up to 10 IP camera accesses. After enabling enhanced IP mode, it supports up to 12 network camera inputs.

5. Maintenance

5.1 NVR Reset

If you forget your login password, wrongly change settings, or encounter software issues, resetting the NVR can help. There are several methods to reset the NVR, including via the Reolink App, Reolink Client, web browser, or directly on a monitor.

5.2 Storage Management

The DVR includes a built-in 4T surveillance-grade hard drive and supports storage expansion up to 14TB. H.265+ video compression saves up to 50% more storage than H.264, extending recording time while maintaining high video quality.

Figure 7: H.265+ Video Compression Efficiency

This image visually compares H.265+ and H.264 compression, highlighting the 50% storage savings and enhanced quality offered by H.265+.

6. Troubleshooting

6.1 Camera Not Displaying

If your camera is confirmed to be compatible but not showing up, the most common reason is insufficient power supply. Test night vision by making the room dark; if no red glow appears, the camera isn't getting enough power. Swap to a different power supply to resolve this.

7. Specifications

8. Warranty

This TOWODE DVR Security System comes with a 1-year warranty from the manufacturer.

9. Support

For technical assistance, troubleshooting, or further inquiries, please refer to the full user manual included in your package or contact TOWODE customer support. The iCSee app is essential for remote access and smart alerts.
