1. Introduction
Thank you for choosing the JOYRACER 24V Ride on Car, Kids ATV XL Four Wheeler. This electric ATV is designed to provide a safe and thrilling driving experience for children. It features a powerful 24V 9AH rechargeable battery, four 200W motors (total 800W), and a spacious 19-inch leather seat designed to accommodate two children or one older child comfortably. Equipped with durable EVA tires, four shock absorbers, and a remote control for parental supervision, this ATV ensures a smooth and secure ride on various terrains.

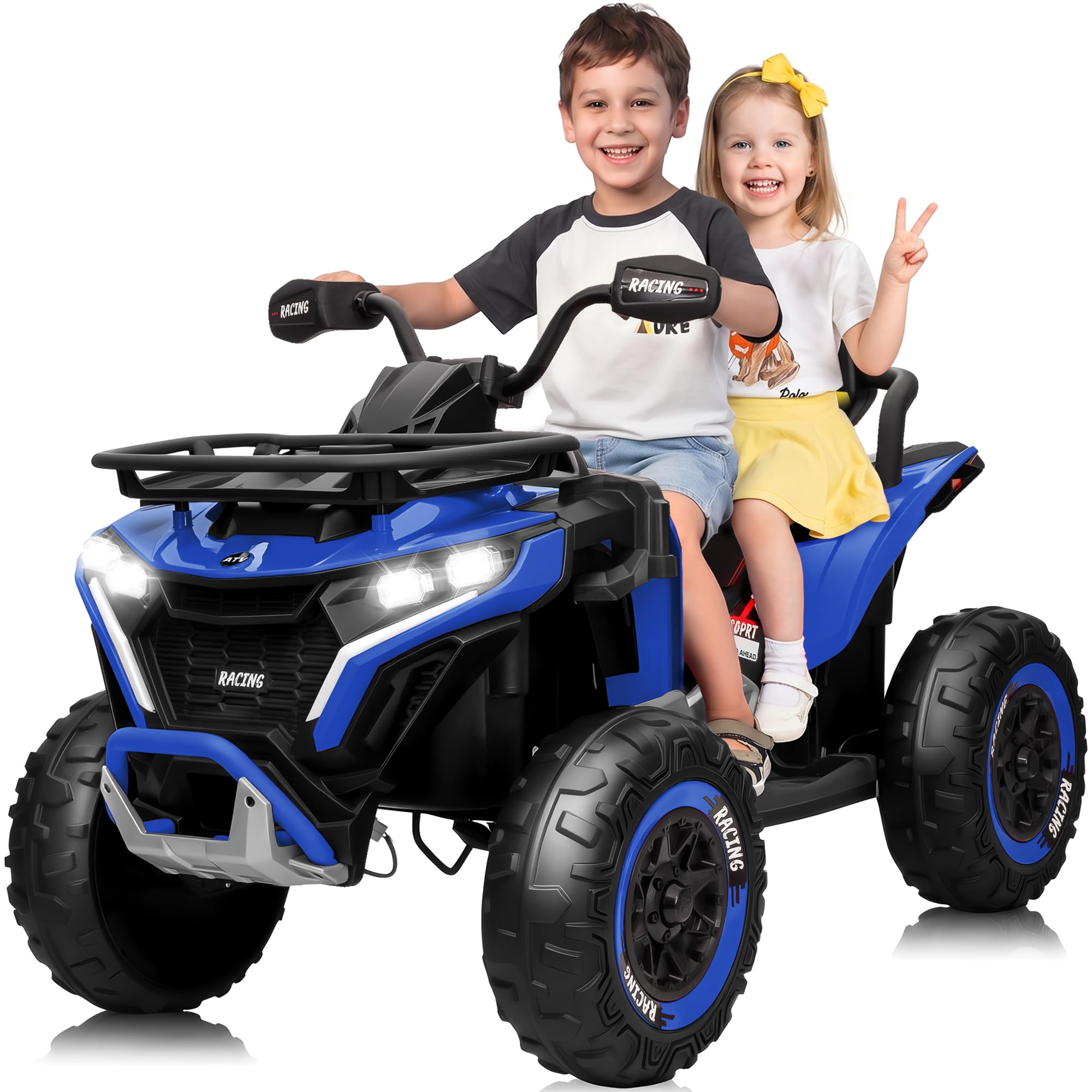

Image 1.1: The JOYRACER 24V Ride on Car, Kids ATV XL Four Wheeler, showcasing its design and features.
2. Safety Information
For the safety of your child, please read and understand all instructions before assembly and operation. Always ensure the vehicle is used under direct adult supervision.
- Always supervise children during operation.
- Ensure all assembly steps are completed correctly and all fasteners are secure before use.
- Do not exceed the maximum weight capacity of 135 lbs.
- Recommended ages: 2 children under 4 years old or 1 child 3-8 years old.
- Always wear appropriate safety gear, including helmets and knee pads (2 pairs of knee pads are included).
- Operate the vehicle on flat, dry surfaces away from traffic, pools, or steep inclines.
- This product has passed ASTM certification for safety.
- The customized soft start and one-touch braking system ensure smooth starts and stops, protecting your child.
3. Setup and Assembly
The JOYRACER 24V Ride on Car requires some assembly. Please follow the detailed instructions provided in the included manual. For visual guidance, refer to the assembly video below.
Video 3.1: Official assembly guide for the JOYRACER 24V Ride on Kids Big ATV BDQ1209. This video demonstrates step-by-step instructions for putting the vehicle together.
Image 3.1: The 19-inch leather seat and included knee pads for enhanced comfort and safety.
Initial Charging
Before first use, fully charge the 24V battery for 8-12 hours. Refer to the charging port location in your physical manual. Do not overcharge the battery.
4. Operating Instructions
The JOYRACER ATV offers both manual and remote control driving options.
Video 4.1: Overview of the JOYRACER 24V Big ATV BDQ1209, demonstrating its features and operation.
4.1. Powering On/Off
- Locate the power button on the dashboard. Press to turn on, press and hold to turn off.
4.2. Driving Modes
The ATV can be operated by the child using manual controls or by an adult using the remote control.
- Manual Control: The child uses the steering wheel and foot pedal to control direction and speed. The soft start feature ensures a smooth acceleration.
- Remote Control: The 2.4G remote control allows parents to override manual controls, steer, and adjust speeds (3.1-4.5-5.9 MPH). This is ideal for younger children or for ensuring safety.
Image 4.1: Demonstrating both manual control by a child and remote control by a parent.
4.3. Multimedia Features
The ATV includes integrated entertainment options:
- Music Player: Equipped with USB, Bluetooth, and MP3 connectivity for playing music.
- LED Lights: Front and rear LED lights enhance visibility and add to the realistic driving experience.
- Horn: A functional horn for added fun.
Image 4.2: Close-up of the dashboard with MP3 player controls, steering wheel, brake pedal, and LED lights.
5. Maintenance
5.1. Battery Care and Charging
- Charge the battery for 8-12 hours before first use and after each use.
- Do not charge for more than 18 hours to prevent battery damage.
- If the vehicle is not used for an extended period, charge the battery once a month to maintain its lifespan.
- Only use the charger provided with the vehicle.
5.2. Cleaning
- Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Avoid spraying water directly onto electrical components.
5.3. Storage
- Store the vehicle in a dry, cool place away from direct sunlight and moisture.
- Ensure the power is turned off before storing.
6. Troubleshooting
If you encounter issues with your JOYRACER ATV, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery; Loose wire connection; Motor issue | Charge battery fully; Check all connections; Contact customer support |
| Vehicle runs slowly | Low battery; Overloaded; Operating on rough terrain | Charge battery fully; Reduce load; Operate on smoother surfaces |
| Remote control not working | Remote battery low; Not paired; Interference | Replace remote batteries; Re-pair remote (refer to manual); Move away from interference sources |
| Lights or music not working | Loose connection; Component failure | Check connections; Contact customer support |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand Name | JOYRACER |
| Model Number | BDQ1209 |
| Motors | 4 x 200W (Total 800W) |
| Battery | 24V 9AH Rechargeable |
| Speed Range | 3.1 - 5.9 MPH (Adjustable via remote) |
| Charging Time | 8-12 hours |
| Max Load Capacity | 135 lbs |
| Recommended Age | 2 children under 4 years old or 1 child 3-8 years old |
| Product Dimensions (L x W x H) | 49.61" x 27.56" x 29.92" |
| Seat Material | 19-Inch Wider Leather Seat |
| Tire Type | Durable EVA Tires |
| Safety Certification | ASTM Certified |
| Included Components | Ride on Car Parts, 2 pairs of knee pads |
Image 7.1: Visual representation of the ATV's dimensions and recommended user specifications.
8. Warranty and Support
8.1. Warranty Information
Please refer to the warranty card included with your product for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.
8.2. Customer Support
For any questions, concerns, or technical assistance, please contact JOYRACER customer support. You can typically reach us via Amazon message for the fastest help. Please provide your model number (BDQ1209) and purchase details when contacting support.
