Neoteck 0-1"/0.001" Dial Indicator with 13.5" Flexible Arm Magnetic Base User Manual

1. Introduction

Thank you for choosing the Neoteck 0-1"/0.001" Dial Indicator with 13.5" Flexible Arm Magnetic Base. This precision instrument is designed for accurate measurement in various industrial and mechanical applications, including 3D printers, lathes, woodworking, workshops, CNC machines, and automotive maintenance. This manual provides essential information for the proper setup, operation, and maintenance of your dial indicator set.

Figure 1: Neoteck 0-1"/0.001" Dial Indicator with 13.5" Flexible Arm Magnetic Base.

2. Product Overview and Components

The Neoteck Dial Indicator Set includes the following components:

• 1 x Dial Indicator (0-1 inch / 0.001 inch resolution)
• 1 x Magnetic Base with 13.5" Flexible Arm (176 lbs max pull)
• 1 x Rear Cover for Dial Indicator
• 1 x Portable Storage Box
• 1 x Instruction Manual

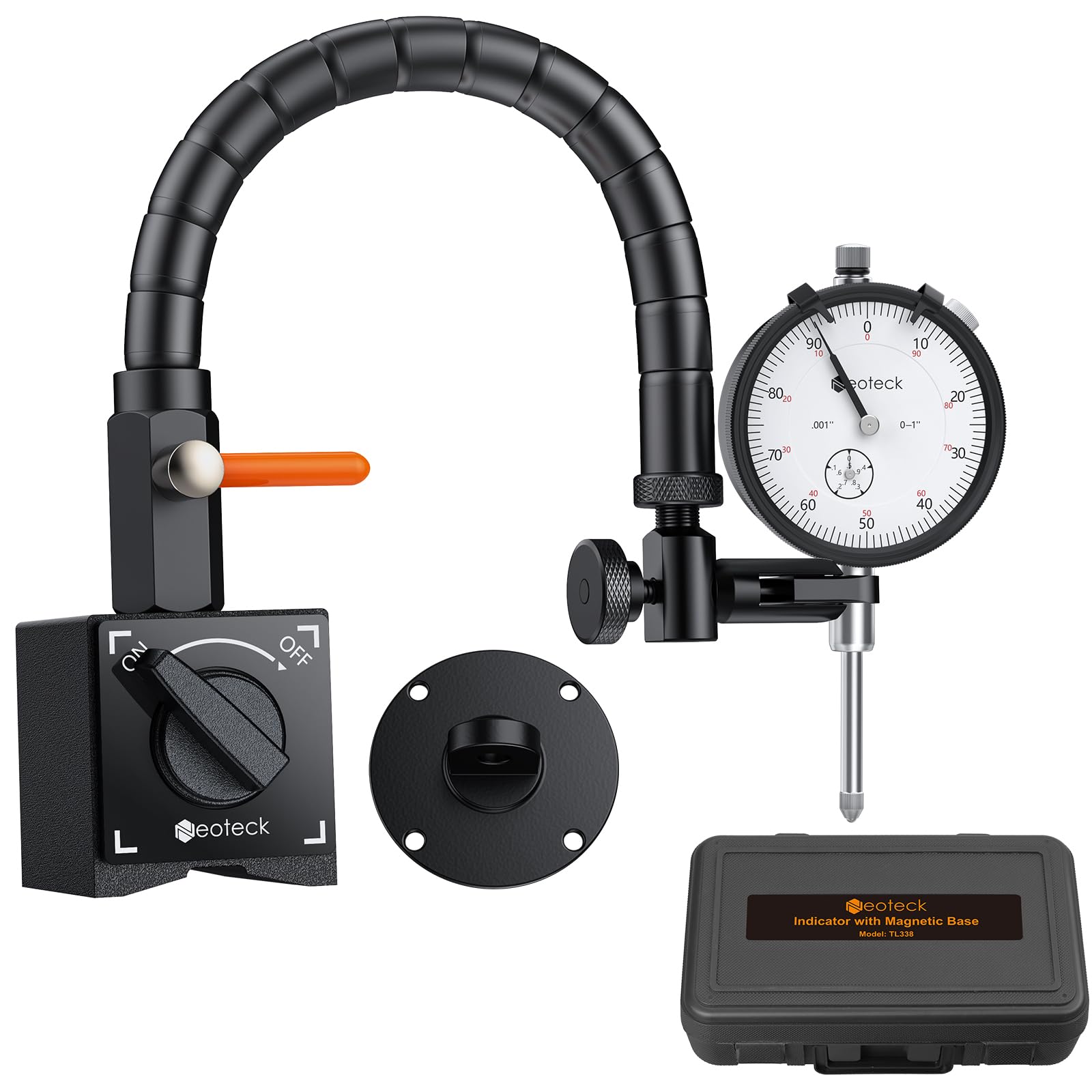

Figure 2: All components included in the Neoteck Dial Indicator Set.

Dial Indicator Features:

• High-Precision Measurement: Measures from 0 to 1 inch with 0.001 inch resolution.
• Clear & High-Accuracy Plate Dial Scale: Laser-etched 0.001 inch graduations under an anti-glare crystal lens for instant, error-free readings.
• Friendly Design: Features bezel & bezel clamp zero-setting for absolute control over calibration. Tool-free locking mechanism ensures stable reference points.
• Durable Construction: Battery-free design ensures continuous operation, while vibration-resistant gears maintain precision.

Figure 3: Detailed view of the Neoteck Dial Indicator with labeled parts.

Magnetic Base with Flexible Arm Features:

• Strong Magnetic Pull: Features a maximum pull force of 176 lbs (80 kg).
• Flexible Arm: 13.5 inch arm size with a clamping diameter ranging from 0.157 to 0.551 inches, compatible with standard dial indicators.
• Adjustable: Flexible, robust, and precisely rotating joint enables easy adjustment of direction and position.
• Stability: Provides exceptional stability for measurement needs. (Note: 176lbs tensile force necessitates a metal working surface with a thickness >30mm).

Figure 4: Neoteck Magnetic Base with Flexible Arm.

3. Setup Instructions

Follow these steps to set up your Neoteck Dial Indicator Set:

1. Position the Base: Securely position the magnetic base on your metal work surface. Ensure the surface is clean and flat for maximum magnetic adhesion. Turn the ON/OFF switch on the magnetic base to the 'ON' position to activate the magnet.
2. Install the Indicator: Attach the dial indicator to the flexible arm's clamping mechanism. Tighten the screw to secure the indicator firmly.
3. Adjust the Arm: Loosen the locking knob on the flexible arm to adjust its direction and position. Bend the arm to bring the indicator's contact point close to the measurement area.
4. Fix the Arm: Once the desired position is achieved, tighten the locking knob on the flexible arm to fix it in place. Ensure the arm is stable and does not move during measurement.

Figure 5: Visual guide for installing the dial indicator onto the magnetic base and flexible arm.

Video: Neoteck 0-1"/0.001" Dial Indicator and Magnetic Base Set

Video 1: This video demonstrates the assembly and basic usage of the Neoteck Dial Indicator and Magnetic Base Set, including securing the base and attaching the indicator.

4. Operating Instructions

Operating the Neoteck Dial Indicator for precise measurements:

1. Zero Setting: Once the dial indicator is positioned, gently bring the contact point into contact with the surface to be measured. Rotate the outer bezel of the dial indicator until the main needle points to '0'. Use the bezel clamp to lock the dial plate and ensure zero setting.
2. Perform Measurement: Move the object or the indicator across the surface to be measured. The main needle will move, indicating the deviation from the zero point. The smaller revolution counter indicates full rotations of the main needle, typically representing 0.1 inch per revolution.
3. Read the Measurement: Read the deviation directly from the dial. Each small graduation on the main dial represents 0.001 inch.
4. Applications: This dial indicator is suitable for checking flatness, radial runout, concentricity, and measuring hardware sizes in various settings.

Figure 6: Adjusting the flexible arm for optimal positioning.

5. Maintenance

Proper maintenance ensures the longevity and accuracy of your dial indicator set:

• Cleaning: After each use, wipe the dial indicator and magnetic base with a clean, soft cloth. For stubborn grime, use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the finish or internal components.
• Storage: Store the dial indicator set in its portable box in a dry, dust-free environment. Avoid extreme temperatures and humidity.
• Handling: Handle the instrument with care to prevent drops or impacts, which can affect its calibration and accuracy.
• Lubrication: The internal mechanisms are factory-lubricated. Do not attempt to lubricate or disassemble the dial indicator unless you are a qualified technician.

Figure 7: Storing the dial indicator set in its portable case.

6. Troubleshooting

If you encounter issues with your Neoteck Dial Indicator Set, consider the following:

• Inaccurate Readings:
  • Ensure the magnetic base is firmly attached to a stable, sufficiently thick metal surface.
  • Verify that the dial indicator is securely clamped to the flexible arm.
  • Check for any debris or damage on the contact point or the surface being measured.
  • Confirm that the dial has been properly zeroed before taking measurements.
• Magnetic Base Not Holding:
  • Ensure the ON/OFF switch is fully in the 'ON' position.
  • The magnetic base requires a metal surface with a thickness greater than 30mm to achieve its maximum 176lbs pull force. Thinner materials may result in weaker adhesion.
  • Clean the bottom surface of the magnetic base and the work surface to remove any dust or oil that might reduce magnetic grip.
• Flexible Arm Instability:
  • Ensure all locking knobs on the flexible arm are tightened securely after positioning.
  • Avoid over-extending the arm in ways that create excessive leverage, which can reduce stability.

If problems persist, please contact Neoteck customer support for further assistance.

7. Specifications

8. Warranty and Support

Neoteck products are designed for quality and reliability. For any questions, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official Neoteck website. Please retain your proof of purchase for warranty claims.
