JKsmart 4-Tier Corner Bar Cabinet with Glass Holder

1. Introduction

Thank you for choosing the JKsmart 4-Tier Corner Bar Cabinet. This instruction manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Designed to optimize corner spaces, this industrial-style cabinet features integrated glass holders and enclosed storage, making it a functional and aesthetic addition to your home.

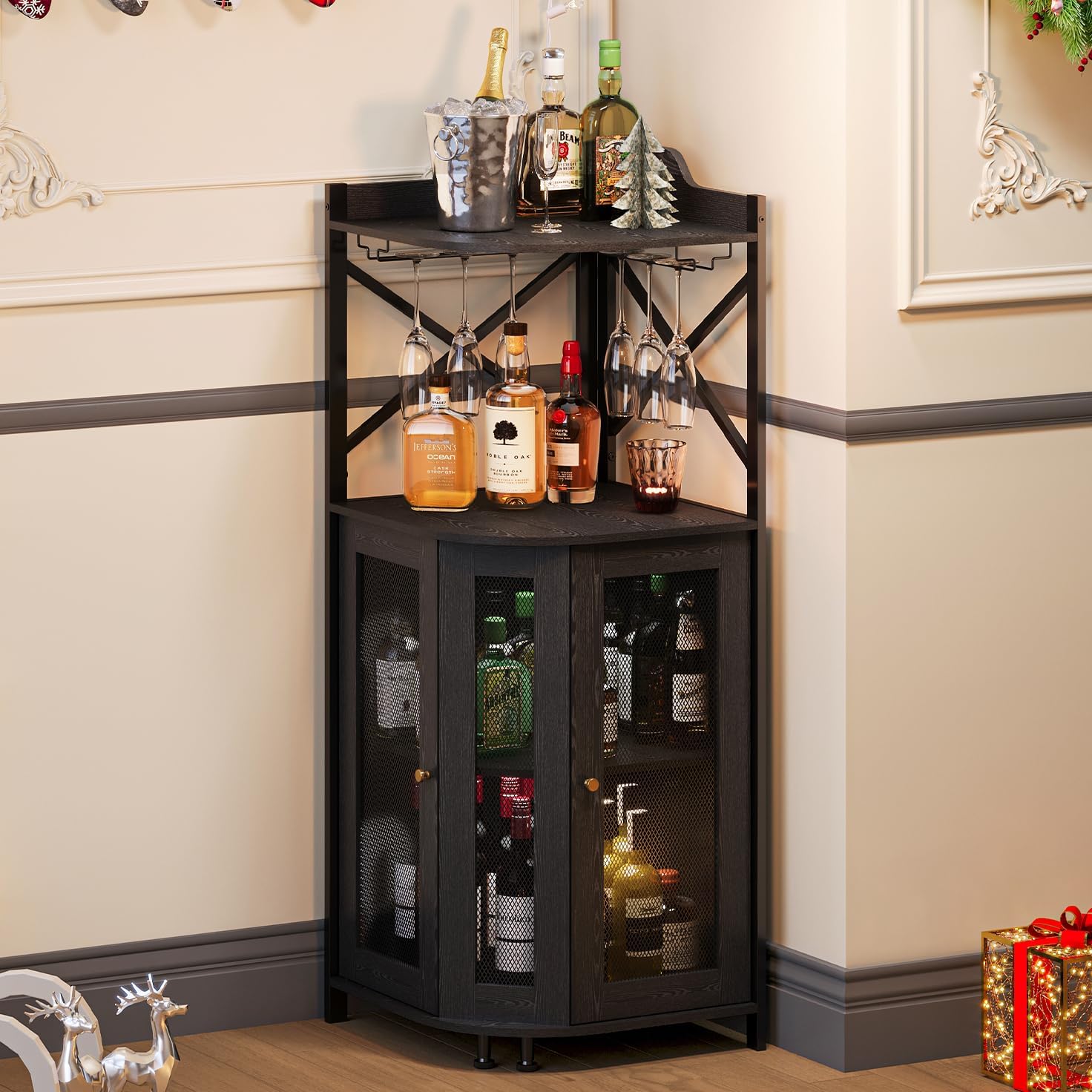

Figure 1: Fully assembled JKsmart 4-Tier Corner Bar Cabinet.

2. Safety Information

• Read all instructions carefully before assembly and use.
• Keep all small parts and packaging materials away from children and pets.
• Assemble the unit on a soft, clean surface to prevent scratches.
• Ensure all screws and fasteners are securely tightened before use. Periodically check for tightness.
• Do not overload shelves. The maximum weight limit per shelf is 60 pounds.
• Use the provided anti-tipping kit to secure the cabinet to a wall, especially in households with children or pets, to prevent accidental tipping.
• Avoid placing hot items directly on the wooden surfaces.

3. Package Contents

Verify that all components listed below are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Wooden Panels (Top, Middle, Bottom Shelves, Side Panels, Door Panels)
• Metal Frame Components (Vertical supports, X-type crossbars)
• Wine Glass Holders (Detachable)
• Adjustable Feet
• Door Hinges and Knobs
• Magnetic Door Catches
• Assembly Hardware (Screws, Allen wrench, etc.)
• Anti-Tipping Kit
• Instruction Manual

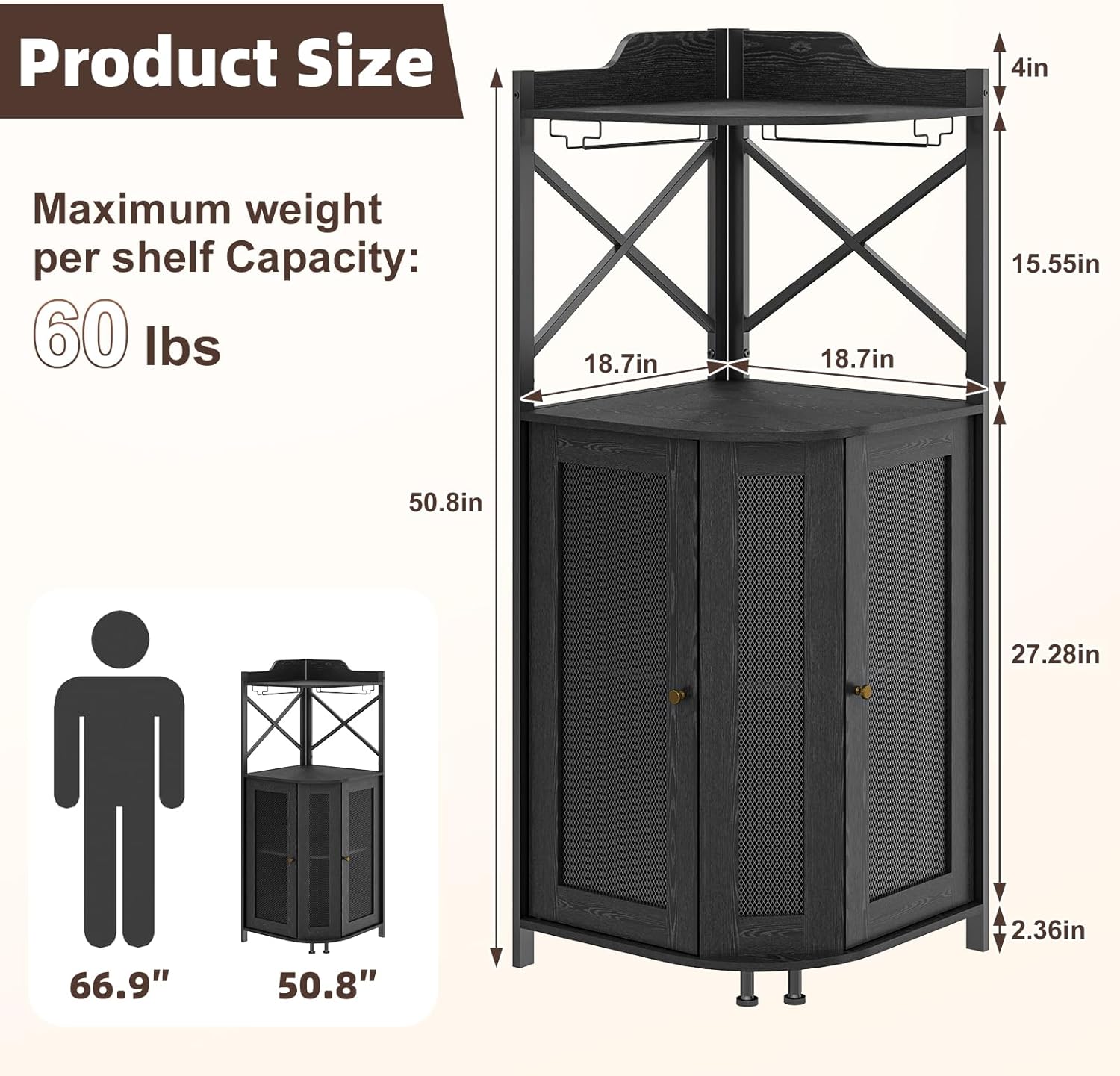

Figure 2: Product dimensions and weight capacity.

4. Assembly Instructions

Follow these steps carefully to assemble your corner bar cabinet. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface. Refer to the parts list in your manual to identify each piece.
2. Assemble the Base Frame: Attach the bottom shelf to the vertical metal supports using the provided screws and Allen wrench. Ensure the frame is stable.
3. Install Middle Shelf: Secure the middle shelf to the metal frame, ensuring it is level and all connections are tight.
4. Attach Top Shelf: Fasten the top shelf to the upper section of the metal frame.
5. Assemble Doors: Attach the hinges to the door panels, then secure the doors to the cabinet frame. Install the door knobs and magnetic catches.
6. Install Wine Glass Holders: Slide the detachable wine glass holders into the designated slots beneath the top shelf.
7. Attach Adjustable Feet: Screw the adjustable feet into the bottom of the cabinet.
8. Secure to Wall (Optional but Recommended): Use the anti-tipping kit to anchor the cabinet to a wall for added stability.

Figure 3: Key features and components of the cabinet.

5. Operating Instructions

• Utilizing Storage: The cabinet features two open storage countertops on the upper section and an enclosed storage area with a partition in the lower section. The increased height of the guardrail on the open shelves helps prevent items from falling.
• Wine Glass Holders: The detachable wine glass holders are designed to securely hang your stemware.
• Adjustable Feet: If your floor is uneven, adjust the height of the adjustable feet at the bottom of the cabinet to ensure stability and prevent wobbling. Turn clockwise to raise and counter-clockwise to lower.
• Door Operation: The lower cabinet doors are equipped with magnetic catches to keep them securely closed when not in use.

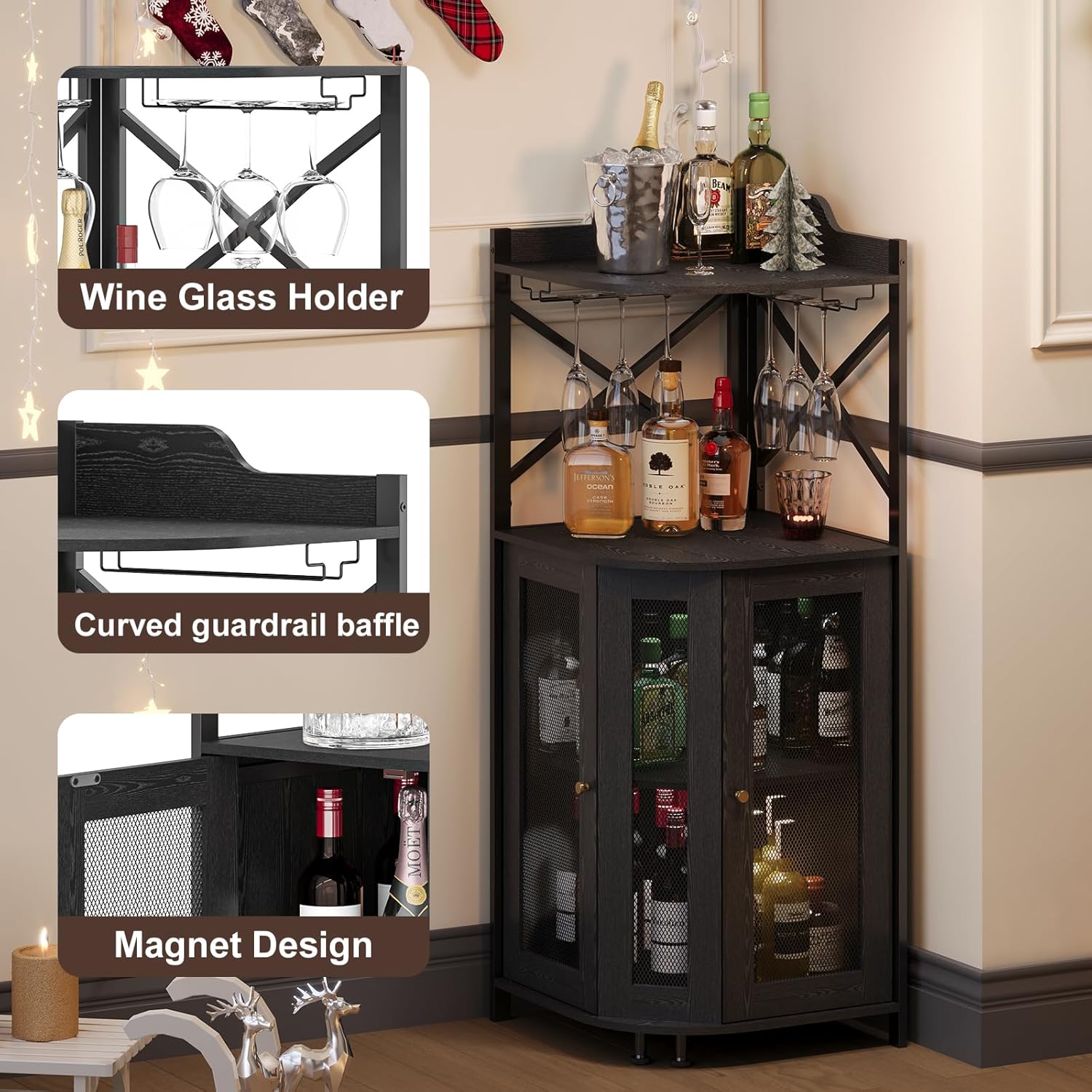

Figure 4: Close-up of wine glass holder, guardrail, and magnetic door catch.

Figure 5: Adjustable feet for stability on uneven surfaces.

6. Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Spills: Clean up spills immediately to prevent staining or damage to the wood.
• Hardware: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as necessary.
• Environment: Avoid prolonged exposure to direct sunlight or extreme humidity, which can affect the wood and metal components.

7. Troubleshooting

• Cabinet is Wobbling: Check the adjustable feet at the bottom of the cabinet. Turn them to raise or lower individual corners until the cabinet is stable. Ensure all assembly screws are tight.
• Doors Not Closing Properly: Verify that the magnetic catches are correctly aligned and securely installed. Check door hinges for proper attachment and adjustment.
• Missing Parts: If any parts were missing upon delivery, refer to the "Package Contents" section and contact JKsmart customer service for assistance.

8. Specifications

9. Warranty and Support

JKsmart is committed to providing 100% satisfactory service. If you encounter any issues with your product, require replacement parts, or have questions regarding assembly or operation, please contact JKsmart customer service. Refer to your purchase documentation for specific warranty details and contact information.
