1. Introduction
Thank you for choosing the KVGOOGKV EB7PRO Electric Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride and retain it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of your e-bike.

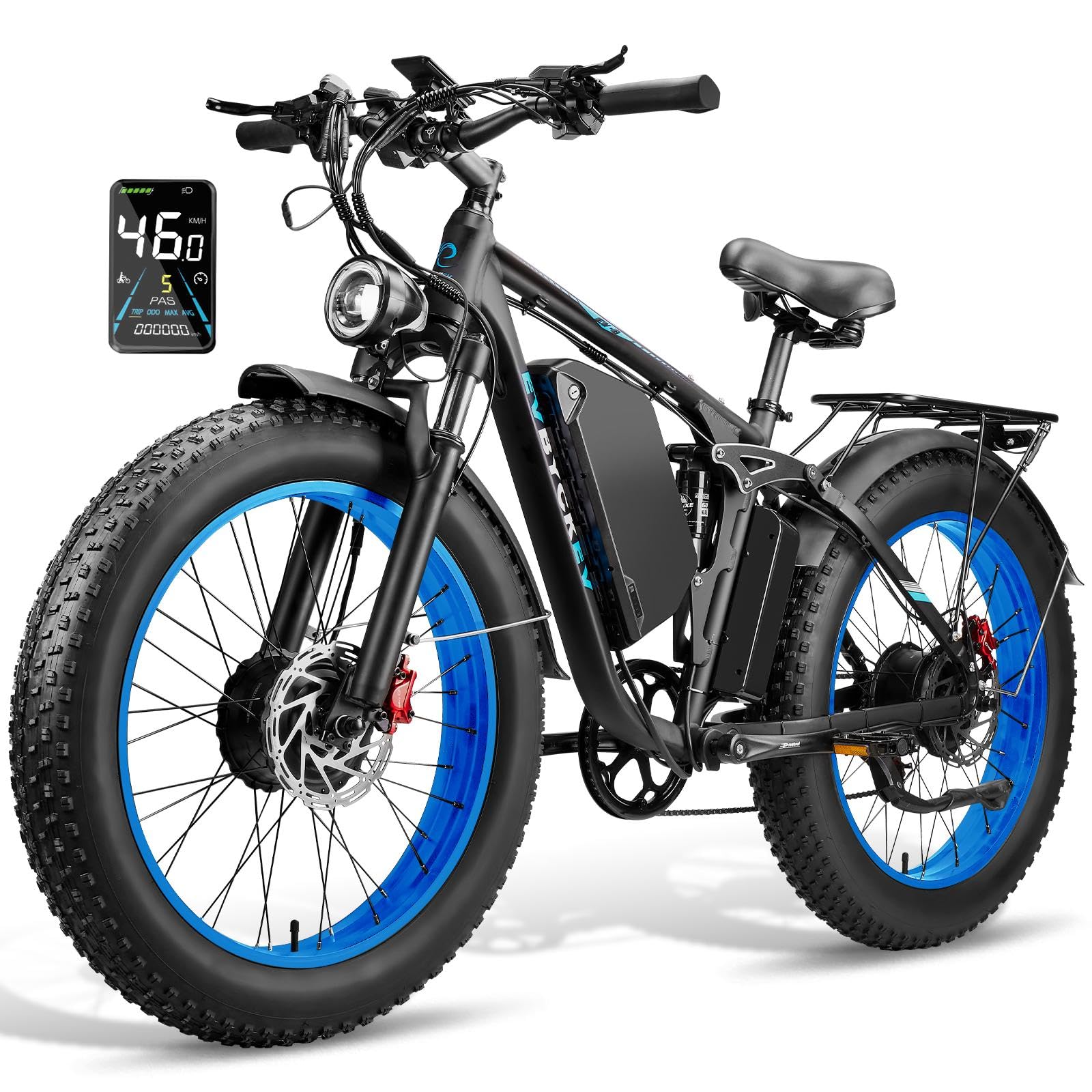

Figure 1: KVGOOGKV EB7PRO Electric Bike in action.
2. Safety Guidelines
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local regulations regarding electric bicycles. Perform a pre-ride inspection before each use, checking brakes, tire pressure, battery charge, and all connections. Avoid riding under the influence of alcohol or drugs. Do not exceed the maximum load capacity of 330 lbs.
3. Setup and Assembly
The KVGOOGKV EB7PRO Electric Bike arrives 90% pre-assembled. The remaining assembly steps typically include attaching the front wheel, handlebars, seat post, pedals, and connecting the headlight cable. Installation tools are included in the package.
3.1 Pedal Installation
Ensure pedals are correctly installed. The left pedal (marked 'L') threads counter-clockwise, and the right pedal (marked 'R') threads clockwise. Tighten securely with a wrench.
Video 1: Demonstrates the correct procedure for pedal installation on the e-bike.
3.2 Headlight Connection
Connect the headlight cable by aligning the two arrows on the female and male connectors. Push firmly until they click into place.
Video 2: Shows the assembly process for the e-bike, including connecting the headlight.
3.3 Battery Installation and Charging
The 58V Max 34Ah battery is removable for convenient charging. Insert the battery into its compartment and secure it. Charge the battery fully before first use. Charging typically takes 6-10 hours. The intelligent BMS prevents overcharging.
Figure 2: Removable battery and dual charging setup.
4. Operating Instructions
The EB7PRO offers versatile riding experiences with its multiple modes and intuitive controls.
4.1 Riding Modes
Your e-bike features six intelligent riding modes:
- Dual Motor Pure Electric: Provides maximum power for off-road hills and challenging terrains.
- Single Motor: Energy-efficient for commuting and extended range.
- Pedal Assist (5 levels): Augments your pedaling effort, ideal for long rides.
- Walking Mode: Low-speed assist for easily pushing the bike.
- Bike Mode: Functions as a regular bicycle without electric assistance.
- Manual Mode: Pedaling for workouts or when the battery is low.
Note: Avoid randomly changing the LCD settings to prevent unintended behavior.
Figure 3: Overview of the 6 riding modes.
4.2 Smart LCD Display
The integrated LCD display provides real-time information including battery level, current speed, speed unit (km/h or mph), cruise control, PAS level, trip odometer, total odometer, and max speed. Use the operation buttons to navigate through display options and adjust settings.
Video 3: Demonstrates the features and functions of the dual motor e-bike display.
Video 4: Illustrates the pedal assist (PAS) mode display and its functionality.
Figure 4: Smart LCD Display interface.
4.3 Braking System
The EB7PRO is equipped with a professional full suspension and hydraulic dual disc brake system for reliable all-weather stopping power. Always apply both brakes simultaneously for effective and safe stopping.
Figure 5: Hydraulic Dual Disc Brake System.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your KVGOOGKV EB7PRO.
- Battery Care: Charge the battery regularly, even when not in use, to maintain its health. Store the battery in a cool, dry place.
- Tire Pressure: Check tire pressure before each ride. Maintain recommended pressure for optimal performance and safety.
- Brake Inspection: Regularly inspect brake pads and rotors for wear. Ensure brake levers are responsive and cables are not frayed.
- Chain Lubrication: Keep the chain clean and lubricated for smooth gear changes and to prevent wear.
- General Cleaning: Clean your e-bike with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Fasteners: Periodically check all bolts and fasteners for tightness.
6. Troubleshooting
If you encounter any issues with your EB7PRO, please refer to the following general advice. For specific problems not listed, or if issues persist, contact customer support.
- Bike Not Powering On: Check if the battery is fully charged and properly seated. Ensure all electrical connections are secure.
- Motor Not Assisting: Verify that the PAS level is not set to 0. Check if the brake levers are fully released, as some systems cut motor power when brakes are applied.
- Reduced Range: This can be due to low tire pressure, riding in high assist modes, frequent stops and starts, or riding against strong headwinds. Ensure the battery is fully charged before each ride.
- Brake Noise: Clean brake rotors and pads. If noise persists or braking performance is reduced, brake pads may need replacement or adjustment.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | KVGOOGKV |
| Model Number | EB7PRO |
| Bike Type | Commuting Bike, Electric Bike |
| Motor | 8000W Peak Brushless Dual Motor |
| Battery | 58V Max 34Ah (52V Rated, 1856Wh) Removable |
| Max Speed | 47 MPH |
| Range | 45-105 Miles (per charge) |
| Charging Time | 6-10 Hours |
| Suspension | Full Suspension (Lockable Front Fork, Rear Hydraulic Shock) |
| Brakes | Hydraulic Dual Disc Brakes |
| Tires | 24 Inches * 4.0 Inches Fat Tires |
| Frame Material | 6061 Aluminum Alloy |
| Gears | 7-Speed Shimano |
| Max Load Capacity | 330 lbs |
| Recommended Rider Height | 5'2" - 6'4" |
| Included Components | Battery (with key) and Charger, Headlight, Horn, Fenders, Rear Rack, Phone Holder with USB Ports, Installation Tools and Manual |
Figure 6: EB7PRO Dimensions and Rider Height Recommendation.
8. Warranty and Support
Your KVGOOGKV EB7PRO Electric Bike comes with a comprehensive warranty and dedicated support.
- Warranty: A 12-month limited warranty covers all manufacturing defects.
- Technical Support: Lifetime technical support is provided.
- Returns: Please keep the original packaging for 30 days to facilitate potential returns or exchanges.
8.1 Customer Support
For any inquiries, technical assistance, or warranty claims, please contact our customer support team:
- Email: Newebike@outlook.com
- Availability: 24/7 Online Support
- Response Time: Replies within 12 hours
- Service: Replacement Parts Support available
Figure 7: KVGOOGKV Premium After-Sales Service Support.
