WinZo SM8010 Smart Toilet User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your WinZo SM8010 Smart Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Figure 1: WinZo SM8010 Smart Toilet

2. Product Features

• Intelligent Design: Features foot sensor for lid opening, heated seat, instant warm water, rinse functions, warm air drying, 256-color night light, LED display, and remote control.
• Adjustable Temperatures & Night Light: Offers multi-mode cleaning with instant warm water and a heated bidet seat. Includes 3-second instant heating technology with 4 adjustable temperature levels. A 256-color LED strip provides personalized illumination and an integrated night light for visibility.
• Foot Sensor Operation: The foot-sensing zone automatically opens the lid and toilet seat upon approach and closes and flushes upon departure.
• Energy-Saving Water Use: Utilizes foot-sensing, auto, or remote flushing with less than 1.28 gallons per flush (GPF) for water efficiency.
• ADA Chair Height Design: Features a 17-inch floor-to-bowl height, complying with ADA requirements for enhanced comfort and accessibility.
• Standard 12-inch Rough-in: Designed for easy installation with a standard 12-inch rough-in.

Figure 2: ADA Chair Height Design

3. Specifications

Figure 3: Product Dimensions and Rough-in Measurement. Ensure rough-in is at least 12 inches.

4. Setup and Installation

Proper installation is crucial for the optimal performance of your WinZo Smart Toilet. Please follow these steps carefully. It is recommended to watch the official installation video for visual guidance.

4.1 Pre-Installation Checks

1. Clean the ground thoroughly and ensure it is dry.
2. Check if the ground is horizontal using a level.
3. Measure the rough-in distance (from the wall to the center of the sewer pipe). It must be at least 12 inches.
4. Ensure the sewer pipe is unobstructed.
5. Verify water pressure is over 0.14Mpa and flow rate is over 18L/min.

4.2 Angle Valve Installation

1. Wrap the raw material belt (Teflon tape) around the interface of the foot valve.
2. Install the angle valve onto the water supply line.
3. Drain any residual water from the supply line.
4. Reinstall the constant flow valve into the angle valve.

4.3 Toilet Mounting

1. Install expansion screws into the floor flange.
2. Mount the flange at the drain opening, ensuring it is secure.
3. Confirm the center of the drain hole on the toilet aligns with the flange.
4. Align the flange and the screws with the bottom of the toilet.
5. Install the flat washer and nut to secure the toilet to the floor.
6. Settle the upper part of the toilet onto the base.

4.4 Water and Power Connection

1. Connect the water inlet pipe to the angle valve. Pay attention not to bend the braided tube.
2. Open the angle valve to the maximum and check for any water leaks.
3. Plug the power cord into a suitable electrical outlet to power on the toilet.

5. Operating Instructions

Your WinZo Smart Toilet offers a range of intelligent features for enhanced comfort and hygiene. Familiarize yourself with the controls and functions below.

5.1 Automatic Functions

• Auto Open/Close Lid: The foot sensor detects your approach, automatically opening the lid and seat. Upon leaving, the lid closes and the toilet flushes automatically.
• Power Outage Flush: The toilet is designed to perform a flush even during a power outage.

Figure 4: Foot Sensor Operation

5.2 Bidet and Drying Functions

• Instant Warm Water: Enjoy immediate warm water for all washing functions.
• Heated Seat: The seat provides instant heating with 4 adjustable temperature levels for comfort.
• Multi-Mode Cleaning: Select from various rinse functions including Front Wash, Feminine Flush, Hydrotherapy Flush, and Oscillating Wash.
• Warm Air Drying: After washing, a warm air dryer with 4-speed temperature adjustment provides comfort.

Figure 5: Hot Air Drying and Heated Seat

Figure 6: Multiple Wash Modes

5.3 Lighting and Display

• 256-Color Night Light: The integrated LED strip offers customizable ambient lighting.
• LED Display: Provides clear information on current settings and functions.

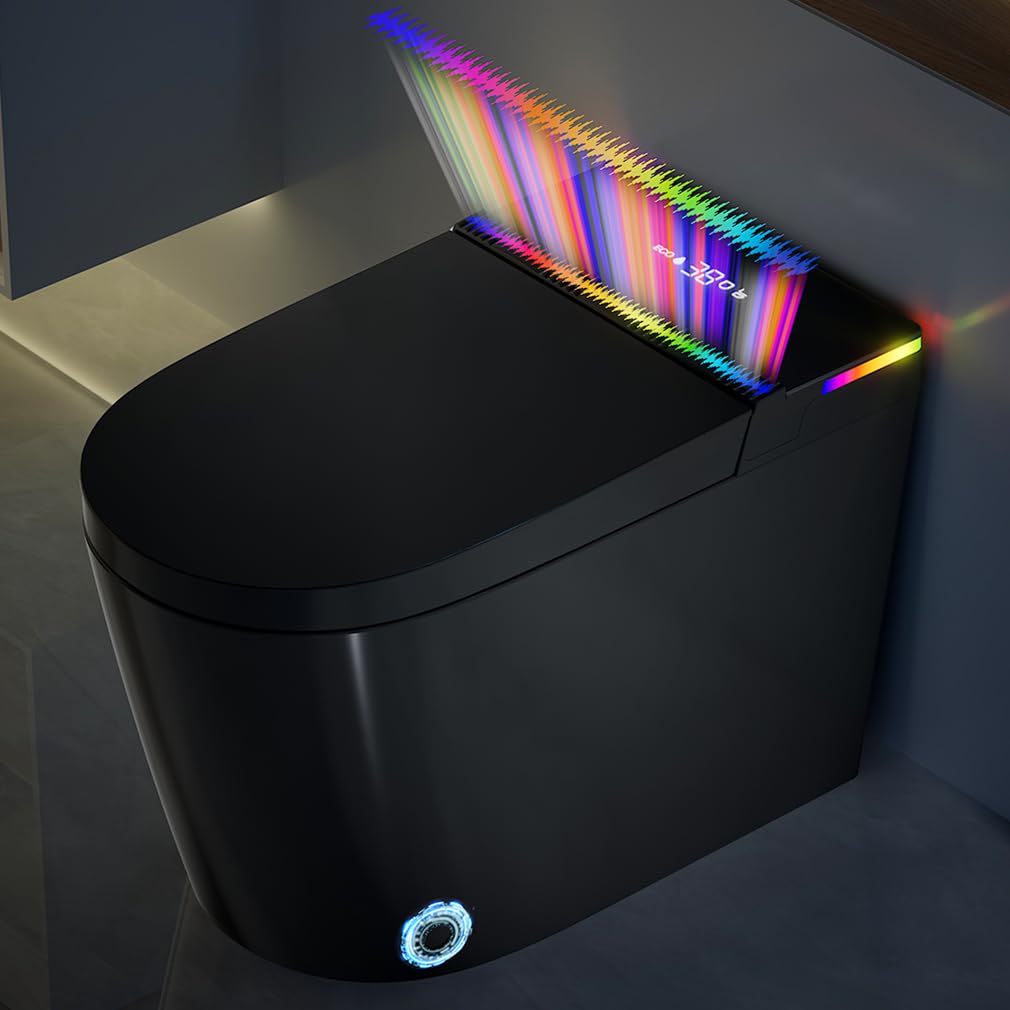

Figure 7: Soft Night Light Illumination

6. Maintenance

Regular maintenance ensures the longevity and hygienic operation of your smart toilet.

• Cleaning: Use a soft cloth and mild, non-abrasive cleaner for external surfaces. Avoid harsh chemicals that may damage the finish or electronic components.
• Nozzle Cleaning: The toilet features a self-cleaning nozzle function. Refer to the remote control instructions for activating this feature.
• UV Sterilization: The UV light deep cleaning function helps maintain hygiene within the toilet bowl.
• Power Off for Deep Cleaning: For thorough cleaning or extended periods of non-use, unplug the toilet from the power outlet.

7. Troubleshooting

If you encounter any issues with your WinZo Smart Toilet, please refer to the following general advice. For specific problems, consult the full troubleshooting guide or contact customer support.

• No Power: Check if the power cord is securely plugged into a working outlet. Verify the circuit breaker.
• Water Leakage: Ensure all water connections are tight. Check the angle valve and water inlet pipe for proper sealing.
• Bidet/Dryer Not Working: Confirm the toilet is powered on and the water supply is open. Check remote control battery.
• Lid/Seat Not Opening Automatically: Ensure the foot sensor area is clear and unobstructed.

If the problem persists, please contact WinZo customer support.

8. Warranty and Support

WinZo is committed to providing high-quality products and customer satisfaction.

8.1 Protection Plans

• Optional 4-Year Protection Plan available.
• Optional Complete Protect plan available for eligible purchases.

8.2 Return Policy

This product is eligible for a 30-day refund or replacement policy.

8.3 Customer Support

For any product-related issues, please follow these steps to contact us:

1. Go to your order history.
2. Select the relevant order.
3. Choose "Problem with order" and select the appropriate topic.
4. Click "Contact seller" and attach problem pictures with a detailed description.

We aim to respond within 24 hours and provide a solution, including quick replacement of damaged or missing parts.

Figure 8: Customer Support Process
