1. Introduction
Thank you for choosing the Merax Queen Size Murphy Bed with Shelves. This innovative and space-saving furniture solution is designed to provide a comfortable sleeping area while maximizing your living space. When not in use, the bed conveniently folds into a stylish cabinet with integrated shelving, making it ideal for multi-functional rooms, guest rooms, home offices, or small apartments. This manual provides essential information for safe assembly, operation, and maintenance of your new Murphy bed.
2. Safety Information
Your safety is paramount. Please read and adhere to all safety instructions before assembling or using the Merax Murphy Bed.
- Wall Anchoring: Always secure the bed to a sturdy wall using the provided hardware to prevent tip-over. Failure to do so can result in serious injury or death.
- Mattress Thickness: Do not exceed the maximum mattress thickness of 8 inches. Using a thicker mattress may prevent the bed from closing properly or strain the folding mechanism.
- Choking Hazard: Keep all small parts and assembly hardware out of reach of children and pets.
- Assembly: Always follow the assembly instructions carefully and completely. Ensure all fasteners are tightened securely before use.
- Weight Capacity: Do not exceed the recommended weight capacity for the bed frame. Refer to the specifications section for details.
- Clearance: Ensure adequate clearance around the bed when opening and closing to avoid obstruction or damage.
3. Setup and Assembly
Assembly of your Merax Murphy Bed requires two adults. Please ensure you have sufficient space and all components before beginning.
3.1. Before You Begin
- Unpack: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches.
- Check Contents: Verify that all parts listed in the packing list are present. If any parts are missing or damaged, contact customer support immediately.
- Tools: All necessary tools for assembly are typically provided. However, a Phillips head screwdriver and a level may be helpful.
- Location: Choose a permanent location for your Murphy bed. It must be installed against a solid wall.
3.2. Assembly Steps
Follow the detailed step-by-step instructions provided in the separate assembly guide included with your product. The general sequence involves:
- Assemble the main cabinet frame.
- Attach the shelving unit to the main cabinet.
- Install the dual-piston folding mechanism.
- Assemble the bed frame and attach it to the mechanism.
- Secure the entire unit to the wall using the provided anti-tip hardware. This step is critical for safety.
- Install the mattress support slats.
Image: Internal view of the Merax Murphy bed mechanism and mattress support slats, showing the wooden slats and metal frame components.
Image: The Merax Murphy bed partially open, illustrating the bed frame extending from the main cabinet structure, with the support legs visible.
4. Operating Instructions
The Merax Murphy Bed is designed for easy and smooth operation. Always operate the bed with care and ensure no obstructions are present.
4.1. Opening the Bed
- Ensure the area in front of the cabinet is clear of furniture or other items.
- Grasp the handles on the front panel of the cabinet firmly.
- Gently pull the bed downwards. The dual-piston mechanism will assist in a controlled descent.
- As the bed lowers, the support legs will automatically extend or can be manually flipped down to rest on the floor, providing stability.
- Once fully extended and supported, the bed is ready for use.

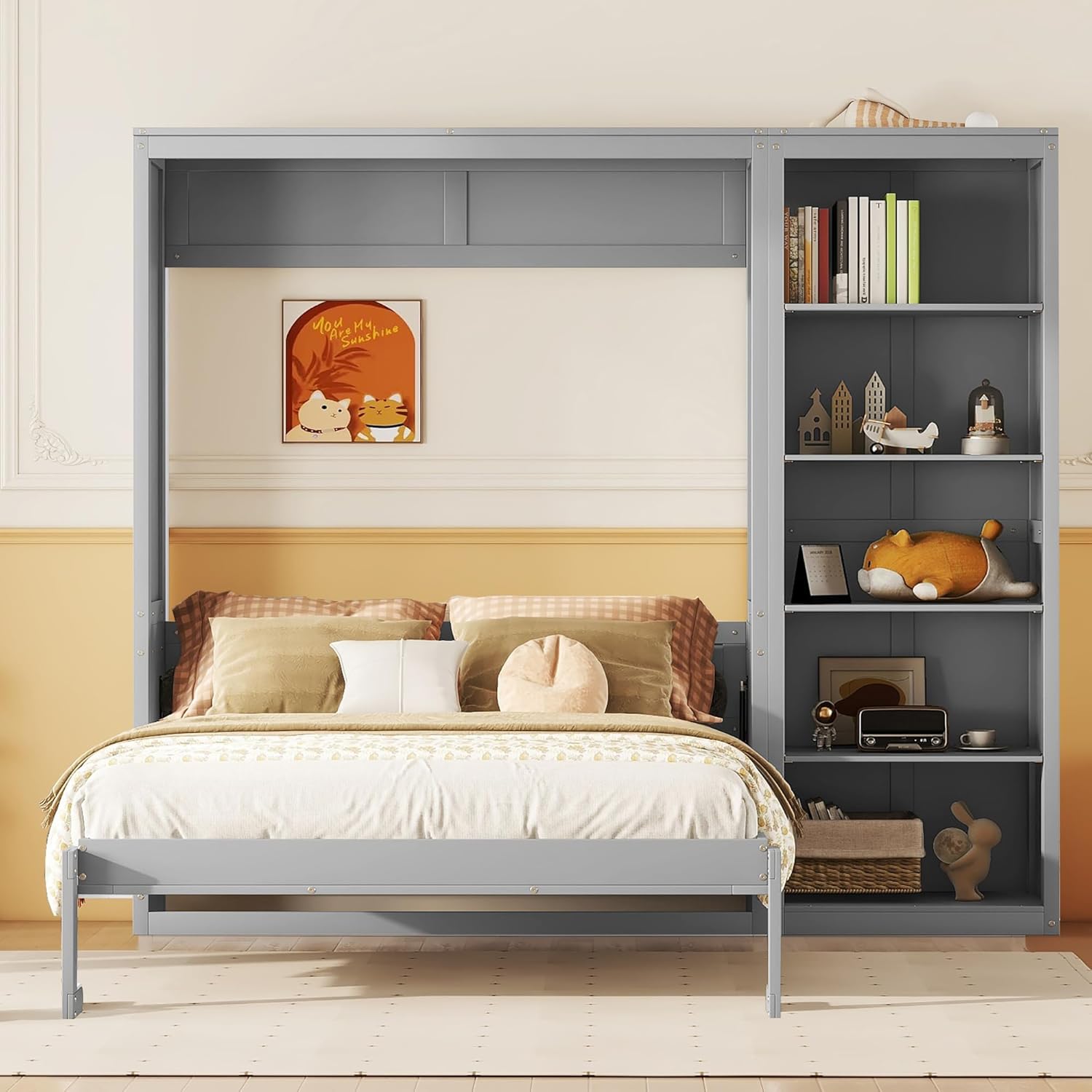

Image: The Merax Murphy bed fully open, showcasing a mattress with bedding, and the adjacent shelving unit filled with decorative items.
Image: An angled perspective of the Merax Murphy bed in its fully open position, highlighting the bed frame and the functional shelving unit.
4.2. Closing the Bed
- Remove all bedding and pillows that might obstruct the closing mechanism. Ensure the mattress is within the 8-inch thickness limit.
- Lift the support legs from the floor and fold them back into their stored position (if applicable).
- Grasp the handles on the bed frame and gently lift the bed upwards. The dual-piston mechanism will assist in lifting the bed smoothly.
- Continue to push the bed upwards until it is fully vertical and securely latched into the cabinet position.
Image: The Merax Murphy bed in its closed cabinet configuration, featuring a sleek grey finish and an attached shelving unit on the right, displaying books and decorative items.
Image: An angled view of the Merax Murphy bed when closed, presenting it as a compact cabinet with integrated shelving, suitable for small spaces.
5. Maintenance and Care
Proper maintenance will ensure the longevity and optimal performance of your Merax Murphy Bed.
5.1. General Cleaning
- Dust regularly with a soft, dry cloth.
- For spills, wipe immediately with a damp cloth and mild soap, then dry thoroughly. Avoid harsh chemicals or abrasive cleaners.
5.2. Mechanism Care
- Periodically inspect the dual-piston mechanism and all moving parts for any signs of wear or damage.
- Ensure all bolts and screws remain tight. Retighten as necessary.
- Do not attempt to lubricate the mechanism unless specifically instructed by the manufacturer, as this could interfere with its proper function.
5.3. Mattress Care
- Rotate your mattress regularly according to the mattress manufacturer's recommendations.
- Ensure your mattress does not exceed the 8-inch thickness limit to prevent strain on the folding mechanism.
6. Troubleshooting
If you encounter any issues with your Merax Murphy Bed, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed is difficult to open or close. | Obstruction, mechanism misalignment, incorrect mattress thickness. | Check for obstructions. Ensure mattress is not thicker than 8 inches. Verify all assembly steps were followed correctly. Contact support if mechanism seems faulty. |
| Bed feels unstable or wobbly. | Not securely anchored to the wall, loose fasteners. | Ensure the bed is properly and securely anchored to a wall stud. Tighten all assembly fasteners. |
| Parts are missing or damaged upon arrival. | Shipping damage, packaging error. | Do not proceed with assembly. Contact Merax customer support immediately with your purchase details. |
7. Specifications
Key dimensions and material information for the Merax Queen Size Murphy Bed with Shelves:
| Feature | Detail |
|---|---|
| Product Dimensions (Bed Open) | 91.2"L x 82"W x 88.5"H |
| Product Dimensions (Bed Closed/Cabinet) | 91.2"L x 15.7"W x 88.5"H |
| Material | Industrial-grade laminated MDF and plywood |
| Mattress Compatibility | Queen size, maximum 8-inch thickness (mattress not included) |
| Color (as reviewed) | Grey |
| Brand | Merax |
| Model Number | B0FFSS2XJQ |
| UPC | 199193339629 |
Image: A technical diagram illustrating the precise dimensions of the Merax Murphy bed when both closed as a cabinet and open as a bed, including measurements for height, width, and depth.
8. Warranty Information
Merax products are manufactured to high-quality standards. For specific warranty details regarding your Queen Size Murphy Bed with Shelves, please refer to the warranty card included with your product or visit the official Merax website. The warranty typically covers manufacturing defects under normal use.
9. Customer Support
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Merax customer support. Have your model number (B0FFSS2XJQ) and purchase date ready for faster service.
For further assistance, please visit the official Merax website or contact their customer service department through the contact information provided on their site or your purchase documentation.
