1. Important Safety Instructions
Read all safety warnings and instructions carefully before operating this electric garden shredder. Failure to follow these instructions may result in electric shock, fire, and/or serious injury. Keep this manual for future reference.
- Personal Safety: Always wear appropriate personal protective equipment, including safety glasses, hearing protection, gloves, and sturdy footwear. Do not wear loose clothing or jewelry that could get caught in moving parts.
- Electrical Safety: Ensure the power supply matches the specifications on the product label. Use only approved extension cords suitable for outdoor use and the power rating of the shredder. Never operate the shredder in wet conditions or near water.
- Work Area Safety: Keep the work area clean and well-lit. Do not operate the shredder in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating the machine.
- Operation Safety: Never place hands or any other body part into the feeding chute or discharge opening while the machine is running. Always use the provided material feed pusher. Ensure all guards and safety devices are in place and functioning correctly before operation.
- Maintenance Safety: Disconnect the shredder from the power supply before performing any maintenance, cleaning, or when clearing a jam.
2. Product Overview and Components
Familiarize yourself with the parts of your DEKOPRO Electric Garden Shredder before assembly and operation.
Figure 2.1: Labeled components of the DEKOPRO Electric Garden Shredder. Key parts include the Hopper, Material Feed Pusher, Locking Knob, On/Off Switch, Power Cable, Motor Housing, Discharge Chute, Debris Bag Hook, Stand, Axle, and Wheels.
- Hopper: The opening where garden waste is fed into the shredder.
- Material Feed Pusher: Used to safely push material into the hopper.
- Locking Knob: Secures the hopper or other adjustable parts.
- On/Off Switch: Controls the power to the motor. Features an insulation switch for safety.
- Motor Housing: Encloses the 2500W electric motor.
- Discharge Chute: Where shredded material exits the machine.
- Debris Bag Hook: For attaching a collection bag (not included) to gather shredded material.
- Stand and Wheels: Provide stability and mobility for the shredder.
3. Assembly Instructions
Follow these steps to assemble your garden shredder before first use.
- Attach the Stand: Secure the base frame (stand) to the main motor housing using the provided screws. Ensure it is stable and all connections are tight.
- Install the Wheels: Slide the axle through the designated holes in the stand. Attach the wheels and wheel covers to the axle, securing them firmly.
- Mount the Hopper: Place the hopper onto the motor housing and secure it with the locking knob. Ensure it is properly seated and locked to prevent accidental dislodgement during operation.
- Check Connections: Verify that all components are securely fastened and that there are no loose parts.
Figure 3.1: The shredder features 7-inch wheels and a sturdy frame for easy movement around the garden.
4. Operating Instructions
Proper operation ensures efficiency and safety.
- Preparation: Place the shredder on a firm, level surface. Ensure the discharge chute is clear and, if desired, attach a collection bag to the debris bag hook. Connect the power cable to a suitable outdoor-rated power outlet.
- Starting the Shredder: Press the On/Off switch to the 'ON' position. The motor will start. Allow the motor to reach full speed (approximately 4500 RPM) before feeding material.
- Feeding Material: Carefully feed branches and leaves into the hopper. The maximum branch diameter for dry wood is 45 mm (1.77 inches). For optimal performance, feed material gradually.

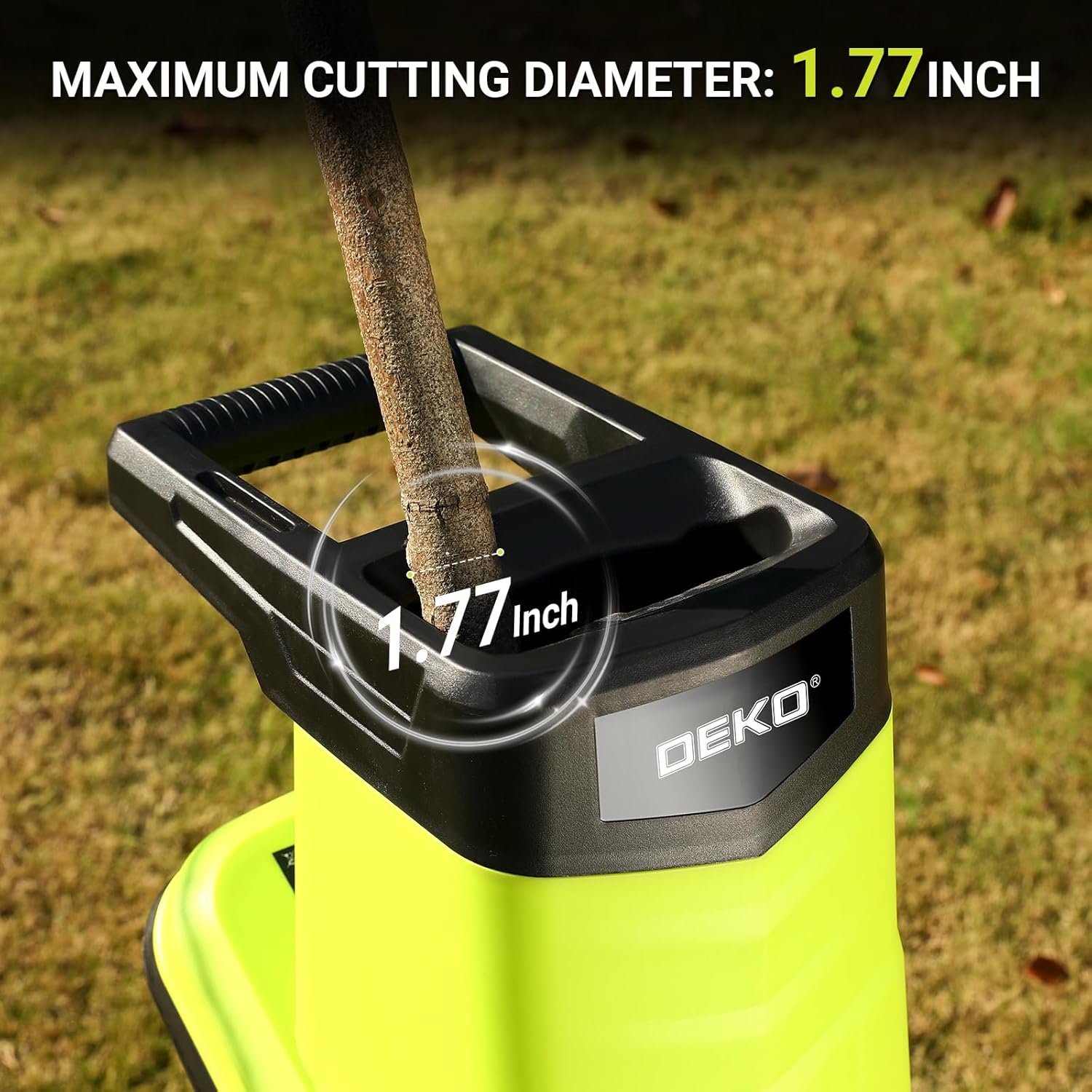

Figure 4.1: The shredder can process branches up to 45 mm (1.77 inches) in diameter. Feed material carefully and gradually.
- Using the Material Feed Pusher: Always use the provided material feed pusher to guide material into the blades. Never use your hands or feet.
- Material Type: This shredder is designed for dry wood and branches. Avoid feeding wet branches or those with excessive leaves, as this can lead to clogging and reduced efficiency.
- Stopping the Shredder: To stop the machine, press the On/Off switch to the 'OFF' position. Disconnect from the power supply when not in use or before clearing jams.
Figure 4.2: The thickened, handheld deflector plate (material feed pusher) ensures safe and easy feeding while preventing inlet jams and kickbacks.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your shredder.
- Cleaning: After each use, disconnect the power and clean the shredder. Remove any accumulated debris from the hopper, discharge chute, and around the blades. Use a brush or compressed air; avoid water.
- Blade Inspection: Periodically inspect the double-edged blades for wear or damage. Sharp blades ensure efficient shredding. If blades are dull or damaged, they should be replaced by qualified personnel or according to the manufacturer's instructions.
- Storage: Store the shredder in a dry, secure location, away from children and adverse weather conditions.
Figure 5.1: The shredder is equipped with double-edged blades for effective chipping. Regular inspection of these blades is recommended.
6. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Shredder does not start | No power supply; Safety switch not engaged; Overload protection activated. | Check power connection and outlet; Ensure safety switch is fully engaged; Allow motor to cool down if overloaded, then restart. |
| Material not shredding effectively | Dull blades; Material too wet or too thick; Jammed hopper. | Inspect and replace blades if dull; Only feed dry branches within the specified diameter; Disconnect power and clear any jams. |
| Excessive vibration or noise | Unbalanced blades; Loose components; Foreign object inside. | Inspect blades for damage or imbalance; Check all fasteners for tightness; Disconnect power and carefully inspect for foreign objects. |
7. Technical Specifications
Key technical details for the DEKOPRO Electric Garden Shredder.
Figure 7.1: Key performance specifications of the DEKOPRO Electric Garden Shredder.
| Specification | Value |
|---|---|
| Model Number | DKESHRB250C1-K1GS-GEAZ-EU |
| Power | 2500W |
| Maximum Cutting Diameter | 45 mm (1.77 inches) |
| No-Load Speed | 4500 RPM |
| Product Dimensions | 58 x 30 x 37 cm |
| Product Weight | 9.2 kg |
| Decibel Rating | 112 dB |
8. Warranty and Support
For warranty information, technical support, or replacement parts, please contact DEKOPRO customer service or the authorized seller. Keep your purchase receipt as proof of purchase.
Manufacturer: DEKOPRO
Seller: DEKO-EU
Refer to the product packaging or the seller's website for the most up-to-date contact information and warranty terms.
