VEVOR Electric Fence Charger 10kV 1J User Manual
Model: Electric Fence Charger, 10kV 1J
1. Introduction
This manual provides essential instructions for the safe and effective use of your VEVOR Electric Fence Charger 10kV 1J. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
1.1 Safety Information
- Always disconnect power before servicing the unit or fence.
- Do not install the energizer in wet locations or near flammable materials.
- Ensure proper grounding for safe and effective operation.
- Keep out of reach of children.
- Post warning signs on electric fences as required by local regulations.
2. Product Overview
The VEVOR Electric Fence Charger is designed to provide a powerful electrical pulse to deter livestock and wildlife. It features multiple power supply options and a durable, weather-resistant design.
2.1 Package Contents
- 1 x VEVOR Electric Fence Charger (10kV 1J)
- 1 x Power Adapter (Standard Version)
- Connection Cables (e.g., for battery connection)
- Warning Sign
2.2 Key Features
- Output Energy: 1 Joule
- Output Voltage: 10kV
- Discharge Interval: 1 second per pulse
- Pulse Width: <1ms
- Power Supply Options: AC, DC (external lithium battery), Solar
- Durability: IP65 waterproof rating, -4°F to 122°F (-20°C to 50°C) operating temperature range
- Monitoring: LED indicators for Power and Run status
- Effective Range: 1-3 kilometers
Figure 2.1: VEVOR Electric Fence Charger with included accessories, including power adapter, connection cables, and a warning sign.
Figure 2.2: Illustration detailing the charger's output energy (1.0 J), pulse amplitude (10 KV), discharge interval (1 sec/pulse), and pulse width (<1ms).
Figure 2.3: A detailed view of the VEVOR Electric Fence Charger's front panel, showing the Power and Run LED indicators and connection points.
3. Setup and Installation
Proper installation is crucial for the safety and effectiveness of your electric fence system.
3.1 Choosing a Location
- Install the charger in a dry, sheltered location, away from direct sunlight and heavy rain, unless using an outdoor waterproof enclosure.
- Ensure the location is easily accessible for monitoring and maintenance.
- Keep the charger away from children and animals.
3.2 Mounting the Charger
The charger can be mounted indoors or outdoors. For outdoor installation, it is recommended to place the unit inside a waterproof box to enhance protection, despite its IP65 rating.

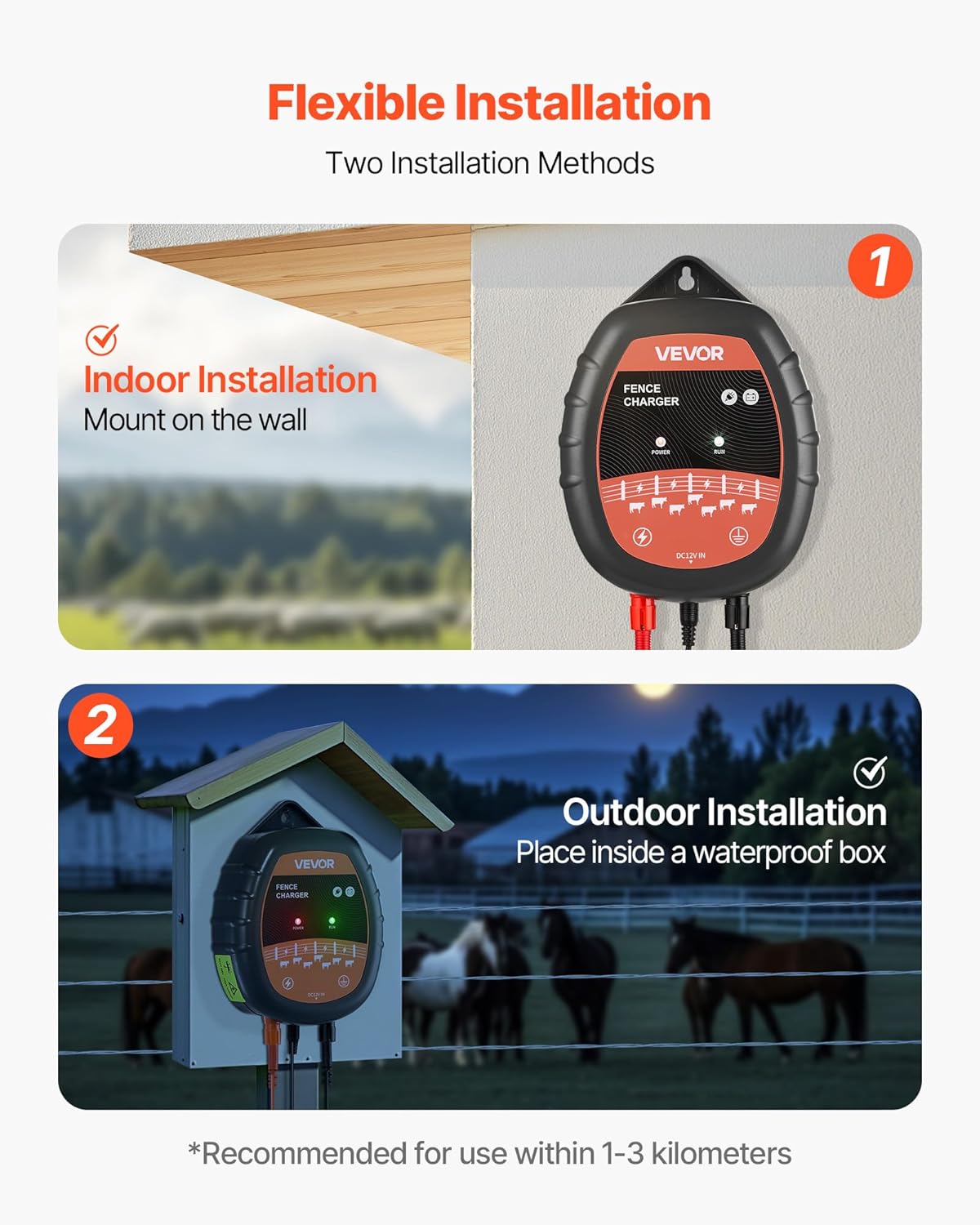

Figure 3.1: Depicts two installation methods: indoor wall mounting and outdoor installation within a protective waterproof box.
3.3 Grounding the System
A good ground system is essential for optimal fence performance. Use a galvanized steel or copper ground rod at least 3 feet (90 cm) long, driven into moist soil.
- Connect the ground terminal of the charger to the ground rod using appropriate insulated wire.
- For best conductivity, ensure the grounding stake is placed on moist ground. Recommended depth for copper/iron stakes is 31.5-39.37 inches (80-100 cm).
3.4 Connecting to the Fence
- Connect the fence output terminal of the charger to the electric fence line using high-voltage insulated wire.
- Ensure all connections are secure and free from corrosion.
3.5 Power Supply Options
The VEVOR Electric Fence Charger offers versatile power options:
- AC Power: Connect the provided power adapter to the charger's DC12V IN port and plug it into a standard AC outlet.
- DC Battery Power: Connect the charger to an external 12V lithium battery using the appropriate connection cables (e.g., alligator clips). Ensure correct polarity.
- Solar Power: Integrate the charger with a solar panel and a solar charge controller for continuous operation in off-grid areas.
Figure 3.2: Illustrates the three power supply methods: AC (Alternating Current) using an adapter, DC (Direct Current) using an external battery, and Solar Power with a solar panel and charge controller.
4. Operation
Once installed and connected, operating the fence charger is straightforward.
4.1 Powering On
Connect the chosen power source (AC adapter, DC battery, or solar setup) to the charger's DC12V IN port. The charger will automatically begin operation.
4.2 LED Indicators
The charger is equipped with two LED indicators for real-time monitoring:
- Power Indicator (Red): Illuminates when the unit is receiving power.
- Run Indicator (Green): Flashes with each pulse, indicating the fence is actively energizing.

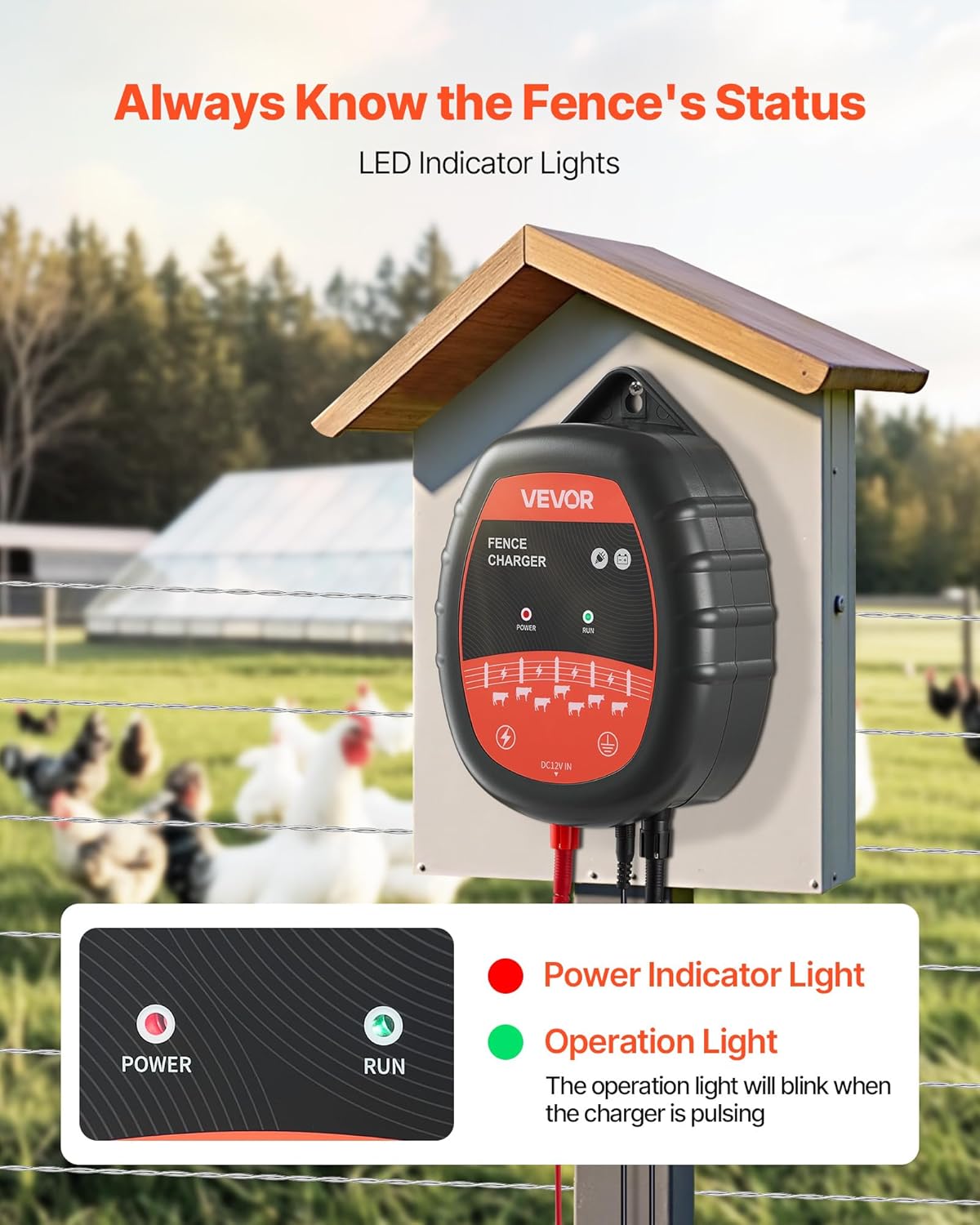

Figure 4.1: Close-up of the charger's LED indicators, showing the red Power light and the green Run light, which flashes with each pulse.
4.3 Checking Fence Performance
Regularly check the fence voltage using a fence tester to ensure it is operating effectively (typically between 4000V and 8000V for optimal deterrence).
5. Maintenance
Minimal maintenance is required to keep your fence charger in optimal condition.
- Regular Inspection: Periodically check the charger, fence lines, and connections for damage, corrosion, or vegetation growth.
- Cleanliness: Keep the charger free from dust and debris. Use a dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Vegetation Control: Trim vegetation around the fence line to prevent short circuits and maintain effective voltage.
- Grounding System: Ensure the ground rod remains firmly in moist soil. If the soil is dry, consider watering the area around the ground rod.
6. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power Indicator Light | No power supply; faulty adapter/battery; loose connection. | Check power source, adapter, battery charge, and all connections. |
| Run Indicator Not Flashing | No output pulse; internal fault. | Ensure power is on. If power light is on but run light is off, contact support. |
| Low Fence Voltage | Poor grounding; fence short circuit (vegetation, broken insulators); faulty charger. | Check ground system. Inspect fence for shorts. Use a fence tester. |
| Intermittent Pulsing | Loose connections; power supply issues. | Verify all connections are secure. Check power source stability. |
7. Specifications
Technical details for the VEVOR Electric Fence Charger 10kV 1J.
- Model Number: Electric Fence Charger, 10kV 1J
- Output Voltage: 10 Kilovolts
- Output Energy: 1 Joule
- Discharge Interval: 1 second per pulse
- Pulse Width: <1ms
- Recommended Effective Range: 1-3 kilometers (0.62 - 1.86 miles)
- Power Supply: AC, DC 12V (external battery), Solar
- Waterproof Rating: IP65
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Product Dimensions: 7.87 x 5.31 x 2.17 inches (200 x 135 x 55 mm)
- Item Weight: 1.57 pounds (0.71 kg)
- Main Material: ABS
- UPC: 197988145677

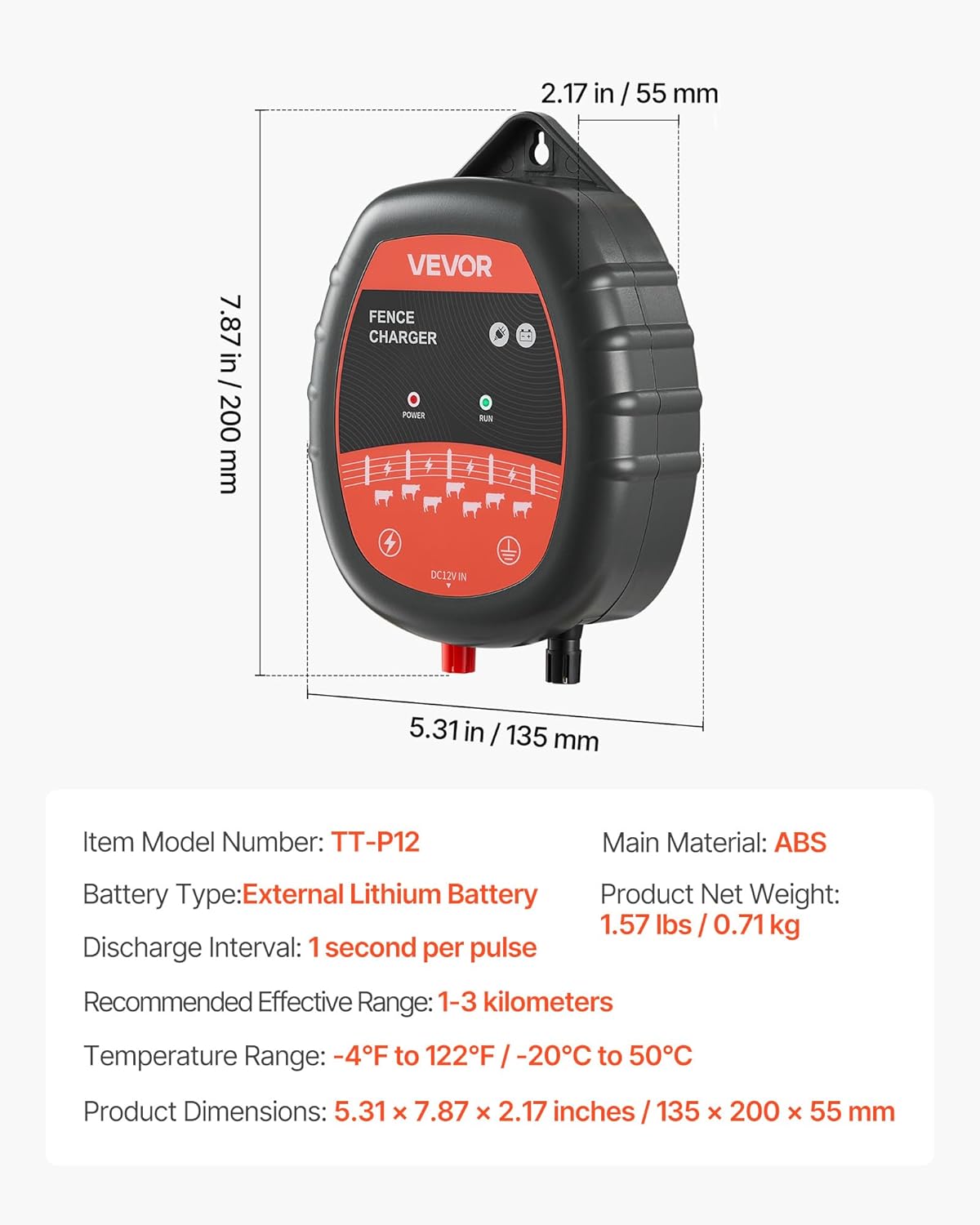

Figure 7.1: Diagram showing the physical dimensions of the VEVOR Electric Fence Charger and a summary of its key specifications.
8. Warranty and Support
For warranty information or technical support, please refer to the official VEVOR website or contact their customer service directly. Keep your purchase receipt for warranty claims.
Manufacturer: VEVOR
Date First Available: June 13, 2025
