YAUWOH Metal Bathroom Storage Cabinet

1. Introduction

Thank you for choosing the YAUWOH Metal Bathroom Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

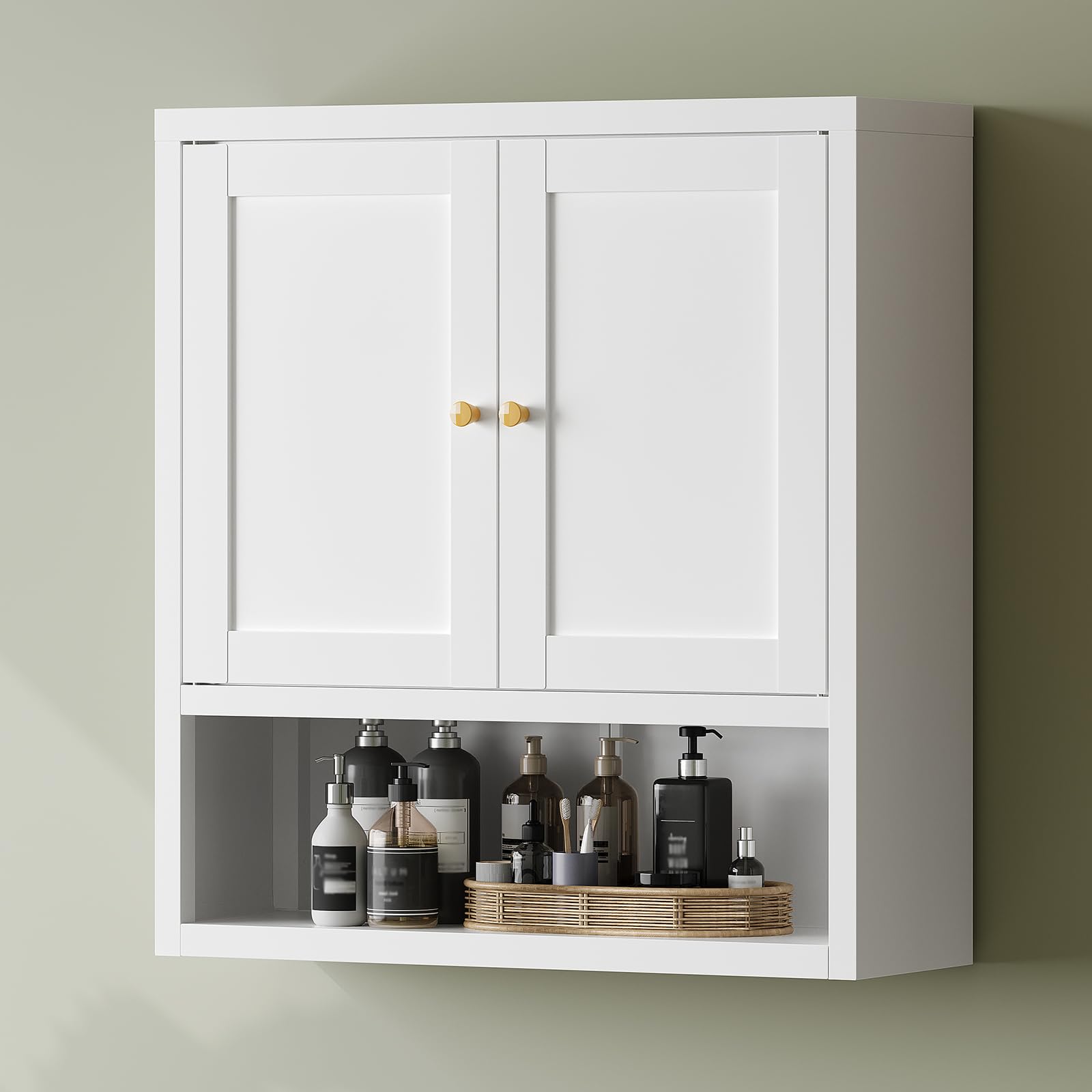

The YAUWOH Metal Bathroom Storage Cabinet, featuring a clean white finish and gold-colored knobs.

2. Safety Information

• Weight Capacity: Do not exceed the maximum weight capacity of 60 pounds per shelf. Overloading can cause instability and damage.
• Anti-Tipping: Always use the provided anchor hardware to secure the cabinet to the wall. This prevents accidental tipping, especially in households with children or pets.
• Assembly: Ensure all parts are correctly assembled and fasteners are tightened before use. Refer to the assembly instructions carefully.
• Placement: Place the cabinet on a flat, stable surface. Avoid placing it in areas with excessive moisture or direct heat.
• Sharp Edges: Exercise caution during assembly as some metal edges may be sharp. Wearing protective gloves is recommended.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

All parts and hardware included for assembly.

4. Assembly Instructions

Assembly is straightforward and requires basic tools. A detailed step-by-step guide is provided below and in the accompanying video. It is recommended to have a second person assist with certain steps for ease and safety.

Assembly Video Guide

Official YAUWOH assembly video for the Bathroom Wall Cabinet.

Step-by-Step Written Guide

1. Prepare Components: Unpack all parts and lay them out on a clean, soft surface to prevent scratches. Identify each component using the provided parts list.
2. Assemble Base Frame: Attach the side panels to the bottom panel using the designated screws. Ensure the pre-drilled holes align.


Attaching the side panels to the bottom panel.

3. Install Back Panel and Top: Secure the back panel to the assembled sides and bottom. Then, attach the top panel to complete the main cabinet frame.


Securing the back and top panels to form the cabinet structure.

4. Insert Fixed Shelf: Install the fixed shelf into its designated position within the cabinet. This shelf provides structural integrity and divides the cabinet into sections.


Installing the fixed shelf.

5. Install Adjustable Shelves: Insert the shelf support pins into the desired height holes on the side panels. Place the adjustable shelves onto these pins. You can customize the height of these shelves later.
6. Attach Doors: Mount the doors to the cabinet frame using the provided hinges. Ensure they open and close smoothly.
7. Install Door Knobs and Magnetic Catches: Attach the decorative door knobs to the front of each door. Install the magnetic catches to the inside of the cabinet frame and doors to ensure they remain securely closed.
8. Secure to Wall: For safety, use the included anti-tipping hardware to secure the cabinet to a wall stud. This is a critical step to prevent accidents.

5. Operating Instructions

Adjusting Shelves

Your YAUWOH cabinet features adjustable shelves, allowing you to customize storage space according to your needs. To adjust a shelf:

1. Empty the shelf of all contents.
2. Carefully lift the shelf and remove the four support pins from their current holes.
3. Reinsert the support pins into the desired new height holes. Ensure all four pins are at the same level for a stable shelf.
4. Place the shelf back onto the support pins. Gently press down to ensure it is securely seated.

Opening and Closing Doors

The cabinet doors are equipped with magnetic catches for secure closure. To open, gently pull the knob. To close, push the door until the magnetic catch engages.

The cabinet provides versatile storage for various items.

6. Maintenance

To ensure the longevity and appearance of your metal storage cabinet, follow these maintenance guidelines:

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the painted finish.
• Drying: After cleaning, dry all surfaces thoroughly with a clean, dry cloth to prevent water spots and potential rust.
• Inspection: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary. Inspect the anti-tipping hardware for secure attachment.
• Environmental Conditions: While the cabinet features a waterproof design and rust-resistant treatment, prolonged exposure to extreme moisture or humidity should be avoided to maintain its condition.

The cabinet's multi-layered construction provides durability and water resistance.

7. Troubleshooting

• Cabinet is Wobbly:
  Solution: Ensure the cabinet is placed on a level surface. Check all assembly screws and tighten them securely. Verify that the anti-tipping hardware is properly installed and tightened to the wall.
• Doors Do Not Close Properly:
  Solution: Check the alignment of the hinges. Adjust if necessary. Ensure the magnetic catches are correctly installed and aligned with the metal plates on the doors.
• Shelves Are Not Level:
  Solution: Remove the shelf and re-insert the shelf support pins, ensuring they are placed in corresponding holes on both sides of the cabinet at the same height.
• Scratches on Surface:
  Solution: For minor scratches, touch-up paint may be used. Contact customer support for recommendations.

8. Specifications

Detailed dimensions of the cabinet.

9. Warranty and Support

YAUWOH is committed to your satisfaction. If you encounter any issues with your product or have questions regarding its assembly or use, please do not hesitate to contact our customer service team. We are dedicated to providing prompt and helpful support to resolve any queries you may have.

For assistance, please refer to the contact information provided with your purchase or visit the official YAUWOH store page on Amazon: YAUWOH Store.
