JPNTECH 60cc Gas Chainsaw

1. Product Overview

The JPNTECH 60cc Gas Chainsaw is a powerful and versatile tool designed for efficient wood cutting, tree felling, and general garden use. It features a robust 3.5HP engine, a 20-inch low-kickback bar and chain, and an automatic lubricating system for extended life and reduced fuel consumption. Its ergonomic design ensures comfortable and balanced operation.

Figure 1: Detailed view of the JPNTECH 60cc Gas Chainsaw with key components labeled, including the saw chain, guide bar, chain brake, front handle, starter handle, air filter cover, switch button, choke knob, throttle lockout, throttle control, throttle lock, fuel tank, chain oil tank, and start cover.

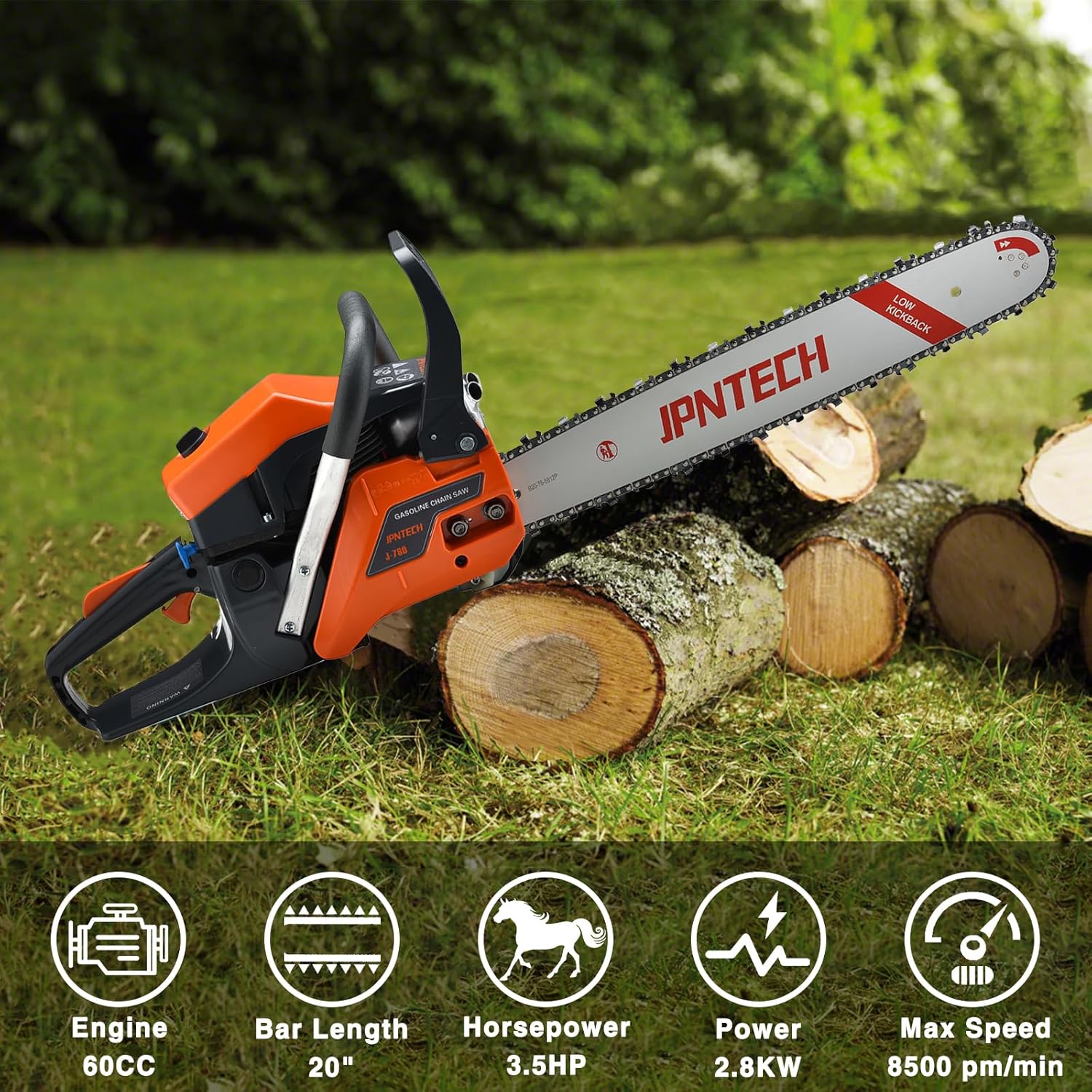

Figure 2: Visual representation of the chainsaw's key specifications, highlighting its 60cc engine, 20-inch bar length, 3.5HP horsepower, 2.8KW power, and a maximum speed of 8500 rpm/min.

2. Setup and Assembly

Before operating the chainsaw, ensure all components are correctly assembled and securely fastened. Refer to the following steps for proper installation.

Figure 3: Step-by-step guide for the initial assembly of the chainsaw, including removing the bar cover, disengaging the brake, removing bar nuts, assembling the bumper spike, lifting the chain onto the sprocket, and ensuring cutters point in the correct direction.

Figure 4: Continuation of the assembly process, detailing how to install the guide bar, steer the chain tension pin to the bar hole, finger tighten the bar nuts, adjust chain tension, tighten the saw chain until it does not sag, and finally tighten the bar nuts with tools.

For a visual demonstration of the assembly process, please watch the official assembly video:

3. Operating Instructions

Proper starting procedures are crucial for the longevity and safe operation of your chainsaw. Follow these guidelines for starting both cold and warm engines.

3.1. Starting a Cold Engine

Figure 5: Visual instructions for starting the chainsaw when the engine is cold, detailing steps such as pushing the brake, moving the On/Off switch to the On position, pulling the choke knob, pulling the start handle, pushing the choke knob back, and pulling the starter until the engine starts.

Watch this video for a detailed guide on starting a cold engine:

3.2. Starting a Warm Engine

Figure 6: Visual instructions for starting the chainsaw when the engine is warm, outlining steps such as pushing the brake, moving the On/Off switch to the On position, and pulling the starter until the engine starts.

For a quick guide on starting a warm engine, refer to this video:

3.3. General Operation

Once started, the chainsaw is ready for use. Always maintain a firm grip with both hands and ensure stable footing. The automatic lubricating system will ensure the chain and bar are continuously oiled during operation, reducing friction and prolonging component life.

Figure 7: The JPNTECH chainsaw actively cutting through a log, demonstrating its powerful performance in a typical outdoor setting.

4. Maintenance

Regular maintenance is essential to ensure the optimal performance and longevity of your JPNTECH chainsaw.

• Chain Sharpening: Regularly check the sharpness of the chain. A dull chain can lead to inefficient cutting and increased wear on the engine. Sharpen or replace the chain as needed.
• Chain Tension: Ensure the chain tension is correct before each use. The chain should be snug against the guide bar but still able to be pulled around by hand. Refer to the assembly section for tension adjustment.
• Lubrication System: The chainsaw features an automatic lubricating system. Regularly check the chain oil tank and refill with appropriate bar and chain oil. Ensure the oil outlet is not clogged.
• Air Filter: Clean the air filter periodically to prevent dust from entering the engine, which can reduce fuel efficiency and engine performance.
• Spark Plug: Inspect and clean the spark plug regularly. Replace if worn or fouled.
• Fuel Mixture: Always use the correct fuel-to-oil mixture as specified in the engine's instructions to prevent engine damage.

5. Troubleshooting

If you encounter issues with your chainsaw, refer to the following common troubleshooting tips:

• Engine Not Starting:
  • Check fuel level and ensure correct fuel mixture.
  • Verify the On/Off switch is in the 'On' position.
  • Ensure the choke is set correctly for cold or warm start.
  • Inspect the spark plug for fouling or damage.
• Poor Cutting Performance:
  • Check chain sharpness; sharpen or replace if dull.
  • Adjust chain tension.
  • Ensure the guide bar is clean and free of debris.
• Excessive Smoke:
  • Verify correct fuel-to-oil mixture.
  • Check air filter for blockage.
• Chain Not Oiling:
  • Check chain oil reservoir level.
  • Inspect oil outlet for clogs.

If problems persist, contact JPNTECH customer support for assistance.

6. Specifications

Figure 8: Detailed dimensions of the JPNTECH 60cc Gas Chainsaw, showing its length, width, and height, along with its approximate weight.

7. Warranty and Support

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official JPNTECH website. For technical support, spare parts, or any inquiries, please contact JPNTECH customer service through the contact information provided in your product packaging or on the manufacturer's website.
