Focbeo King Size Heating Pad Instruction Manual

1. Introduction

Thank you for choosing the Focbeo King Size Heating Pad. This electric heating pad is designed to provide soothing warmth for various body parts, including the back, neck, shoulders, arms, and legs. Its generous 35"x20" size ensures comprehensive coverage, offering comfort and relaxation. This manual provides essential information for safe and effective use, maintenance, and troubleshooting.

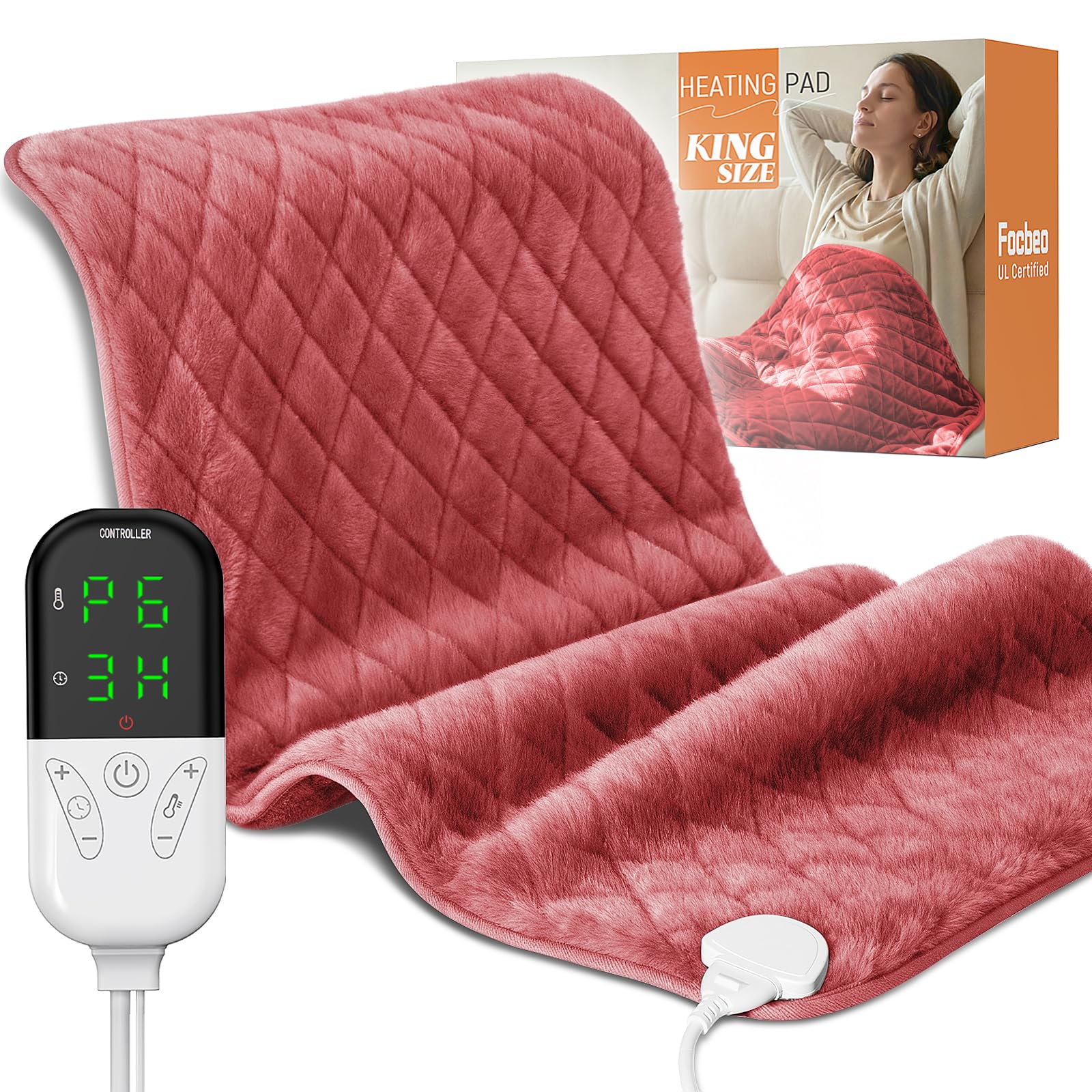

Image: The Focbeo King Size Heating Pad providing comfort.

2. Important Safety Information

READ ALL INSTRUCTIONS BEFORE USE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN FIRE, ELECTRIC SHOCK, OR INJURY.

• Do Not Use While Sleeping: This heating pad is not intended for use by persons who are asleep or unconscious.
• Avoid Folding or Crushing: Do not sit on, fold, or crush the heating pad during use, as this may damage internal circuits and lead to malfunction or overheating.
• Proper Connection: Always plug the controller into the heating pad first, then connect the power cord to the electrical outlet. This prevents the “EE” error from appearing.
• Overheat Protection: The device features automatic overheat protection for enhanced safety.
• Auto Shut-Off: Equipped with a 3-hour auto shut-off feature for peace of mind.
• Supervision: Close supervision is necessary when this appliance is used by, on, or near children or invalids.
• Medical Conditions: Consult a physician before using if you have any medical conditions, especially those affecting skin sensitivity or circulation.
• Inspect Before Use: Always inspect the heating pad and cord for any signs of wear or damage before each use. Do not use if damaged.

Image: Dual-spiral safety wire design for even heat and safety.

3. Product Features

The Focbeo King Size Heating Pad offers a range of features designed for optimal comfort and therapeutic relief:

• King Size Coverage: Measures 35"x20" for extensive coverage of large body areas like the back, shoulders, abdomen, and legs.
• Fast Heating: Warms up rapidly to provide quick relief.
• 6 Temperature Settings: Adjustable heat levels from 95°F (35°C) to 158°F (70°C) to suit individual preferences.
• 4 Timer Settings: Options for 30 minutes, 60 minutes, 1 hour, 2 hours, or 3 hours with automatic shut-off.
• Moist & Dry Heat Options: Can be used dry for comforting warmth or with a light mist of water for deep, penetrating moist heat.
• Soft Velvet Fabric: Made with skin-friendly flannel velvet for a comfortable touch.
• Machine Washable: The fabric pad is machine washable after detaching the controller.
• Detachable Controller: Easy to remove for cleaning and storage.
• Dual-Spiral Heating Wire: Ensures even and stable heat distribution.

Image: The 35"x20" King Size heating pad provides full body coverage.

4. Setup

1. Unpack: Carefully remove the heating pad and controller from the packaging.
2. Connect Controller: Ensure the heating pad is unplugged from the wall outlet. Firmly insert the controller's connector into the port on the heating pad.
3. Plug In: Once the controller is securely connected to the pad, plug the power cord into a standard 120V AC electrical outlet.
4. Position: Place the heating pad on the desired area of your body. Ensure it lies flat and is not folded or bunched up.

5. Operating Instructions

The Focbeo heating pad features an easy-to-use controller with an LED display.

1. Power On/Off: Press the power button (U) to turn the heating pad on or off.
2. Adjust Temperature: Use the temperature control buttons (+ / - with thermometer icon) to cycle through 6 heat settings (P1-P6). P1 is the lowest (95°F/35°C) and P6 is the highest (158°F/70°C).
3. Set Timer: Use the timer control buttons (+ / - with clock icon) to select your desired auto shut-off time: 30 minutes, 60 minutes, 1 hour, 2 hours, or 3 hours.
4. LED Display: The LED screen will show the current heat setting (P1-P6) and the remaining time before auto shut-off.

Image: Digital controller with LED display for easy temperature and timer adjustments.

6. Moist Heat Application

For deeper, more penetrating relief, you can use the Focbeo heating pad with moist heat:

1. Prepare: Lightly mist one side of the heating pad with water using a spray bottle. Do not saturate the pad.
2. Apply: Place the lightly moistened side of the pad directly onto the area requiring relief.
3. Operate: Follow the standard operating instructions to select your desired heat and timer settings.

Moist heat can help relax deep muscle tension more effectively than dry heat alone.

Image: Applying a light mist for moist heat therapy.

7. Maintenance & Cleaning

To ensure the longevity and hygiene of your Focbeo heating pad:

1. Disconnect: Always unplug the heating pad from the wall outlet and detach the controller from the pad before cleaning.
2. Machine Wash: The fabric pad is machine washable. Use a cold, gentle cycle with mild detergent.
3. Drying: Do not tumble dry. Lay the heating pad flat or hang it vertically to air dry completely before reattaching the controller or storing. Ensure it is fully dry to prevent damage.
4. Storage: Store the heating pad in a cool, dry place. Avoid folding it tightly or placing heavy objects on it.

Image: The heating pad is machine washable with a detachable controller.

8. Troubleshooting

If you encounter any issues with your Focbeo heating pad, refer to the following common solutions:

• “EE” Error Displayed: This error typically indicates an improper connection. Turn off the device, unplug all cables from both the pad and the wall outlet, and then reconnect the controller to the pad first, followed by plugging the power cord into the wall outlet.
• No Heat: Ensure the power cord is securely plugged into a working electrical outlet and the controller is firmly connected to the pad. Check if the power button has been pressed.
• Uneven Heat: Ensure the heating pad is laid flat and not folded or bunched during use. The dual-spiral heating wire is designed for even heat distribution under proper conditions.

If problems persist after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty & Support

Focbeo stands behind the quality of its products. This heating pad comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or our official website for specific warranty terms and duration.

For technical support, troubleshooting assistance, or warranty claims, please contact Focbeo Customer Service:

• Website: Focbeo Official Store
• Email: support@focbeo.com (Example email, actual email not provided in JSON)
• Phone: 1-800-XXX-XXXX (Example phone, actual phone not provided in JSON)

Please have your model number (K9004-18A) and purchase date available when contacting support.
