DWVO 5x3FT Outdoor Storage Shed Instruction Manual

1. Important Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Handle all components with care during unpacking and assembly.
• Assembly requires two people. Do not attempt to assemble alone.
• Ensure all components are securely fastened according to the assembly instructions.
• Do not exceed the shed's weight limits for stored items.
• Choose a level and stable surface for installation.
• Anchor the shed securely to the ground, especially in areas prone to strong winds.

2. Product Overview

The DWVO 5x3FT Outdoor Storage Shed is designed for storing tools, gardening equipment, and other outdoor essentials. It features a durable resin construction with a sloped roof for weather protection.

Key Features:

• Spacious Interior: Offers 65 cubic feet of storage capacity.
• Durable Construction: Made from 12 MM Extruded Polystyrene (XPS) and resin, with an alloy steel frame.
• Weather Resistant: UV-protected and waterproof design with a sloped roof to prevent water and snow accumulation.
• Natural Lighting & Ventilation: Features a fence-style front window and a side window.
• Security: Equipped with a lockable door (lock not included).
• Integrated Floor: A raised floor helps keep contents clean and dry.

Dimensions:

• External Dimensions: 55.3" L x 31.8" W x 75.8" H
• Internal Dimensions: 53.1" L x 29.9" W x 70.8" H
• Storage Capacity: 65 cubic feet

Figure 2.1: Front view of the DWVO 5x3FT Outdoor Storage Shed in gray.

Figure 2.2: Interior view showcasing the storage capacity and built-in floor.

Figure 2.3: Diagram illustrating the external and internal dimensions of the storage shed.

3. Setup and Assembly

The DWVO 5x3FT Outdoor Storage Shed is designed for straightforward assembly. Please follow the detailed instructions provided in the accessory kit. It is crucial to have two people for the assembly process.

Before You Begin:

1. Unpacking: The shed is shipped in two separate packages. These packages may arrive at different times. Ensure you have received both boxes before starting assembly.
2. Tools Required: Refer to the included instruction manual for a complete list of tools. Typically, a screwdriver, hammer, and possibly a drill for pre-drilling are needed.
3. Location: Select a flat, level, and stable surface for the shed. Clear the area of any debris or obstacles.
4. Review Instructions: Carefully read through the entire assembly manual before starting. Identify all parts and hardware.

Assembly Steps (General Guidance):

For detailed, step-by-step instructions, refer to the printed manual included with your product.

1. Assemble the base frame and floor panels. Ensure the raised floor is correctly installed to keep items dry.
2. Attach the side and back wall panels. Pay attention to the tongue and groove connections.
3. Install the front wall and door frame.
4. Mount the doors and install the lockable latch mechanism.
5. Assemble and attach the sloped roof panels. Ensure a tight seal to prevent leaks.
6. Secure all panels with the provided screws. Pre-drilling may be necessary for some screw placements to prevent material stress.
7. Once assembled, ensure the shed is anchored to the ground for stability, especially in windy conditions.

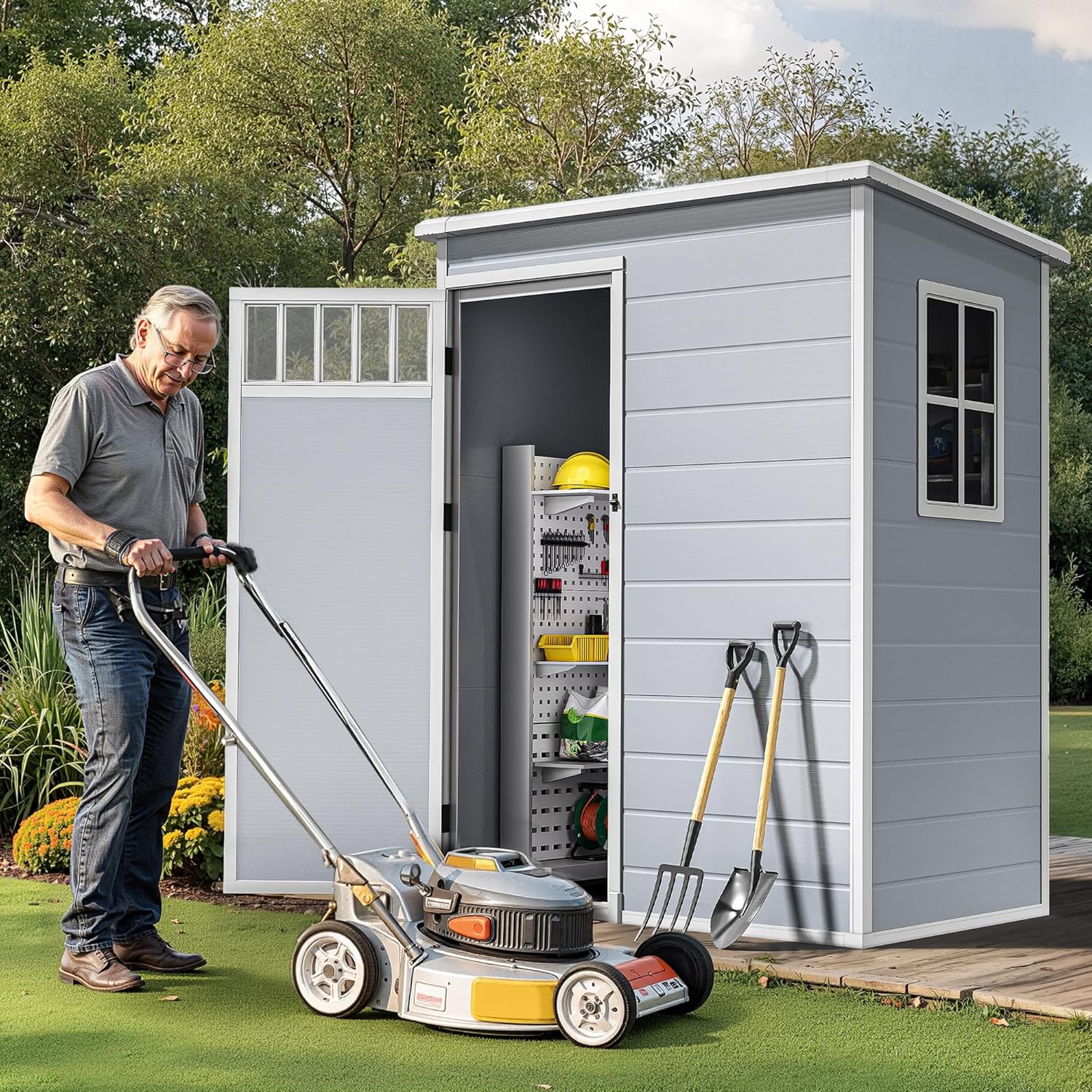

Figure 3.1: The shed provides convenient storage for garden tools and equipment.

4. Operating Instructions

Using your DWVO storage shed is straightforward. Follow these guidelines for optimal functionality.

• Opening and Closing Doors: The shed features single hinged doors. Gently open and close the doors to prevent undue stress on the hinges.
• Locking Mechanism: Utilize the integrated latch for security. For enhanced security, a padlock (not included) can be added to the lockable door.
• Ventilation: The side window and fence-style front window contribute to natural light and airflow. Keep them clear of obstructions for best performance.
• Storage Capacity: Distribute weight evenly inside the shed. Avoid placing excessively heavy items against the walls or on the roof.

Figure 4.1: Detail of the shed's lockable door and clear windows.

5. Maintenance

Regular maintenance will help prolong the life and appearance of your DWVO storage shed.

• Cleaning: Clean the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the resin material. Rinse thoroughly with clean water.
• Roof Maintenance: Ensure the sloped roof remains clear of heavy snow or debris, especially during winter months, to prevent structural stress.
• Inspection: Periodically check all screws, bolts, and connections to ensure they remain tight and secure. Re-tighten if necessary.
• Door Hinges and Latch: Lubricate door hinges and the latch mechanism annually to ensure smooth operation.
• Ground Anchoring: Regularly inspect the ground anchors to ensure the shed remains firmly secured, particularly after strong winds.

Figure 5.1: The sloped roof design effectively sheds water and snow.

6. Troubleshooting

This section addresses common issues you might encounter with your storage shed.

Issue: Shed feels unstable or is susceptible to wind.

Solution: Ensure the shed is properly anchored to the ground using appropriate anchoring kits (may be sold separately or require additional hardware). Verify that all wall and roof panels are securely fastened and that the base is on a level surface. Consider adding internal weights or reinforcing the base if located in a high-wind area.

Issue: Difficulty during assembly.

Solution: Assembly requires two people. Review the instruction manual carefully, ensuring all parts are correctly oriented. Some screws may require pre-drilling to prevent material stress. Do not force parts together; if they don't fit, re-check the instructions and part numbers.

Issue: Water leakage inside the shed.

Solution: Inspect the roof panels and wall seams for any gaps or improper sealing. Ensure all roof panels are correctly overlapped and secured. Check that the shed is on a level surface to prevent water pooling around the base. Verify that the built-in floor is correctly installed.

Issue: Missing parts or damaged components upon delivery.

Solution: Contact DWVO customer support immediately with your purchase details and a description of the missing or damaged parts. Do not attempt to assemble the shed with missing or damaged components.

7. Specifications

8. Customer Support

For any questions, concerns, or assistance with your DWVO 5x3FT Outdoor Storage Shed, please contact DWVO customer support. Have your model number (MADWV37wNe) and purchase information ready when contacting support.

Refer to your purchase documentation or the DWVO brand store for contact information.
