1. Important Safety Information
Please read this manual thoroughly before operating the appliance and retain it for future reference. Incorrect operation may cause damage to the product or personal injury.
- Always ensure the appliance is placed on a stable, heat-resistant surface.
- Do not immerse the main unit, cord, or plug in water or other liquids.
- Keep the appliance out of reach of children.
- Do not block any air vents during operation.
- Automatic Power Cut-off: For your safety, the air fryer is designed to automatically cut off power when the lid is opened or the cooking basket is removed during operation. Always ensure the lid is securely closed and the basket is properly inserted before starting.
- Unplug the appliance from the power outlet when not in use and before cleaning.
- Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
2. Product Overview
The PZHANGZVH 7.26QT Electric Air Fryer is designed for healthy cooking with minimal oil. It features a digital LCD screen, a viewable window, and a nonstick basket.
2.1 Components
- Main Unit with Digital LCD Screen
- Viewable Cooking Window
- Handle for Basket Removal
- Nonstick Cooking Basket
- Internal Stirring Mechanism (for even cooking)
- Power Cord
2.2 Product Images
3. Setup
- Unpacking: Carefully remove the air fryer and all accessories from the packaging. Remove any stickers or promotional materials.
- Initial Cleaning: Before first use, clean the cooking basket and any removable parts with warm soapy water. Wipe the exterior of the appliance with a damp cloth. Ensure all parts are completely dry before assembly.
- Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is adequate space (at least 10 cm / 4 inches) around the appliance for proper air circulation. Do not place it near walls or under cabinets.
- Power Connection: Plug the power cord into a grounded electrical outlet.
4. Operating Instructions
The PZHANGZVH Air Fryer utilizes 360° vertical circulation heating to cook food, resulting in a crispy exterior and tender interior with reduced fat.
4.1 Basic Operation
- Prepare Food: Place your desired food into the nonstick cooking basket. Do not overfill the basket to allow for proper air circulation.
- Insert Basket: Ensure the cooking basket is securely placed inside the main unit and the lid is properly closed.
- Power On: Plug the appliance into a power outlet. The digital LCD screen will illuminate.
- Set Temperature and Time: Use the digital controls on the LCD screen to adjust the cooking temperature (typically between 180°F - 400°F / 80°C - 200°C) and cooking time (up to 60 minutes). Refer to cooking guides for recommended settings.
- Start Cooking: Press the start button to begin the cooking cycle. The air fryer will automatically begin heating and circulating hot air.
- Monitoring: The viewable window allows you to monitor the cooking progress without opening the lid.

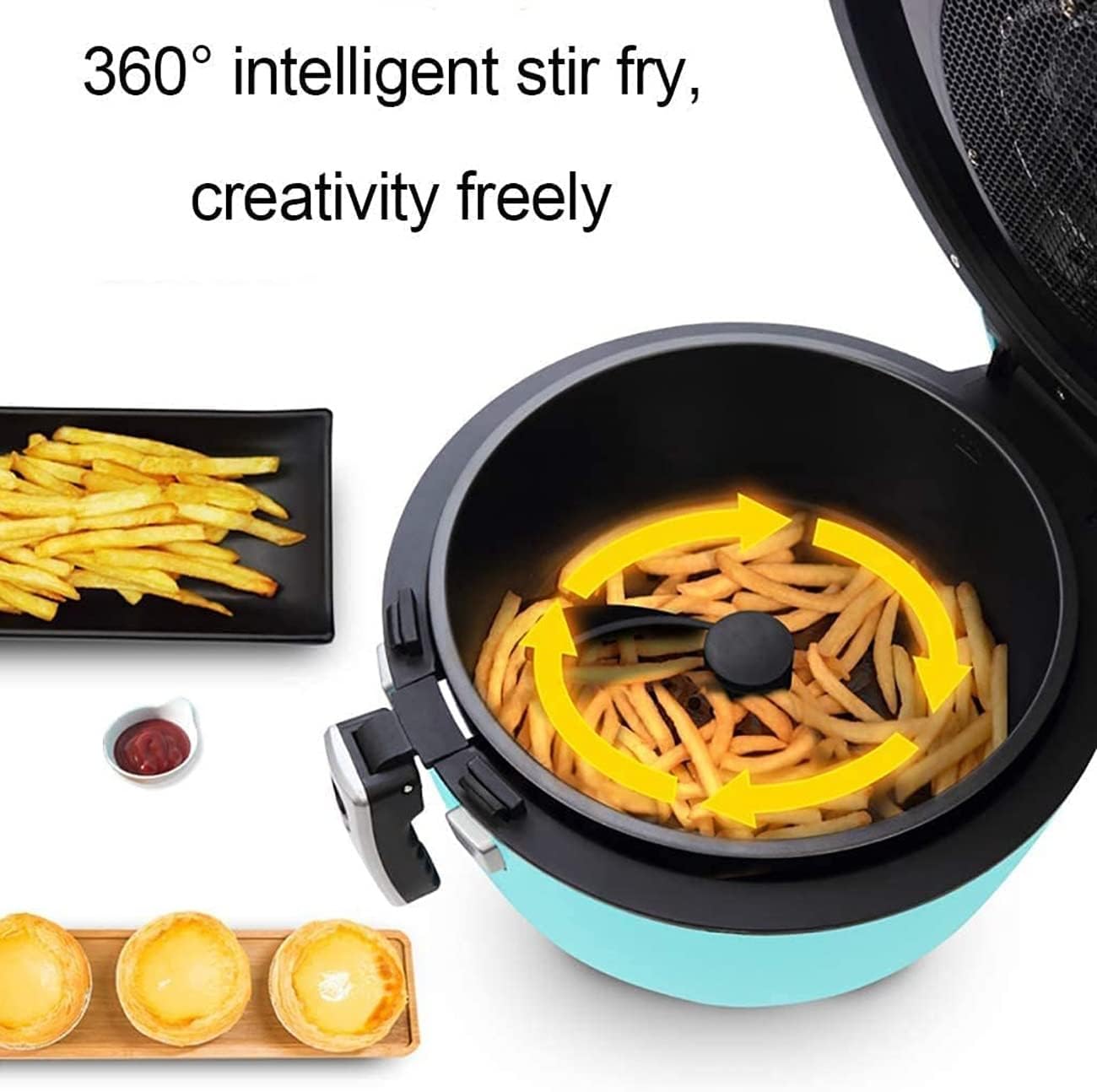

- Automatic Stirring: The internal stirring mechanism will rotate to ensure even cooking.
- Completion: Once the set time has elapsed, the air fryer will beep and automatically shut off. Carefully remove the cooked food.
4.2 Using Cooking Presets
The air fryer includes 7 pre-programmed cooking menus for common dishes. To use a preset:
- After powering on, select the desired preset icon on the digital LCD screen.
- The air fryer will automatically set the optimal temperature and time for that specific food.
- Press the start button to begin cooking.
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.
- Before Cleaning: Always unplug the air fryer and allow it to cool completely before cleaning.
- Cooking Basket and Removable Parts: The nonstick cooking basket and other removable parts can be washed with warm soapy water. For stubborn residue, soak the parts before cleaning. These parts are also dishwasher safe.
- Interior: Wipe the stainless steel inner pot with a damp cloth. For baked-on food, use a non-abrasive sponge and warm soapy water. Ensure no water enters the electrical components.
- Exterior: Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the surface.
- Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on | Not plugged in; power outlet malfunction; basket not properly inserted. | Ensure the power cord is securely plugged into a working outlet. Check if the cooking basket is fully inserted and the lid is closed. |
| Food is not cooked evenly | Basket overfilled; incorrect temperature/time; stirring mechanism obstructed. | Do not overfill the basket. Adjust temperature and time as needed. Ensure the stirring mechanism is clear and functioning. |
| White smoke coming from appliance | Grease residue from previous use; high-fat food cooking. | Clean the basket and interior thoroughly after each use. For high-fat foods, drain excess fat during cooking. |
| Appliance smells during first use | Normal for new appliances. | This is normal and will dissipate after a few uses. Ensure good ventilation. |
7. Specifications
- Product Name: Air Fryer
- Brand: PZHANGZVH
- Model: 7.26QT Electric Air Fryer
- Rated Voltage: 100-240V
- Rated Frequency: 50Hz
- Rated Power: 1350W
- Rated Capacity: 8L / 7.26QT
- Product Materials: Flame retardant nylon + polypropylene
- Net Weight: 5.7kg
- Dimensions: 32cm x 32cm x 38.5cm (approximately 12.6 x 12.6 x 15.12 inches)
- Operation Mode: Touch Screen Operation
8. Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your purchase or contact the retailer where the product was purchased. Please have your model number (7.26QT Electric Air Fryer) and purchase date available when contacting support.
