EUYBIKE Electric Bike User Manual: Upgraded 40+mph Speed Version

1. Introduction and Safety Guidelines

Welcome to the EUYBIKE Electric Bike user manual. This guide provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

1.1 General Safety Warnings

• Always wear a helmet that meets safety standards when riding.
• Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
• Familiarize yourself with local laws and regulations regarding electric bikes.
• Do not operate the bike under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions or on excessively rough terrain until you are fully accustomed to the bike's handling.
• Ensure all quick-release mechanisms and fasteners are securely tightened before riding.

2. Product Overview

The EUYBIKE Electric Bike is designed for adults, featuring a powerful motor, full suspension, and a foldable frame. Key components and features are detailed below.

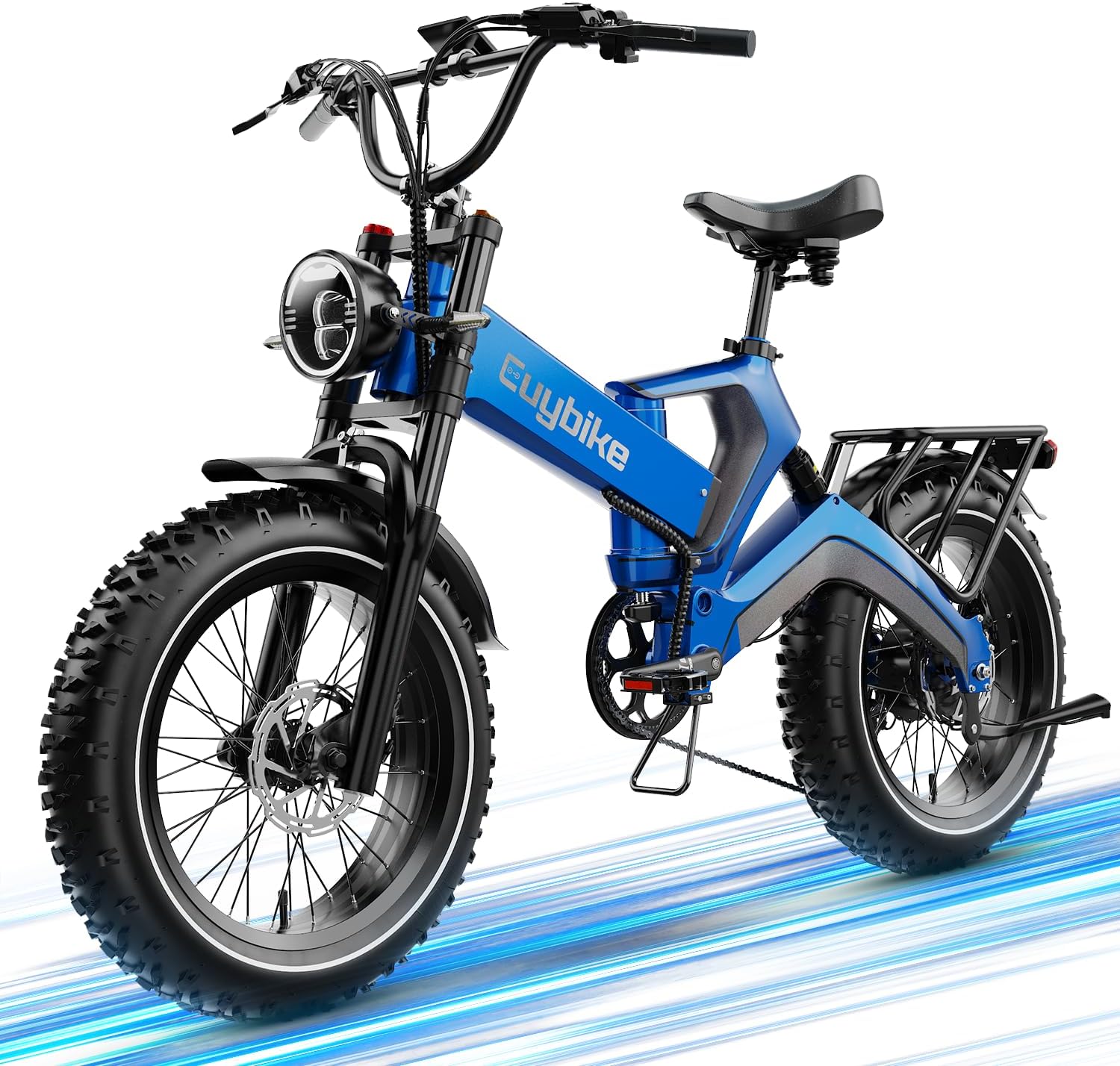

Figure 2.1: The EUYBIKE Electric Bike, showcasing its overall design and components.

2.1 Key Features

• Powerful Motor: Equipped with a 2000W peak brushless motor, providing speeds up to 40+ mph and climbing capability for gradients up to 35 degrees.
• Long-Range Battery: Features a 48V 35AH removable lithium-ion battery, offering up to 90 miles in pure electric mode or 130 miles with pedal assist.
• Dual Suspension System: Hydraulic fork alloy suspension and a shock-absorbing seat tube, complemented by a rear mechanical spring suspension system, enhance riding comfort and stability.
• Hydraulic Braking: Front and rear 4-piston hydraulic disc brakes (203mm) with a power-off function ensure precise and strong stopping power.
• All-Terrain Tires: 20"x4.0" puncture-resistant fat tires provide excellent stability across various terrains, including snow, sand, gravel, and road.
• Foldable Magnesium Alloy Frame: A lightweight yet durable magnesium alloy frame with a foldable design for easy transport and storage.
• Smart LCD Display: A multifunctional display provides real-time data such as speed, battery level, total mileage, and power assist level, with a built-in USB charging port.

Figure 2.2: Illustration of the 2000W peak motor, highlighting its power and speed capabilities.

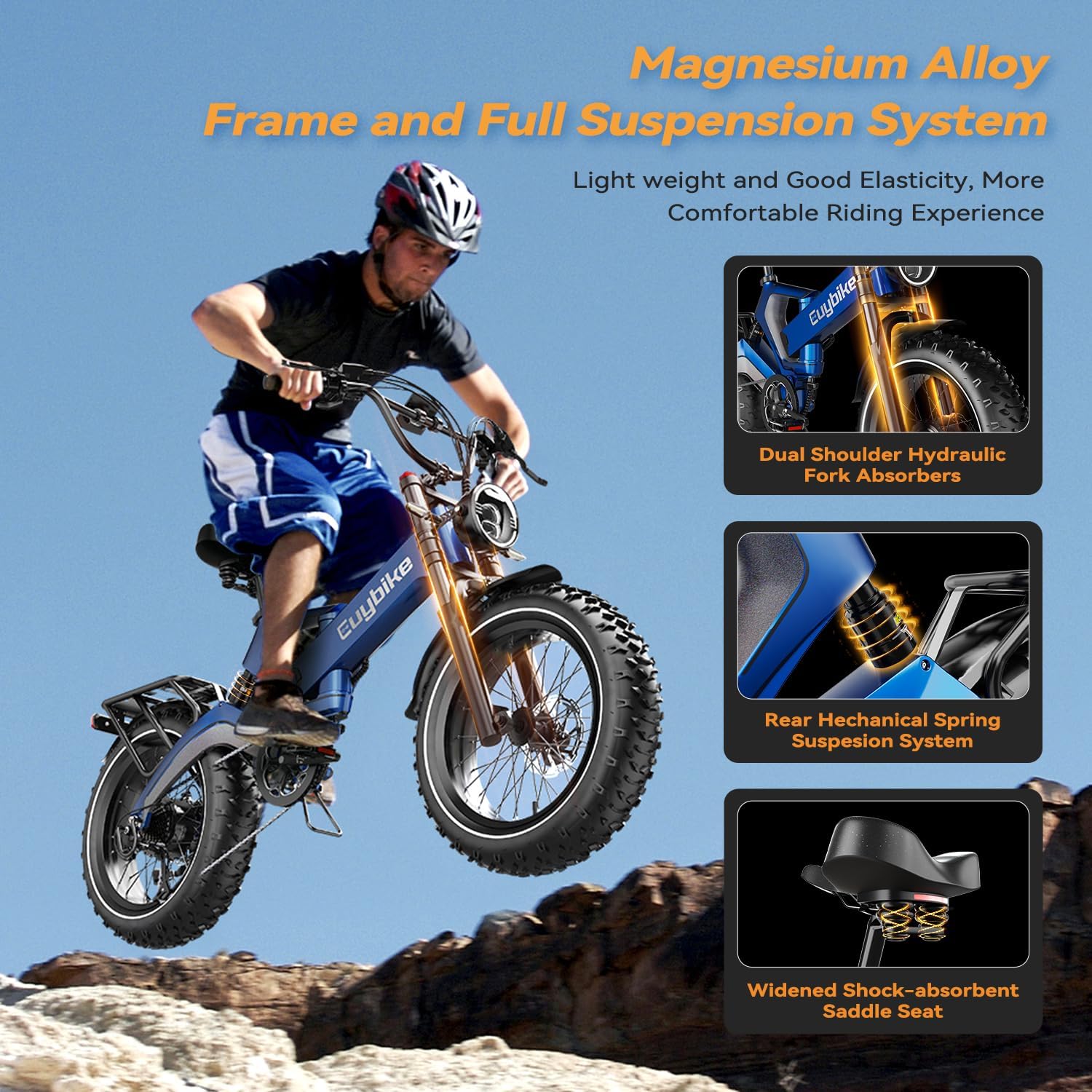

Figure 2.3: Depiction of the magnesium alloy frame and the full suspension system, including fork absorbers and rear spring suspension.

3. Setup and Initial Preparation

3.1 Unpacking and Assembly

Your EUYBIKE electric bike arrives mostly pre-assembled. The remaining assembly typically involves attaching the front wheel, handlebars, seat, pedals, and headlight. A tool kit is included for this purpose.

1. Carefully remove the bike and all components from the packaging.
2. Attach the front wheel, ensuring it is properly aligned and secured.
3. Install the handlebars, adjusting them to a comfortable riding position and tightening all bolts.
4. Insert the seat post and saddle, adjusting the height for your comfort and securing it with the quick-release lever.
5. Attach the pedals, noting that the left and right pedals are typically marked 'L' and 'R' and thread in opposite directions.
6. Install the headlight and any other accessories.
7. Perform a thorough check of all bolts and connections to ensure they are tight and secure.

Figure 3.1: The foldable design of the EUYBIKE, illustrating how it can be compacted for transport or storage after initial setup.

3.2 Battery Charging

Before your first ride, fully charge the battery. The battery can be charged while installed on the bike or removed.

• Locate the charging port on the battery or bike frame.
• Connect the charger to the battery, then plug the charger into a standard power outlet.
• The charging indicator on the charger will typically show red during charging and turn green when fully charged.
• A full charge takes approximately 6-8 hours. Avoid overcharging.

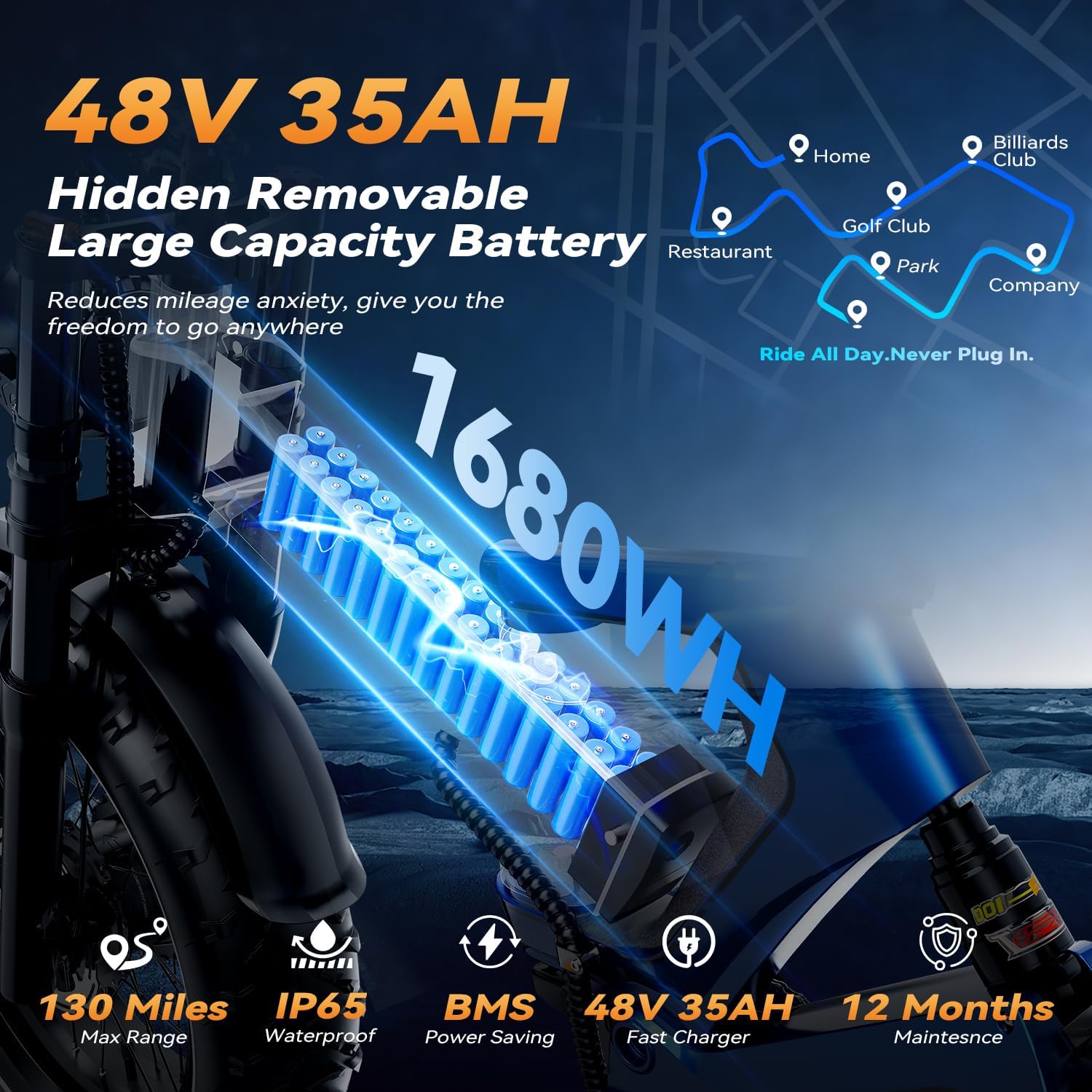

Figure 3.2: The 48V 35AH hidden removable battery, illustrating its capacity and integration into the bike frame.

4. Operating Instructions

4.1 Powering On and Off

To power on the bike, press and hold the power button on the LCD display. To power off, press and hold the same button.

4.2 Multifunctional LCD Display

The smart LED display provides crucial riding information and allows control over various functions.

Figure 4.1: The Smart LED Display, showing indicators for battery level, speed, mileage, PAS level, and control buttons.

• Battery Indicator: Shows the current charge level of the battery.
• Speed Value: Displays current riding speed.
• Total Mileage: Tracks the total distance traveled.
• PAS Level: Indicates the current pedal assist level (0-8). Adjust with '+' and '-' buttons.
• USB Charging Port: Allows charging of mobile devices.
• Controls: Includes horn switch, headlight switch, front and rear brake levers, and a thumb throttle.

4.3 Riding Modes

The EUYBIKE offers three distinct riding modes:

Figure 4.2: Visual representation of the three riding modes: Pure Electric, Pedal-Assist, and Pedal Mode.

1. Pure Electric Mode: Engages the motor via the thumb throttle for propulsion without pedaling.
2. Pedal-Assist Mode (PAS): Provides motor assistance as you pedal. The level of assistance can be adjusted (0-8) on the display.
3. Sports Mode (Pedal Mode): Operates as a traditional bicycle, relying solely on pedal power. The Shimano 8-speed gearing system allows for efficient pedaling.

4.4 Braking System

The bike is equipped with 4-piston dual hydraulic disc brakes for reliable stopping power.

Figure 4.3: Close-up of the 4-piston dual hydraulic braking system and Shimano 8-speed gears.

• Apply both front and rear brakes simultaneously for optimal stopping performance.
• The brakes include a power-off function that cuts motor power when applied.

4.5 Safety Lighting System

The integrated lighting system enhances visibility and safety.

Figure 4.4: Overview of the safety lighting system, including the bright LED headlight, brake light, and front/rear turn signals.

• LED Headlight: Provides illumination for night riding.
• Brake Light: Activates when brakes are applied.
• Turn Signals: Front and rear turn signals indicate your intended direction.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike.

5.1 Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Store the battery in a cool, dry place, ideally between 50-70% charge, if storing for extended periods.
• Avoid fully discharging the battery frequently.
• Do not expose the battery to extreme temperatures.

5.2 Brakes

• Regularly check brake pads for wear and replace them as needed.
• Inspect brake levers for proper function and ensure they engage smoothly.
• If braking performance diminishes, hydraulic fluid may need to be checked or bled by a qualified technician.

5.3 Tires

Figure 5.1: The 20"x4.0" all-terrain fat tire, designed for various road conditions.

• Maintain recommended tire pressure for optimal performance and safety. Refer to the tire sidewall for pressure specifications.
• Inspect tires for cuts, punctures, or excessive wear before each ride.

5.4 General Maintenance

• Keep the bike clean, wiping down the frame and components with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Lubricate the chain regularly to ensure smooth gear changes and prevent rust.
• Periodically check all bolts and fasteners for tightness.

6. Troubleshooting

This section addresses common issues you might encounter with your EUYBIKE electric bike.

7. Specifications

Detailed technical specifications for the EUYBIKE Electric Bike, Upgraded 40+mph Speed Version.

Figure 7.1: Detailed frame dimensions and recommended rider height for the EUYBIKE Electric Bike.

• Bike Type: Electric Bike
• Model Name: Electric Mountain Bike (Upgraded 40+mph Speed Version)
• Age Range: Adult
• Motor: 2000W/3000W Peak Brushless Motor
• Max Speed: 40+ mph
• Max Torque: 90 N.M
• Climbing Capability: Up to 35 degrees
• Battery: 48V 35AH Removable Lithium-ion
• Range (Pure Electric): Up to 90 miles
• Range (Pedal Assist): Up to 130 miles
• Charging Time: 6-8 hours
• Frame Material: Magnesium Alloy
• Suspension Type: Dual (Hydraulic Fork Alloy, Rear Mechanical Spring, Shock-absorbing Seat Tube)
• Wheel Size: 20 Inches
• Tire Type: 20"x4.0" Puncture-Resistant Fat Tires
• Brake Style: 4-Piston Dual Hydraulic Disc Brakes (203mm) with Power-off Function
• Number of Speeds: 8 (Shimano Gearing)
• Max Load Capacity: 400 LBS
• Ebike Weight: 80 LBS
• Special Features: Adjustable Seat, Digital Display, Foldable, LED Headlight, Brake Light, Turn Signals, Rear Rack, Rechargeable Phone Holder.

8. Warranty and Support

8.1 Manufacturer's Warranty

The EUYBIKE Electric Bike comes with a 1 Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

The warranty typically does not cover:

• Normal wear and tear.
• Damage caused by improper assembly or maintenance.
• Damage due to accidents, misuse, neglect, or unauthorized modifications.
• Consumable parts such as tires, brake pads, and chains unless defective at the time of purchase.

8.2 Customer Support

For technical assistance, warranty claims, or any questions regarding your EUYBIKE Electric Bike, please contact the seller or manufacturer's customer support. Refer to your purchase documentation for specific contact details.

When contacting support, please be prepared to provide:

• Your purchase order number or receipt.
• The model name and any serial numbers of your bike.
• A clear description of the issue you are experiencing.
