1. Introduction
This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your PUSOKEI 10X Hands-Free Binocular Glasses. Please read this manual thoroughly before using the product to ensure optimal performance and longevity. Keep this manual for future reference.
2. Product Overview
2.1 Package Contents
Upon opening your package, please verify that all the following items are included:
- 1 x Fishing Eyeglasses (Binocular Glasses)
- 1 x Lens Cloth
- 1 x Storage Box
- 1 x Pair Eye Covers (Horn-shaped light blocking)
- 1 x Neck Strap
- 1 x Pair Ear Hooks
- 1 x Nose Pad

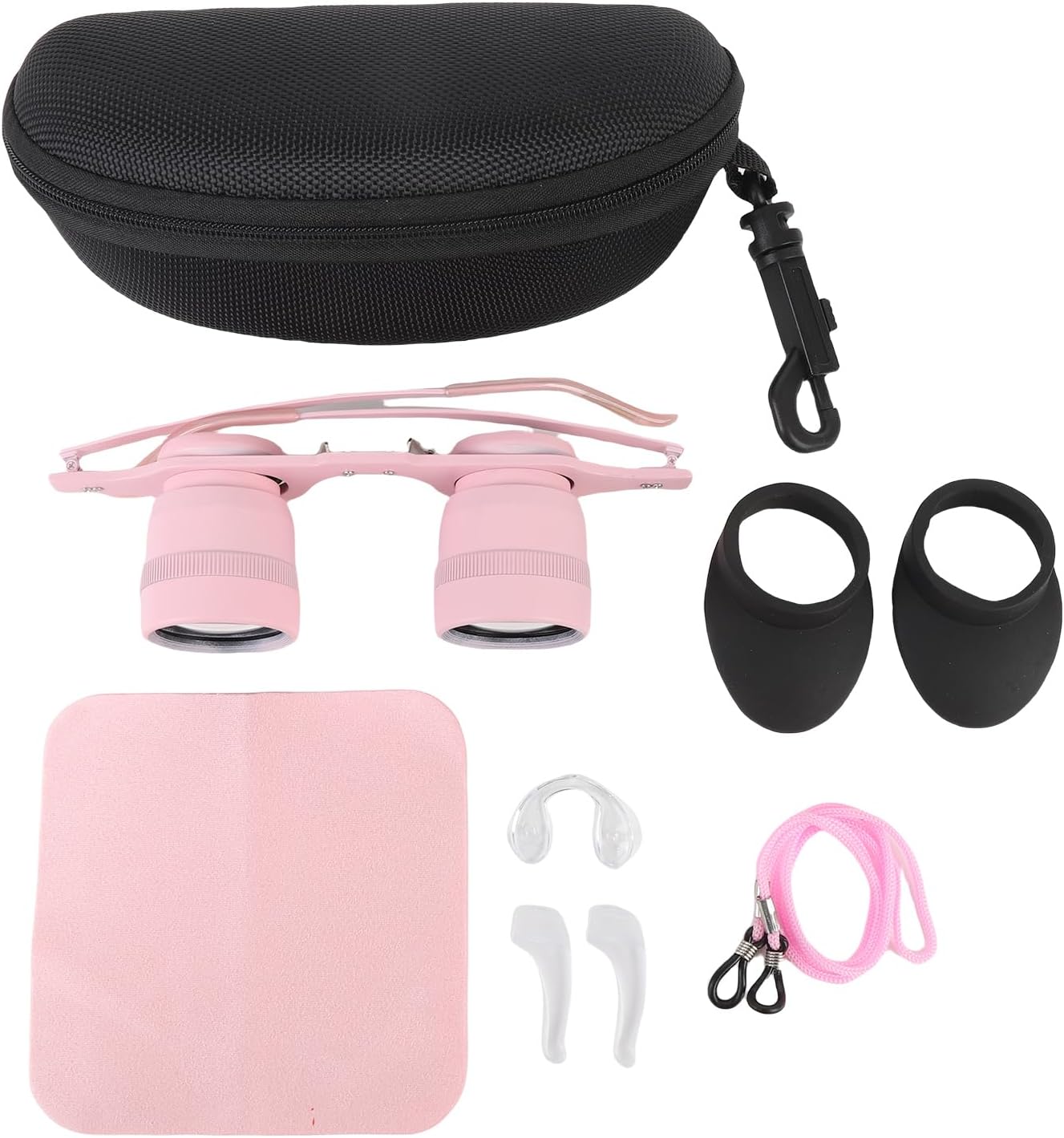

Figure 1: Contents of the PUSOKEI 10X Hands-Free Binocular Glasses package, including the glasses, lens cloth, storage box, eye covers, neck strap, ear hooks, and nose pad.
2.2 Key Features
- HD 10X Magnification: Features FMC multi-layer coating for enhanced light transmittance (90%), providing clear and detailed images.
- Independent Focus: Each eye can be focused separately with a 13mm eyepiece, suitable for users with varying vision needs.
- Comfortable Wear: Ergonomic design with silicone ear hooks and triangular nose pads ensures a secure and comfortable fit. Non-slip temples keep the glasses in place.
- Horn-Shaped Light Blocking Eye Covers: Rubber eye covers provide 360° light blockage, minimizing external stray light for clear viewing in various conditions.
- Versatile and Portable: Lightweight design with an included neck strap, ideal for activities such as fishing, concerts, and sports events.
Figure 2: The PUSOKEI 10X Hands-Free Binocular Glasses, showcasing their design and binocular lenses.
Figure 3: An illustration demonstrating the FMC multi-layer coating technology applied to the lenses for improved clarity.
3. Setup
Before first use, assemble the necessary accessories for comfortable wear.
- Attach Nose Pad: Gently slide the provided nose pad onto the bridge of the binocular glasses. Ensure it is securely fitted for comfort.
- Attach Ear Hooks: If desired, attach the ear hooks to the temples of the glasses for added stability, especially during active use.
- Attach Eye Covers: The horn-shaped eye covers can be placed around the eyepieces to block peripheral light.
- Attach Neck Strap: For hands-free carrying when not in use, attach the neck strap to the designated loops on the glasses frame.
Figure 4: Front view of the binocular glasses, highlighting the nose pad and the attachment points for eye covers.
4. Operating Instructions
4.1 Wearing the Glasses
Place the binocular glasses on your face like regular eyeglasses. Adjust the nose pad and ear hooks (if attached) to ensure a comfortable and stable fit. The non-slip temples are designed to keep the glasses secure during movement.
4.2 Focusing the Binoculars
The PUSOKEI 10X Hands-Free Binocular Glasses feature independent focus for each eye. Follow these steps to achieve a clear image:
- Focus Right Eye: Close your left eye. Rotate the focusing wheel on the right eyepiece until the image seen by your right eye is clear and sharp.
- Focus Left Eye: Close your right eye. Rotate the focusing wheel on the left eyepiece until the image seen by your left eye is clear and sharp.
- Fine-Tune: With both eyes open, make minor adjustments to each focusing wheel as needed to achieve a perfectly merged and clear image.
Figure 5: The binocular glasses, illustrating the independent focus capability for each eyepiece.

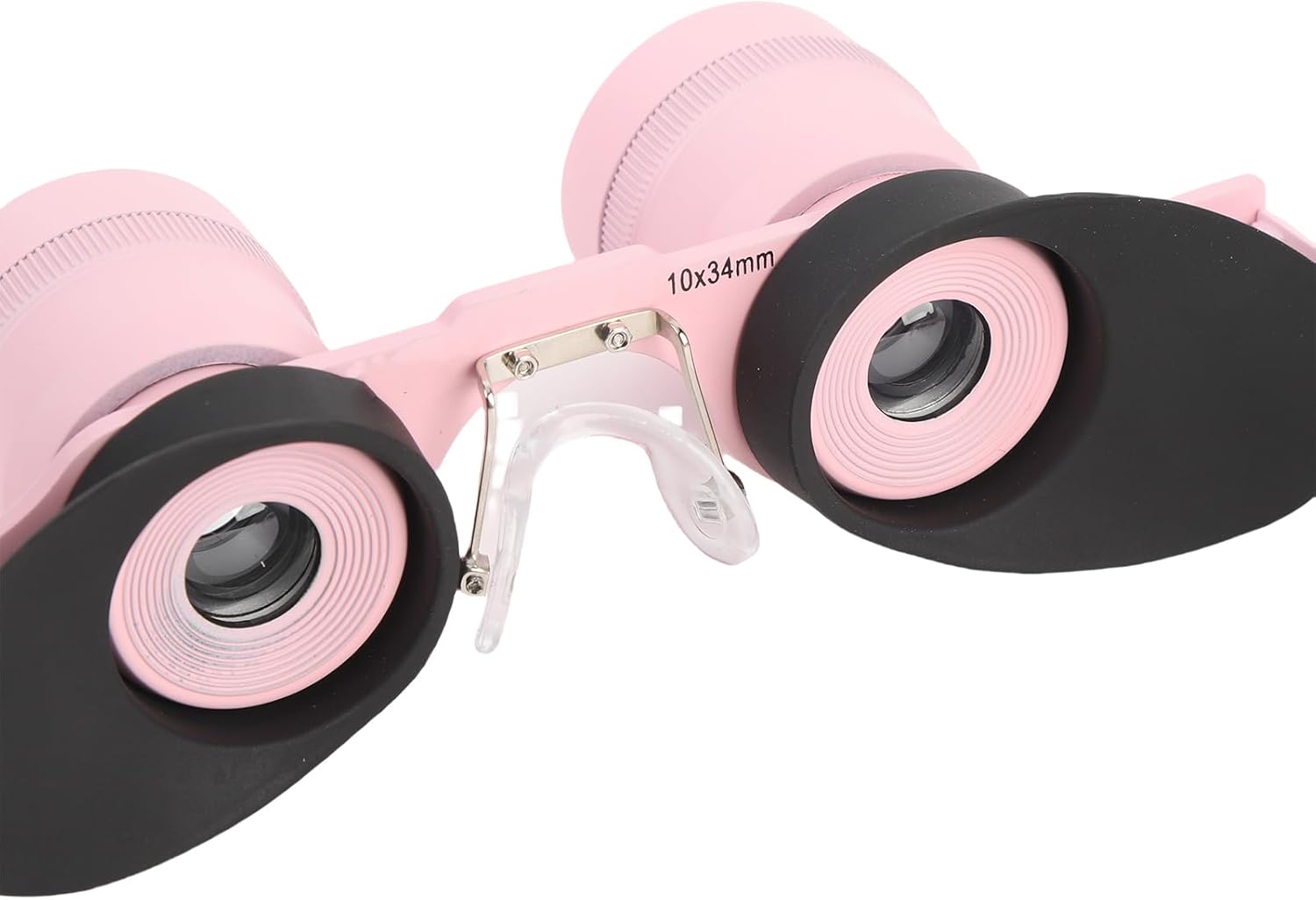

Figure 6: A detailed view of the eyepieces, showing the focusing rings and the 10x34mm marking.
4.3 Using Light Blocking Eye Covers
The included horn-shaped rubber eye covers are designed to block external stray light, enhancing image clarity, especially in bright or low-light conditions. Simply fit them over the eyepieces before wearing the glasses.
5. Maintenance and Care
Proper care will extend the life and maintain the performance of your binocular glasses.
- Cleaning Lenses: Use only the provided lens cloth or a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lenses to remove dust or smudges. Avoid using abrasive materials or harsh chemicals.
- Cleaning Frame: The frame can be wiped with a soft, damp cloth. Do not immerse the glasses in water.
- Storage: When not in use, store the binocular glasses in the provided storage box to protect them from dust, scratches, and impacts.
- Avoid Extreme Conditions: Do not expose the glasses to extreme temperatures, direct sunlight for prolonged periods, or high humidity.
6. Troubleshooting
If you encounter issues with your binocular glasses, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Image is blurry or unclear. | Incorrect focus adjustment. | Refer to Section 4.2 'Focusing the Binoculars' and adjust each eyepiece independently until the image is sharp. |
| Peripheral light interference. | External light sources affecting view. | Ensure the horn-shaped light blocking eye covers are properly installed and positioned. |
| Glasses feel uncomfortable or slip. | Improper fit or adjustment. | Adjust the nose pad and ensure ear hooks (if used) are correctly positioned. The non-slip temples should provide a secure fit. |
| Lenses appear dirty or smudged. | Dust, fingerprints, or debris on lenses. | Clean lenses gently with the provided lens cloth as described in Section 5 'Maintenance and Care'. |
7. Specifications
- Item Type: Fishing Eyeglasses (Binocular Glasses)
- Magnification: 10X
- Eyepiece Size: 13mm
- Material: Alloy, Optical Glass, Silicone, Rubber
- Frame Length: Approximately 146mm / 5.75 inches
- Lens Coating: FMC Multi-layer Coating
- Product Weight: 6.5 ounces (approximately 184 grams)
- Package Dimensions: 7.09 x 3.54 x 3.15 inches
- Manufacturer: PUSOKEI
Figure 7: Measurement of the binocular glasses frame length, approximately 146mm.
8. Warranty and Support
For information regarding warranty coverage, product support, or to report any issues not covered in this manual, please contact your retailer or the manufacturer directly. Please retain your proof of purchase for warranty claims.
