RVONOW Full Bed Frame with Velvet Upholstered Headboard Instruction Manual

1. Introduction

Thank you for choosing the RVONOW Full Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.

Important Safety Information

• Always ensure children are supervised when playing around the bed.
• Do not exceed the maximum weight limit of 800 lbs.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
• Keep small parts away from children during assembly to prevent choking hazards.
• Use the bed frame only for its intended purpose.

2. Package Contents

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard
• Bed Frame Components (Side Rails, Center Support, Legs)
• Metal Slats
• Hardware Pack (Screws, Bolts, Allen Wrench)
• Installation Manual

3. Setup and Assembly

The RVONOW Full Bed Frame is designed for easy assembly. Follow the numbered steps in the included installation manual. It is recommended to have two people for assembly.

Assembly Tips:

• Lay out all components on a soft, clean surface to prevent scratches.
• Identify each part using the labels provided in the installation manual.
• Do not fully tighten screws until all parts are loosely assembled to allow for adjustments.
• Pay attention to the orientation of parts, especially where holes are located.

Figure 3.1: Overview of embedded design, easy assembly, and noise-free features.

Figure 3.2: Simplified embedded installation process for easy assembly.

4. Operation and Usage

Mattress Compatibility

This bed frame is designed to accommodate mattresses with a height between 10 and 14 inches. A box spring is not required due to the robust metal slat support system.

Figure 4.1: Recommended mattress height and embedded design preventing mattress sliding.

Figure 4.2: Mattress height recommendations.

Underbed Storage

The bed frame provides 14 inches of clearance underneath, offering ample space for storage. This helps maximize bedroom space and maintain an organized environment.

Figure 4.3: Underbed storage dimensions.

Noise-Free Design

The metal slats are equipped with special EVA Silent Foam to minimize friction and eliminate squeaks, ensuring a quiet sleeping environment.

Figure 4.4: Noise-free design with EVA foam.

Upholstered Headboard

The headboard is wrapped in high-quality velvet fabric and filled with high-resilience memory foam, providing comfortable support.

Figure 4.5: Soft upholstered headboard detail.

Figure 4.6: Upholstered backrest and frame materials.

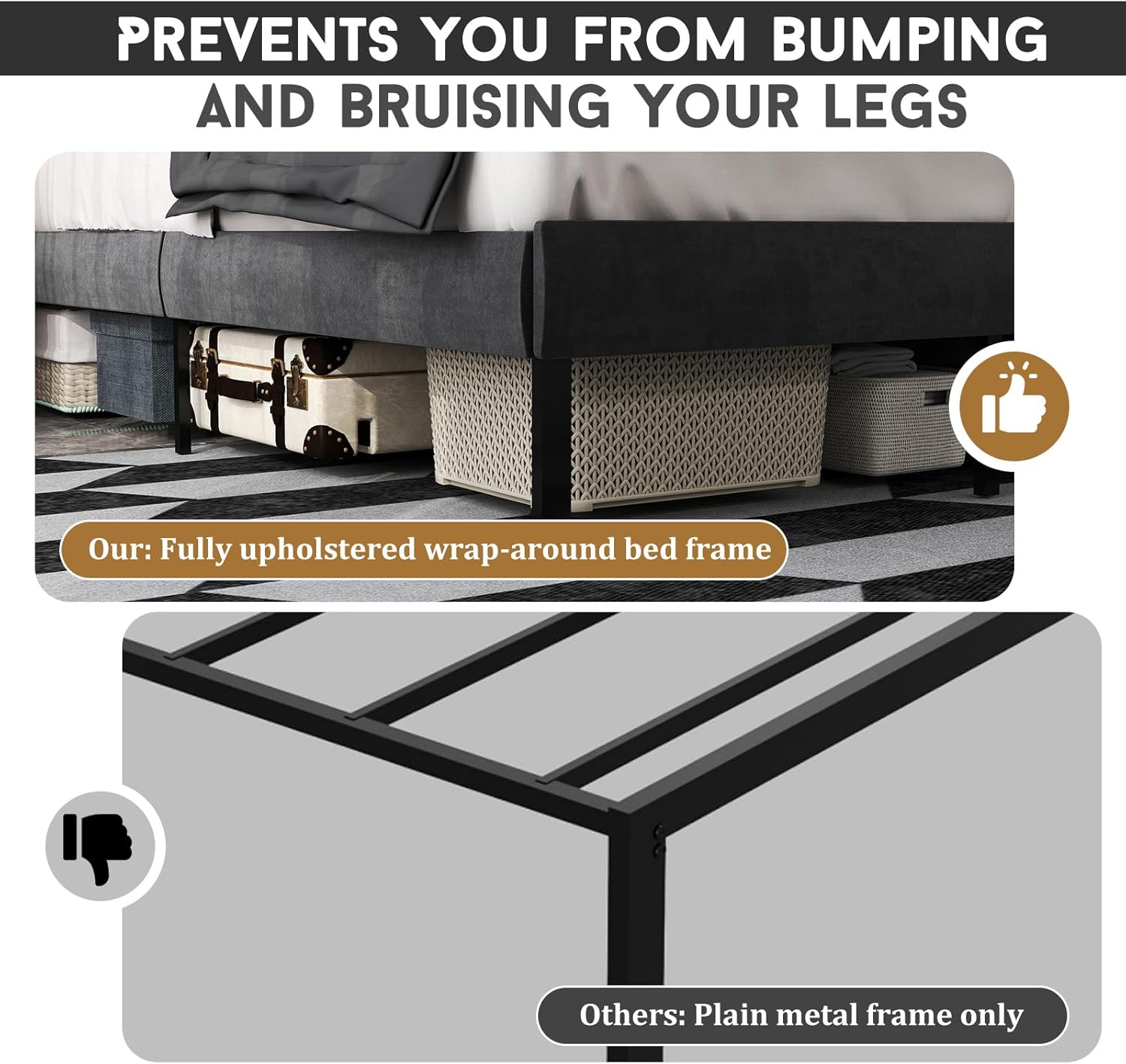

Safety Protection

The fully upholstered wrap-around design covers the metal frame, reducing the risk of bumps and bruises from direct contact with metal edges.

Figure 4.7: Safety protection from upholstered design.

5. Maintenance

To ensure the longevity and appearance of your RVONOW bed frame, follow these maintenance guidelines:

• Cleaning the Upholstery: The velvet fabric is designed to be easy to clean. For light dust, use a soft brush or vacuum with an upholstery attachment. For spills, blot immediately with a clean, dry cloth. For stubborn stains, consult a professional upholstery cleaner. Avoid harsh chemicals.
• Cleaning the Metal Frame: Wipe the metal components with a damp cloth and mild detergent if necessary. Dry thoroughly to prevent rust.
• Regular Inspection: Periodically check all bolts and connections to ensure they remain tight. Re-tighten as needed to maintain stability and prevent noise.
• Avoid Excessive Weight: Do not place excessive weight on the bed frame beyond the specified 800 lbs capacity.

6. Troubleshooting

If you encounter any issues with your bed frame, refer to the following common problems and solutions:

• Squeaking Noises: Ensure all bolts and screws are fully tightened. The bed frame features EVA Silent Foam on the slats to prevent noise; if squeaking persists, re-check the assembly of the slats and connections.
• Difficulty Aligning Holes During Assembly: Ensure that all parts are oriented correctly according to the instruction manual. Do not fully tighten any screws until all components are loosely fitted, allowing for minor adjustments.
• Mattress Sliding: The bed frame incorporates an embedded design to prevent mattress shifting. Ensure the mattress is properly seated within the frame's recessed corners.
• Missing or Damaged Parts: If you find any parts missing or damaged upon arrival, please contact RVONOW customer service immediately for assistance.

7. Specifications

Figure 7.1: Detailed product dimensions and specifications.

Figure 7.2: Visual representation of product specifications.

8. Warranty and Support

RVONOW is committed to providing quality products and customer satisfaction. If you experience any issues such as damaged or missing parts, or require assistance with assembly or operation, please do not hesitate to contact our customer service team.

Our dedicated service team is available to provide timely and satisfactory solutions to your inquiries.

For support, please refer to the contact information provided with your purchase documentation or visit the official RVONOW website.
