HOMRELEXA BGY01 Big and Tall Office Chair Instruction Manual

1. Product Overview

The HOMRELEXA BGY01 Office Chair is designed for comfort and versatility, featuring a wide seat, flip-up armrests, a reclining backrest, and an integrated footrest. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal use of your chair.

Image: The HOMRELEXA BGY01 office chair in pink, showcasing its wide design and flip-up armrests, with a cat comfortably resting on one of the extended armrests.

2. Included Components

Before beginning assembly, please ensure all components are present and undamaged. The package includes:

• Basic Components of Office Chair (Seat, Backrest, Armrests, Footrest)
• Chair Base with Casters
• Gas Lift Cylinder
• Installation Tools and Accessories (Hex key, Screws)
• Instruction Manual (this document)

Image: An illustration detailing the chair's components, highlighting the 360° swivel, 3-inch adjustable height, SGS-certified gas lift, and silent rolling casters.

3. Setup and Assembly

Assembly of the HOMRELEXA BGY01 chair is designed to be straightforward and typically takes approximately 15 minutes. All necessary hardware and tools are included.

Assembly Steps:

1. Attach the casters to the chair base.
2. Insert the gas lift cylinder into the center of the chair base.
3. Secure the armrests and footrest mechanism to the underside of the seat cushion using the provided screws and hex key.
4. Attach the backrest to the seat cushion.
5. Place the assembled seat and backrest onto the gas lift cylinder.

Image: An exploded diagram illustrating all parts of the chair and their connections, aiding in visual assembly.

4. Operating Instructions

4.1. Flip-Up Armrests

The armrests can be adjusted from 90° to 180° to expand the seat width, allowing for cross-legged sitting or accommodating pets. To adjust, simply push the armrests inward to release the locking mechanism, then press them down or lift them to the desired angle until locked.

Image: Comparison of the chair with armrests in an upright position for work and flipped down for relaxation or accommodating a pet.

4.2. Reclining Backrest and Footrest

The chair features a 135° reclining backrest and a built-in footrest for enhanced comfort during breaks or relaxation. Use the lever located under the seat to adjust the recline angle. The footrest can be pulled out and retracted as needed.

Image: A person relaxing in the chair with the backrest reclined to 135 degrees and the footrest extended.

4.3. Height Adjustment and Swivel

Adjust the seat height using the lever under the seat to find your ergonomic position. The chair also offers a full 360° swivel for easy movement and access around your workspace.

Image: Various active sitting positions demonstrating the chair's adaptability for different tasks and relaxation.

5. Maintenance

5.1. Cleaning Instructions

For the Teddy Fleece material, regular light vacuuming can help maintain its appearance. For spills, gently blot with a clean, damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners. For the distressed tech fabric, it is designed for easy cleaning and scratch resistance; wipe with a damp cloth as needed.

Image: A close-up view of the plush teddy velvet fabric, highlighting its soft, breathable, skin-friendly, and pill-resistant qualities.

5.2. General Care

• Periodically check all screws and bolts to ensure they are tight.
• Avoid exposing the chair to direct sunlight for prolonged periods to prevent fading.
• Do not exceed the maximum weight recommendation of 400 pounds.

6. Troubleshooting

If you encounter any issues with your HOMRELEXA BGY01 chair, please refer to the following common solutions:

• Chair not adjusting height or reclining properly: Ensure the levers are fully engaged or disengaged. Check for any obstructions under the seat mechanism.
• Chair feels unstable or makes noise: Verify that all assembly screws are securely tightened. Ensure the chair is on a flat, even surface.
• Armrests are difficult to flip: Ensure you are pushing them inward to release the locking mechanism before attempting to adjust their position.
• Footrest is stiff or difficult to extend/retract: Check for any debris or obstructions in the footrest mechanism. Apply a small amount of silicone lubricant if necessary.
• Chair keeps lowering gradually: This may indicate an issue with the gas lift cylinder. Contact customer support for assistance.

For further assistance, please contact HOMRELEXA customer support.

7. Specifications

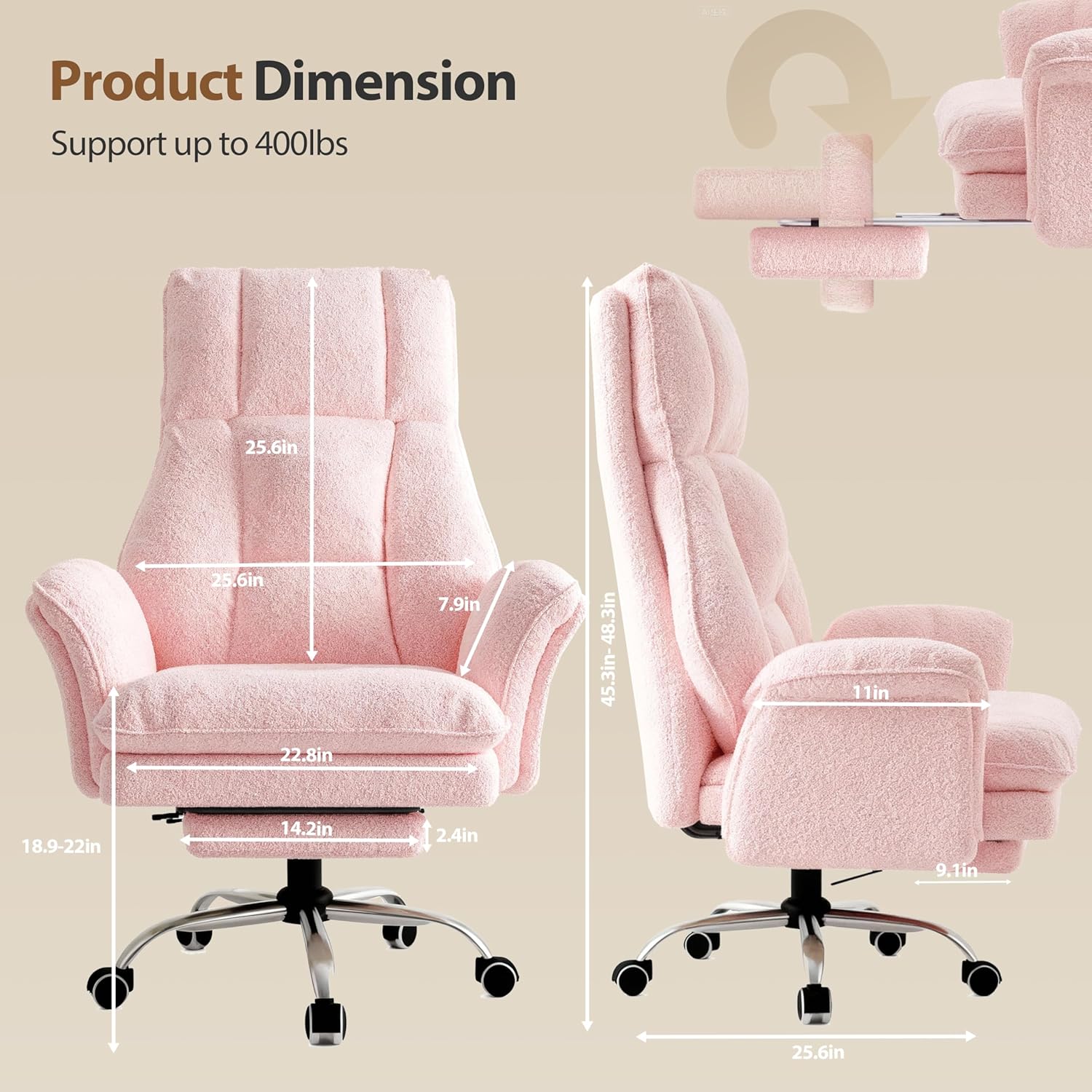

Image: A diagram illustrating the precise dimensions of the HOMRELEXA BGY01 office chair.

8. Warranty and Support

HOMRELEXA products are manufactured with quality and customer satisfaction in mind. For any warranty claims, product support, or inquiries, please refer to the contact information provided with your purchase or visit the official HOMRELEXA website. Additional protection plans may be available for purchase separately.
