1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Generic MVB Series Centralized Lubrication System Grease Distributor Block. This progressive divider valve is designed to accurately and consistently distribute lubricant to multiple lubrication points within a centralized lubrication system. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product.
2. Product Overview
The MVB Series grease distributor block is a critical component in centralized lubrication systems, ensuring that each lubrication point receives a precise amount of grease. Its robust design and progressive operation guarantee reliable performance even in demanding industrial environments.
Key Features:
- Easy Adjustment and Distribution: Features a simple and compact structure, allowing for straightforward adjustment and even distribution of lubricant.
- Reliable Performance: Manufactured with advanced production technology and excellent air tightness, ensuring consistent and dependable operation.
- Corrosion Resistance: Constructed from durable alloy material, providing anti-rust and corrosion-resistant properties for use in harsh environments.
- Environmental Durability: Designed to withstand challenging conditions, ensuring long-lasting performance and reliability.
- Consistent Lubrication: Delivers precise and reliable lubricant distribution, crucial for the efficient operation of machinery.
Figure 2.1: Overall view of the MVB Series Centralized Lubrication System Grease Distributor Block. This image shows the main body of the distributor block with its various ports and the microswitch assembly.
Figure 2.2: Side view of the MVB Series grease distributor block, illustrating the arrangement of multiple outlet ports for lubricant distribution.
Figure 2.3: MVB Series grease distributor block with an attached microswitch and its associated wiring, used for monitoring lubrication cycles.
3. Specifications
The following table details the technical specifications for the MVB Series Centralized Lubrication System Grease Distributor Block:
| Parameter | Value |
|---|---|
| Model Series | MVB (2-14 Way) |
| Flow Rate per Cycle | 0.17 ml/cyc |
| Maximum Pressure | 25 Mpa |
| Starting Pressure | 1.5 Mpa |
| Inlet Pipe Diameter | 6mm (8mm customizable) |
| Outlet Pipe Diameter | 6mm (customizable) |
| Inlet Thread | M10X1 |
| Outlet Thread | M10X1 |
| Hose Inner Diameter | 6mm |
| Connection Type | Male |
| Manufacturing Technics | Casting |
| Material | Alloy |
| Lubricating Viscosity | (NLGI)#000, #00, #0, #1, #2 |
| Batteries Required | No |
Figure 3.1: Close-up view of the outlet ports and adjustment screws on the MVB Series block, indicating the precision of the distribution system.
4. Setup and Installation
Proper installation is crucial for the optimal performance of the grease distributor block. Follow these guidelines:
- Mounting: Securely mount the distributor block to a stable surface near the lubrication points. Ensure it is easily accessible for inspection and maintenance.
- Inlet Connection: Connect the main lubricant supply line (6mm diameter, M10X1 thread) from the centralized lubrication pump to the inlet port of the distributor block. Ensure all connections are tight to prevent leaks.
- Outlet Connections: Connect individual lubrication lines (6mm diameter, M10X1 thread) from each outlet port of the distributor block to the respective lubrication points on the machinery. Verify that each line is correctly routed and secured.
- Microswitch Connection (if applicable): For models equipped with a microswitch (like the MVB 12 Way with microswitch), connect the microswitch wiring to the lubrication system's control unit. This allows for monitoring of lubrication cycles and fault detection. Refer to your system's control unit manual for specific wiring diagrams.
- System Priming: After all connections are made, slowly prime the lubrication system to fill the lines and the distributor block with grease. Observe for any leaks during this process.

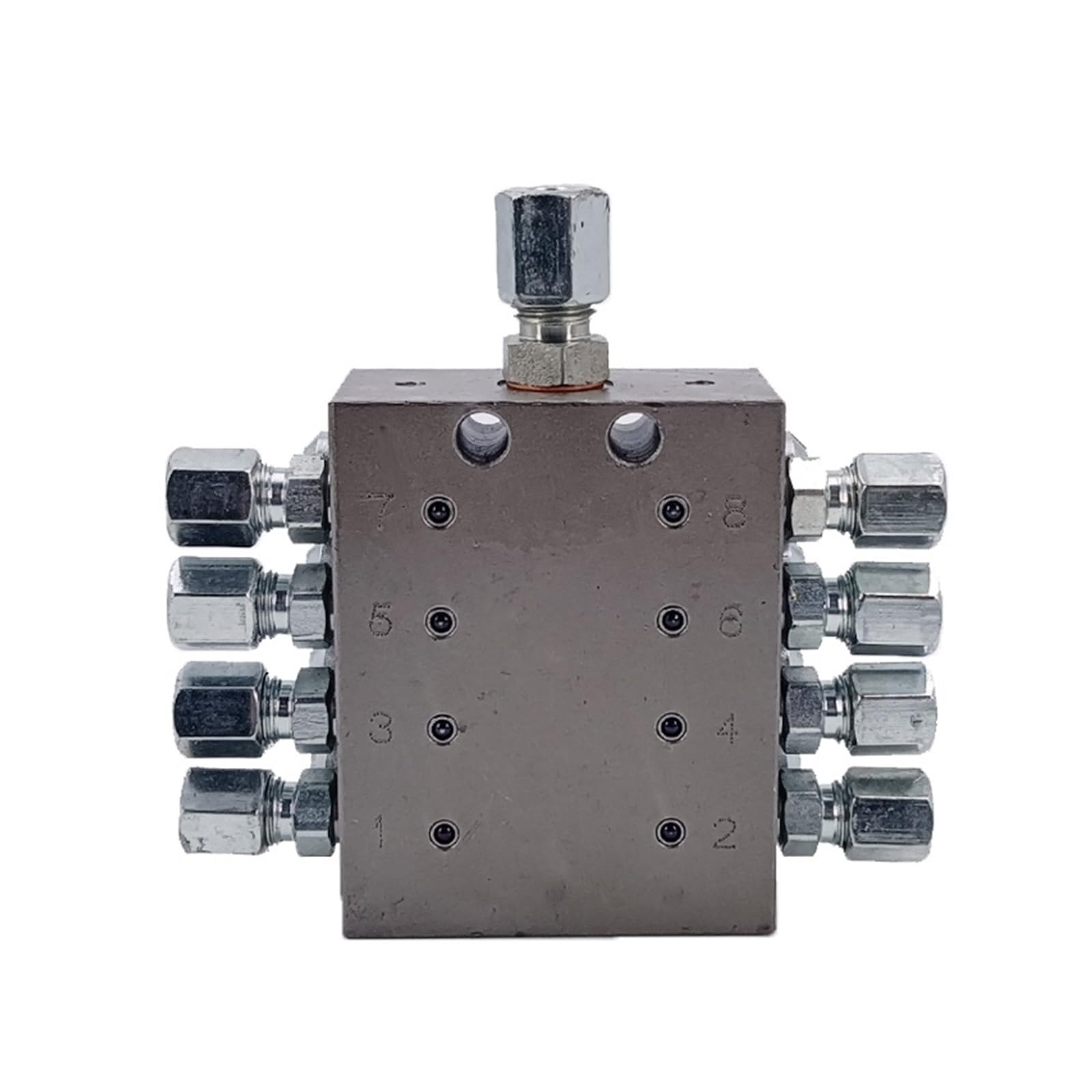

Figure 4.1: Front view of the MVB Series grease distributor block, displaying the numbered outlet ports for organized connection to lubrication points.
5. Operation
The MVB Series distributor block operates on a progressive principle, meaning that each outlet port dispenses lubricant in a sequential manner. This ensures that all connected lubrication points receive grease before the cycle repeats.
- System Activation: Activate the centralized lubrication pump. The pump will supply pressurized grease to the inlet of the distributor block.
- Progressive Distribution: The internal pistons within the block will move sequentially, dispensing 0.17 ml of grease per cycle from each outlet. This progressive action guarantees that no lubrication point is skipped.
- Monitoring (with Microswitch): If your model includes a microswitch, the control unit will register each complete cycle of the distributor block, allowing for real-time monitoring of lubrication status.
- Flow Adjustment: While the base flow rate is fixed, the overall lubrication frequency can be adjusted via the centralized lubrication pump's settings. Individual outlet flow rates are determined by the block's design.
6. Maintenance
Regular maintenance ensures the continued reliability and performance of your MVB Series grease distributor block.
- Visual Inspection: Periodically inspect the distributor block and all connected lines for any signs of leaks, damage, or corrosion. Address any issues promptly.
- Cleanliness: Keep the exterior of the distributor block clean to prevent dirt and debris from entering the system.
- Lubricant Quality: Ensure that the centralized lubrication system is supplied with the correct type and viscosity of grease as specified (NLGI #000, #00, #0, #1, #2). Using incorrect lubricants can impair performance and cause damage.
- Functionality Check: For models with a microswitch, periodically verify that the microswitch is functioning correctly and reporting cycles to the control unit.
7. Troubleshooting
Refer to the following table for common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No grease dispensed from an outlet. | Blocked lubrication line or lubrication point. | Inspect and clear the affected line or lubrication point. |
| Uneven grease distribution. | Air in the system; incorrect lubricant viscosity. | Bleed the system to remove air; verify lubricant type and viscosity. |
| Grease leakage from connections. | Loose connections; damaged seals or threads. | Tighten connections; replace damaged seals or fittings. |
| Microswitch not registering cycles. | Faulty wiring; microswitch malfunction. | Check wiring connections; test or replace microswitch. |
| System pressure too low. | Insufficient pump pressure; major leak in the system. | Check pump operation; inspect entire system for leaks. |
If troubleshooting steps do not resolve the issue, contact customer support.
8. Warranty and Support
Warranty Information:
This Generic MVB Series Centralized Lubrication System Grease Distributor Block is covered by a 6-month warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accidents, or unauthorized modifications.
Customer Support:
For technical assistance, warranty claims, or any questions regarding your product, please contact your retailer or the manufacturer's customer service department. Please have your product model number (MVB 12 Way) and purchase information ready when contacting support.
