BAOSHISHAN Hydroponics Growing System

1. Introduction and Overview

The BAOSHISHAN Hydroponics Growing System Model B6100 is designed for indoor gardening, allowing you to grow a variety of vine plants and other vegetables without soil. This system features a 3-tier climbing trellis, an automatic water circulation system, and includes a handheld pollinator and vine securing clips to support healthy plant growth. Crafted from food-grade ABS material, it ensures a safe and durable environment for your edible plants.

This system is ideal for small spaces such as apartments, kitchens, or balconies, and can be expanded by connecting multiple units. It is designed to utilize natural sunlight, making it suitable for placement near sunny windows or outdoor areas.

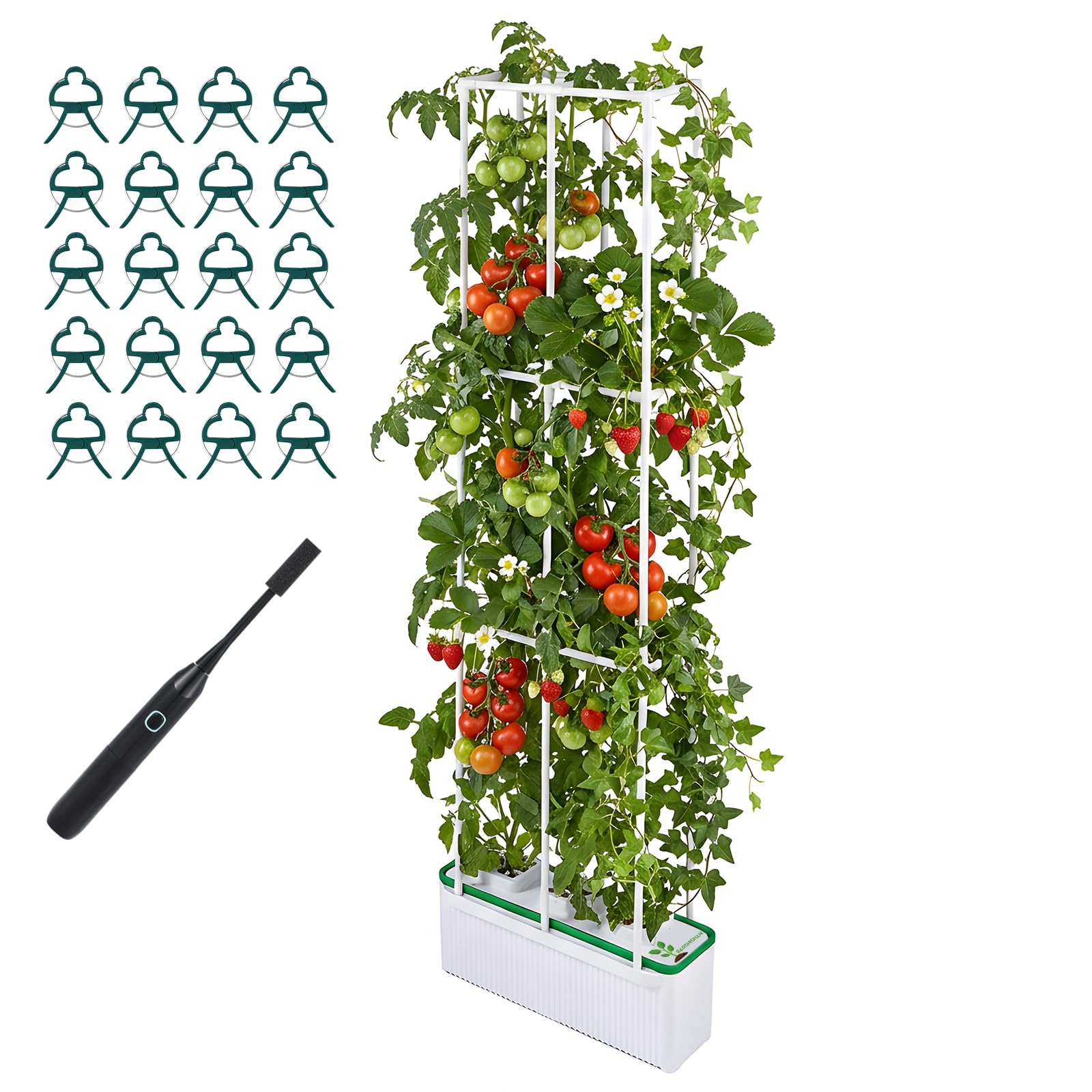

Image: The BAOSHISHAN Hydroponics Growing System, showcasing its space-saving design and adjustable trellis for growing plants like tomatoes.

2. Setup Instructions

Follow these steps to assemble your BAOSHISHAN Hydroponics Growing System. For a visual guide, please refer to the installation video below.

1. Unpack Components: Carefully remove the green basin and all accessories from the main unit. Ensure all parts listed in the 'Product Package & Parameter' section (Section 6) are present.
2. Reinstall Basin: Place the green basin back into its original orientation within the main unit.
3. Insert Water Level Float: Locate the water level float and insert it into the designated slot on the top cover.
4. Assemble Trellis - First Layer: Install the longest climbing trellis pieces (19.7 inches) into the designated holes on the top cover.
5. Install Cross Connectors: Attach the cross connectors to the top ends of the installed trellis pieces.
6. Install T Connectors: Attach the T connectors to the top ends of the cross connectors.
7. Assemble Trellis - Second Layer: Install the shortest climbing trellis pieces (5.1 inches) into the T connectors.
8. Assemble Trellis - Third Layer: Install the medium-length climbing trellis pieces (6.5 inches) into the remaining connectors to complete the trellis structure.
9. Add Growing Medium and Seeds: Pour your chosen growing medium (e.g., clay pebbles, sold separately) into the plant pots. Place your seeds on top of the medium and cover the pots with their lids.
10. Fill Water Tank: Add 7 liters (1.85 gallons) of water to the tank. Ensure the water level is appropriate for the system.
11. Connect Power: Plug the power adapter into the 'INPUT' port on the system and then into a power outlet. The system will now be operational.

Installation Video Guide:

Video: A step-by-step guide demonstrating the assembly process for the BAOSHISHAN Hydroponics Growing System, including unpacking, connecting trellis components, adding growing medium, filling the water tank, and powering on the unit.

Image: Detailed view of the product package contents and parameters, illustrating each component required for assembly.

3. Operating Instructions

Automatic Water Circulation System

The system is equipped with a smart water circulation system. Once powered on, the pump automatically circulates water from the base reservoir to the top, providing continuous hydration to your plants. An electronic controller monitors the water level and triggers an alarm, stopping the pump when water runs low, preventing damage and ensuring efficient water usage.

Image: Visual representation of the auto-cycle watering system, highlighting the water flow and the low-water alarm feature.

Water Refill and Monitoring

The system features an easy refill design, allowing you to add water in seconds without needing to remove lids. The smart water monitoring system provides alerts to ensure your plants never dry out.

Image: Demonstrates the easy refill process and the smart water level monitoring feature to keep plants hydrated.

Using the Pollinator

The included handheld pollinator helps boost hydroponic yields by up to 30%. It mimics insect vibrations for precise pollination. The soft silicone tips protect delicate plants like tomatoes and peppers. It operates on one AA battery (not included). Ensure the battery is inserted correctly before use.

Image: The handheld pollinator in action, showing its use on a plant flower and its battery compartment.

Using Vine Securing Clips

The sturdy vine securing clips are designed to guide and support climbing plants such as tomatoes, cucumbers, and beans. Attach the clips to the trellis and gently secure the plant stems to prevent sagging, breakage, and tangling. This promotes healthier and more productive growth.

Image: Illustrates the benefit of vine fixing clips in keeping plants tidy and supported, preventing stem damage.

Plant Placement and Sunlight

This hydroponic system is designed to work with natural environments and does not include grow lights. For optimal growth, place the system near sunny windows, on patios, or in outdoor areas where plants can receive full-spectrum natural light. This enhances flavor, color, and growth while saving on electricity costs.

Recommended Plants

The system supports a variety of plants:

• Top & Middle Tiers (Vining Plants): Cucumber, Tomato, Green Beans, Pumpkin, Sweet Potato Leaves, Eggplant, Watermelon, Okra.
• Bottom Tier (Non-Climbing Vegetables): Lettuce, Basil, Chili Pepper, Chicory, Radish, Bok Choy.

Image: Guide to suitable plants for different tiers of the hydroponic system, including vining and non-climbing varieties.

4. Maintenance

• Water Level: Regularly check the water level using the float indicator. Refill the tank when the water level is low to ensure continuous hydration.
• Nutrient Solution: Hydroponic systems require nutrient solutions. Follow the instructions provided with your chosen hydroponic nutrients for proper mixing and replenishment schedules. Typically, the nutrient solution should be changed every 1-2 weeks to maintain optimal plant health.
• Cleaning: Periodically clean the water reservoir and pump to prevent algae buildup and ensure efficient operation. Disconnect power before cleaning. Use a soft brush and mild soap, then rinse thoroughly.
• Plant Health: Monitor your plants for any signs of pests or diseases. Address issues promptly to prevent spread.
• Trellis Adjustment: As plants grow, adjust the vine securing clips and guide the vines along the trellis to provide adequate support.

5. Troubleshooting

• Pump Not Working:
  - Check if the power adapter is securely plugged into both the system and the power outlet.
  - Ensure the water level is not too low, as the system has an automatic shut-off feature for low water. Refill the tank if necessary.
  - Inspect the pump for any blockages or debris. Clean if obstructed.
• Water Level Alarm:
  - The alarm indicates that the water level in the reservoir is critically low. Refill the tank immediately with water and nutrient solution.
• Poor Plant Growth:
  - Insufficient Light: Ensure the system is placed in an area receiving adequate natural sunlight. If natural light is limited, consider supplementing with an external grow light (not included).
  - Nutrient Imbalance: Verify that the nutrient solution is mixed correctly and replenished regularly. Check the pH level of your solution, as plants thrive within specific pH ranges.
  - Overcrowding: Ensure plants have enough space to grow. Thin out seedlings if necessary.
  - Temperature: Maintain an optimal room temperature for plant growth.
• Algae Growth:
  - Algae can grow in nutrient-rich water exposed to light. Ensure the reservoir is covered as much as possible. Regular cleaning of the reservoir and changing the nutrient solution will help prevent algae.
• Trellis Instability:
  - Ensure all trellis components and connectors are securely fitted during assembly. If plants become very heavy, additional external support may be required.

6. Specifications

7. Warranty and Support

For any missing parts or issues with your BAOSHISHAN Hydroponics Growing System, please contact BAOSHISHAN customer support directly. Refer to your purchase documentation for specific warranty details and contact information. It is recommended to keep your proof of purchase for warranty claims.
